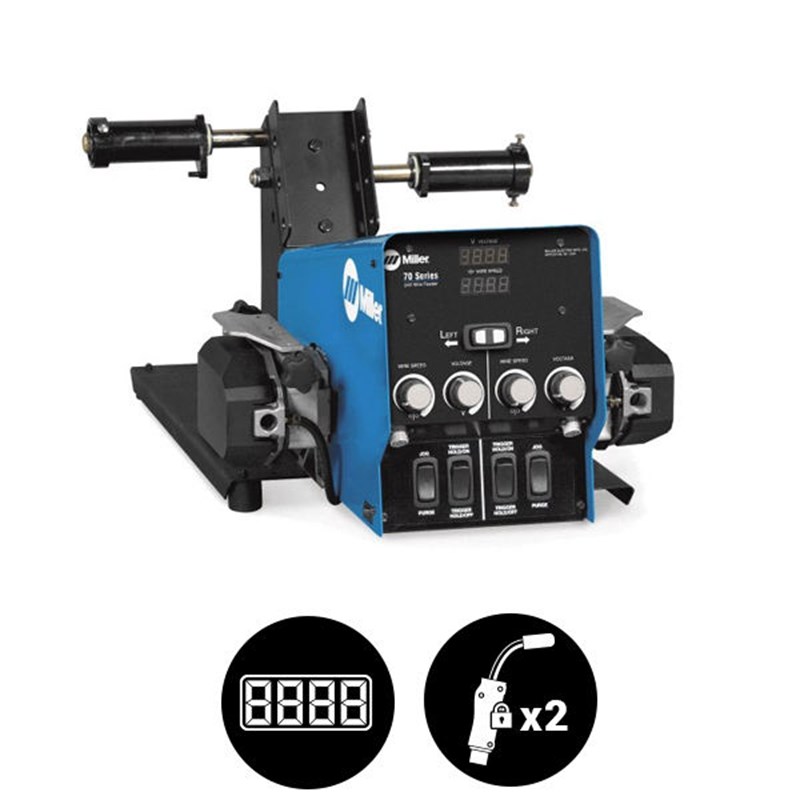

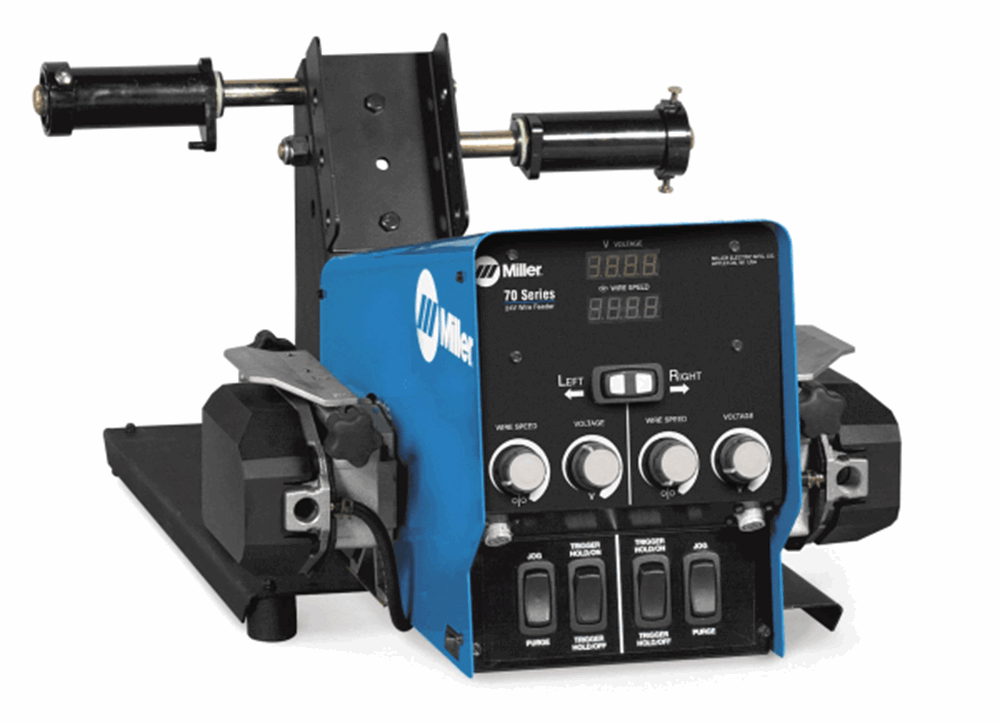

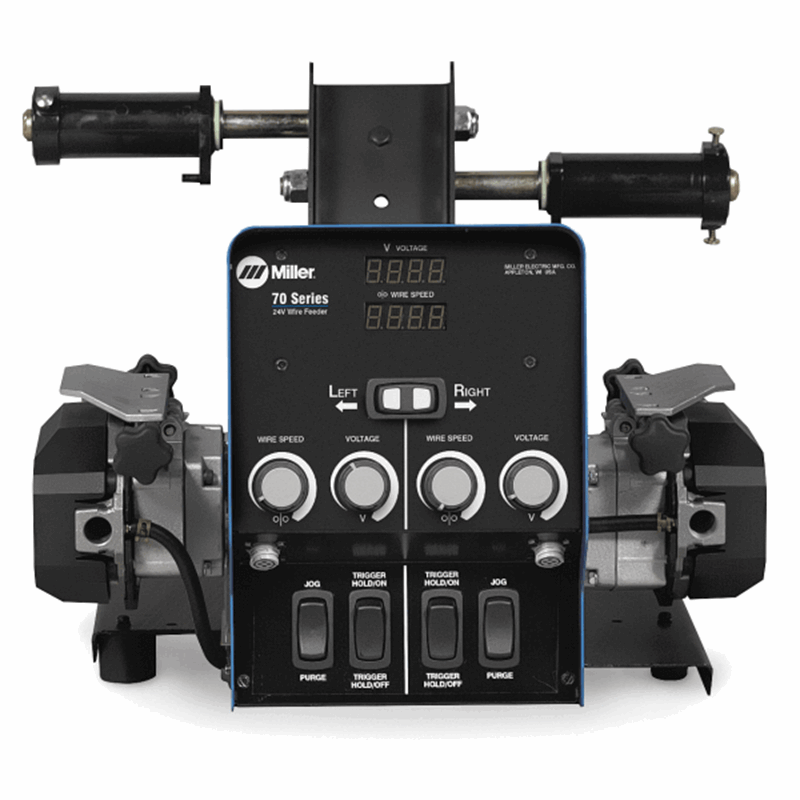

Miller D-74D (Dual) #951204

Part Number: 951204
$9,427.00 + Free Shipping
$10,886.00* Save $1,459.00

Welding type:

Mig

Mig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • Digital Welding Meters

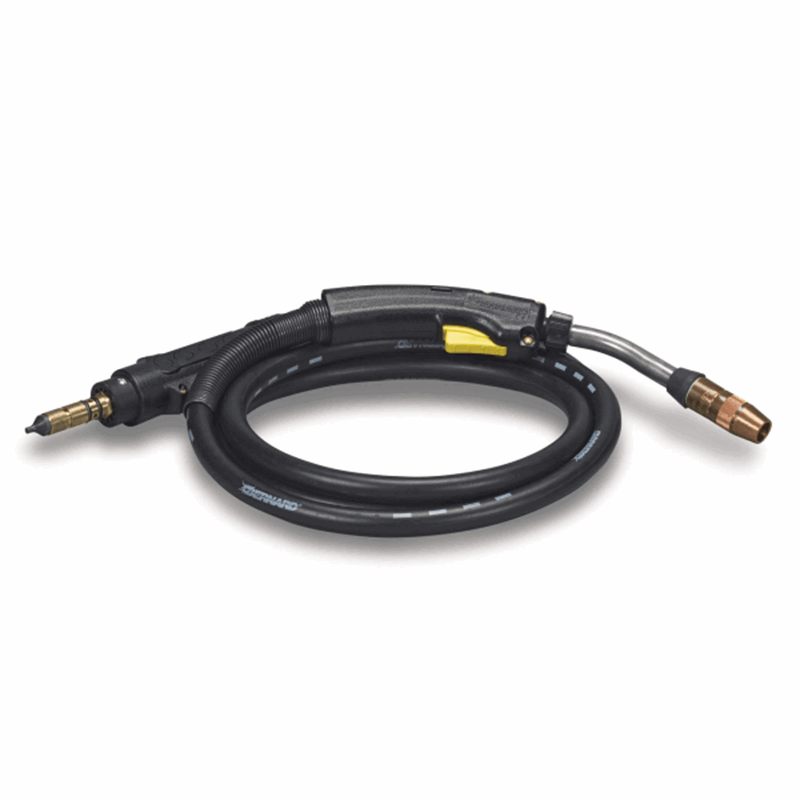

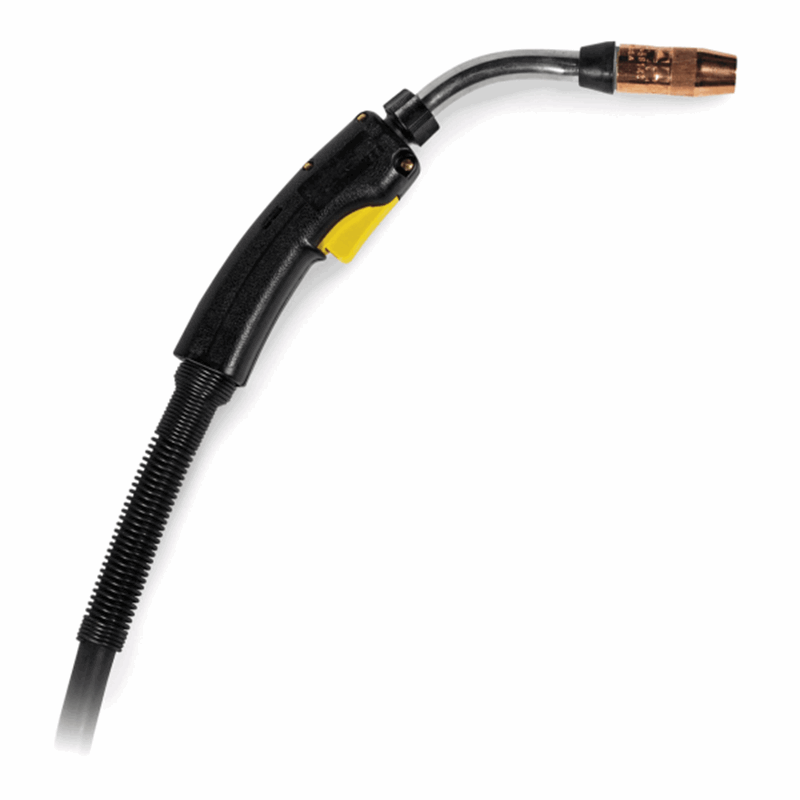

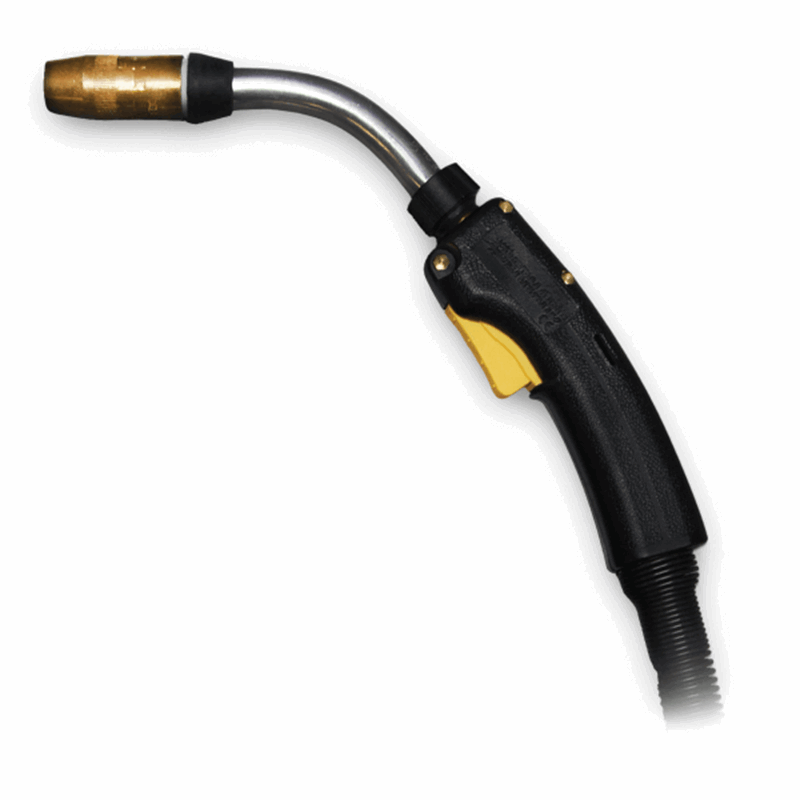

  • Bernard BTB 400A MIG Gun
  • Remote Voltage Control
  • CENTERFIRE Contact Tips
  • 3-Year Miller Warranty

Miller D-74D (Dual) #951204

WHAT'S INCLUDED:

  • D-74D (Dual)
  • BTB 400A Gun, Qty 2
  • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2), 2 sets

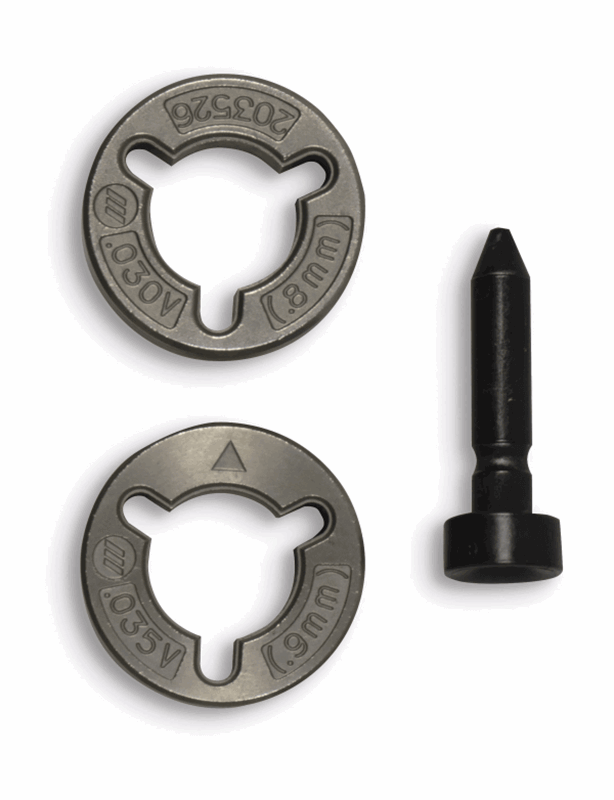

  • .035-.045 reversible dual V drive rolls, 2 sets

Features:

Digital Meters - Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.

Remote Voltage Control - Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.

Available in Dual-Wire Models - Allows two different wire types to be available on one feeder, avoiding downtime from changing spools and drive rolls.

Toolless Rotatable Drive Assembly - Allows operator to rotate the drive housing, allowing a straight path for wire flow.

Reduced Maintenance - High-torque permanent-magnet motor, sealed ball bearing gear drive and solid-state speed and brake control are maintenance free for long life.

Trigger Hold - Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.

Quick-Change Drive Rolls - Save time with standard, quick-change drive rolls.

Remote Configurations - Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.

Welders Supply carries the best welding machines, equipment and accessories online for great prices.



GENERAL SPECIFICATIONS

Title D-74D (Dual)
Industries Interests Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Input Circuit Welding Rating 750A at 100% duty cycle
Power Source Compatibility CV
Welding Power Source Type CV
Wire Feeder Type Bench
Wire Feed Speed 50 IPM - 780 IPM
Wire Diameter Solid Wire 0.023 in 0.094 in
Flux Cored 0.03 in 0.094 in
Warranty Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 21.00 Inches
Length: 37.00 Inches
Weight: 111 Lb(s) 0 Oz

Product Questions and Answers


Q - What welding guns does this come with? A - Two Bernard Q-400 MIG guns with 15 ft leads.
Q - Wire speed? A - It will feed .023 to 5/64 wire at a range of 50 to 780 IPM.

Have a question about this product? Submit your question using the form below
