Miller D-74S (Dual) #951203

Part Number: 951203

UPC: 715959575720

Miller D-74S (Dual) #951203

Part Number: 951203

UPC: 715959575720

Out of Stock

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

MIG Welding
Torches Included
3-Year Power Warranty

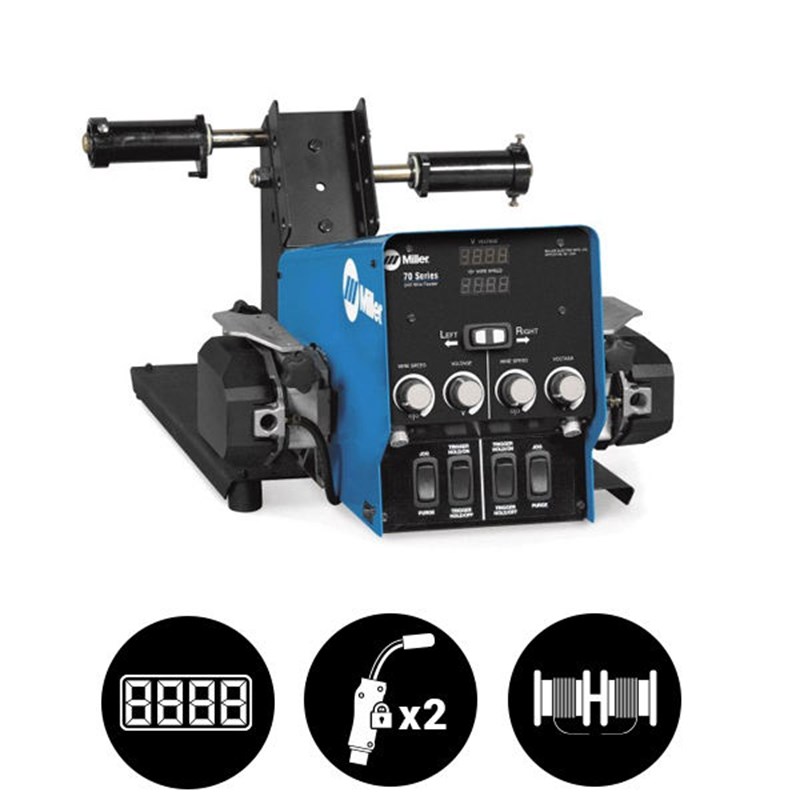

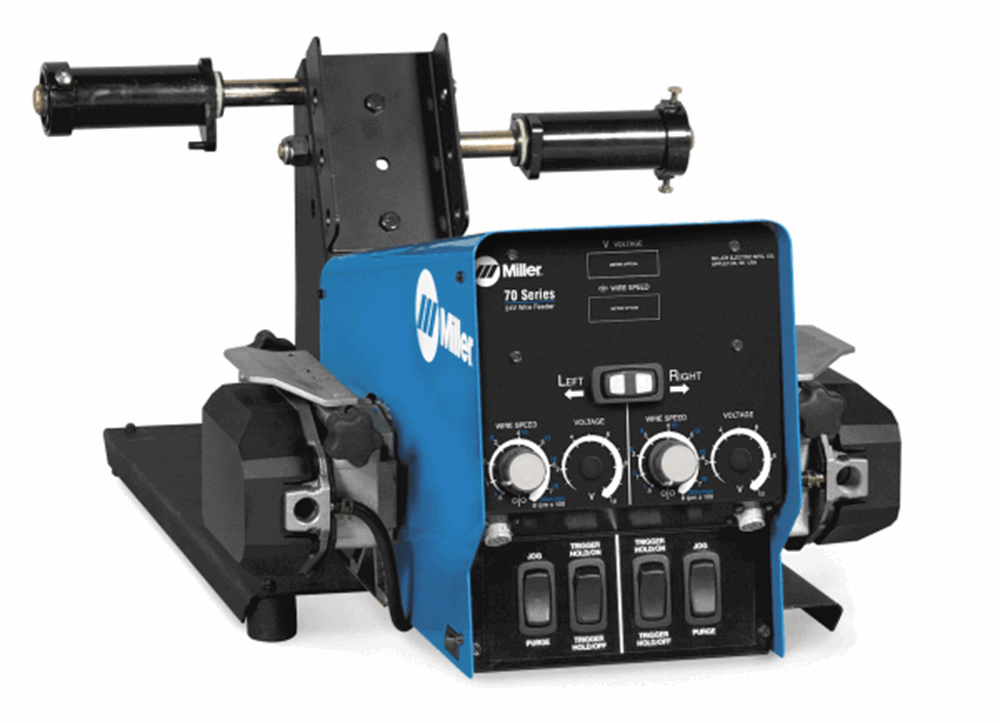

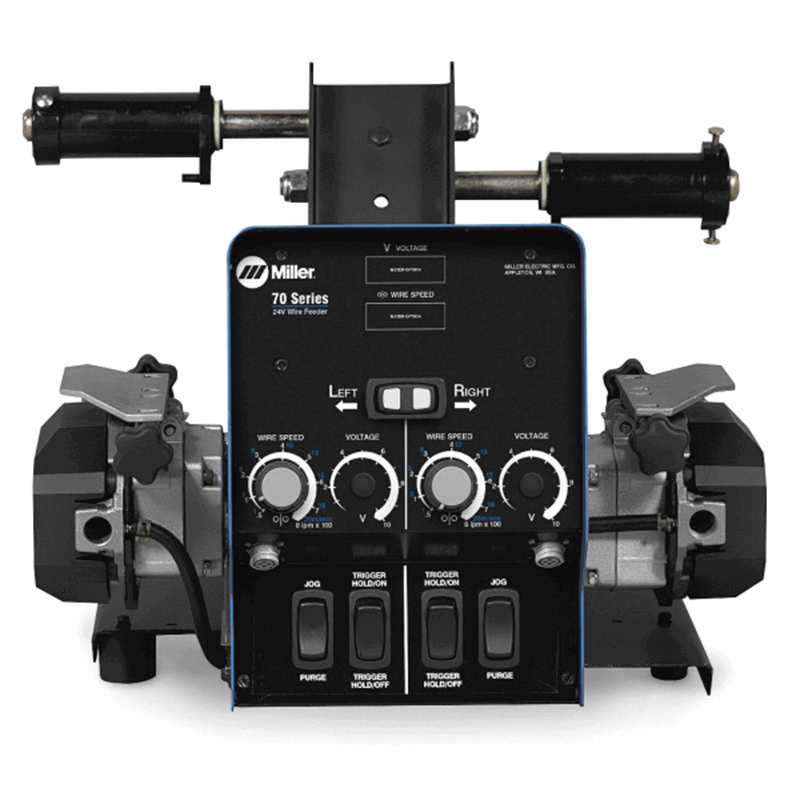

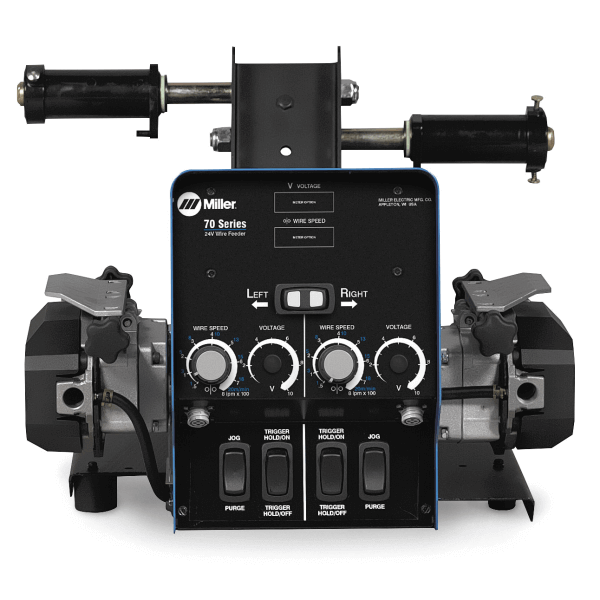

D-74S (Dual) #951203

Standard, simple feeder for most heavy-industrial applications

WHAT'S INCLUDED

D-74S (Dual)

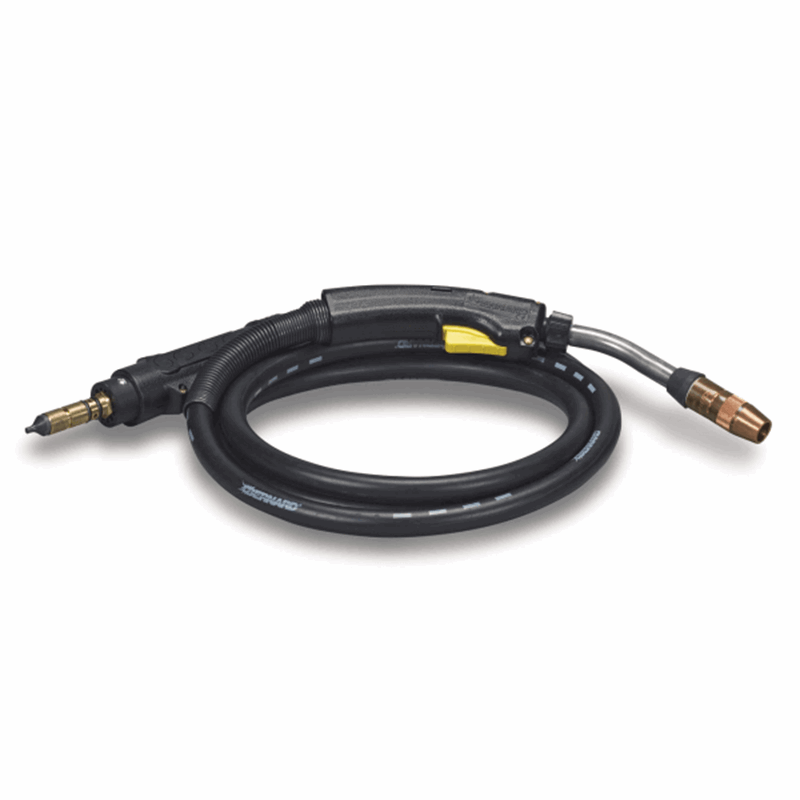

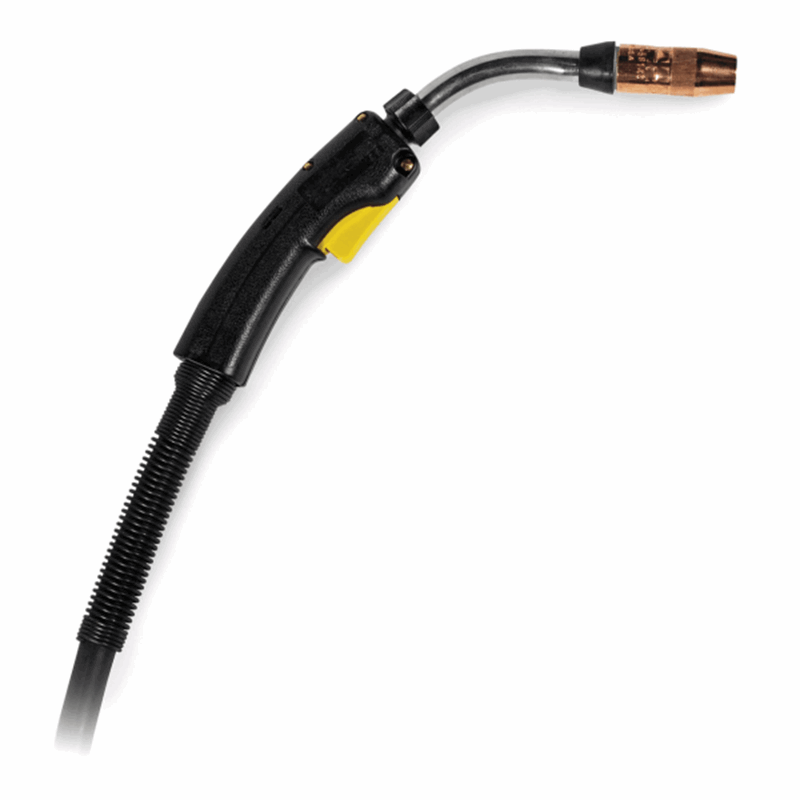

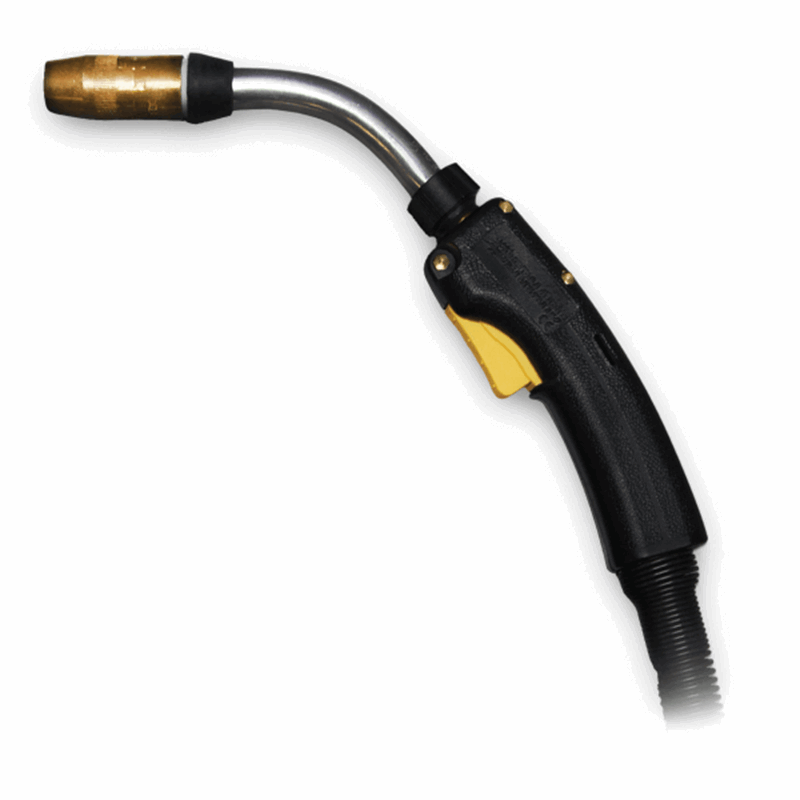

BTB 400A Gun, Qty 2
Centerfire contact tips, .035 (QTY 3), .045 (QTY 2) 2 sets

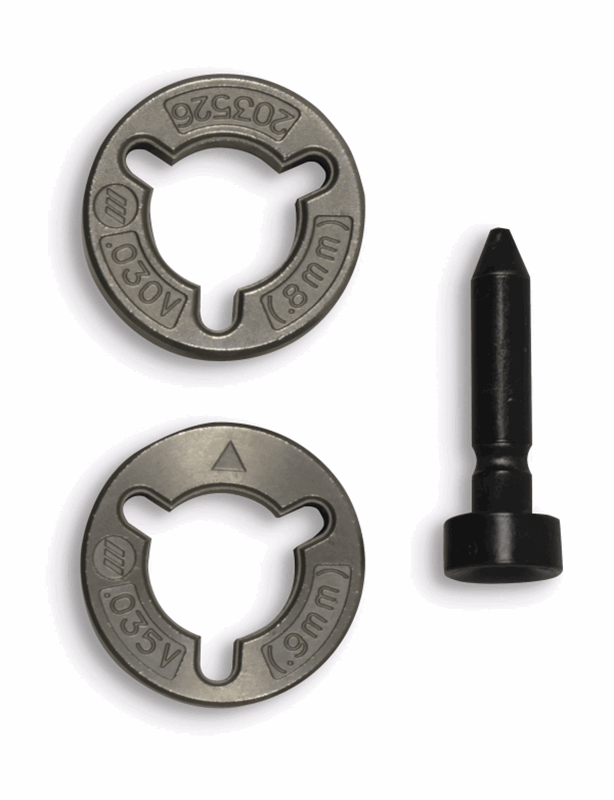

.035-.045 reversible dual V drive rolls, 2 sets

Available in Dual-Wire Models

Allows two different wire types to be available on one feeder, avoiding downtime from changing spools and drive rolls.

Toolless Rotatable Drive Assembly

Allows operator to rotate the drive housing, allowing a straight path for wire flow.

Reduced Maintenance

High-torque permanent-magnet motor, sealed ball bearing gear drive and solid-state speed and brake control are maintenance free for long life.

Trigger Hold

Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.

Quick-Change Drive Rolls

Save time with standard, quick-change drive rolls.

Remote Configurations

Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.

Find more Miller brand welding equipment for sale online along with our entire selection of welding machines from Welders Supply.

GENERAL SPECIFICATIONS

Title	D-74S (Dual)
Industries Interests	Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing
Input Circuit Welding Rating	750A at 100% duty cycle
Power Source Compatibility	CV
Welding Power Source Type	CV
Wire Feeder Type	Bench
Wire Feed Speed	50 IPM - 780 IPM
Wire Diameter	Solid Wire 0.023 in 0.094 in Flux Cored 0.03 in 0.094 in
Warranty	Miller's True Blue Warranty

SHIPPING DIMENSIONS
Height:	15.00 Inches
Width:	21.00 Inches
Length:	37.00 Inches
Weight:	99 Lb(s) 0 Oz
