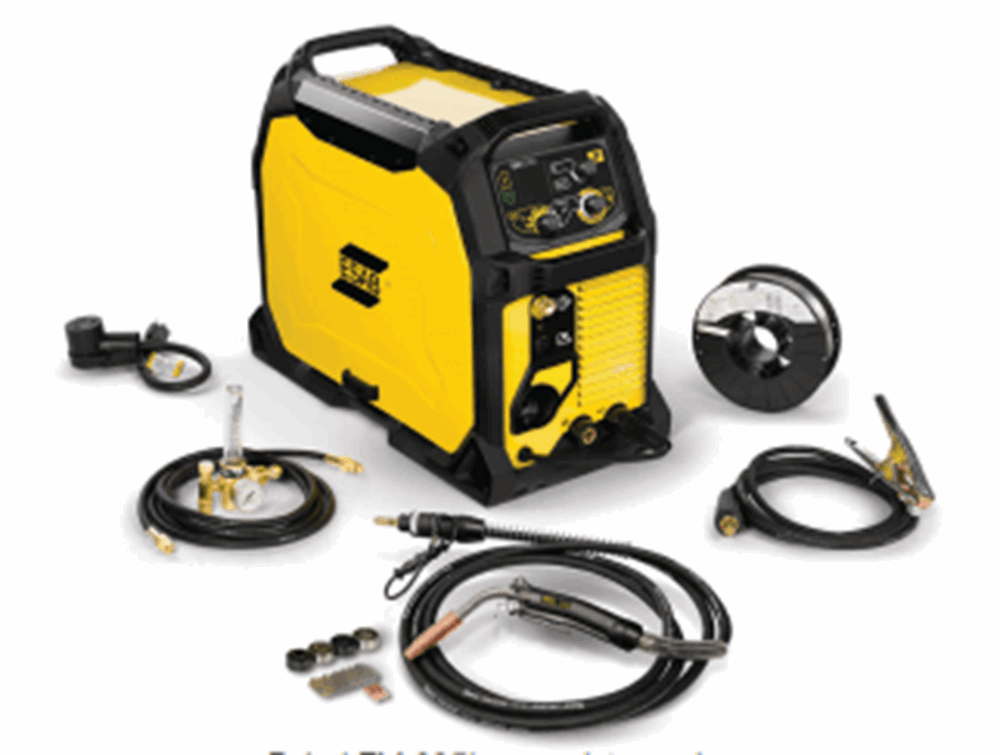

ESAB REBEL EMP 235IC MIG/STICK/TIG WELDER WITH CART #0558012704
Part Numbers: 0558012704
UPCs: 0662067959211


Welding type:

Mig

Stick

Tig
Material type:

Mild Steel

Stainless Steel

Aluminum
Power supply:

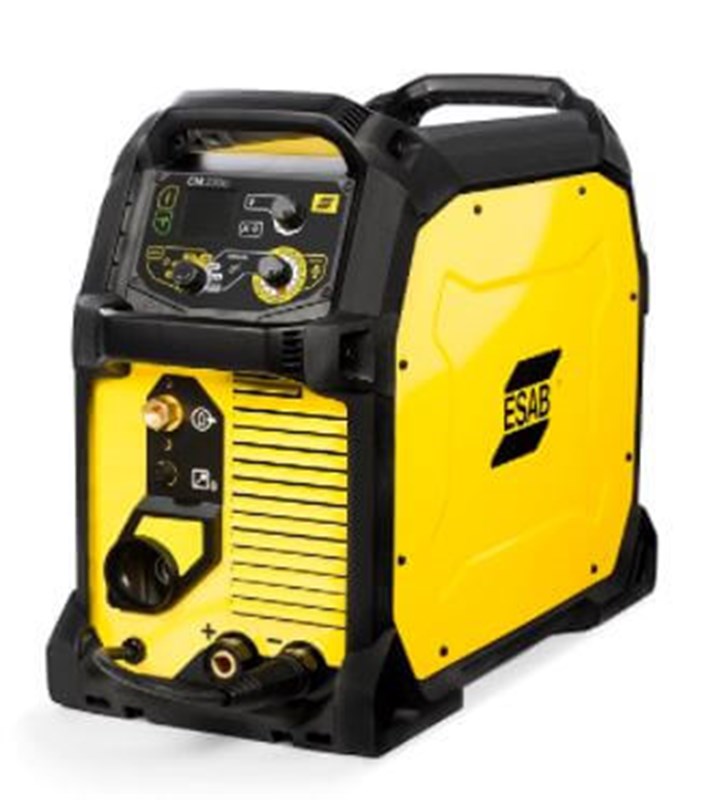

Introducing Rebel EM 235ic - the next level Rebel welding machine for MIG welding performance in a portable package. When it comes to getting around and getting work done, Rebel EM 235ic is second to none. It is the most mobile welder in its class and has the power and performance to crush even the most demanding jobs.
The Rebel EMP is a DC TIG welder only. It CANNOT TIG weld aluminum.
Max Plate Thickness
Use With Welding Material | 12.7 mm (1/2 in.) |
Cable | 3 m (10 ft) |
Frequency | 50/60 Hz |
Phase | 1 |
Voltage | 120, 208/230 V |
Voltage | 120 V |
Voltage | 230 V |
Max Output (A) | 250 A |
Open Circuit Voltage | 90 VDC |
Protection Class | IP23S |
Supply Plug | 230 V, NEMA 6-50P |
Voltage Range (V) | 10 - 30 V |
Voltage Tolerance | 30 V |
Current Range(A) | 5-150 A |
Voltage Range (V) | 120 V |
Current Range(A) | 5-250 A |
Voltage Range (V) | 230 V |
Standards | CSA E60974-1-00 / UL60974-1 / IEC60974-1 |
Model | 120 | 230 | ||||
Duty Cycle | 40 % | 40 % | 40 % | 40 % | 40 % | 40 % |
Input Voltage | 120 | 120 | 120 | 230 | 230 | 230 |
Output Current | 120 A | 90 A | 130 A | 235 A | 210 A | 240 A |
Output Voltage | 19 V | 23.6 V | 15.2 V | 26 V | 28.4 V | 19.6 V |
Temperature | 104 °F 40 °C |
104 °F 40 °C |
104 °F 40 °C |
104 °F 40 °C |
104 °F 40 °C |
104 °F 40 °C |
Welding Process | MIG (GMAW/FCAW) | Stick (SMAW) | TIG (GTAW) | MIG (GMAW/FCAW) | Stick (SMAW) | TIG (GTAW) |
Max Spool Diameter | 4, 8 & 12 in. 100, 200 & 300 mm |
Wire Feed Speed | 60-700 in./min 1.5-17.89 m/min |
Metal | Wire Diameter |
Mild Steel | .023-.045 in. 0.6-1.2 mm |
Stainless Steel | .030-.045 in. 0.8-1.2 mm |
Flux Cored | .030-.052 in. 0.8-1.3 mm |
Aluminum | .030-3/64 in. 0.8-1.2 mm |
SHIPPING DIMENSIONS |
|
Height: | 25.00 Inches |
Width: | 25.00 Inches |
Length: | 25.00 Inches |
Weight: | 60 Lb(s) 0 Oz |
Start by making sure the wire moves smoothly through the wire guide.
Open the spool side door.
Remove the feed roll retaining screw by turning it counter-clockwise.
Change the feed roll.
Tighten the feed roll retaining screw by turnin git counter-clockwise.
Close the spool side door.
