Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic Wire Feeder - 951971

Part Number: 951971

Ships Free To Lower 48 States

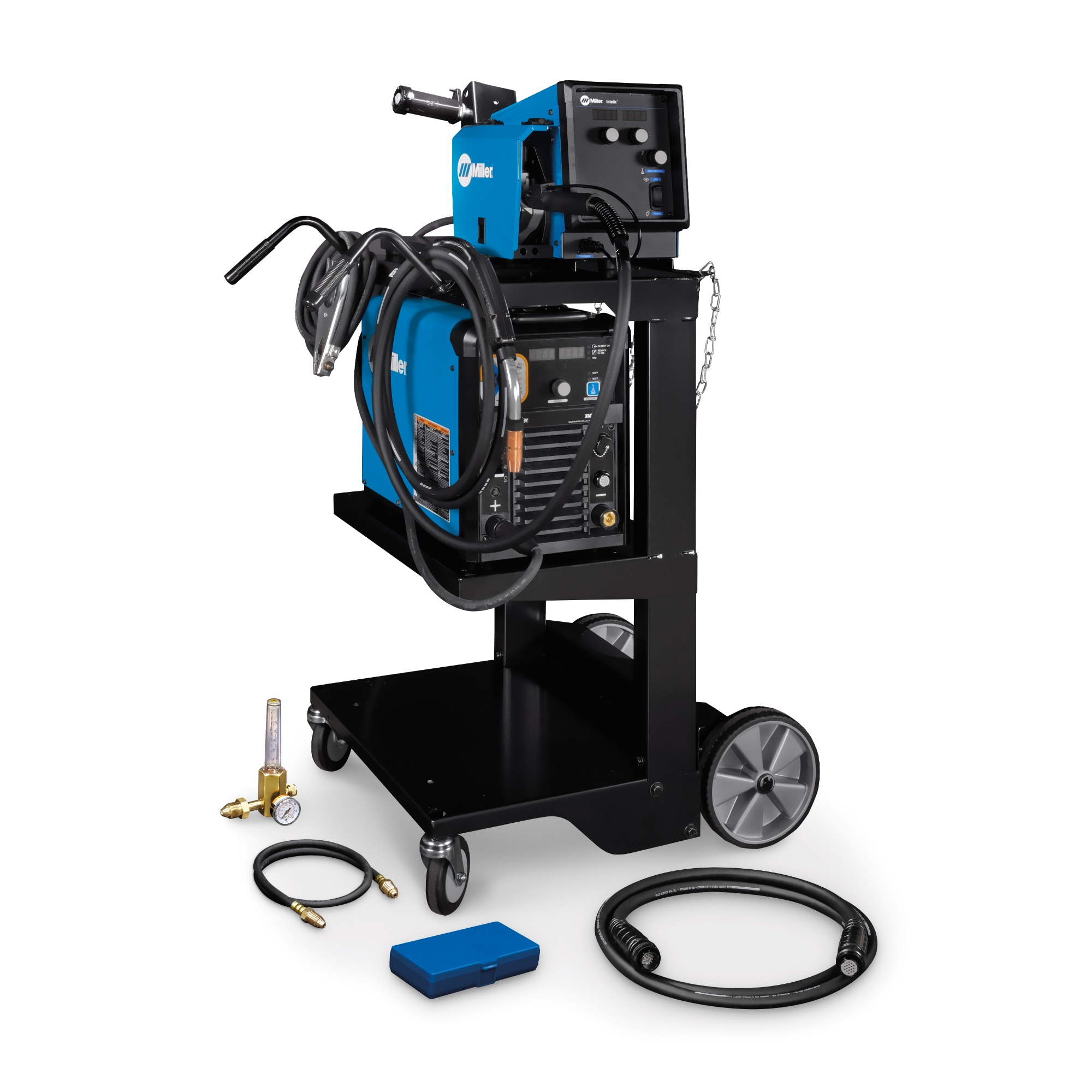

Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic - 951971

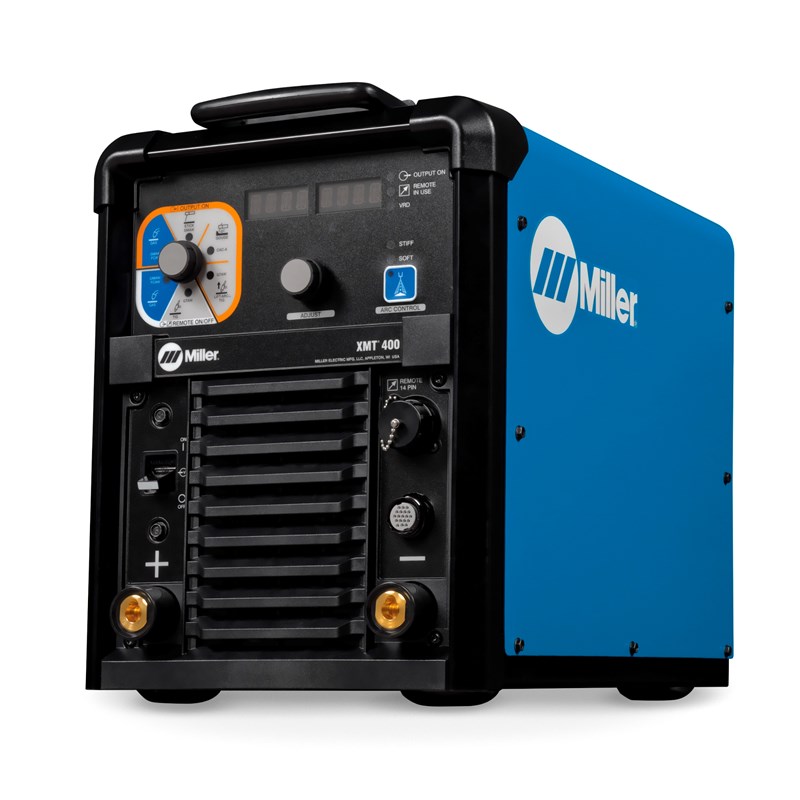

front side view of the Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic - 951971

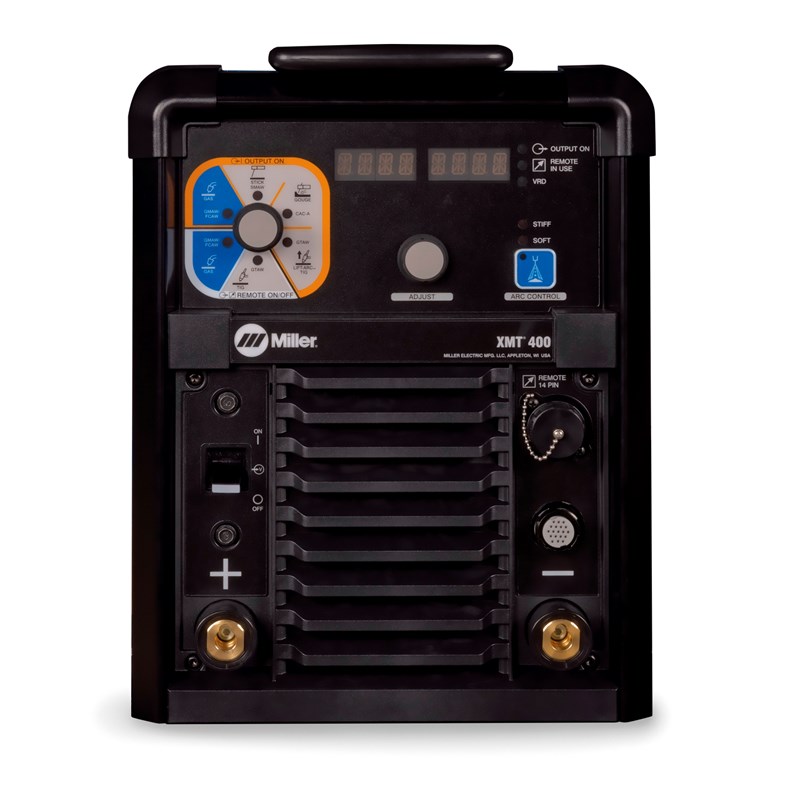

alternate front side view of the Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic - 951971

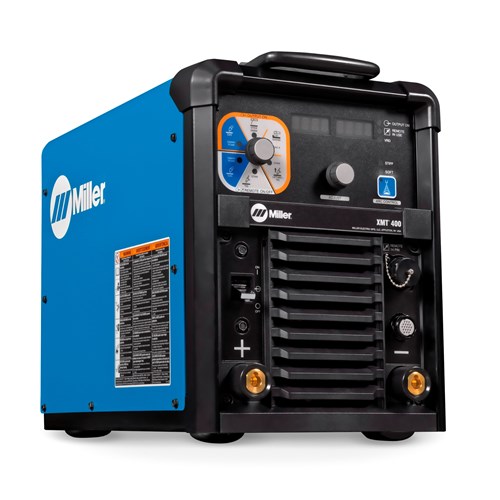

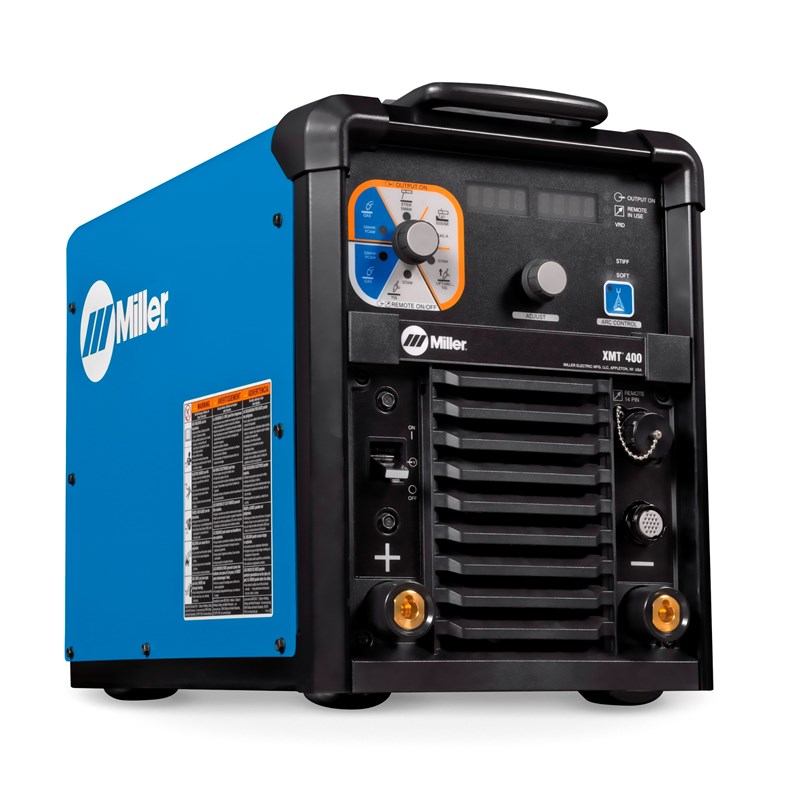

front right view of the Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic - 951971

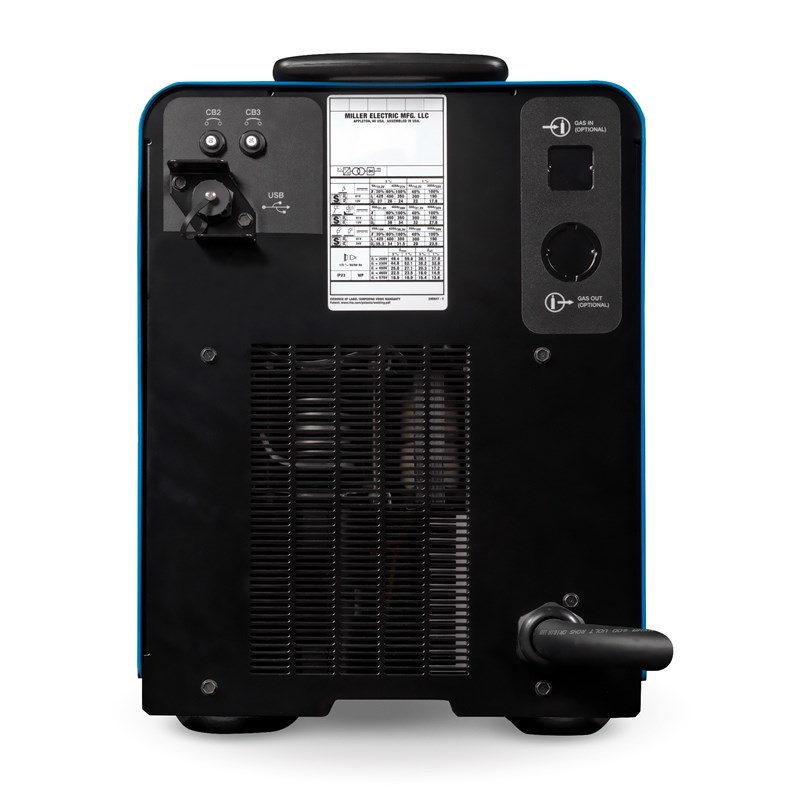

back side view of the Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic - 951971

Ships Free To Lower 48 States

Miller XMT® 400 MIGRunner™ Multi-Process Welder with Intellx™ Basic Wire Feeder - 951971

Part Number: 951971

Coming Soon

Features
Specs
Documents
Consumables
FAQS

XMT® 400 MIGRunner™ with Intellx™ Basic Wire Feeder #951971

The XMT® 400 is the newest member of the XMT family—built for nonstop shop work and backed by Miller’s proven reliability. Compatible with any Intellx™ wire feeder, it scales from core MIG/Stick/TIG to advanced pulsed capabilities (Accu-Pulse® with Intellx Pro; full advanced suite with Intellx Elite). A familiar, user-friendly interface makes setup fast so operators can stay in the zone all day.

Highlights

ArcConnect™: High-speed communication improves welds and enables point-of-use controls at the feeder.
Auto-Line™ Technology: Auto-calibrates to 208–575 V, 1- or 3-phase input, no manual linking required.
Wind Tunnel Technology™: Internal airflow shields electronics from dust and debris for longer machine life.
Fan-On-Demand™: Cooling runs only when needed, reducing noise, energy use, and contaminants.
Auto Remote Sense™: Detects and auto-uses remote controls when connected to the receptacle.
AccuLock S Consumables: Boosts productivity with fewer tip changes, less troubleshooting, more welds.

Applications:

Construction and Fabrication
Heavy Equipment
Education & Training
Manufacturing
Pipe
Schools
Transportation

Specifications — XMT® 400
Input Power	Auto-Line™, 208–575 V; single- or three-phase
Voltage Range (CV Mode)	10–38 V
Amperage Range (CC Mode)	5–425 A
Rated Output	Three-phase: 400 A at 36 VDC, 60% duty cycle Single-phase: 300 A at 32 VDC, 60% duty cycle
Amps Input at Rated Load (60 Hz)	208 V: 47.4 A 230 V: 42.4 A 400 V: 24.4 A 460 V: 21.4 A 575 V: 18.0 A
KVA / KW	17.1 / 16.0 (3-phase) 11.5 / 10.8 (1-phase)
Max Open-Circuit Voltage	91 VDC (25/12 VDC with VRD active)
Dimensions (H × W × D)	17.25 × 12.75 × 20.25 in. (438 × 324 × 514 mm)
Net Weight	75 lb. (34.0 kg)

Specifications — Intellx™ Feeder
Input Power	50 VDC
Welding Power Source	XMT® 400
Input Welding Circuit Rating	600 A at 113 VDC, 60% duty cycle
Wire Feed Speed	50–780 ipm (1.3–19.8 m/min)
Wire Diameter Capacity	.023–5/64 in. (0.6–2.0 mm) Elite model only: Aluminum .035–1/16 in. (0.9–1.6 mm)
Maximum Spool Size Capacity	18 in. (457 mm), 60 lb. (27 kg)
Dimensions (H × W × D)	Single-wire: 16.25 × 12.38 × 27.88 in. (413 × 314 × 708 mm) Dual-wire: 14 × 18 × 34.5 in. (356 × 457 × 876 mm)
Net Weight	Single-wire: 44.8 lb. (20.3 kg) Dual-wire: 77 lb. (34.9 kg)
