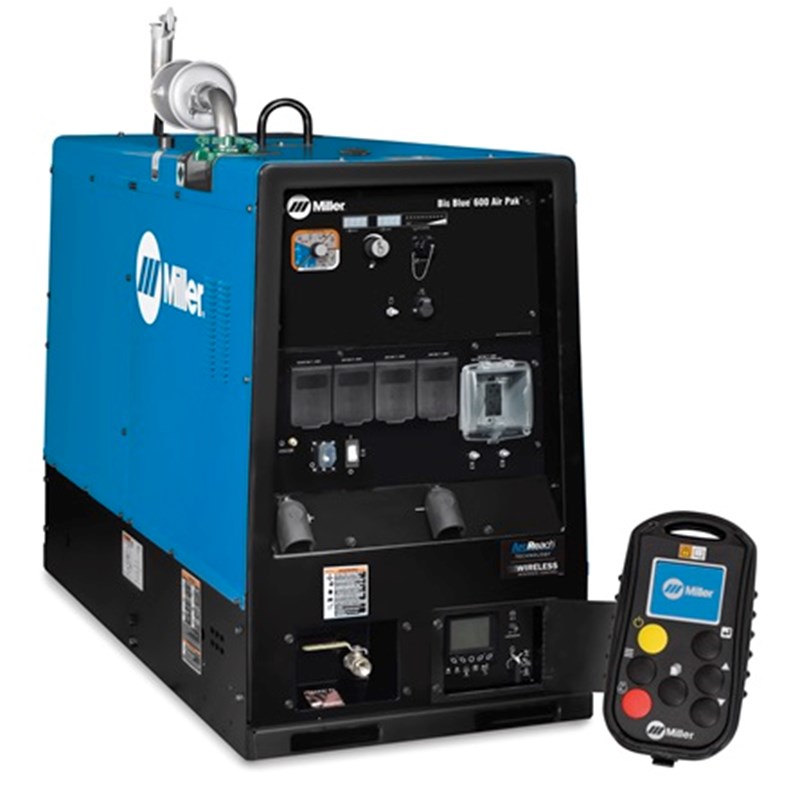

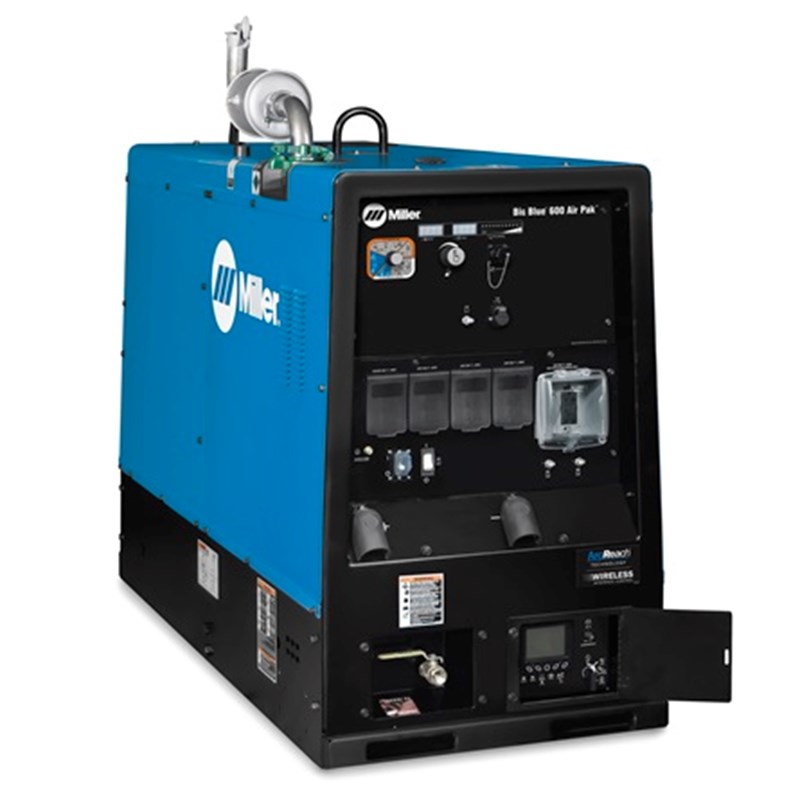

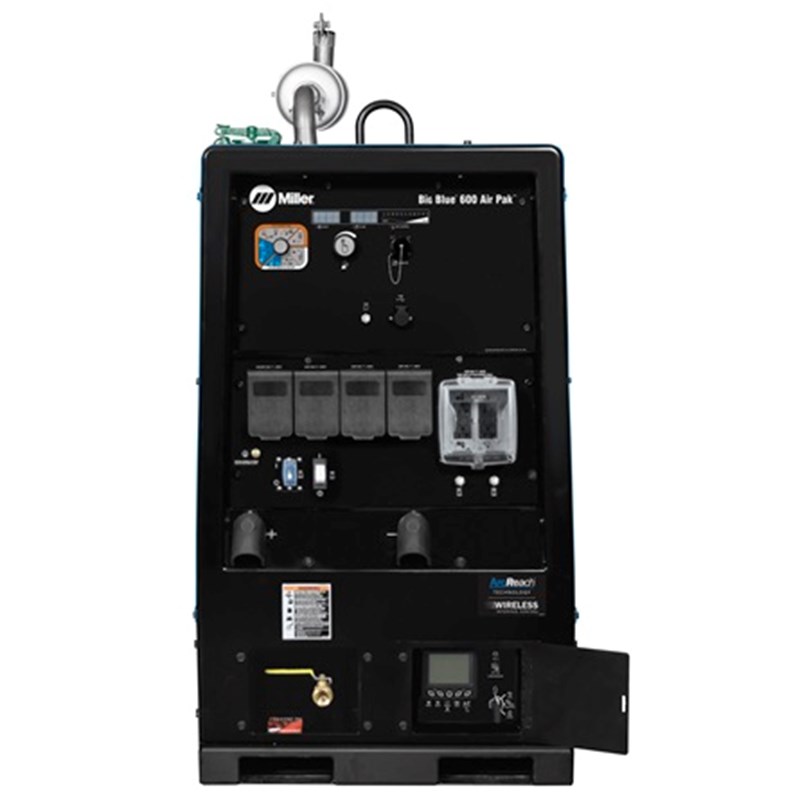

Big Blue® 600 Duo Air Pak™ Truck Mount w/Wireless Interface Control #907750004
Equipped with the convenience of critical controls positioned for easy access by ground-based operators, the Big Blue 600 Air Pak Work Truck Model ensures seamless operation even when mounted on the bed of a large-body truck. With the added option of Wireless Interface Control, managing the machine becomes effortless, placing full control directly in the palm of your hand.
Features:
- Heavy-Duty Low-Speed T4F and T4i Industrial Diesel Engines
- Dynamic DIG™: Time-based algorithm to automatically adjust current, resulting in a smoother, more consistent arc.
- Air Compressor: Industrial rotary screw air compressor with 30,000-hour life expectancy.
- Industrial USB Port: Easily upload software and download machine log files for comprehensive diagnostics and statistics.
- Wireless Interface Control: Wireless interface control for full machine control from anywhere on the job site, including process changes, parameter adjustments, preset program selection, and more.
- Electronic Engine Display: Simultaneous display of critical machine parameters like fuel level, engine hours, coolant temperature, and oil pressure, along with tracking oil change intervals and engine diagnostics.
- Multi-arc Welding: One engine supporting two independent arcs with up to 400 amps each, or expand with additional inverters for a multi-operator work platform.
- ArcReach Heater Compatibility: Field preheat and bakeout applications up to 600°F using induction heating for quick and safe preheating.
- ArcReach® Technology: ArcReach technology enables process adjustments via existing weld cables, placing amperage and voltage control at the operator's fingertips.
Big Blue® 600 Series Applications:
- Maintenance and repair rigs
- Heavy construction
- Mining maintenance
- Railroad maintenance
- Pipe welding
