Worldwide manufacturer shortages are impacting delivery times. Lead times are more variable than other websites imply. We are a top distributor for Miller Welding; nobody will get you this faster. Call 1-844-682-0205.

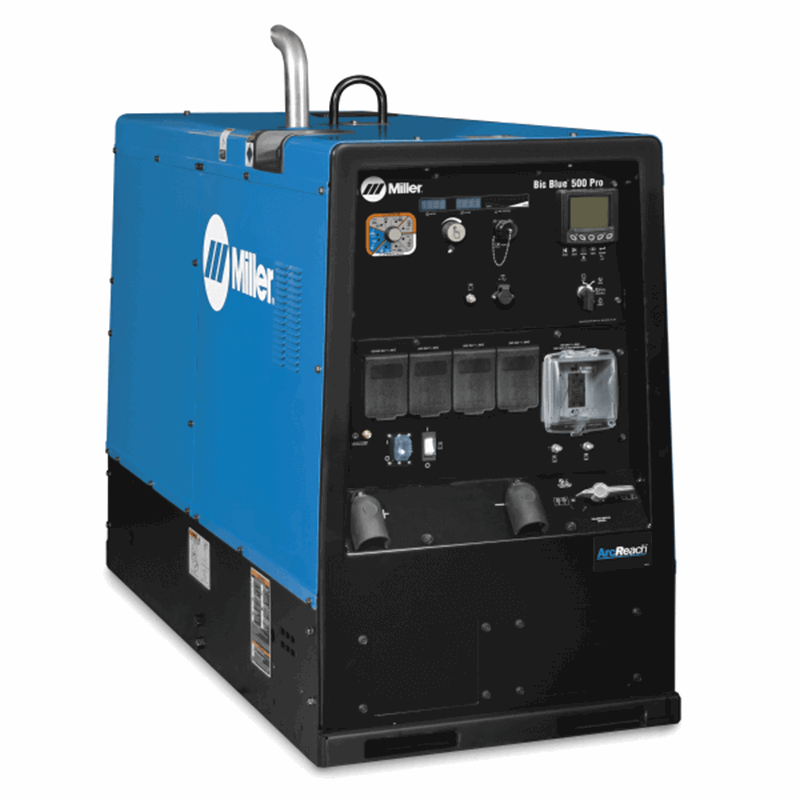

Miller Big Blue® 500 Pro Deluxe w/ ArcReach® #907736001

Product Number: 907736001
$39,047.00 + Free Shipping
$45,096.00 You Save $6,049.00
Select your FREEBIES!
*
Welders Supply
T-Shirt

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • T4i Kubota Diesel Engine
  • Single Phase Generator
  • Three Phase Generator
  • 3/8" Cut
  • Stick Welding
  • MIG & Pulsed MIG Welding
  • 3-Year Miller Warranty

Miller Big Blue® 500 Pro (Kubota) Deluxe w/ ArcReach® #907736001

The Big Blue™ 500 Pro (Kubota) Deluxe w/ ArcReach® 907736001 isn’t just one of the most tremendous Diesel Engine-Driven Welder/AC Generators from Miller®, similar to The Big Blue™ 500 Pro, it’s the cleanest and greenest power available, but with an upgrade. The backbone to this green, clean, multi-purpose welding machine, is in the heavy-duty T4i Kubota diesel engine. This generator packs an incredible 27,000 peak watts of power on 3-phase or 15,000 watts on single-phase, all while keeping the air clean from after treatment maintenance exhaust, due to the Miller® diesel oxidation catalyst (CDC) technology. You’ll need more metal to craft after welding with this machine.

Electronic Engine Display (Kubota USA Models Only)

Simultaneously see and analyze diagnostics for quick and easy servicing like:

  • Fuel Level
  • Engine Hours
  • Coolant Temperature
  • Oil Pressure
  • Battery Volts
  • Engine RPM

Miller Big Blue® 500 Pro (Kubota) Deluxe Features

Digital Meters with SunVision™ allow users to weld with the easiest view possible in all light environments

Low OCV Stick increases operator safety without compromising arc starts

Industrial USB Port lets users upload the latest software while logging files and stats of machine use for operation management

20,000 watts of Pure Generator Power - A second welding arc now available with an extra inverter-based power source

HD Powder Coat protects sheet metal from rust and corrosion

Quiet Operation - Operations and team communication is improved

Arc Control - Stick and solid wire welding is made easier with fine-tuning of hard to weld locations

Standard 14-pin Receptacle with Auto-Remote Sense™ for easier than ever connection of feeders and remote controls

ArcReach® Remote Control Technology for remote control of the power source without a control cord

Polarity Reversing Switch efficiently changes welding polarity without having to change over cables

Vandalism Lockout Kit protects your investment with our built-in Deluxe Kit

ArcReach® Remote Control Technology

Increased Productivity

More welds in less time with more arc-on time and reduced exposure to workplace
hazards, automatic return to panel settings, auto-Process Select, and less operator fatigue

Improved Weld Quality

Better welds with less rework when the operator can precisely set arc amperage or voltage and remote override of Big Blue 500 Pro

Reduced Maintenance

Save time by having fewer cables to maintain while eliminating costly control cord repairs

Improved Flexibility

Fleet compatibility can be used with ArcReach-equipped XMT® and Dimension™ power sources


Warranty

Welder/generator is warranted by Miller for three years, parts and labor. The engine is warranted separately by the engine manufacturer.

Clean, quiet, Multiprocess machine delivers up to 500 amps of welding power with an EPA Tier 4 Final engine, ideal for heavy use.
View our large selection of welding machines including Mig welders, Tig welders, and Stick welders with the greatest values online.

Other Versions:

Miller Big Blue 500 Pro (Kubota) Deluxe w/ArcReach #907736001 Specifications:

Industries Interests Construction
Infrastructure
Fabrication
Maintenance and Repair - Field Operations
Pipe Fabrication / Construction
Work / Service Trucks
Processes Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
RMD
Stick (SMAW)
TIG DC (GTAW-DC)
Carbon Diameter 3/8 in (9.5 mm)
Cold Weather Starting Aids Engine Block Heater
Glow Plugs
Current Type DC
Engine Brand Kubota
Engine Compliance T4F
Engine Idle Speed 1350 RPM
Portability Lift Eye (Standard)
Trailer (Optional)
Fork Pockets
Engine Weld Speed 1800 RPM
Fuel Tank Size 25 Gallon
Net Height 46 in
Fuel Type Diesel
Net Length 69.5 in
Horsepower 48.9 hp
Max Open Circuit Voltage 92 VDC
Net Weight 1750 lbs
Weldable Metals Mild Steel
Stainless Steel
Net Width 28.5 in
Rated Output 500 A at 40 V, 100% Duty Cycle
450 A at 38 V, 100% Duty Cycle
400 A at 36 V, 100% Duty Cycle
Single Phase Generator Continuous Power 12000 W
Warranty Engine Warranties
Miller's True Blue Warranty
Single Phase Generator Peak Power 15000 W
Sound Rating Idle: 65.9 dB / Weld: 74.3 dB
Three Phase Generator Continuous Power 20000 W
Three Phase Generator Peak Power 27000 W
Amperage Range 20 - 500

SHIPPING DIMENSIONS

Height: 48.00 Inches
Width: 30.00 Inches
Length: 70.00 Inches
Weight: 1800 Lb(s) 0 Oz

Product Questions and Answers


Q - What is the generator rated at? A - 20,000 watts
Q - How is this with emissions? A - It produces nearly no diesel emissions, thanks to the diesel oxidation catalyst (DOC) in the Kubota V2403 engine.
Q - What is the USB port on this for? A - It allows you to upload software updates and download log files to get diagnostics and statistics on the machine.
