Miller Syncrowave® 300 #951829 - Complete w/ Wired Foot Pedal

Part Number: 951829
UPC: 715959677981
1 Review
This Item Has Been Discontinued and has been replaced by Syncrowave® 300 TIG Welder, Wired Foot Pedal Complete Pkg #951000003 - Level up today!

Welding type:

Stick

Stick

Tig

Tig

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Stick Welding
  • TIG Welding
  • Multi-Phase
  • 3-Year Power Warranty

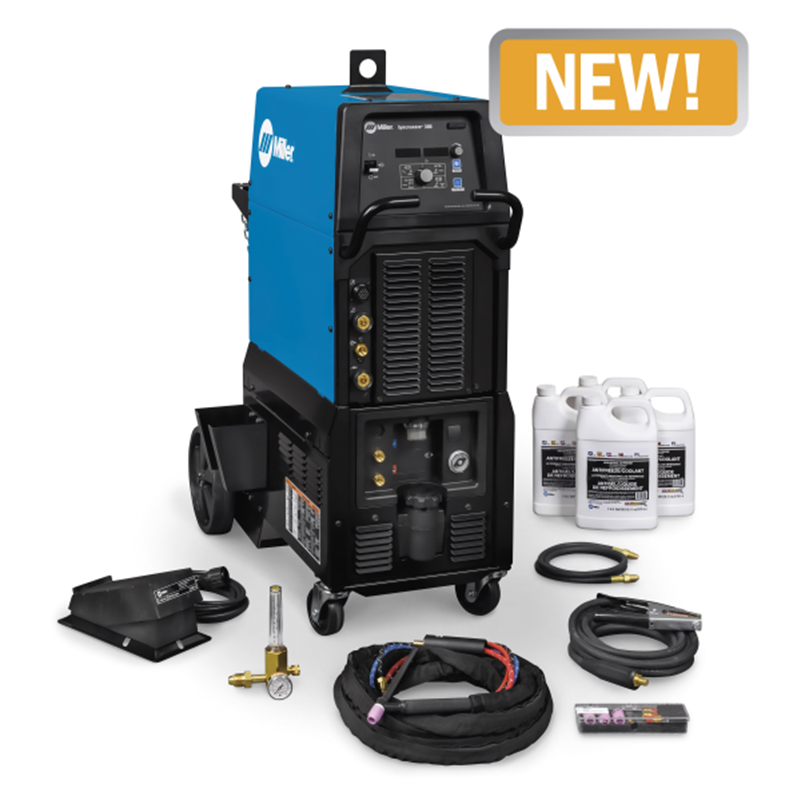

Miller Syncrowave® 300 #951829 - Complete w/ Wired Foot Pedal

For fabricators who need more TIG welding productivity and lower operating costs, new Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.

What's Included:

  • Syncrowave® 300
  • Coolmate™ 3S
  • Running Gear
  • Weldcraft™ W-280 torch kit and accessories (300990)Coolant (4 one-gallon bottles of 043810)
  • RFCS-14HD remote foot control and receiver (194744)

Features:

  • Easy to use Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
  • Pro-Set™ Feature Eliminates the guesswork when setting TIG weld parameters. Just one touch gives you the speed, convenience and confidence of preset controls.
  • Auto-Link Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).
  • Smaller Footprint Smaller, lighter machines are easier to move around and improve workplace conditions.
  • Simple to install Accepts either single- or three-phase input power.
  • Energy efficient Save up to 33 percent on energy costs versus outdated welding equipment.
  • Better Arc Performance Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
Check out our entire selection of welding machines!

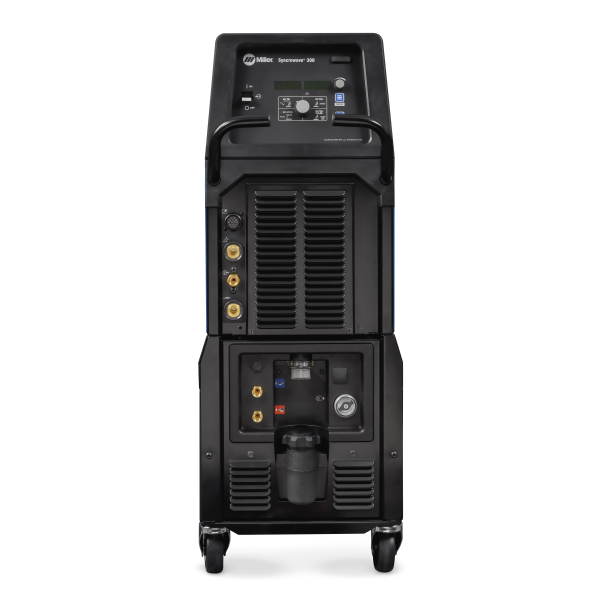

Miller Syncrowave 300

Complete w/ Wired Foot Pedal

951829

Specifications:

Input Voltage 208 V
220/230/240 V
460/480 V
Input Hz 50 / 60 Hz
Input Phase 1- and 3- phase
Current Type AC / DC
Weld Output CC
Amperage Min 5 A
Amperage Max 300 A
Maximum Open Circuit Voltage 60 VDC
Weldable Metals Aluminum
Steel
Stainless Steel
Processes Pulsed TIG (GTAW-P)
Aluminum Welding
Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
Industrial Applications Precision metal fabrication
Maintenance and repair
Light and heavy manufacturing
Shipbuilding
Tube and pipe
Automotive
Vocational
Net Width 20.5 in. (521 mm)
Net Height 43.9 in. (1114 mm)
Net Length 36.3 in. (921 mm)
Net Weight 176.4 lb. (80 kg)
Portability Lift Eye (Standard)
Running Gear / Cart (Standard)
Warranty 3 years - Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 43.90 Inches
Width: 20.50 Inches
Length: 36.30 Inches
Weight: 176 Lb(s) 6 Oz
