Name: Powermax45XP Plasma Cutter, Power Supply Only (220V 1PH) #088092
Brand: Hypertherm
SKU: 088092

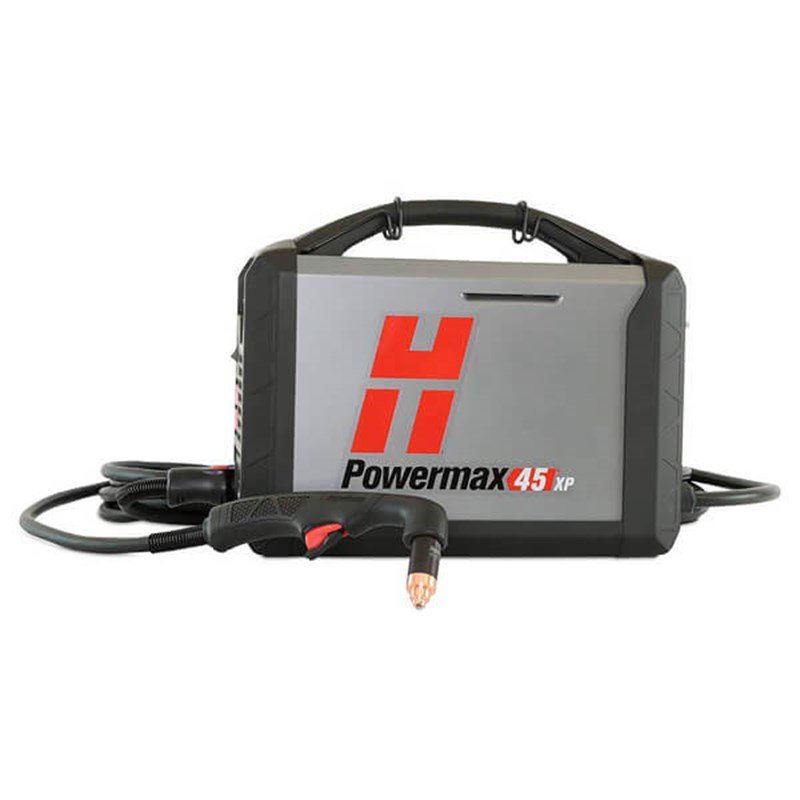

Powermax 45 XP #088092: Precision Cuts with Advanced Features

Experience superior cutting capability with the Powermax 45 XP #088092, setting a new standard in small, portable plasma cutters. With 70% more power than many competitors, this Hypertherm innovation effortlessly slices steel up to ⅝” and severs almost twice that thickness. Smart Sense™ technology monitors and adjusts airflow, eliminating the need for prep and grinding edges, ensuring a smooth cutting experience.

MECHANIZED TORCH EFFICIENCY

The Powermax 45 XP offers a Duramax® Lock and FastConnect™ connection for quick, easy torch change-outs, saving you valuable time on consumable replacements. Choose from 11 distinct torch designs, providing versatility for various applications.

POWERMAX 45 XP AT A GLANCE

5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
Duramax® Lock torch with disable switch for fast and easy consumable replacement.
Smart Sense™ technology for automatic airflow adjustment.
Patented drag-cutting technology for user-friendly operation.
Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking.

DURAMAX® LOCK TORCHES

Equipped with a Duramax® Lock torch, the Powermax 45 XP ensures maximum versatility, durability, and ease of use. Built to withstand impacts and heat, featuring SpringStart™ technology for consistent starts and Hypertherm Certified™ reliability under demanding conditions.

WHAT'S INCLUDED:

This Powermax 45 XP Kit (#088092) includes:

Powermax 45 XP Power Supply (220V)
Torch not included
All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

For any inquiries about the Powermax 45 XP or comparisons between Hypertherm Powermax 45 vs 45 XP, Welders Supply is ready to assist. Explore our range of professional-grade welding equipment, including welding helmets, gas cutting gear, Tig welders, and more. Don't forget to check our popular gift ideas for welders!

For warranty information on Hypertherm products and product registration, visit the Hypertherm website.

Shop all Hypertherm products and accessories or browse plasma cutting machines and plasma cutting consumables available online at Welders Supply.

Hypertherm Powermax 45 XP Specifications
Output current	10 - 45 A
Rated output voltage	145 VDC
Open circuit voltage (OCV)	275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA), 265 VDC (400 V CE/CCC)
Dimensions with handles	442 mm (17.4") D; 173 mm (6.75") W; 357 mm (14.1") H
Gas Supply	Cutting & Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free), argon
Recommended gas inlet flow rate / pressure	188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)
Input power cable length	3 m (10')
Power supply type	Inverter - IGBT
Cuttable metals	Aluminum, Mild Steel, Stainless Steel
Cut Capacity	1/2"
Engine drive requirement	12.5 kVA (10kW) for full 45 A output
Electrical efficiency	88%
Recyclability	100%
Warranty	Power supply: 3-year Torch: 1-year
Certifications	CSA certified for use in Americas and Asia, except China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
