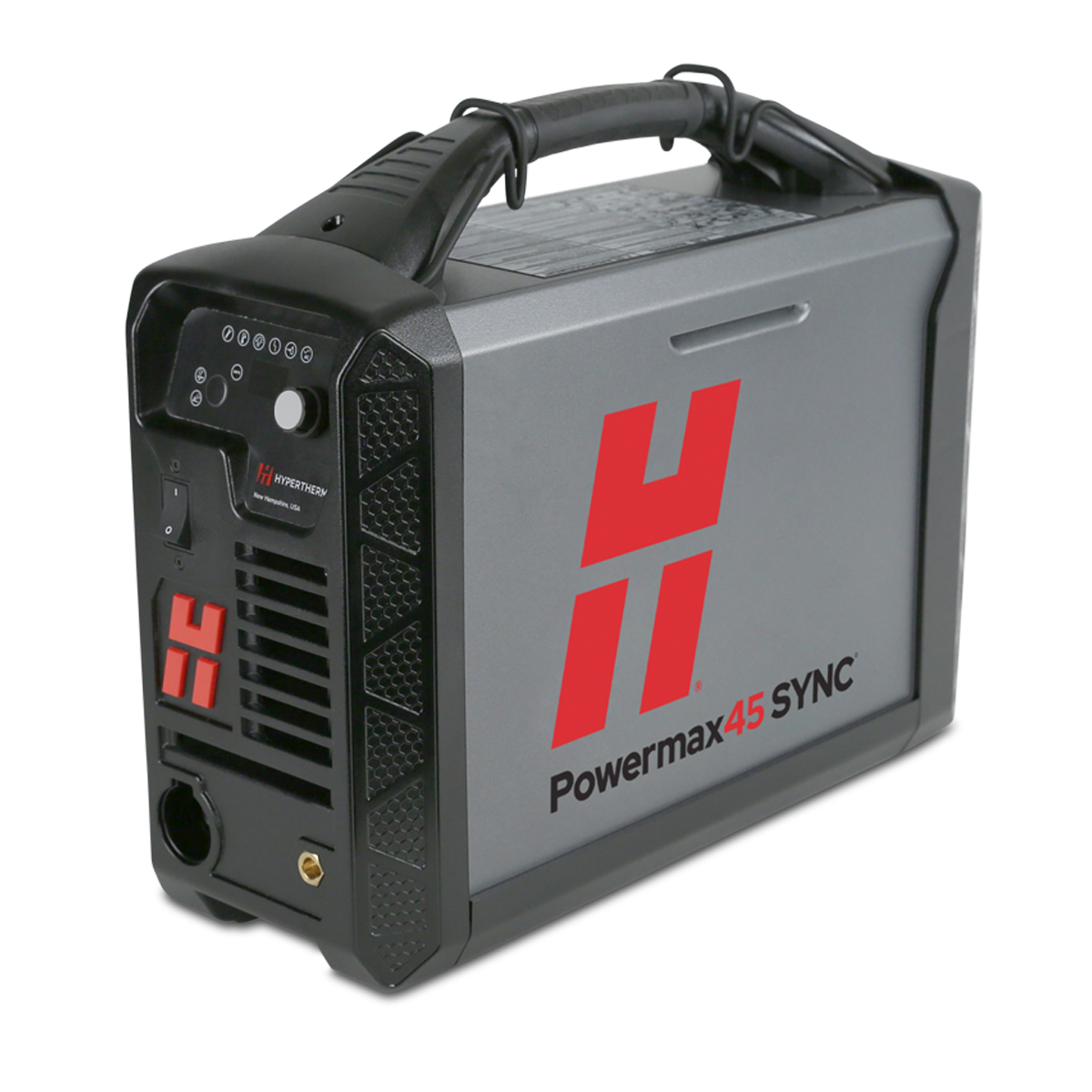

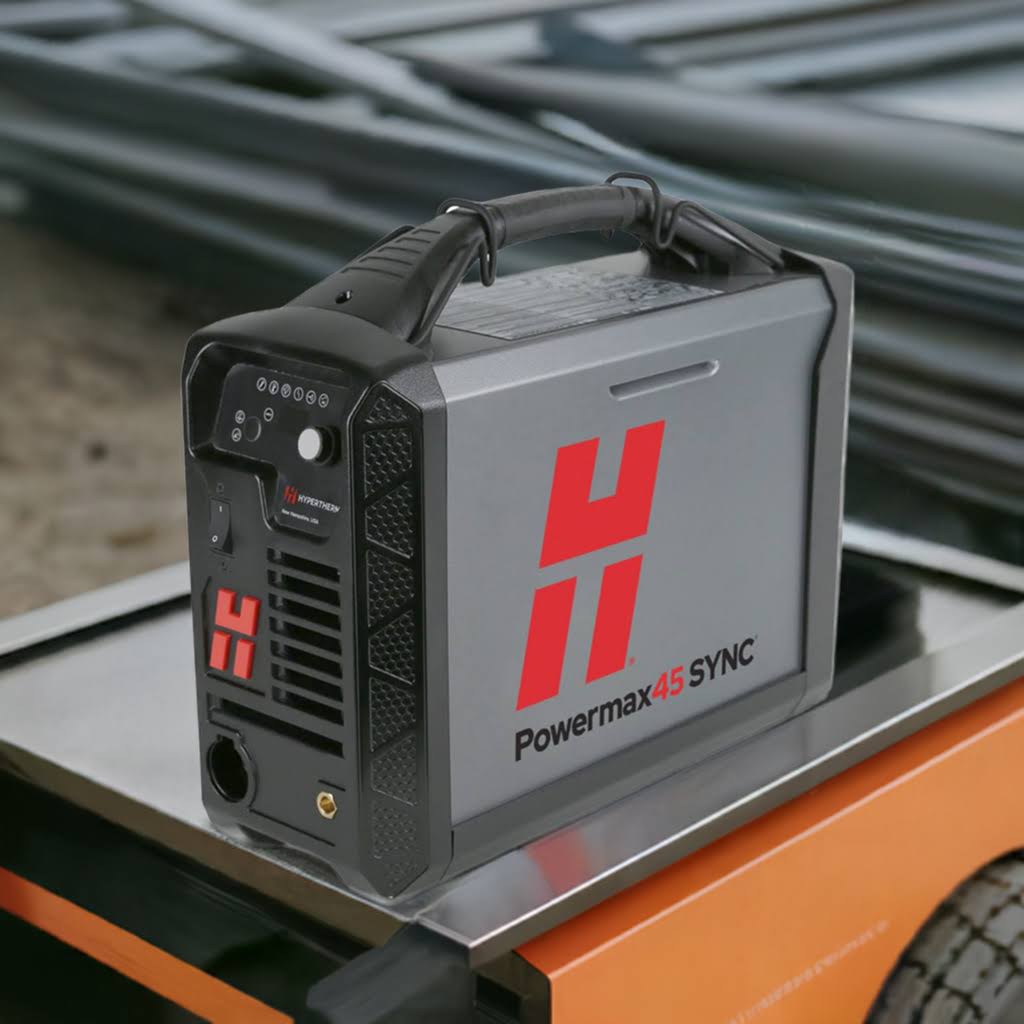

Name: Powermax45 SYNC Plasma Cutter, Power Supply Only (200-240V 1PH) #088570
Brand: Hypertherm
SKU: HYP088570

Power Supply Only
200-240V Input
1-Phase Input
Handheld Cutting Only
3-Year Power Warranty

Powermax45 SYNC Portable Plasma Cutting Machine - Power Supply Only (200-240V) #088570

Unlock unparalleled power with the Hypertherm Powermax45 SYNC power supply. Designed for reliability and performance, this unit operates seamlessly on 200-240V. Perfect for industrial applications, it provides the backbone for precision cutting tasks. With its robust design and efficient operation, it's the essential component for your cutting arsenal. Trust in Hypertherm's legacy of excellence, and power up your projects with the Powermax45 SYNC plasma cutter.

What's Included

Powermax45 SYNC power supply
Operator and Safety Manuals

Not included: SmartSYNC torch, SmartSYNC consumables

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Powermax45 SYNC 088570 - What's Included

Plasma Cutting Applications:

Direct Contact Cutting: Efficient metal separation using drag technique for general fabrication tasks
High-Precision Plasma Cutting: Delivers narrow kerf, minimal dross, and reduced HAZ for intricate metalwork
Bevel Edge Cutting: 45-degree angle cutting for close-to-base trimming and weld preparation
Aggressive Gouging: Deep profile metal removal with extensive washing for heavy-duty applications
Precision Gouging: Controlled material removal with shallow profiles for detailed metal shaping

Powermax45 SYNC Benefits:

Operational Efficiency

Accelerated operator training
Swift consumable replacements
Minimized waste through extended cartridge life
Data-driven inventory management

User-Centric Design

Intuitive color-coded cartridge system
RFID-enabled automatic torch configuration
Advanced consumable lifespan monitoring
Ergonomic torch design for extended use

Cutting-Edge Performance

Multi-purpose cartridges for versatile applications
Enhanced cut precision and quality
Integrated torch controls for real-time adjustments

Unmatched Durability

Heavy-duty SmartSYNC torch construction
Reliable arc initiation with SpringStart™ technology
Minimized downtime for increased productivity

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
