3/4" Cut Capacity
Multipower Supply
Ultra-Quick Connect™ Torch

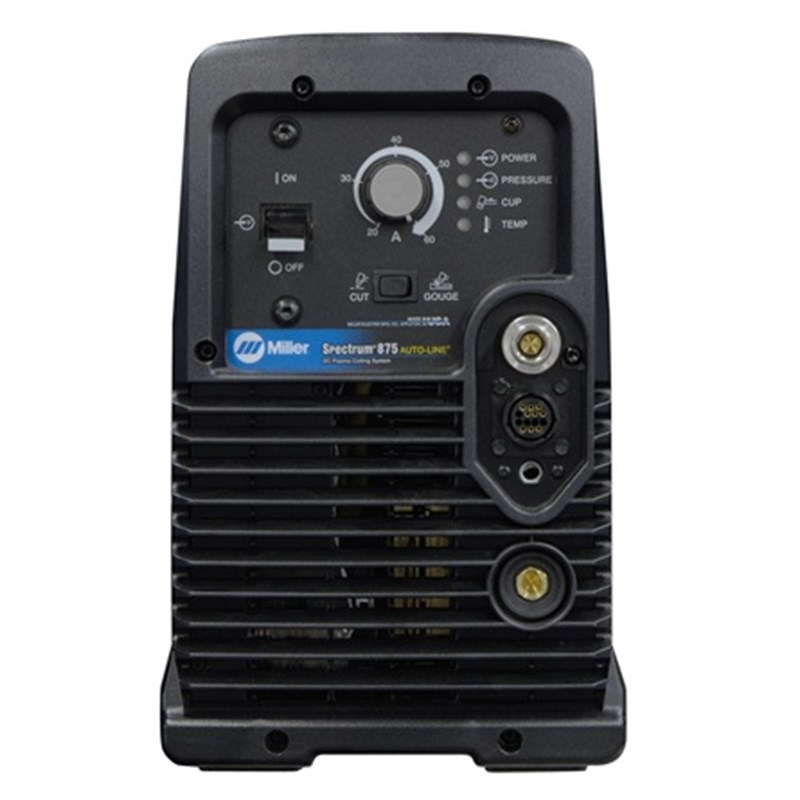

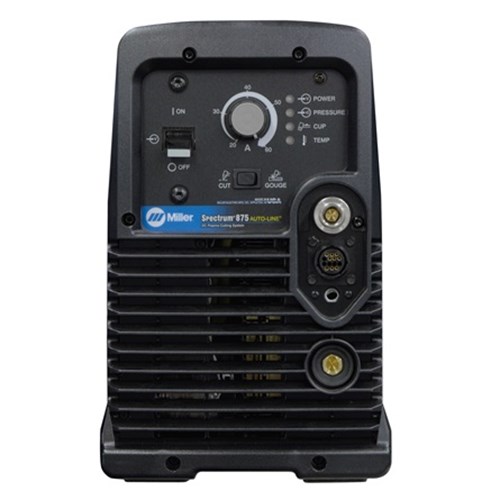

Miller's True Blue WarrantyCompact, 56 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.
Rated Cutting Capacity - The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
Automatic Air Regulation - For end user convenience, the unit has no pressure gauge or manual regulator knob. The unit automatically adjusts the air pressure to the torch for optimum cutting and gouging. No adjustments necessary.

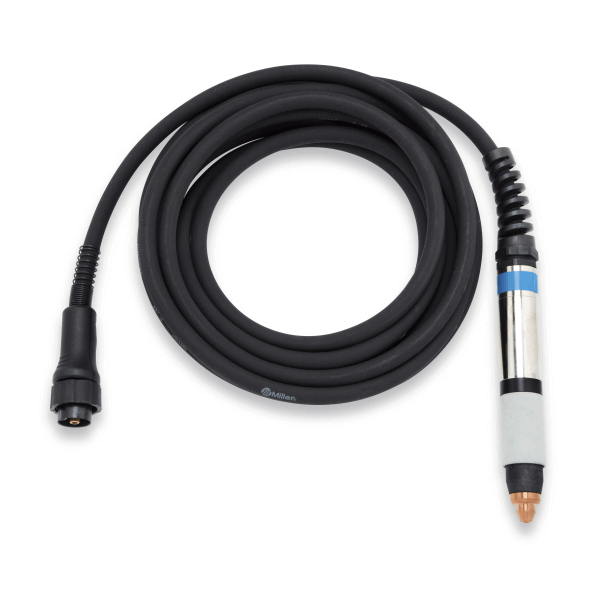

Ultra-Quick Connect™ Torch - Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.
Auto-Line™ - Automatically connects the 875 Auto-Line to any primary input voltage from 208 - 575 volts single - or three-phase, 50 or 60 Hz.
Wind Tunnel Technology™ and Fan-On-Demand™ - Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit
Can Be Powered by Miller Engine Drive/Generator - Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.

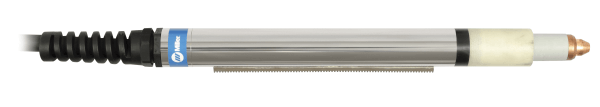

CNC/Automation Cutting Capable - Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.
Auto-Refire™ Technology - Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.

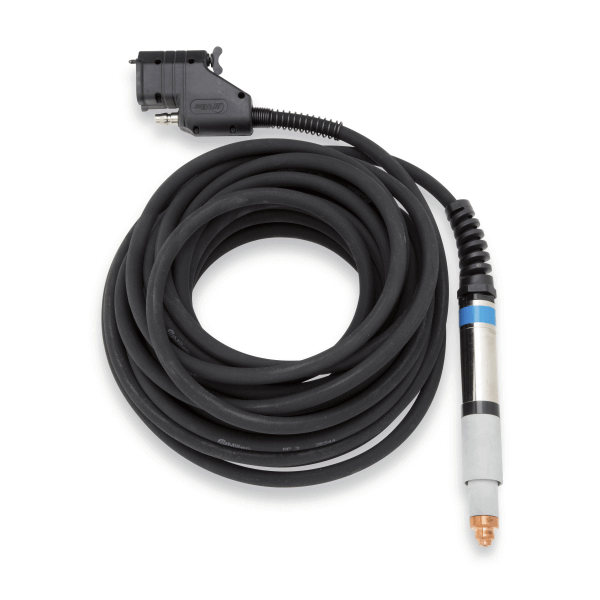

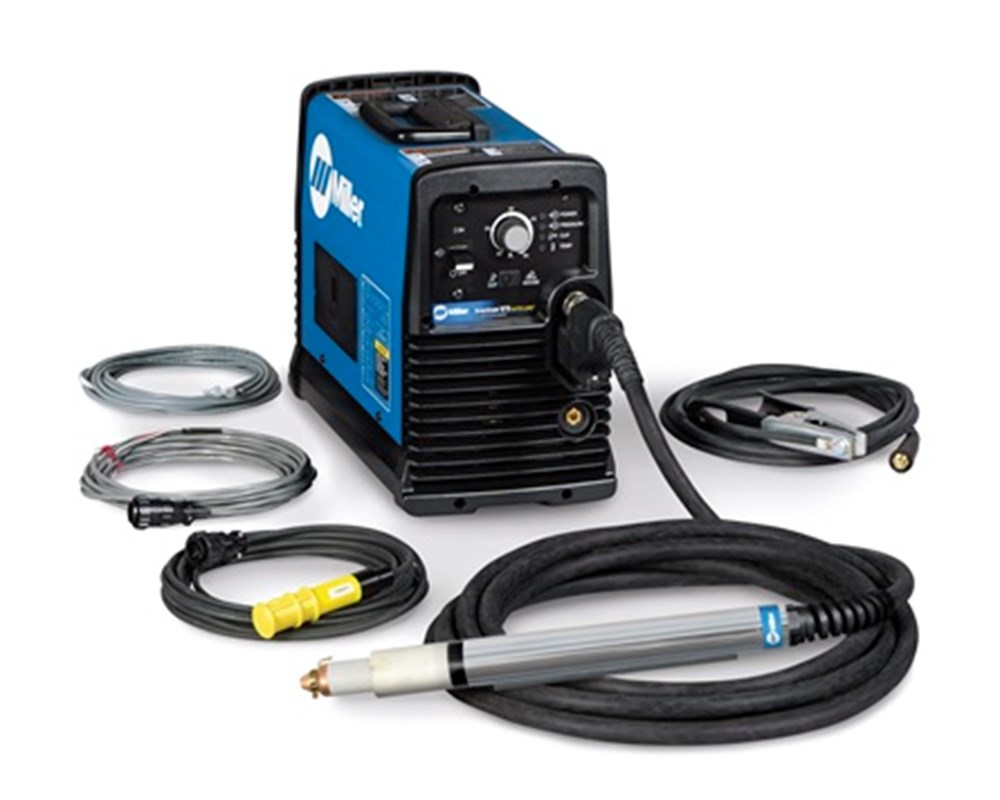

| Title | Spectrum 875 Auto-Line Plasma Cutter with XT60M Long-Body Torch with 25-ft. Cable |
|---|---|
| Industries Interests | Racing / Customizing / Restoring Construction DIY / Home Hobbyist Heavy Equipment Manufacturing Infrastructure Manufacturing Shipbuilding Boat / Yacht High Purity Processing |
| Capability Gouging | — |
| Rated Output at 104 Degrees Fahrenheit | 3- Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 - 380 V: 60 A at 140 VDC, 50% duty cycle; 380- 575 V: 60 A at 140 VDC, 60% duty cycle; 380-575 V: 50 A at 140 VDC, 100% duty cycle 1-Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 V: 60 A at 140 VDC, 50% duty cycle; 230 V: 50 A at 140 VDC, 100% duty cycle |
| Material Thickness | Mild Steel 7/8 in. Aluminum 5/8 in. Stainless Steel 7/8 in. |
| Input Hz | 50 / 60 Hz |
| Input Amperage | 12.4 A |
| Metal Type | {9190276B-EE44-47D3-9D9A-F3CEE1894DC2} {35A950E3-2302-440C-9387-45563C82DAFF} {B04BEE54-0575-4BF3-9040-C83E2EA5D629} |
| Stainless Steel Travel Speed - IPM | 15 IPM |
| Aluminum Travel Speed - IPM | 15 IPM |
| Mild Steel Travel Speed - IPM | 15 IPM |
| Net Width | 8.75 in |
| Net Height | 13.5 in |
| Net Length | 18.5 in |
| Net Weight | 56 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 13.50 Inches |
| Width: | 8.75 Inches |
| Length: | 18.50 Inches |
| Weight: | 56 Lb(s) 0 Oz |
+
