Miller Deltaweld® 500 MIG Welder w/ ArcConnect™, 14-Pin & Insight (575V) #907786003 For Sale Online

Miller Deltaweld® 500 MIG Welder w/ ArcConnect™, 14-Pin & Insight (575V) #907786003 Best Price

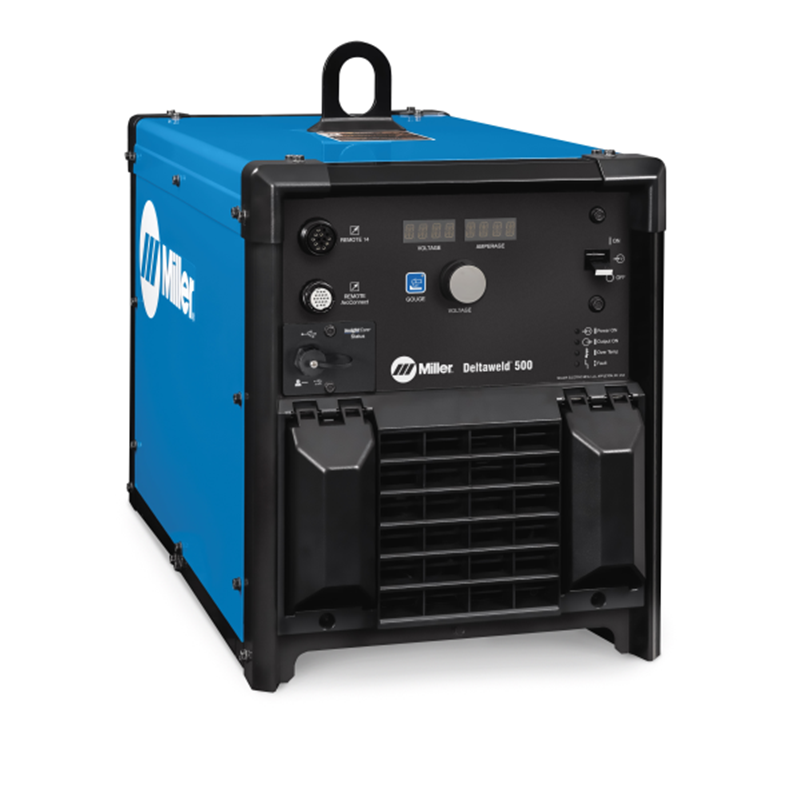

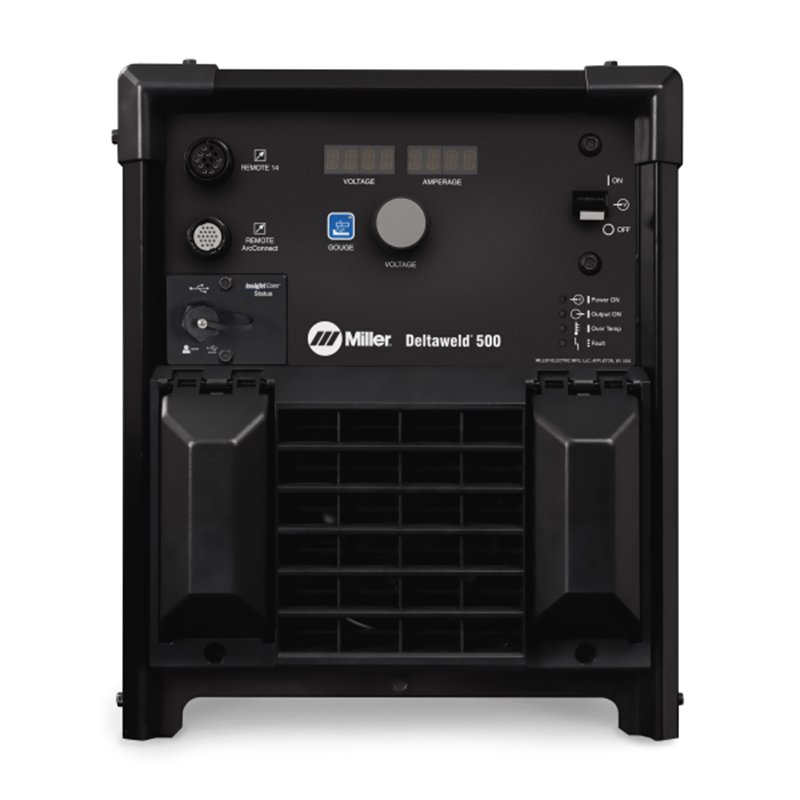

Miller Deltaweld® 500 MIG Welder w/ ArcConnect™, 14-Pin & Insight (575V) #907786003

Part Numbers: 907786003

UPCs: 715959690775

2 Reviews

Miller Deltaweld® 500 MIG Welder w/ ArcC...

Included with your purchase:

FREE!

Miller Classic Series Welding Helmet wit...

FREE!

Welders Supply Magnetic Cup Holder

FREE!

Black Stallion Split Cowhide Stick Glove...

Choose Options

FREE!

Welders Supply T-Shirt & Stickers

Small

Medium

Large

1X Large

2X Large

3X Large

Design: American Welder

$10,118.00 + Free Shipping $11,686.00*

SAVE $1,568.00

$10,118.00 + Free Shipping $11,686.00*

SAVE $1,568.00

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Videos
Consumables
Reviews
FAQS

3-Year Power Warranty
MIG Welding
3 Phase

Miller Deltaweld 500 575V W14PIN INSI

What's Included:

Deltaweld 557V With ArcConnect™, Insight Core™, and 14 Pin.

Features:

Easy to Use

EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

Legacy Meets Pulse

Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker. Make your move.

ArcConnect™

Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.

Fan-On-Demand™

Operates only when needed reducing noise, power consumption, and the amount of airborne contaminants going through the machine.

Dedicated Wire feeder options

Intellx feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments.
Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.

Gouge Mode

Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.

Backwards Compatibility

A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.

Wind Tunnel Technology

Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.

Ready to Weld

The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.

Welders Supply Demo: Deltaweld MIG Welders

Check out a full selection of MIG, TIG, Stick, and Gas welders for sale at Welders Supply Company.

Processes

Flux Cored (FCAW)
MIG (GMAW)
Accu-Pulse MIG (GMAW-P)
Air Carbon Arc (CAC-A)

Miller Detatweld 500 Specifications:
Industries Interests	General Manufacturing Heavy Equipment Manufacturing Railcar Commercial Truck and Trailer
Carbon Diameter	3/8 in (9.925 mm)
Current Type	DC
Input Voltage	208/230/460V or 575 V
Input Phase	3-Phase
Input Hz	60 Hz
Portability	Lift Eye (Standard) Running Gear / Cart (Optional)
Net Height	22.34 in
Net Length	31.65 in
Net Weight	145 lbs
Weldable Metals	Stainless Steel Steel
Net Width	15.35 in
Max Open Circuit Voltage	90 VDC
Weld Ouput	CC / CV
Warranty	3 Years Miller's True Blue Warranty

SHIPPING DIMENSIONS
Height:	22.34 Inches
Width:	15.35 Inches
Length:	31.65 Inches
Weight:	145 Lb(s) 0 Oz

Miller Deltaweld 500 575V W/14PIN INSI 907786003 specs

Join the Pulsed MIG Revolution w/ Miller Deltaweld (Demo)Miller Deltaweld: Make Your Move to More PossibilitiesMake Your Move to Pulse: Now Available on Deltaweld Systems

Consumables

W850-115 Metabo Angle Grinder #601232420

Angle Grinder W850-125 #603608420

$73.99

View

BSX Welders Backpack, Tool Bag, Gig Bag #GB10...

$119.25

View

MILLER HANDY SHEET METAL Gauge KEY RING #2298...

$6.56

View

Nemesis Safety Glasses Blue Mirror lens #1448...

$6.25

View

Nemesis Safety Glasses Smoke/Mirror #25688

$6.25

View

Strong Hand UD Series 4-IN-1 Clamp #UD45-C3

UD Series 4-IN-1 Clamp 4 1/2" #UD45-C3

$20.60

View

Manufacturer Reviews

Gideon D.

Very user friendly, very professional & uniform weld performance, especially with the accupulse, & the Intelix Pro Dual feeder.

Kyle

This machine was purchased to replace an old Deltaweld 451 in a large manufacturing shop. We were able to demo this unit first before the purchase was made and the demo machine was set up as a portable unit with the new Intellx Pro feeder head all on the Miller running gear. Our guys were super impressed with how stable the arc was and loved the built in gouge feature. Once we got our machine all installed and in place with the feeder mounted on a swing boom with 35 foot cables connecting it all together we had some difficulties. The machine was not performing the way the demo unit did. We had tried to just reuse the 2.0 cables that were running the old machine but were having trouble with too much spatter and unstable arc. After replacing the ground clamp and the cable with new 4.0 as well as the positive cable to a 4.0 it performs to what it should now. So the con to this machine is how sensitive it is to everything but on the flip side of that is how the machine can be dialed in to make perfect welds.
