Part Numbers: 951411

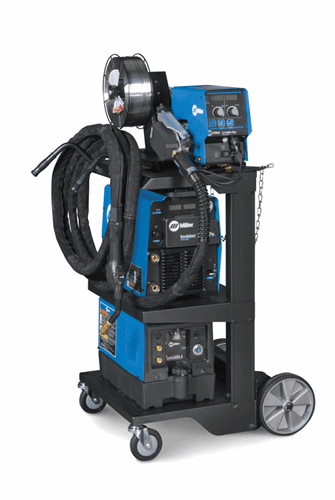

Miller Invision™ 352 MPa, S-74 MPa Plus (Single), Bernard™ BTB 400 A 15 Ft, MIGRunner™ Pkg 951411
MIG and synergic Pulsed MIG system with optimized weld programs for both steel and aluminum.
- Invision 352 MPa

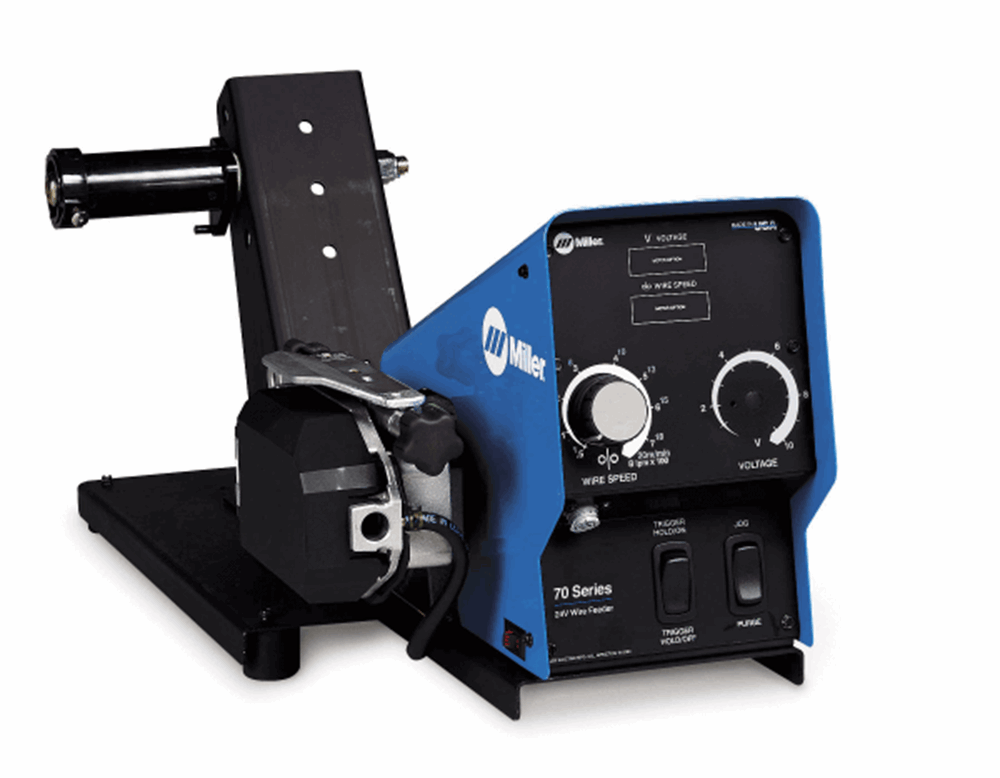

- Single 74 MPa Plus Feeder

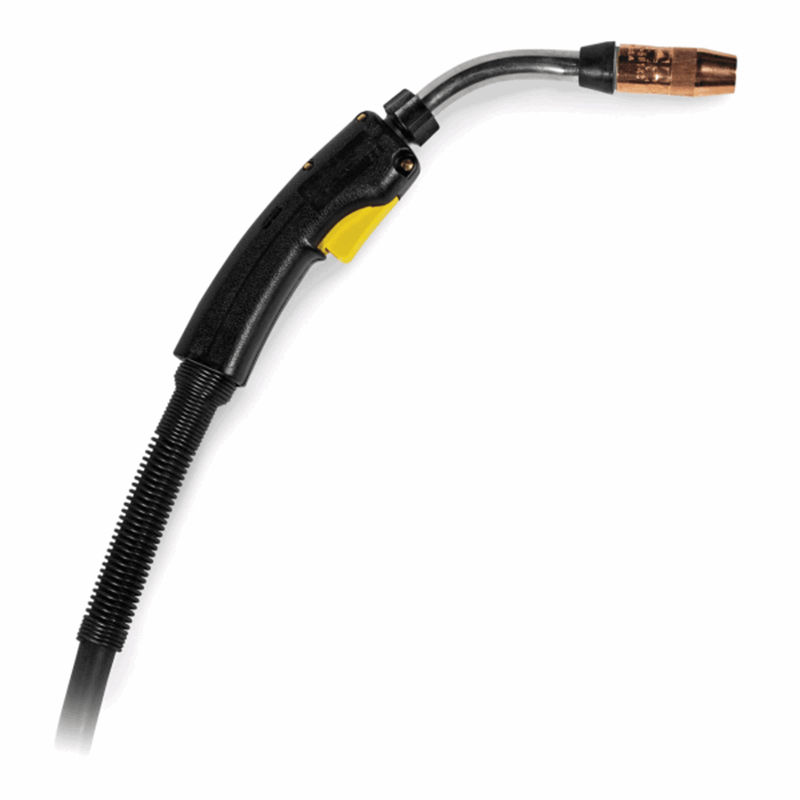

- BTB 400A Gun
- Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)
- .035-.045 reversible dual V drive rolls
- Industrial MIG 4/0 Kit
Check out the wide selection of MIG welders, Miller welding machines, and Miller safety equipment available at Welders Supply Company.

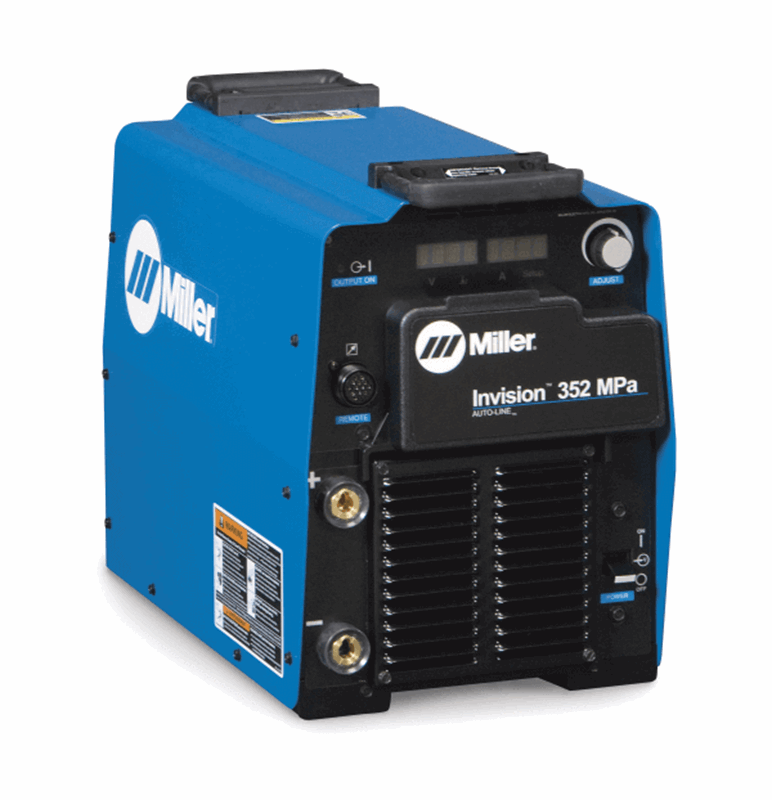

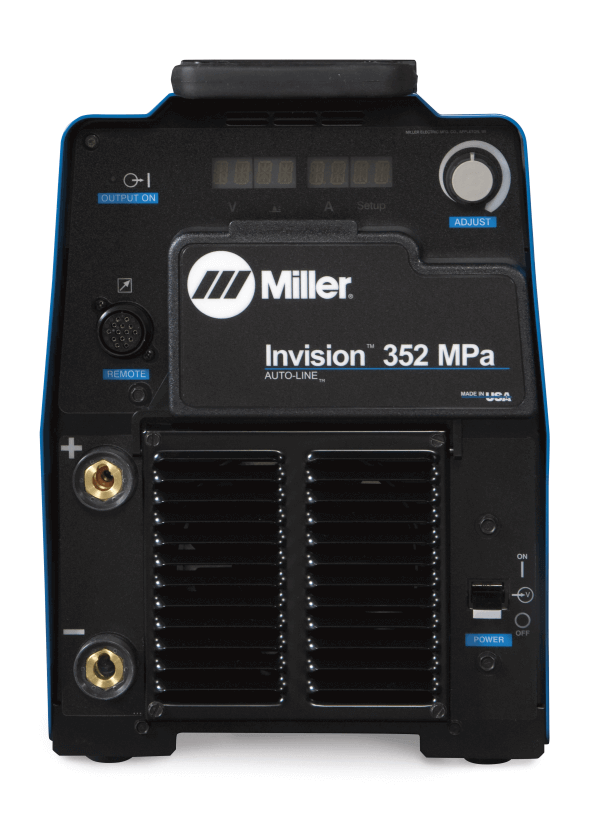

Miller Invision™ 352 MPa Specifications:
|Input Voltage Options||208 – 575 VAC, 50/60 Hz, 3- or 1-phase power|
|Welding Output Range||CC mode: 5–425 A
CV mode: 10–38 V
|Max Open Circuit Voltage||75 VDC|
|Processes||MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW), & Air Carbon Arc Cutting and Gouging (CAC-A, 1/4-in. carbons max)|
|Industrial Applications||Aerospace, Construction, Heavy Equipment Manufacturing, Infrastructure, Manufacturing, Railcar, Shipbuilding, Boat / Yacht, & High Purity Processing|
|Weldable Metals||Steel, Metal Core, Aluminum, Stainless Steel, Nickel, Silicon Bronze, & Copper Nickel|
|Rated Output||350 A at 34 VDC, 60% duty cycle||300 A at 32 VDC, 60% duty cycle|
|Net Width||12.5 in. (318 mm)|
|Net Height||17 in. (432 mm)|
|Net Length||24 in. (610 mm)|
|Net Weight||80 lb. (36.3 kg)|

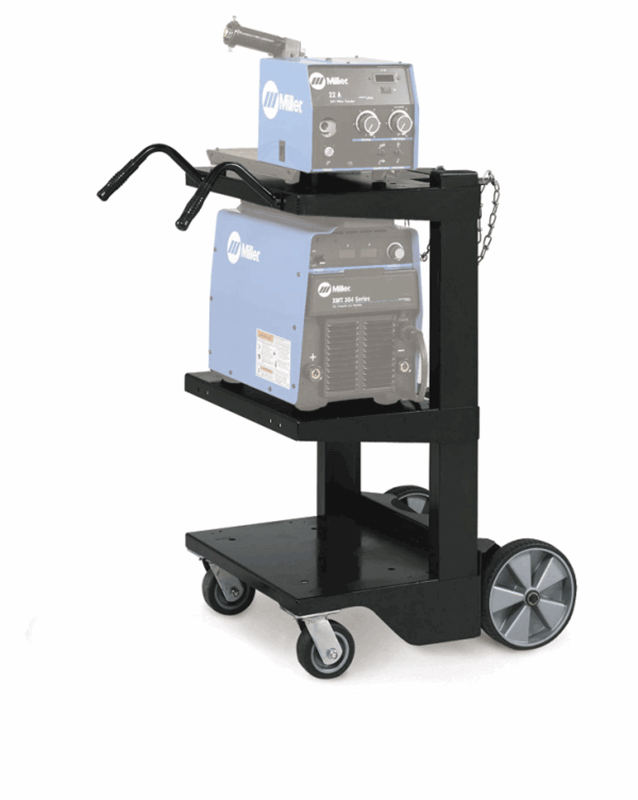

Running Gear / Cart (Standard)
|Warranty||3-year Miller's True Blue Warranty|
|Weight:||302 Lb(s) 0 Oz|
Product Questions and Answers
Q - Which cart is this and can I buy it separately? A - It's Miller's MIGRunner Cart, part #951411, and yes you can buy it separately.
Q - Does this have Dinse weld disconnects? A - Yes. The air compressor supplies 28 cfm at 175 psi.
