Miller Big Blue 500 Pro (Kubota) 907736

$23,379.20 $30,587.19 Reduced Price You Save $7,207.99
Product Number: 907736
Add item to cart for

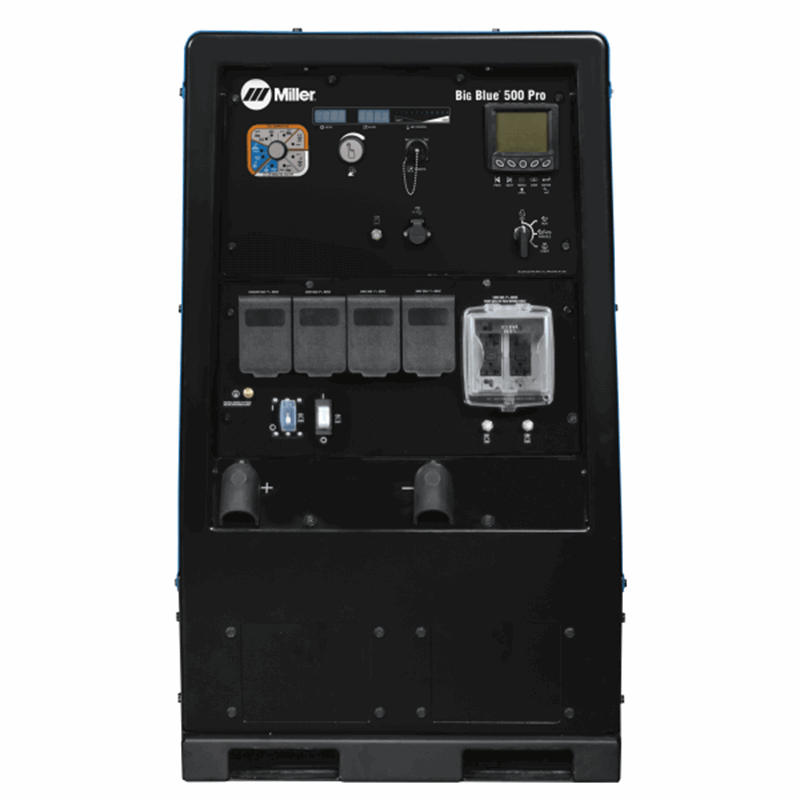

Miller Big Blue™ 500 Pro (Kubota) 907736

The Big Blue™ 500 Pro isn’t just one of the most tremendous Diesel Engine-Driven Welder/AC Generators from Miller®, it’s also the cleanest and greenest power available. The backbone to this green, clean, multi-purpose welding machine, is in the heavy-duty T4i Kubota diesel engine. This generator packs an incredible 27,000 peak watts of power on 3-phase or 15,000 watts on single-phase, all while keeping the air clean from after treatment maintenance exhaust, due to the Miller® diesel oxidation catalyst (CDC) technology. You’ll need more metal to craft after welding with this machine.



Applications:

  • Heavy Industrial
  • Structural steel
  • Mining maintenance
  • Maintenance and repair rigs
  • Process piping


Processes:

  • Stick (SMAW)
  • MIG (GMAW)
  • Flux-cored (FCAW)
  • DC TIG (GTAW)
  • Air carbon arc (CAC-A)
    3/8-inch (9.5 mm) carbons

Electronic Engine Display (Kubota USA Models Only)

Simultaneously see and analyze diagnostics for quick and easy servicing like:

  • Fuel Level
  • Engine Hours
  • Coolant Temperature
  • Oil Pressure
  • Battery Volts
  • Engine RPM



Big Blue™ 500 Pro Features:



FeatureBenefit
Digital Meters with SunVision™ Weld with the easiest view possible in all light environments
Low OCV Stick Operator safety is increased without compromising arc starts
Industrial USB Port Upload the latest software while logging files and stats of machine use for operation management
20,000 watts of Pure Generator Power A second welding arc now available with an extra inverter-based power source
HD Powder Coat Protect sheet metal from rust and corrosion
Quiet Operation Operations and team communication is improved
Arc Control Stick and solid wire welding is made easier with fine-tuning of hard to weld locations
Standard 14-pin Receptacle with Auto-Remote Sense™ Connection of feeders and remote controls has never been made easier



Warranty

Welder/generator is warranted by Miller for three years, parts and labor. The engine is warranted separately by engine manufacturer.




Miller Big Blue 500 Pro Processes:

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • TIG DC (GTAW-DC)

Miller Big Blue 500 Pro (Kubota) Specifications:

Industries Interests Construction
Infrastructure
Fabrication
Maintenance and Repair - Field Operations
Pipe Fabrication / Construction
Work / Service Trucks
Carbon Diameter 3/8 in (9.5 mm)
Cold Weather Starting Aids Engine Block Heater
Glow Plugs
Current Type DC
Engine Brand Kubota
Engine Compliance T4F
Engine Idle Speed 1350 RPM
Portability Lift Eye (Standard)
Trailer (Optional)
Fork Pockets
Engine Weld Speed 1800 RPM
Fuel Tank Size 25 Gallon
Net Height 46 in
Fuel Type Diesel
Net Length 69.5 in
Horsepower 48.9 hp
Max Open Circuit Voltage 92 VDC
Net Weight 1750 lbs
Weldable Metals Steel
Stainless Steel
Net Width 28.5 in
Rated Output 500 A at 40 V, 100% Duty Cycle
450 A at 38 V, 100% Duty Cycle
400 A at 36 V, 100% Duty Cycle
Single Phase Generator Continuous Power 12000 W
Warranty Engine Warranties
Miller's True Blue Warranty
Single Phase Generator Peak Power 15000 W
Sound Rating Idle: 65.9 dB / Weld: 74.3 dB
Three Phase Generator Continuous Power 20000 W
Three Phase Generator Peak Power 27000 W
Amperage Range 20 - 500

SHIPPING DIMENSIONS

Height: 48.00 Inches
Width: 30.00 Inches
Length: 70.00 Inches
Weight: 1800 Lb(s) 0 Oz
