Miller XMT 450 MPa 575 V 907480

Part Numbers: 907480
$9,527.00
$11,003.00* Save $1,476.00

Included with your purchase ( ) :

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    460V

    460V

    •  3/8" Cut
    •  Three Phase
    •  3-Year Power Warranty
    •  90% Efficient

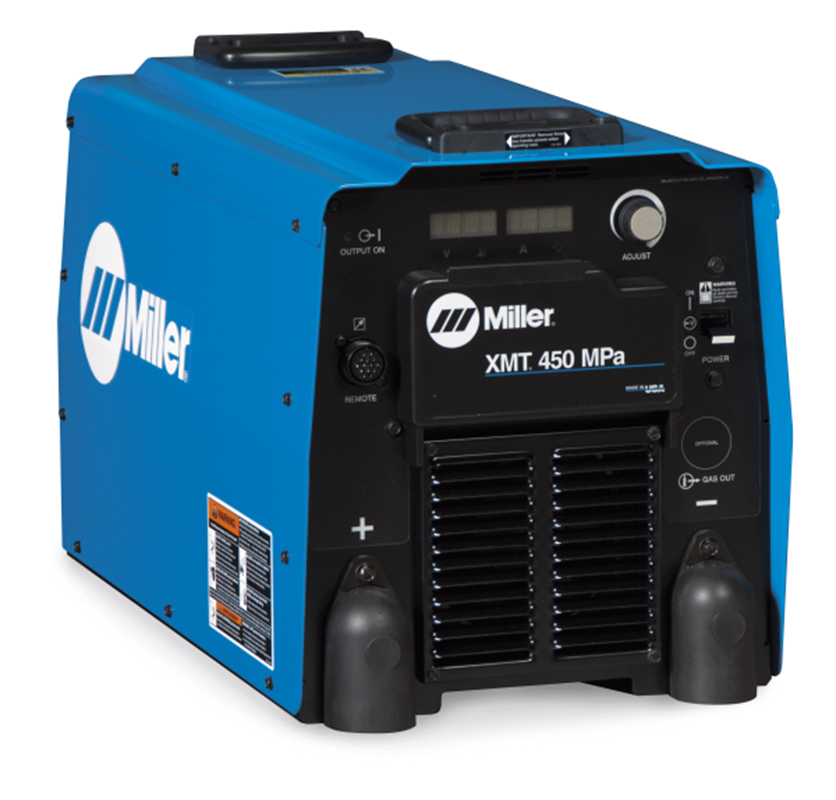

    Miller XMT 450 MPa 575 V 907480

    Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 450 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.

    Features:

    Built-in Pulse programs - Provide reduced heat affected zone, weld in all positions, great for thick-to-thin metal, good gap filling ability and faster travel speeds and deposition.

    SharpArc® - Controls the arc in Pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.

    Advanced features for the professional welder - Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.

    Standard 14-pin Receptacle - Has the flexibility to be used with spool guns, feeders, and remote controls.

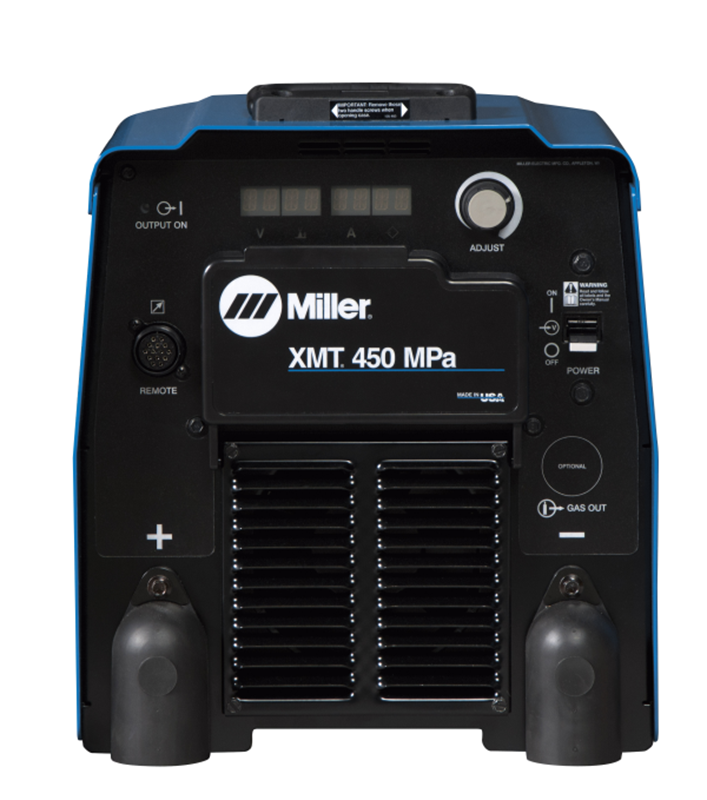

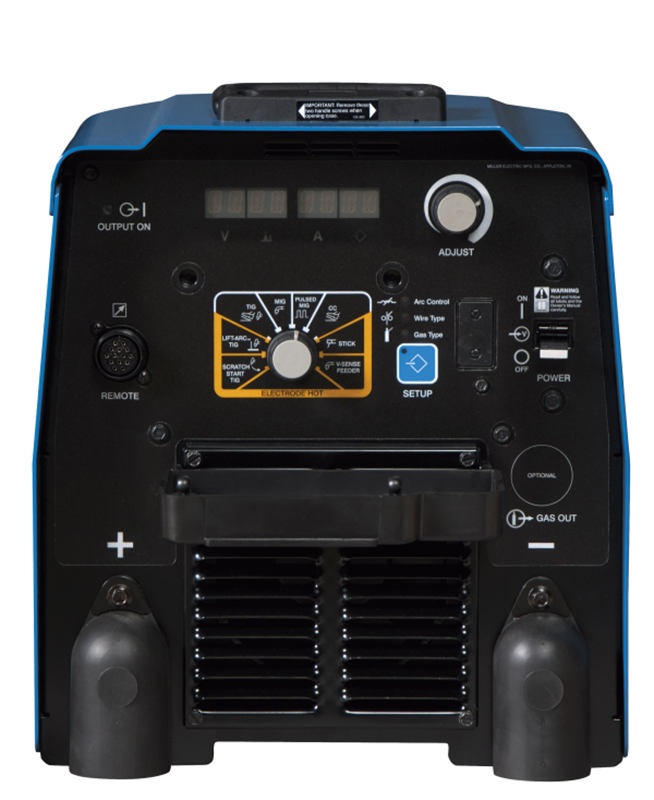

    Welder friendly control panel - Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.

    Reliability - Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.

    Added Features - 70 Series MPa wire feeder provides synergic pulsed MIG - as you increase/decrease the wire feed speed, the pulse parameters increase/decrease, matching the right amount of power output to match the wire speed, eliminating the need to make additional adjustments. 70 Series MPa adds wire deposition capabilities with Insight Core™. XR-AlumaFeed™ wire feeder provides Profile Pulse™ - TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

    Check out all of our welding machines including Miller welding machines from Welders Supply.

    PROCESSES

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG (GTAW)
    Title XMT® 450 MPa 575V
    Industries Interests Aerospace
    Construction
    Heavy Equipment Manufacturing
    Infrastructure
    Manufacturing
    Railcar
    Shipbuilding
    Boat / Yacht
    High Purity Processing
    Weldable Metals Aluminum
    Specialty Metals
    Stainless Steel
    Steel
    Carbon Diameter 3/8 in (9.5 mm)
    Input Voltage 575 V
    Input Phase 3-Phase
    Input Hz 60 Hz
    Weld Output CC / CV
    Max Open Circuit Voltage 90 VDC
    Net Width 14.5 in
    Net Height 17.25 in
    Net Length 27.25 in
    Net Weight 122 lbs
    Warranty Miller's True Blue Warranty
    Portability Handle(s)
    Running Gear / Cart (Optional)

    SHIPPING DIMENSIONS

    Height: 1.00 Inches
    Width: 1.00 Inches
    Length: 1.00 Inches
    Weight: 1 Lb(s) 0 Oz

    Product Questions and Answers

    Have a question about this product? Submit your question using the form below

    Related Products

    Miller MIG Welding Machine 4/0 Kit w/ Lug Connections #300390
    Industrial MIG 4/0 Kit, Lug Connections #300390
    $786.00
    $935.00
    Miller Coolmate™ 4 115 V #042288
    Miller Coolmate™ 4 115 V #042288
    $1,597.15
    $2,015.00

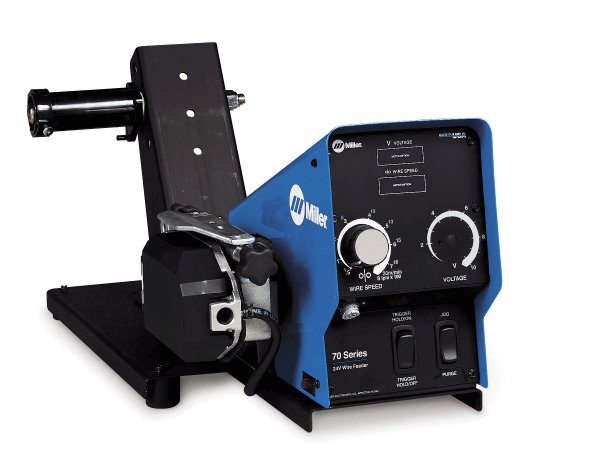

    S-74S (Single) #951196
