Miller Dynasty 350 AC/DC Tig & Stick, Water Cooled Package #951626

Part Number: 951626
$8,770.00
$11,306.00* Save $2,536.00
Out of Stock

Welding type:

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

  • Stick Welding
  • TIG Welding
  • Multi-Phase
  • 3-Year Power Warranty

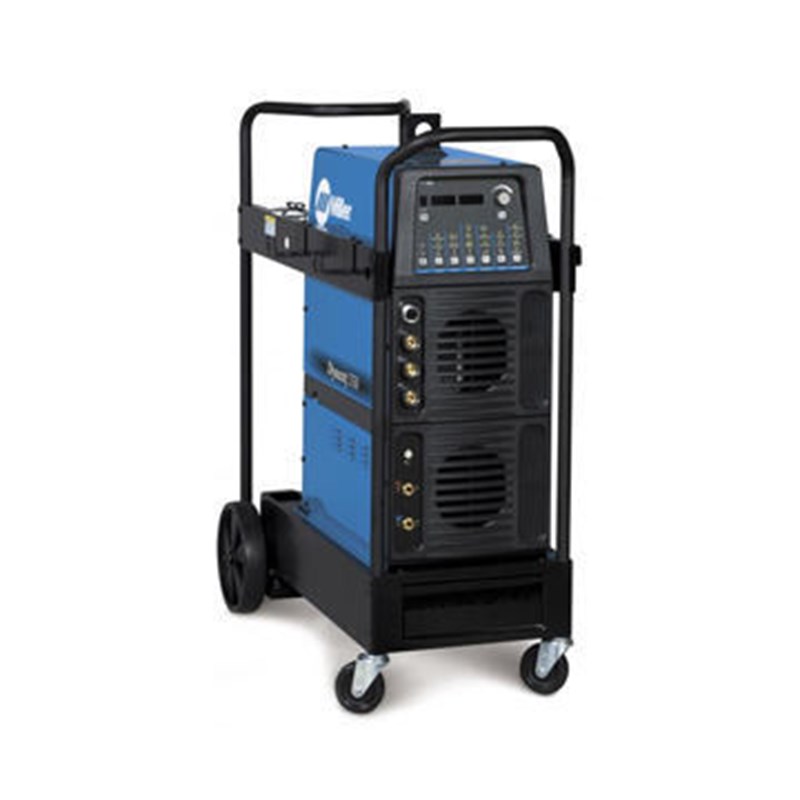

Miller Dynasty 350 Water Cooled Welder #951626

The Miller Dynasty 350 Water Cooled Welder is the finest 350 Amp AC/DC TIG welder on the market. The Ceriated Tungsten is SHARP POINTED and can be used on all materials including aluminum and other similarly soft metals. While in AC mode you can vary the wave frequency up to 250Hz. The arc becomes more focused as you increase the frequency. It's so smooth and works so well, it makes you feel like you are welding steel or stainless steel when you are welding aluminum. With less amperage you can weld thicker aluminum due to the arc being more focused without wandering.

This is a great machine if you are professional TIG Welder. You really need one of these welding machines. If you need more AMPs look at our Dynasty 700

Input Power

  • 208-575 V, 3- or 1-Phase Power

Rated Output

  • 3-Phase: 300 A at 32 V, 60% Duty Cycle
  • Single-Phase: 225 A at 29 V, 60% Duty Cycle

Miller Welding EquipmentWelding Amperage Range

  • 5 - 350 Amps

Net Weight 308 lb (122 kg), with TIGRunner®

Includes: 8 ft Power Cord, 2 Dinse Connectors, Set-up DVD, Runner Cart, Coolmate 3.5, RFCS-14HD Foot Control, 350A 25 ft Torch Kit and Accy's 300183, Water Cooled Torch Adapter 195377, Regulator Flow Meter, Gas Hose, 15 ft Work Clamp with Dinse Connector and 4 gallons of Coolant 043810.

Miller Dynasty 350 Welder

Try these accessories with your New Dynasty 350 AC/DC Tig & Stick, Water Cooled Package

Miller FILTAIR 130 Portable Fume Extractor Part# 300595

View our large selection of used welding equipment, welding machinesMiller TIG welders, and welding machine accessories.

Miller Dynasty 350 Water Cooled Welder Specifications:

Input Power
208-575 V, 3- or 1- phase power
Welding Amperage Range 3-350 A
Rated Output
300 A at 32 V, 60% duty cycle
Processes
  • TIG (GTAW)
  • Pulsed TIG (GTAW-P)
  • Stick (SMAW)
  • Air carbon arc (CAC-A) 1/4 in. maximum
Industrial Applications
  • Precision fabrication
  • Heavy fabrication
  • Pipe and tube fabrication
  • Aerospace
  • Aluminum ship repair
  • Anodized aluminum fabrication
Net Weight
135 lb. (61 kg)

SHIPPING DIMENSIONS

Height: 23.00 Inches
Width: 44.00 Inches
Length: 50.00 Inches
Weight: 367 Lb(s) 0 Oz

Product Questions and Answers


Q - What input power does this need? A - 208-575 V on 3- or 1-phase power
Q - Hasn't this model been replaced? A - Yes, the updated version is #951694.

Have a question about this product? Submit your question using the form below

Related Products

3M™ Adflo™ Powered Air Purifying Respirator #15-1101-31
3M Adflo Powered Air Purifying Respirator
$1,295.00
$1,396.78
Out of Stock

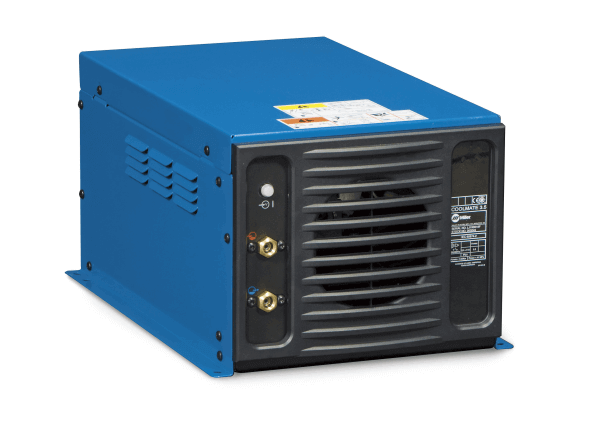

Miller Coolmate 3.5 115V Welding Machine Cooler #300245
