24.8HP 11.5gal Diesel Engine
120/240 V 60Hz Output
1-Phase Output
10,000W Continuous
DC Output

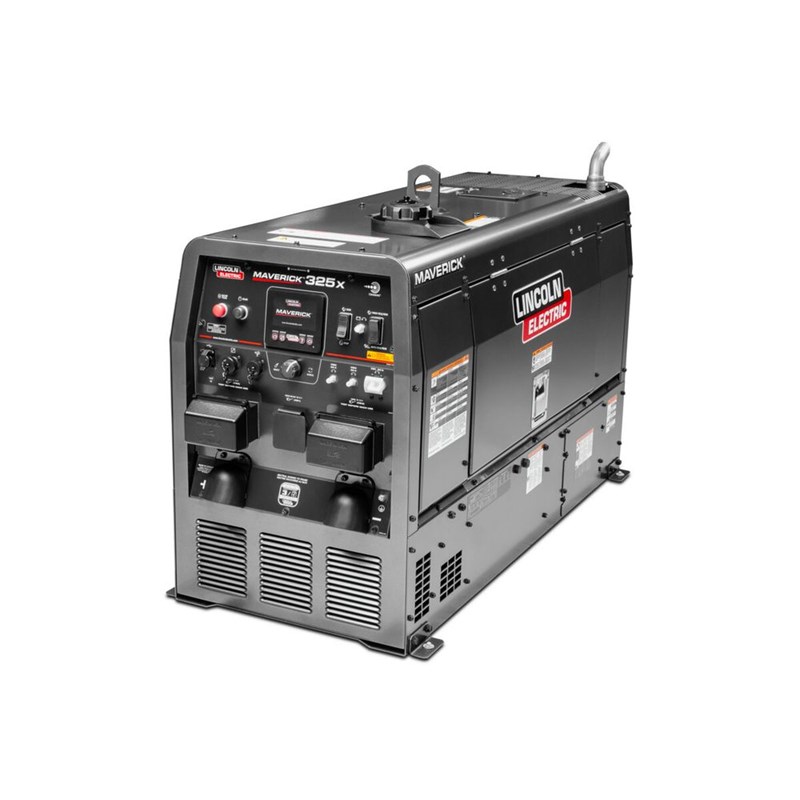

Lincoln Electric 3-Year WarrantyThe Lincoln Electric Maverick® 325X (Kubota®) is a high-speed, diesel engine-driven welder/generator designed for advanced DC multi-process welding.
Equipped with CrossLinc® Technology and Chopper Technology®, this machine delivers superior arc control and consistency.
Ideal for demanding environments, the Maverick® 325X offers 120/240 VAC single-phase auxiliary power and comes powered by a reliable 24.8 hp Kubota® D902 diesel engine, ensuring excellent performance across various applications.
At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.
| Dimensions (H x W x D) | 34.23 in x 21.25 in x 54.29 in (867 mm x 540 mm x 1379 mm) |
| Net Weight | 770 lbs (340.2 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| IEC Rating | 325A / 33V / 100% @ 104°F (40°C) |
| Max Rating | 400A / 29V / 60% @ 104°F (40°C) |
| Output Range by Mode | Stick (SMAW): 35 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 13 – 40 Volts DC TIG (GTAW): 25 – 250 Amps Arc Gouging (CAC-A): 60 – 400 Amps |
| Open Circuit Voltage | 80 Peak OCV at 3600 RPM |
| Rated Gouging Carbon Diameter | 5/16" (8.0 mm) |
| Machines Communication Technology | CrossLinc |
| Single Phase Auxiliary Output | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R |
| Engine Brand & Model | Kubota® D902 |
| Engine Description | 3 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 24.8 hp (18.5 kW) |
| Engine Block Size & Displacement | 54.8 cu. in (.90 L) Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 3600 |
| Low Idle Operating Speed | 2500 |
| Sound Rating @23 ft. (7m) | Idle: 73.5 dB Max Load: 79.6 dB |
| Fuel Tank Size (US gal.) | 11.5 US gal. |
| Fuel Tank Size (L) | 50 L |
| Oil Capacity (qts.) | 3.9 qts. |
| Oil Capacity (L) | 3.7 L |
| Coolant Capacity (US gal.) | 0.9 US gal. |
| Coolant Capacity (L) | 3.3 L |
| Input Hertz | 60 |
| Input Phase | 1 |
| Typical Application | Construction Construction & Field Erection Maintenance & Repair Oil & Gas Power Generation Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
SHIPPING DIMENSIONS |
|
| Height: | 40.75 Inches |
| Width: | 24.25 Inches |
| Length: | 62.75 Inches |
| Weight: | 865 Lb(s) 0 Oz |
