Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1

Part Number: 1-1330-1
UPC: 699488003100

Ships Free To Lower 48 States

Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1 1-1330-1 Thermal Dynamics Cutmaster 102 Consumables Power Supply and Ventilation Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1 Torch Configurations Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1
Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1
1-1330-1 Thermal Dynamics Cutmaster 102 Consumables

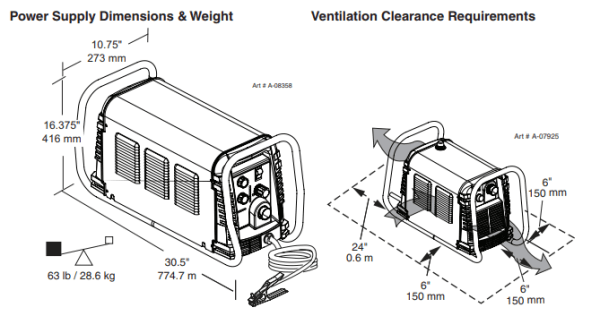

Power Supply and Ventilation Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1

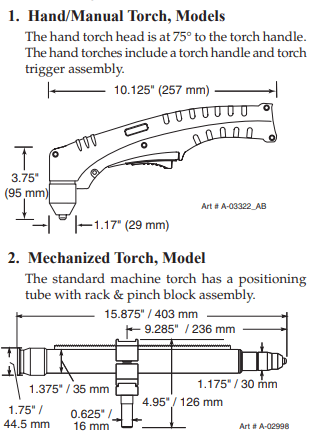

Torch Configurations Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1

Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1

Part Number: 1-1330-1
UPC: 699488003100

$4,590.00 + Free Shipping $5,649.23*
SAVE $1,059.23
Login or signup to earn 4590 Welders rewards points.

Cut capacity:

1 - 2" Capacity

1 - 2" Capacity

Plasma Torch Type:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 1" Cut Recommended (1¾" max)
  • 208V - 480V Single Power Supply
  • Lightweight & Portable
  • 1Torch SL100
  • Spare Parts Kit Included
  • 20' (6.1m) Leads
  • 4-Year Warranty

Victor Thermal Dynamics Cutmaster 102 Plasma Cutter #1-1330-1

The CUTMASTER 102 is the fastest cutting 1" (25 mm) machine on the market today. The Cutmaster 102 Plasma Cutter's lightweight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine you can buy. A Thermal Dynamics 1Torch SL100 is included with this system.

Cutmaster 102 Plasma System Features

  • All user controls located on the front panel
  • Color coded LEDs display status conditions
  • Storage compartment for easy access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect simplifies adding lead extensions or converting to a machine torch
  • Industry's only 60 Amp drag tip
  • True Guard roll bar facilitates transportation and increases protection
  • Multi-voltage operation from 208 to 480 Volts in a single power supply
  • Auto Pilot Restart instantly reignites the pilot arc while cutting expanded metals
  • Lighter weight design for maximum portability.
  • 20 ft. lead
  • Spare parts kit included
  • Maximum cut capacity of 1¾" (45 mm)--More than any other plasma cutting system in its class

Shop other Plasma Cutters from Welders Supply.

Other Versions:
1-1330-2 460V 20 Ft. Hand Torch
1-1331-1 208-230V 50 Ft. Hand Torch
1-1331-5 600V 50 Ft. Hand Torch
1-1330-5 600 V 20 Ft. Hand Torch
1-1331-2 460V 50 Ft. Hand Torch

Specifications
Max Amperage Output - (Amps) 100
Output Power - (Kw) 12
Recommended Cut - Inches (mm) 1 - " (25)
Max Cut - Inches (mm) 1¾ - " (45)
Pierce Rating - Inches (mm) 3/4 - " (20)
Input Voltage - (Volts, Phase, Hz) 1/3 Phase
50/60Hz208/230V
Duty Cycle (@ 40 deg C) 60% @ 100A
80% @ 80A
100% @ 70A
Amperage Draw 95 (230V, 1 Phase)
45 (230V, 3 Phase)
Dimensions (H x W x L) Inches (mm) 15 x 12 x 30 (381 x 305 x 762)
Weight - lbs (kg) 62 (28.1)
Torch Model SL100® Hand, Automated,& Mechanized
Air Pressure - psi (bar) 70 (4.8)
Flow - Cfm (l/m) 7.5 (212)
Warranty (Unit/Torch) Parts and Labor 4/1

-1330-1

SHIPPING DIMENSIONS
Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Weight: 62 Lb(s) 0 Oz

Product Questions and Answers

Q - Can you use CO2 instead of compressed air. A - No, you can't use CO2 in any plasma cutter, but you can use nitrogen.
Q - Will this work on thin sheet metal? A - Yes, it will cut from thin sheet up to 1" thick and more, but for thinner metals you have to dial down the amperage and use an appropriate tip. The Consumables Kit (#5-0110) has tips for this.

How to connect a torch :

  1. Choose the right torch.

    Use only the Thermal Dynamics SL 100/Manual or SL100/Mechanical Torch to connect to the Cutmaster 102. Maximum torch lead length is 100 feet.

  2. Align the ATC male connector on torch lead with the female receptacle and push together.

    Secure the connection by turning the locking nut clockwise until it clicks. Do not use locking nut to pull the torch lead into the receptacle and do not use tools to secure connection.

  3. Torch is ready for use.

    Power on unit and use torch.
