Hobart Handler 140 Wire Feed Welder Part #500500

Part Number: 500500

Discontinued - Replaced by Hobart Handler 140 Wire Feed Welder 500559

Out of Stock
Starts at $81.50/month with

Welding type:



The Hobart Handler MIG Welder #500500 has Been Discontinued

View: The Hobart Handler 140 115V Wire Feed Welder #500559

The Handler® 140 MIG Welder offers maximum flexibility operating off of standard 115-volt household current. This MIG welder machine is great for the beginner to the more advanced welder. It is extremely versatile and perfect for the welder who wants to work on household repairs, auto body, and even heavier farm projects requiring extra power. This welder is very generous in its operating range, allowing you to weld thin gauge steel (24-ga.) up to 1/4in. steel plate. It's easy to set up and runs flux core steel, solid, and aluminum wire. Works great for outdoors, as the flux core technology allows you to weld without shielding gas. It also comes with gas hook-up and a dual gauge regulator for quick conversion to MIG welding (no additional kit required). The Hobart Handler 140 Welder very easily handles a wide range of solid mild steel or stainless to flux cored and aluminum wires with an amperage output range of 25 to 140 amp. The 5 position tapped voltage control allows you to fine-tune your arc offering a smooth stable arc on all thicknesses. The Handler 140 MIG wire welder delivers industrial performance. It's built with an industrial cast aluminum drive system and heavy-duty work clamp.

Hobart Handler Welder Features:

  • Welds 24 gauge up to 1/4 inch in steel
  • Proven built-in wire feeder with quick-release drive roll lever
  • Built-in contactor eases use and is an excellent safety feature which makes wire electrically "cold" when not welding.
  • Four output voltage settings with wire feed tracking provide quick and easy adjustment for different materials and thicknesses.
  • Easy access to polarity changeover includes storage holes for spare tips
  • Dual groove drive rolls make it easy to switch from one wire size to another. One knurled groove and one smooth groove for .030-.035 in. (0.8-0.9 mm) wire.
  • Self-resetting thermal overload and motor protection

Hobart Handler MIG Welder Applications:

  • Maintenance
  • Construction
  • Auto Body
  • Farm/Ranch
  • Rental
  • Home

Other Versions:

500554 Hobart Handler 190 230V Wire Feed Mig Welder

500553 Hobart Handler 210MVP 115/230V Mig Welder w/ MultiVoltage Plug

500536 Hobart IronMan 230 230V Wire Feed Mig Welder

500559 Hobart Handler 140 115V Wire Feed Welder

Spec Sheet: Hobart Handler 140 (ENG)

Hobart Handler 140 Wire Feed Welder Part #500500

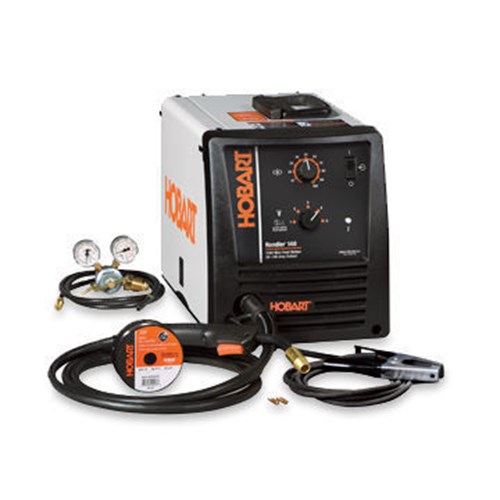

Hobart Handler MIG Welder Comes complete with:

  • Comfortable 10 ft. (3 m) H100S2-10 MIG welding gun
  • Built-in gas valve
  • Regulator and gas hose
  • Power cord with plug
  • 10 ft. (3 m) work cable with clamp
  • Sample spool of .030 in. (0.8 mm) self-shielded flux-cored welding wire
  • 8 in (203 mm) wire spool adapter
  • Extra .030 in. (0.8 mm) contact tips

MIG Welder Power: CV, DC, & 1 Phase

MIG Welder Processes: MIG (GMAW) & Flux Cored (FCAW)

Material Thickness: Welds 24 gauge up to 1/4 inch.

Skill Level: Low

Product Questions and Answers

Q - Is this still available? A - It has been replaced by the Hobart 500559 Handler, but there may still be some 500500 models in stock.
Q - What's the difference between this and 500500 model it replaces? A - 5 heat settings versus 4, a slightly different roller system, and according to some customers a slightly different clamp.
