Hypertherm Powermax30 XP Consumable Parts

SORT BY
7 items found
Hypertherm Powermax30XP Parts Kit #851479 shield

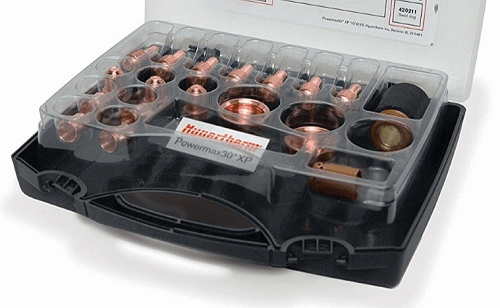

Hypertherm Powermax30 XP Essential Consumable Kit
$161.15
$212.00
Hypertherm 30xp Electrode & Nozzle set #428243
Powermax 30xp Nozzle & Electrode set
$29.65
$35.50
Hypertherm Powermax 30xp shield #420116
Powermax 30xp Shield
$16.45
$18.00
Hypertherm Powermax 30xp swirl ring #420211
Hypertherm Powermax 30xp Swirl Ring
$18.95
$21.10
Hypertherm Powermax 30xp retaining cap #420114
Powermax 30xp Retaining Cap
$26.65
$32.25
Hypertherm Powermax 30xp fine cut nozzle & electrode set #428244
Powermax 30xp Fine Cut Nozzle & Electrode set
$31.00
$36.50
Hypertherm 30xp Fine Cut Shield #420115
Powermax 30xp Fine Cut Shield
$16.45
$18.00

Hypertherm Powermax 30 XP Consumable Parts

Hypertherm Powermax 30XP Essential Consumable Kit

When it comes to keeping your Hypertherm Powermax 30 XP operating at peak performance, quality consumables are essential. At Welders Supply Company, we've got you covered with the full line of consumables you need, all at unbeatable prices.

You won't find a better selection of genuine Hypertherm consumables anywhere else. Our nozzles, electrodes, and other consumables are designed and built to deliver clean, quick, and cost-effective cuts every time.

Don't risk damaging your Powermax 30 XP with generic parts that won't last. Trust only the best and insist on genuine Powermax 30 XP compatible consumables. With Welders Supply Company, you'll never have to worry about running out of consumables again. Shop now and keep your Powermax running like new!

Welders Supply Company carries these Hypertherm consumables:

Consumable PartPurposeWhen to Replace*
30 XP swirl ring #420211 Stabilizes and swirls the airflow
  • Visible damage
  • Clogged with debris
  • Uneven/erratic cutting

30 XP shield #420116

(Or fine cut option #420115)

Covers & protects the nozzle
  • Excessive wear/damage
  • Noticeable spatter buildup
  • Cracks or breaks

30 XP electrode/nozzle set #428243

(Or fine cut option #428244)

Conducts electricity from torch to plasma arc
  • Excessive wear/corrosion
  • Uneven/erratic cutting
30 XP retaining cap #420114 Holds the nozzle & electrode in place and helps shape plasma arc
  • No longer holds parts in place
  • Unstable arc pattern
  • Visible damage

*Always refer to Hypertherm's specifications in your product manual for specific maintenance intervals to ensure optimal performance.

Powermax 30 XP Consumable FAQs

Are Powermax 30, Powermax 30XP, and Powermax 30 AIR consumable parts interchangeable?

No. While some parts may be interchangeable, there are differences in the nozzle, swirl ring, and retaining cap designs between each model. It is important to refer to Hypertherm's recommendations and specifications to ensure that you are using the correct consumable parts for your specific machine.

Are Powermax 30 XP machines able to upgrade to SmartSYNC consumables?

No. Only Powermax 45XP, 65, 86, and 105 systems are able to upgrade using the SmartSYNC consumable adapter.

Free Shipping on Orders Over $300

Obviously, a handful of consumables aren’t going to come close to $300, but if you have other things to buy and your total is over $300 you’ll be eligible for free shipping anywhere within the continental US.

Browse plasma cutter consumable parts or have a look at all plasma cutting machines available at the best prices online from Welders Supply.
