Miller XMT 350 CC/CV, Dinse #907161, #907161014

Part Numbers: 907161
$6,793.00
$7,845.00* Save $1,052.00

Included with your purchase:

Select your Bundle!
Edit

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • Miller Auto-Line Technology
    • 1 & 3-Phase Input
    • Dinse & Tweco Compatible
    • Multiprocess Welding
    • 3-Year Miller Warranty

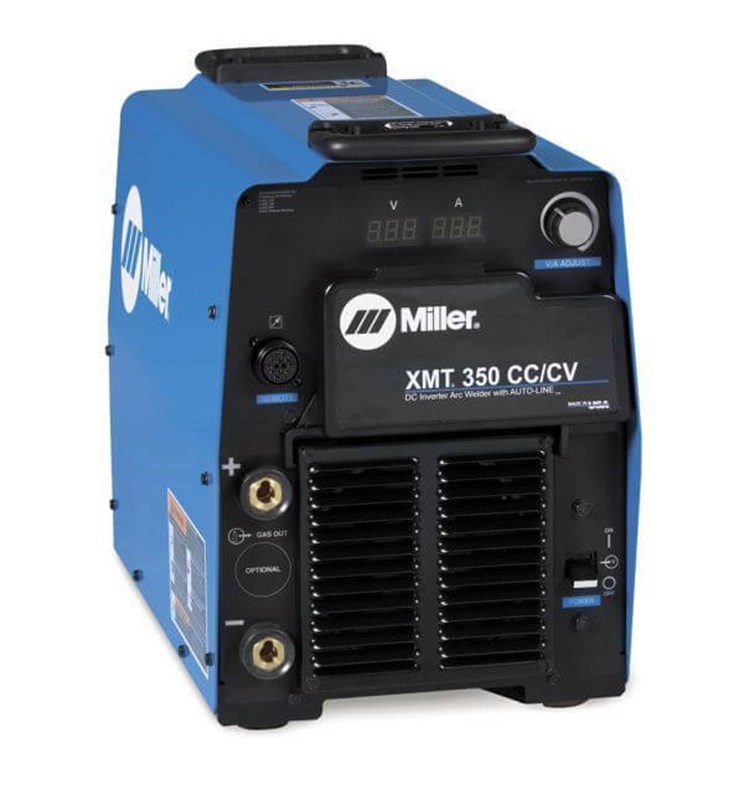

    Miller XMT 350 CC/CV, Dinse #907161

    The Miller XMT 350 CC/CV offers the same portability and excellent arc performance that has made Miller's XMT series the most popular MIG welding machines on the market. It is equipped with Miller's Auto-Line technology, which allows you to connect to any voltage (208-575 VAC, single or three phases) with no manual splicing and no worries about dirty or unreliable power. It can accept Dinse or Tweco style weld cables, and spool guns, feeders, and remote controls can all be connected with the standard 14-pin receptacle.

    Adaptive Hot Start makes starting the stick electrodes easy without creating an inclusion

    Lift-Arc helps arc starting by minimizing the potential contamination of the electrode, and a process selection switch reduces the number of control setup combinations without reducing any of these features.

    Wind Tunnel Technology protects the internal components of the unit from becoming clogged.

    Fan-On-Demand helps to maintain the airflow of the machine only becoming active to eliminate heat and to save on energy costs are things that should not be ignored either.

    PROCESSES

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • Pulsed MIG (GMAW-P)
    • TIG DC (GTAW-DC)
    For the best prices on our entire selection of welding machines including MIG Welding equipment, welding safety equipment and welding accessories, shop Welders Supply online.

    Other Versions:

    951327 Mig Runner Package CC/CV Multiprocess
    907224 208/575 V Mig Welder Tweco weld cable connectors

    GENERAL SPECIFICATIONS

    Title XMT® 350 CC/CV, Dinse
    Industries Interests Aerospace
    Construction
    Heavy Equipment Manufacturing
    Infrastructure
    Manufacturing
    Railcar
    Shipbuilding
    Boat / Yacht
    High Purity Processing
    Carbon Diameter 1/4 in (6.4 mm)
    Current Type CC / CV
    DC
    Input Hz 50 / 60 Hz
    Input Phase 1- and 3-Phase
    Portability Handle(s)
    Running Gear / Cart (Optional)
    Net Height 16 in
    Net Length 26 in
    Input Voltage 208 V
    220/230/240 V
    380/400/440 V
    460/480 V
    575 V
    Net Weight 80 lbs
    Weldable Metals Aluminum
    Specialty Metals
    Stainless Steel
    Mild Steel
    Net Width 20 in
    Warranty Miller's True Blue Warranty

    SHIPPING DIMENSIONS

    Height: 12.50 Inches
    Width: 17.00 Inches
    Length: 24.00 Inches
    Weight: 90 Lb(s) 0 Oz

    Accessories

    Product Questions and Answers


    Q - Will a Miller Bobcat power this? A - Miller says that won't work. They recommend a Big Blue 800.
    Q - What input power does this need? A - It has Miller's Auto-Line, so you can use 208 to 575 V, 1-phase or 3-phase input power with no manual linking necessary.

    How to start lift-arc trigger hold TIG process:

    1. Start sequence.

      Touch tungsten electrode to workpiece at weld start point.

    2. Momentarily depress output switch.

      Press switch and release.

    3. Slowly lift electrode.

      An arc will form when electrode is lifted.

    4. Stop welding.

      To stop welding, momentarily depress output switch and output will shut off. If output switch is depressed and tungsten is not touching workpiece, do not touch tungsten to work. Output will shut off in 3 seconds.

    Have a question about this product? Submit your question using the form below

    Related Products

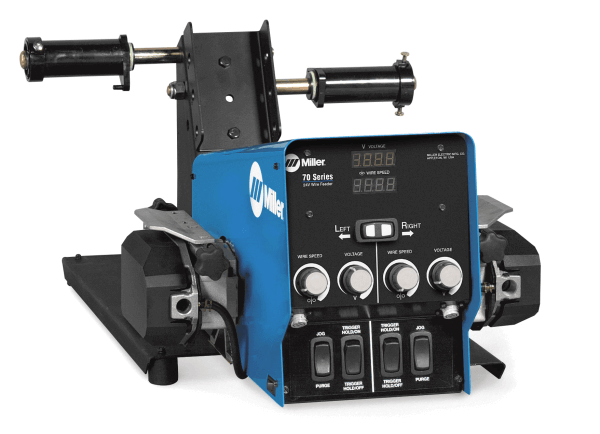

    D-74D (Dual) #951204
    D-74D (Dual) #951204
    $8,810.00
    $10,174.00

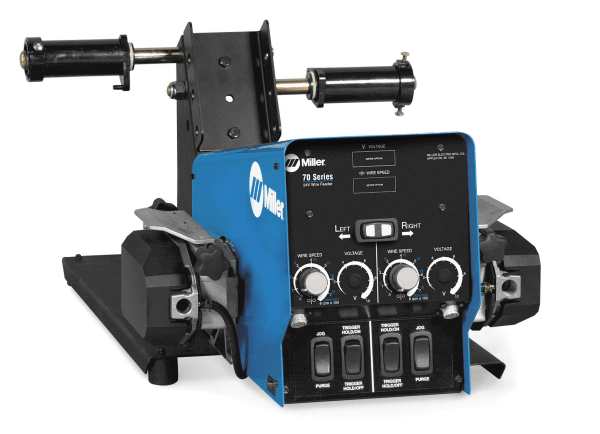

    D-74S (Dual) #951203
    D-74S (Dual) #951203
    $7,283.00
    $8,412.00
    E-A-R Taperfit Corded Ear Plugs #312-1223
    E-A-R Taperfit Corded Ear Plugs - 200 Pairs
    $81.40
    $95.20

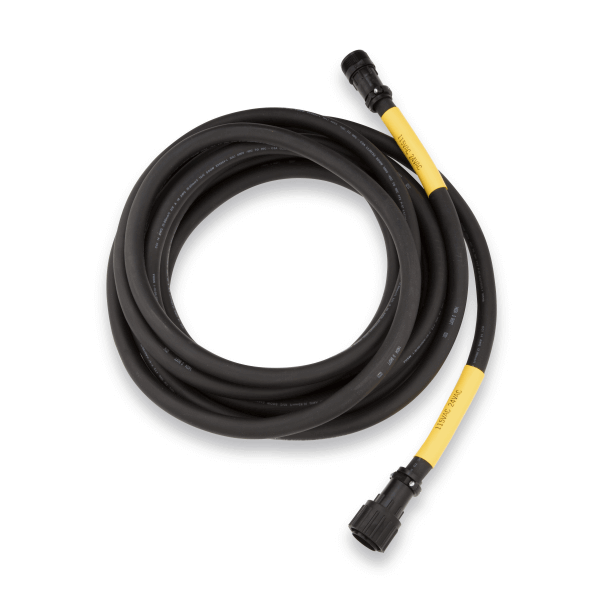

    Extension Cable 115 VAC 14 Pin 14C 25 ft #242205025
    Extension Cable 115 VAC 14 Pin 14C 25 ft #242205025
    $338.90
    $357.00
    Extension Cable 115 VAC 14 Pin 14C 50 ft #242205050
    Extension Cable 115 VAC 14 Pin 14C 50 ft #242205050
    $573.05
    $609.00
    Extension Cable, 14 Pin 8 Conductor, 50 ft. #242208050
    Extension Cable, 14 Pin 8 Conductor, 50 ft. #242208050
    $376.95
    $446.00
    Extension Cable, 14 Pin 8 Conductor, 80 ft. #242208080
    Extension Cable, 14 Pin 8 Conductor, 80 ft. #242208080
    $525.85
    $626.00
    Miller XMT 350 Welding Machine Replacement Gas Valve Kit
    Gas Valve Kit For XMT 350 #195286
    $156.55
    $189.00
    Miller MIG Welding Machine 4/0 Kit w/ Dinse Connections #300405
    Industrial MIG 4/0 Kit, Dinse Connections #300405
    $883.35
    $1,064.00
    Insight Core™ 14-pin Module #301072
    Insight Core™ 14-pin Module #301072
    $1,612.00
    International Tweco® Adapter #042465
    International Tweco® Adapter #042465
    $47.99
    $57.00
    Cylinder Rack for Miller Dimension Axcess 300/450 #300408
    Inverter Running Gear Cylinder Rack #300408
    $2,167.45
    $2,623.00
    Miller #042418 Connector Kit - 50 mm
    Miller #042418 Connector Kit - 50 mm
    $60.95
    $63.00
    Miller #042419 Extension Kit for International-Style Cable Connectors - 50 mm
    Miller #042419 Extension Kit for International-Style Cable Connectors - 50 mm
    $87.00
    Shop Miller Combo Welding Jacket With Bib
    Miller Combo Welding Jacket
    $103.30
    $136.33

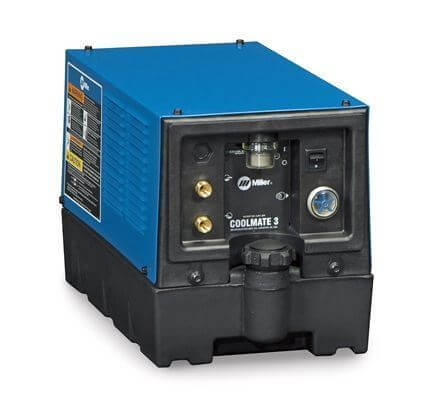

    Miller Coolmate 3 (115 V, CE) Part#043007
    Miller Coolmate 3 (115 V, CE) #043007
    $1,186.95
    $1,482.00
    Out of Stock
    Miller Coolmate™ 3 230 V, CE #043008
    Miller Coolmate™ 3 230 V, CE #043008
    $1,277.45
    $1,606.00
    Out of Stock

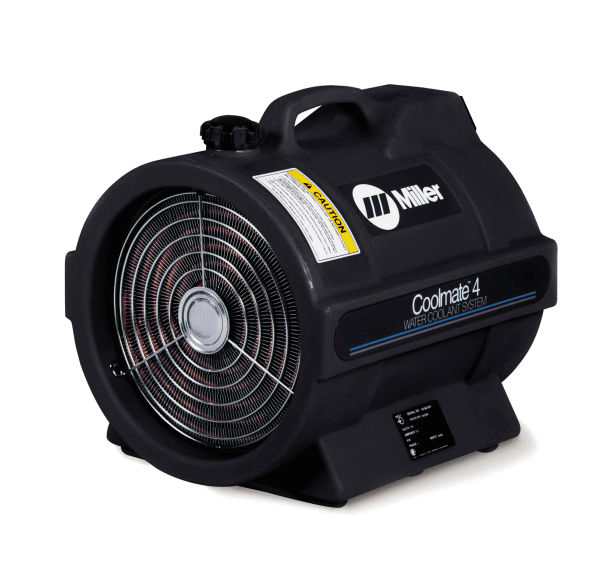

    Miller Coolmate™ 4 115 V #042288
    Miller Coolmate™ 4 115 V #042288
    $1,303.10
    $1,644.00
    Extension Cable, 14 Pin 8 Conductor, 25 ft. #242208025
    Miller Extension Cable, 14 Pin 8 Conductor, 25 ft. #242208025
    $258.15
    $286.00
    Miller International Dinse/Cam-Lok Adapter #042466
    Miller International Dinse/Cam-Lok Adapter #042466
    $76.00
    Miller International-Style/Dinse Connector Kit - 70 mm #042533
    Miller International-Style/Dinse Connector Kit - 70 mm #042533
    $69.00
    Miller RCCS-14 Finger Tip Control #043688
    Miller RCCS-14 Finger Tip Control #043688
    $319.35
    $360.00
    RHC-14 Remote Hand Control w/ Cable 20ft #242211020
    Miller RHC-14 REMOTE HAND CONTROL W/CABLE 20 FT #242211020
    $440.00
    S-74S (Single) #951196
    Miller S-74S (Single)
    $3,295.00
    $3,803.00
    Miller Smoked Safety Glasses Black Frame Part #235656
    Miller Smoked Safety Glasses Black Frame
    $12.40
    $16.81
    Out of Stock
    Miller Spoolmatic 15A Part#195156
    Miller Spoolmatic 15A MIG Welding Gun
    $1,660.00
    $1,919.00
    Miller Spoolmatic 30A Part#130831
    Miller Spoolmatic 30A
    $1,895.00
    $2,188.00
    Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583
    Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583
    $2,100.00
    $2,720.00
    Out of Stock
    SuitCase® X-TREME™ 8VS, Meters, Bernard™ BTB 300 A Gun Pkg #951582
    Miller SuitCase® X-TREME™ 8VS, Meters, Bernard™ BTB 300 A Gun Pkg #951582
    $2,099.99
    $2,720.00
    Out of Stock
    Miller Premium Tig Welding Gloves #263347, #263348, #263349
    Miller Tig Welding Gloves
    $30.70
    $42.45
    Miller Universal Cart and Cylinder Rack #042934
    Miller Universal Cart and Cylinder Rack #042934
    $793.30
    $896.00
    Miller Welding Helmet Magnifying Lens #2122(35, 36, 37, 38, 39, 40, 41, 42)
    Miller Welding Helmet Magnifying Lens
    $6.85
    $10.98
    Miller Wireless Hand Control System #300430
    MILLER WIRELESS HAND CONTROL
    $1,069.95
    $1,380.00
    Out of Stock
    Miller XMT ®Cylinder Cart #042537
    Miller XMT ®Cylinder Cart #042537
    $992.00
    $1,216.75
    Out of Stock
    Remote Hand Control RHC-14, 100ft #242211100
    Remote Hand Control RHC-14, 100ft #242211100
    $668.00
    $710.00
    Rocker Switch Fingertip Control, Single, 14-pin plug #129337
    Rocker Switch Fingertip Control, Single, 14-pin plug #129337
    $274.25
    $310.00
    Miller TIG Welder Rotary Fingertip Control #151086
    Rotary Fingertip Control, East/West, 14-pin plug #151086
    $318.90
    $367.00

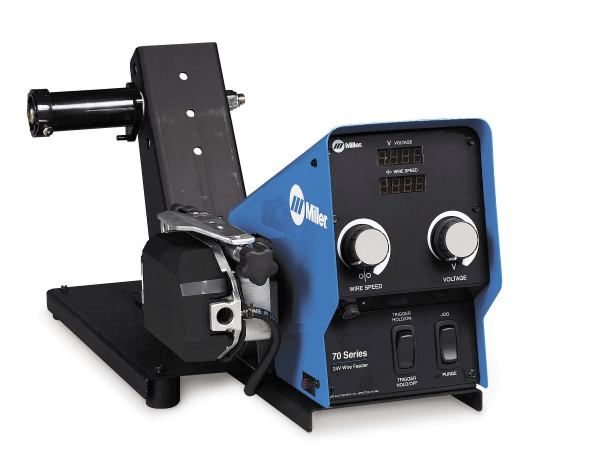

    S-74D (Single) #951198 Wire Feeder
    S-74D (Single) #951198
    $4,622.00
    $5,337.00
    SuitCase X-TREME 12VS, Bernard BTB 300 A Gun #951543
    $2,300.00
    $3,011.00
    Out of Stock
    SuitCase® 12RC, BTB 300A Gun #951580
    SuitCase® 12RC, BTB 300A Gun #951580
    $4,177.00
    $4,824.00

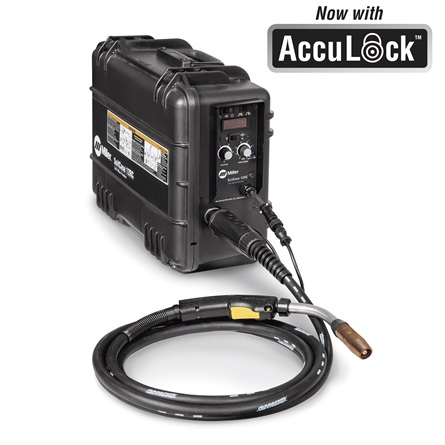

    SuitCase® 12RC,3S Preflow/5S Postflow, Trigger hold, Burn back, BTB 300A Gun Pkg #951599
