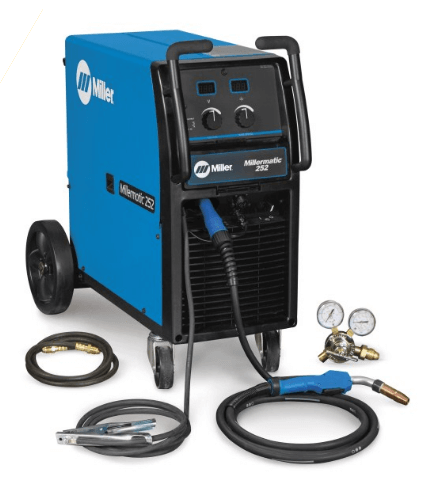

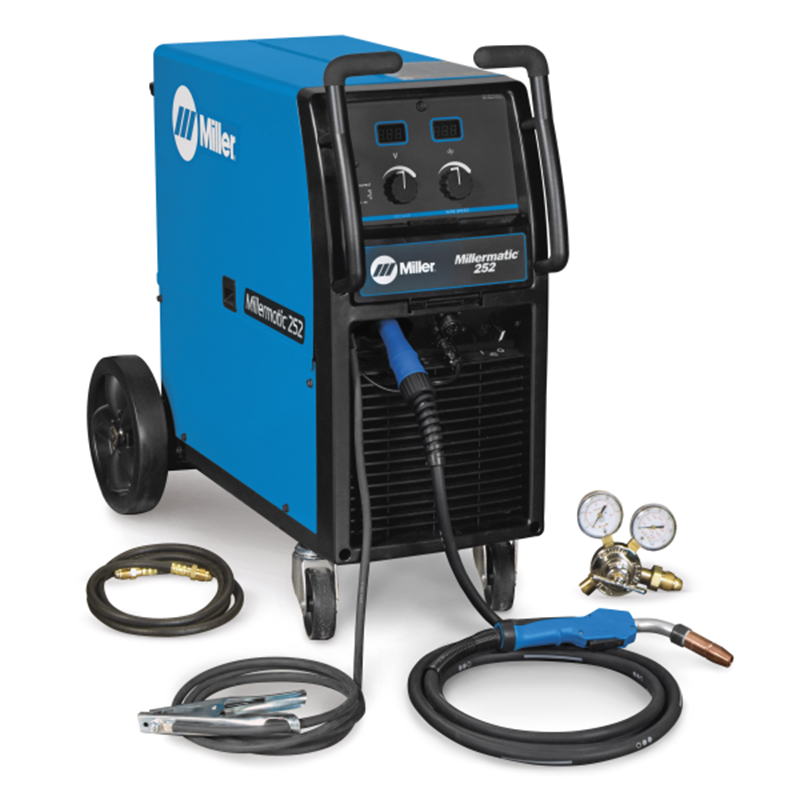

Millermatic 252 208/230 Volt Wire Welder Part#907321 Plus FREE welding helmet!
Product Number: 907321
SKUs: 907321, 907322
Millermatic 252 208/230 Volt Wire Welder #907321 Millermatic 252 208/230 Volt Wire Welder Part#907321 Plus FREE welding helmet! Click on Image to Enlarge

Millermatic 252 208/230 Volt Wire Welder Part#907321 Plus FREE welding helmet!

Product Number: 907321
SKUs: 907321, 907322
Option MPNs: 907321, 907322

Ships with FREE Helmet + Gloves

$2,525.00 Save $675.00 (Reg. $3,200.00)
SHIPPING DIMENSIONS Height: 20.00 Inches Width: 34.00 Inches Length: 45.00 Inches Weight: 234 Lb(s) 0 Oz
BRAND CATEGORIES
Adding this item to your cart will qualify your order for US domestic
QTY:
In Stock

OTHER VARIATIONS:

  • 907322 230/460 Volt Wire Welder (Select Attribute)

OTHER VERSIONS:

  • 951066 208/230 Volt Wire Welder/Spoolgun Package

Millermatic 252 Wire Welder #907321 with FREE Miller Classic Series in Black Part #251292

251292 Miller Autodarkening Helmet Miller M-25 MIG Gun #169599 Miller Spoolmatic 30A Part#130831 with a 30 ft cable assembly

With purchase of this machine enjoy a FREE Miller Classic Series Black Welding Helmet!

Miller Welding EquipmentThe Millermatic 252 provides the highest output in its class (250 A at 28 VDC), allowing you to weld longer on high end applications. The Auto Gun Detect system allows the operator the welding gun to be easily turned on or off by simply pulling the trigger on the MIG gun, spool gun, or push/pull gun. It automatically detects and recalls the voltage, wire feed speed, and timer of the active gun. The new Push-Pull Gun now directly connects without any extra module required. By feeding the wire through the welding gun it decrease welding wire hang-ups.

The Millermatic 252 also features a patent-pending EZX-Change low cylinder rack to easily roll cylinders on and off the rack. No more need to lift the cylinders.

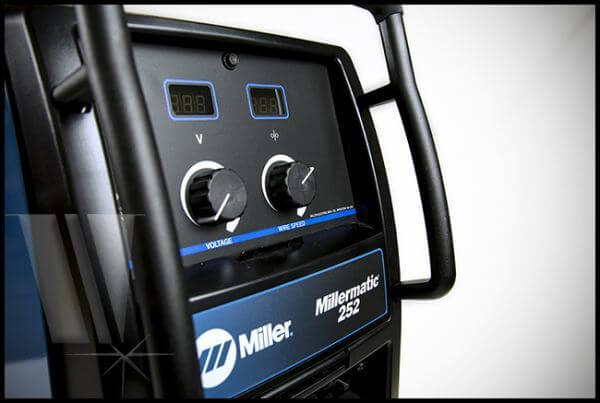

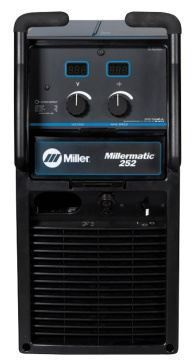

The Millermatic 252 now has a new large digital front panel with digital timer. These menus allow the operator to control a preset voltage and wire feed speed. Has standard run-in, pre/post flow, burnback, spot/delay (switch) timer menu. The cast aluminum drive system features a no-tool quick change reversible drive rolls and an easy to set scaled tension knob. It also includes a convenient flip down welding parameter chart for easy access.

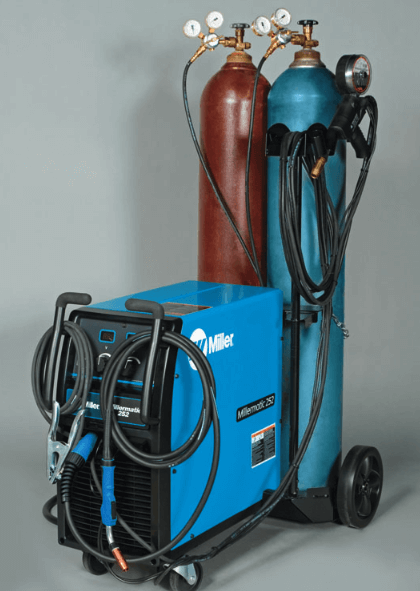

A low cylinder rack is installed to hold your gas cylinders to prevent work place injuries and easy maneuverability.

Millermatic Wire Welder Features:

  • Highest Output in its welding class – Weld longer on high-end applications. (250 A at 28 VDC)15ft Mig Welding Gun For Miler 252
  • Auto Gun Detect – Automatically detects and recalls the voltage, wire feed speed and timer of the active gun, allowing the operator to simply pull the trigger on the MIG gun, spool gun, or push/pull gun.

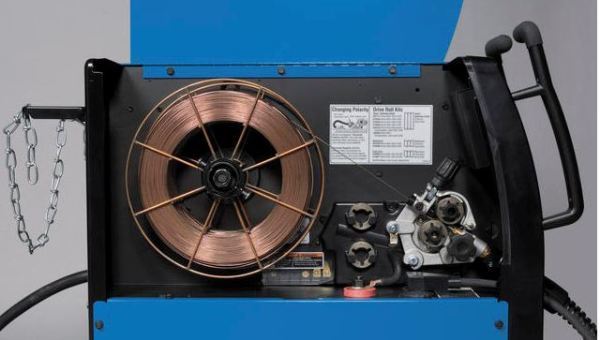

  • Angled, Dual-Gear Driven, Cast Aluminum Drive System – Limits wire hang ups by directly feeding the wire through the gun. The drive system features no-tool quick-change, reversible drive rolls, and an easy-to-set, scaled tension knob.
  • EZ-Access Consumable Compartment and Parameter Chart – Convenient flip-down compartment, providing fast access to parameter chart and consumables. Ensures you set the parameters right the first time.
  • Large, Digital Front Panel with Built-in Digital Timers Menu – Allows the operator to preset the voltage and wire feed speed. Standard run-in, pre/post flow, burn back, spot/delay (stitch) timer menu.
  • Push-Pull Gun Direct Connect – Your wire will feed consistently and with plenty of power to do the bigger jobs. Compatible with the Miller Spoolmate 200 Series spool gun with wire feed speed control. Also compatible with the Spoolmatic 15A or 30A spool guns.
  • EZ-Change Low Cylinder Rack – Easily roll cylinders on and off the rack with no lifting! This saves the operators back, and protects from potential workman’s comp claims.
  • 15 ft. MIG gun -longer reach - See also Millermatic 252 replacement aluminum spool gun.

Dimensions:

  • H: 30 in. / 762 mm
  • W: 19 in. / 483 mm
  • D: 40 in. / 1016 mm

Millermatic 252 Welder Applications



 Applications

  • Aluminum Welding
  • Fabrication
  • Farm and Ranch
  • In-Plant Maintenance and Repair
  • Manufacturing
  • Metal Art/Sculpture
  • Motorsports (car, truck, bike, etc.)
  • Schools/Training



Welders Supply Company offers the Millermatic 252 208/230 Volt Wire Welder at the best price on the web!

Check out related parts below or view our selection of Mig, Tig, and Stick welders available for purchase online.

Millermatic 252 Specifications

Input Power Requires 1-Phase power
Rated Output Specs 200 Amps at 28 VDC, 60% duty cycle
250 Amps at 28 VDC, 40% duty cycle
Welding Amperage Range 30 - 300 Amps
Wire Feed Speed 50 - 700 IPM (1.3 - 17.8 m/min)
Net Weight 207 lb (94 kg)
Wire Diameter Capacity .023 - .045 in (0.6 - 1.2 mm) Solid Steel
.023 - .045 in (0.6 - 1.2 mm) Stainless Steel
.030 - .045 in (0.8 - 1.2 mm) Flux Cored
Max Spool Size Capacity 12 in (305 mm)
Max Open-Circuit Voltage 38

Related Videdos



Millermatic 252 208/230 Volt Wire Welder Part#907321 Plus FREE welding helmet! Product Accessories
Millermatic 252 208/230 Volt Wire Welder Part#907321 Plus FREE welding helmet!

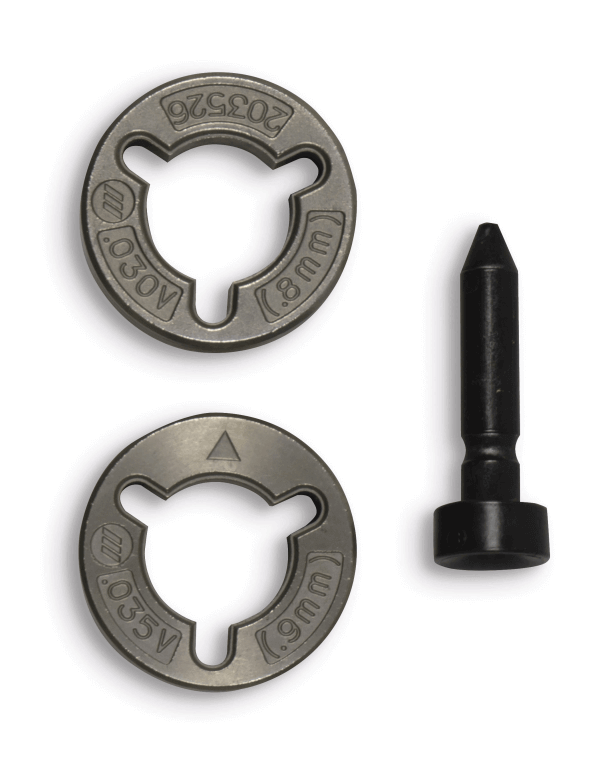

.030-.035 V-Groove Drive Roll Kit #204579
.030-.035 V-Groove Drive Roll Kit #204579
$34.00
SAVE $5.72 (Reg. $39.72)
View Product
Product Number: 204579

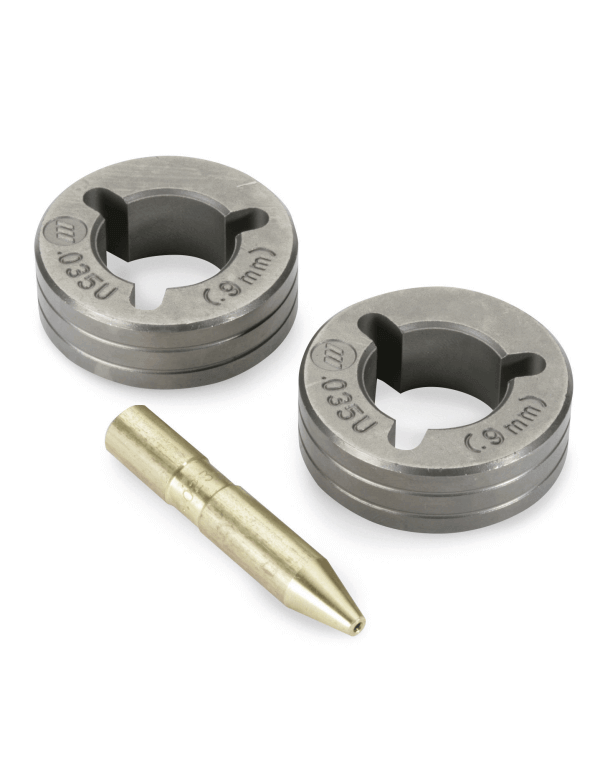

.035 U-Groove Drive Roll Kit #044749
.035 U-Groove Drive Roll Kit 044749
$47.11
View Product
Product Number: 044749
ArcStation Workbench 30FX
ArcStation Workbench 30FX Part#300837
$248.00
SAVE $75.00 (Reg. $323.00)
View Product
Product Number: 300837

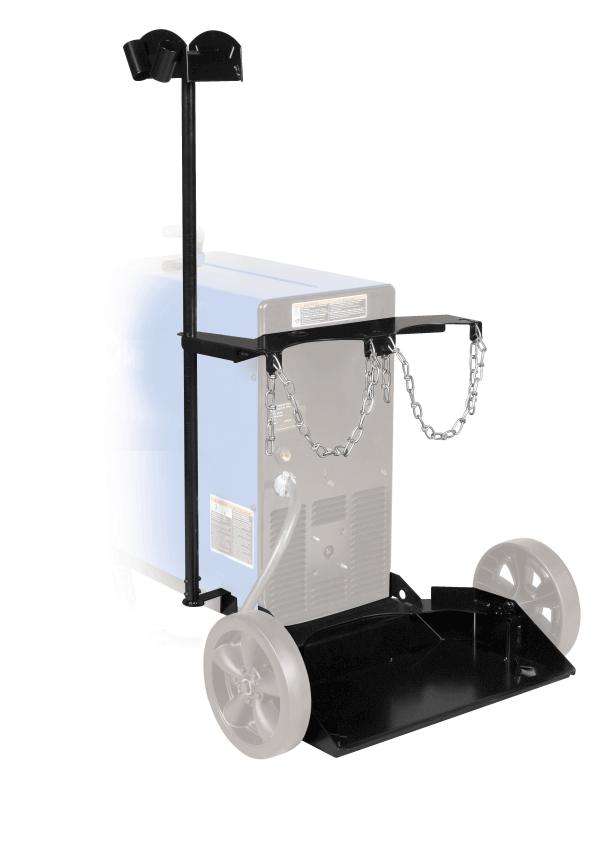

Dual EZ-Change™ Low Cylinder Rack w/ Elevated Gun and Cable Rack #300337
Dual EZ-Change™ Low Cylinder Rack w/ Elevated Gun and Cable Rack #3003...
$307.00
SAVE $54.00 (Reg. $361.00)
Free Shipping
View Product
Product Number: 300337

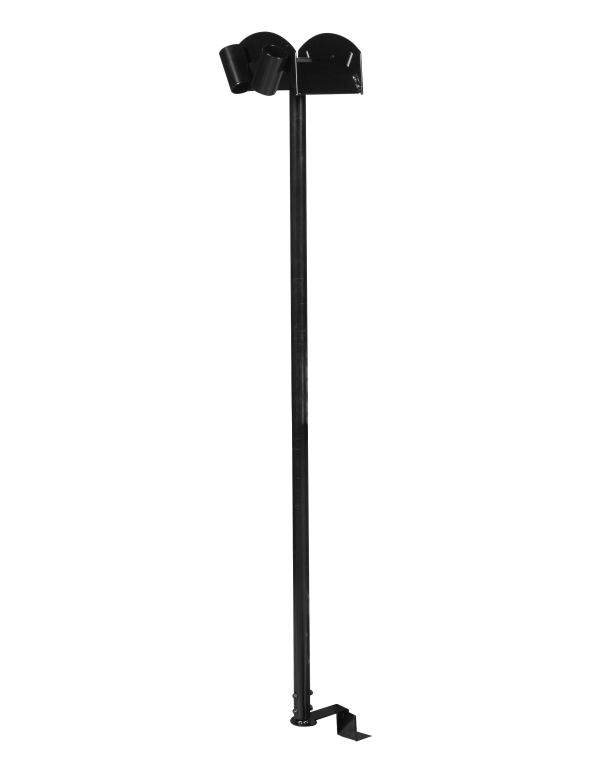

Elevated Gun & Cable Rack #300335
Elevated Gun & Cable Rack #300335
$110.00
SAVE $15.00 (Reg. $125.00)
View Product
Product Number: 300335
Miller .023 Two roll Drive Roll Kit #087131
Miller .023 Two roll Drive Roll Kit #087131
$30.90
SAVE $8.37 (Reg. $39.27)
View Product
Product Number: 087131
Miller .030 V-Groove Drive Roll Kit — for Solid Wire
Miller .030 V-Groove Drive Roll Kit — for Solid Wire #079594
$35.85
SAVE $2.97 (Reg. $38.82)
View Product
Product Number: 079594
Miller .035 V-Groove Drive Roll Kit — for Solid Wire
Miller .035 V-Groove Drive Roll Kit — for Solid Wire #079595
$35.80
SAVE $2.40 (Reg. $38.20)
View Product
Product Number: 079595
Miller .035 V-Knurl Drive Roll Kit — for Flux Cored Wire
Miller .035 V-Knurl Drive Roll Kit — for Flux Cored Wire #079606
$54.50
SAVE $9.27 (Reg. $63.77)
View Product
Product Number: 079606
Miller .045 V-Groove Drive Roll Kit — for Solid Wire
Miller .045 V-Groove Drive Roll Kit — for Solid Wire #079596
$35.85
SAVE $2.45 (Reg. $38.30)
View Product
Product Number: 079596
Miller .045 V-Knurl Drive Roll Kit — for Flux Cored Wire
Miller .045 V-Knurl Drive Roll Kit — for Flux Cored Wire #079607
$57.50
SAVE $5.96 (Reg. $63.46)
View Product
Product Number: 079607

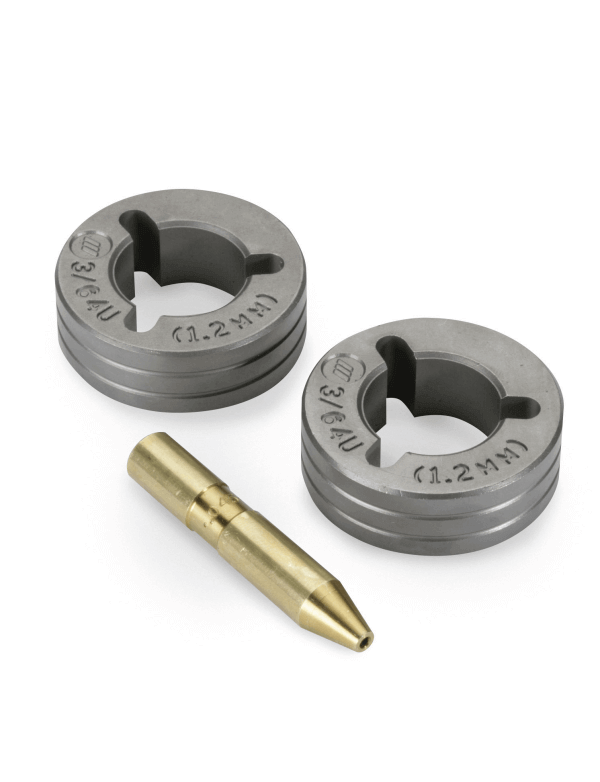

Miller .047 U-Groove Drive Roll Kit #079599
Miller .047 U-Groove Drive Roll Kit #079599
$44.86
View Product
Product Number: 079599

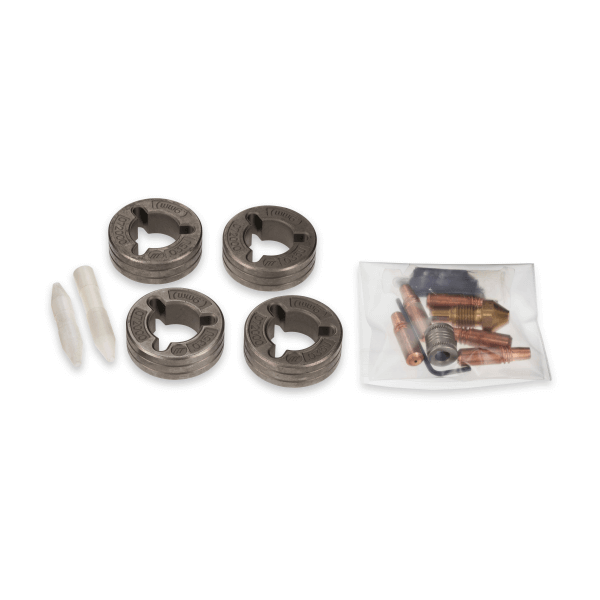

Miller Aluminum Drive Roll and Acc Kit for XR-A Pistol .035 #195201
Miller Aluminum Drive Roll and Acc Kit for XR-A Pistol .035 #195201
$108.00
SAVE $14.65 (Reg. $122.65)
View Product
Product Number: 195201

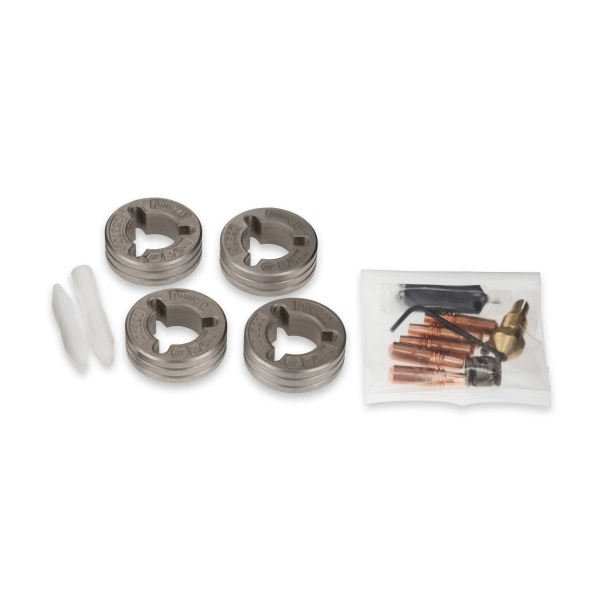

Miller Aluminum Drive Roll and Acc Kit for XR-A Pistol .047 #195202
Miller Aluminum Drive Roll and Acc Kit for XR-A Pistol .047 #195202
$108.00
SAVE $14.65 (Reg. $122.65)
View Product
Product Number: 195202

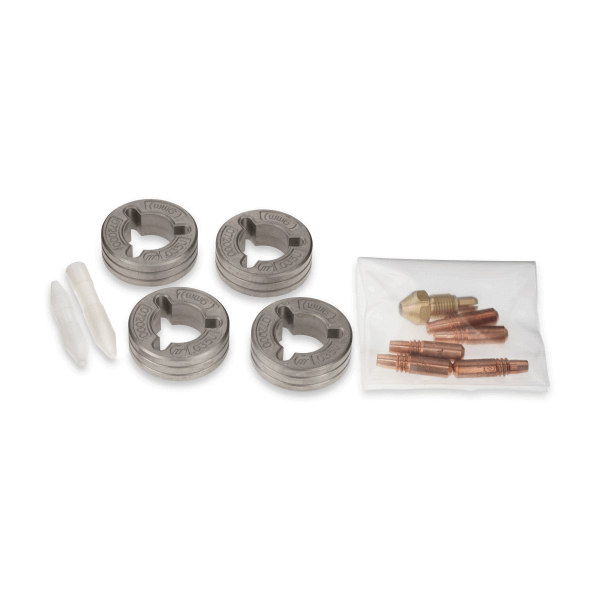

Miller Aluminum Drive Roll and Accy Kit for XR-A Python® .035 #195311
Miller Aluminum Drive Roll and Accy Kit for XR-A Python® .035 #195311
$62.00
SAVE $9.56 (Reg. $71.56)
View Product
Product Number: 195311

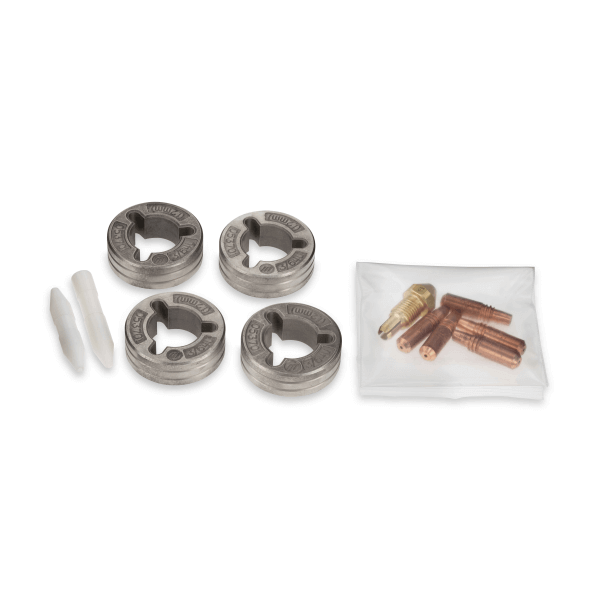

Miller Aluminum Drive Roll and Accy Kit for XR-A Python® .047 #195313
Miller Aluminum Drive Roll and Accy Kit for XR-A Python® .047 #195313
$80.00
SAVE $13.57 (Reg. $93.57)
View Product
Product Number: 195313
Miller M-25 MIG Gun (250A) for .030-.045 wire — 15-ft
Miller M-25 MIG Gun (250A) for .030-.045 wire — 15-ft #169599
$246.00
SAVE $161.96 (Reg. $407.96)
View Product
Product Number: 169599
Miller M-25 MIGmaticMIG Welding Gun, 10ft, 12ft, 15ft
Miller M-25 MIGmatic™MIG Welding Gun, 10ft, 12ft, 15ft #169594, 169596...
$240.00
SAVE $146.31 (Reg. $386.31)
View Product
Product Number: 169594

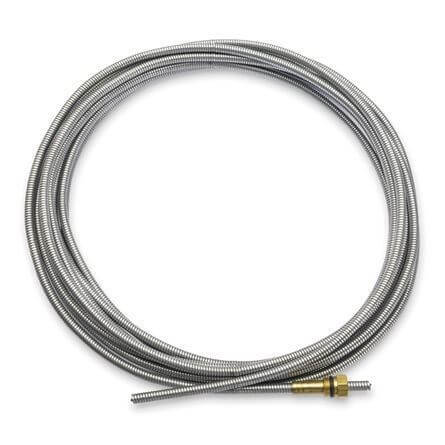

Miller MIG Welding LINER, 15 ft
Miller MIG Welding LINER, 15 ft #194014
$30.50
SAVE $0.74 (Reg. $31.24)
View Product
Product Number: 194014

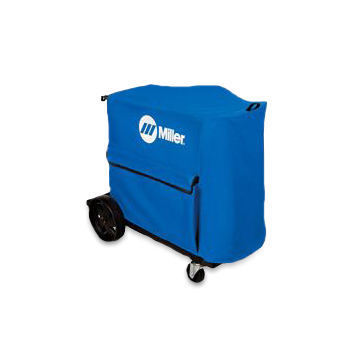

Miller Protective Cover 212-252-350P
Miller Protective Cover 212-252-350P
$126.00
SAVE $23.00 (Reg. $149.00)
View Product
Product Number: 195142

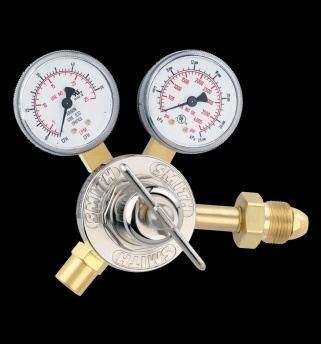

Miller Regulator/Flowmeter (with Hose) #195050
Miller Regulator/Flowmeter (with Hose) #195050
$110.00
SAVE $15.00 (Reg. $125.00)
View Product
Product Number: 195050
Miller Replacement Liners 194010, 194011,194012
Miller Replacement Liners 19401
$20.75
SAVE $1.60 (Reg. $22.35)
View Product
Product Number: 19401(0,1,2)
Miller Spoolmate 200 Series
Miller Spoolmate 200 Series Part#300497
$710.00
SAVE $205.00 (Reg. $915.00)
Free Shipping
View Product
Product Number: 300497
Miller Spoolmatic 15A MIG Welding Gun
Miller Spoolmatic 15A MIG Welding Gun #195156
$872.00
SAVE $260.00 (Reg. $1,132.00)
Free Shipping
View Product
Product Number: 195156
Miller Spoolmatic 30A
Miller Spoolmatic 30A Part#130831
$990.00
SAVE $308.00 (Reg. $1,298.00)
Free Shipping
View Product
Product Number: 130831
Miller XR-Aluma-Pro Push-Pull Gun
Miller XR-Aluma-Pro Push-Pull Gun #300000 15ft, #300001 25ft, #300265 ...
$1,658.00
SAVE $499.00 (Reg. $2,157.00)
Free Shipping
View Product
Product Number: 300000

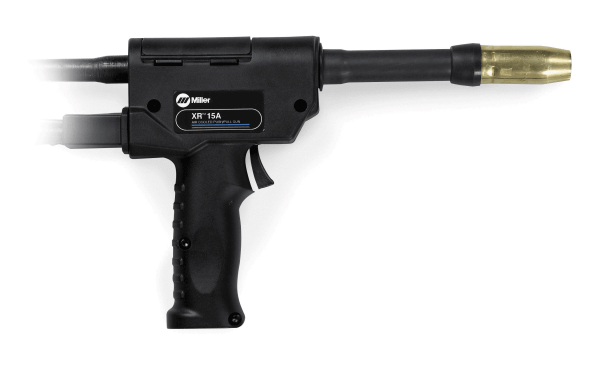

Miller XR™Pistol 15 ft. Air, Quick Disconnect #198127
Miller XR™Pistol 15 ft. Air, Quick Disconnect #198127
$1,097.00
SAVE $311.00 (Reg. $1,408.00)
Free Shipping
View Product
Product Number: 198127

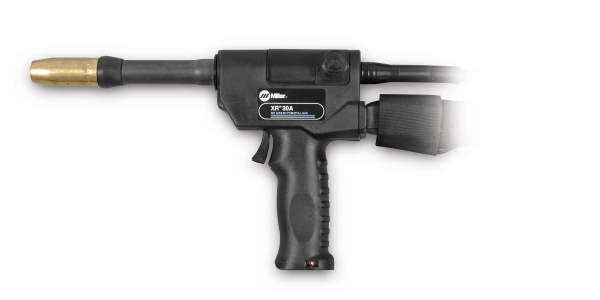

Miller XR™Pistol 30 ft. Air, Quick Disconnect #198128
Miller XR™Pistol 30 ft. Air, Quick Disconnect #198128
$1,374.00
SAVE $340.00 (Reg. $1,714.00)
Free Shipping
View Product
Product Number: 198128

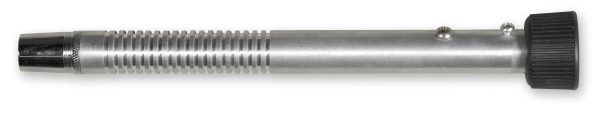

Spoolmate 200 9 in Straight Barrel #300592
Spoolmate 200 9 in Straight Barrel #300592
$53.00
SAVE $8.00 (Reg. $61.00)
View Product
Product Number: 300592

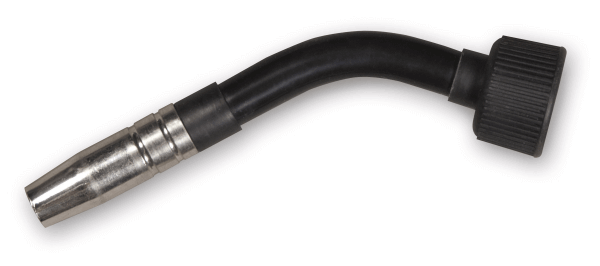

Spoolmate 200 Curved Barrel Assy #300591
Spoolmate 200 Curved Barrel Assy #300591
$73.00
SAVE $10.00 (Reg. $83.00)
View Product
Product Number: 300591

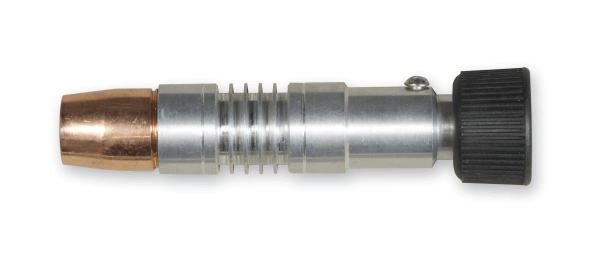

Spoolmate 200 Heavy Duty Barrel #300593
