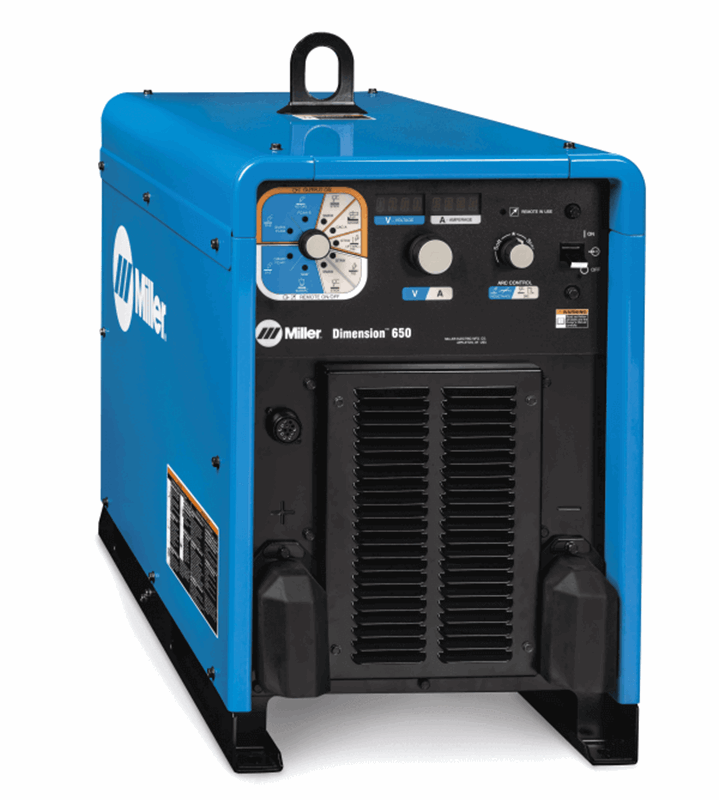

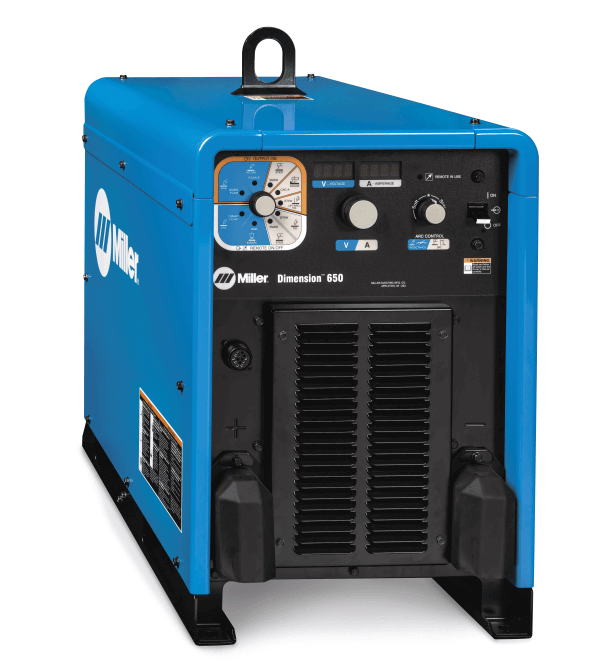

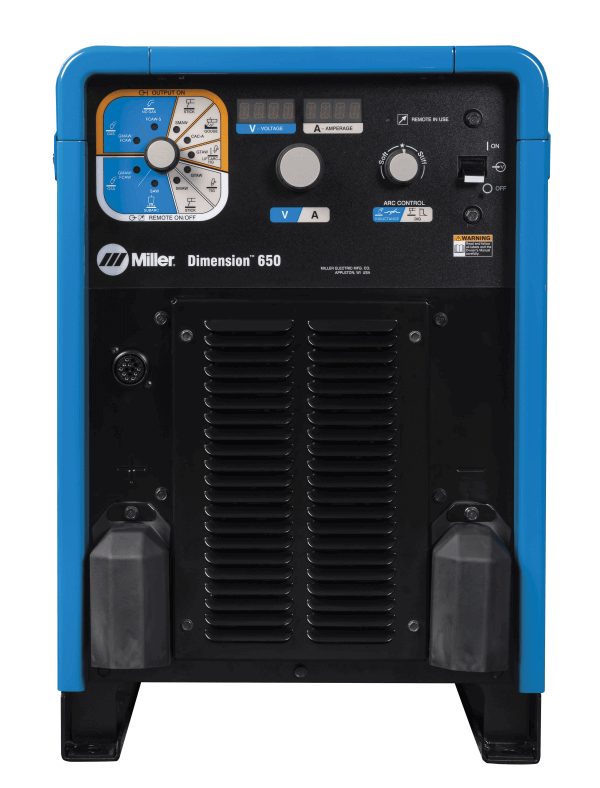

Miller Dimension 650 #907617

Part Numbers: 907617
$9,086.00
$10,493.00* Save $1,407.00

Included with your purchase ( ) :

Select your Bundle!
Edit

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • Multiprocess Compatible
    • Three Phase Input
    • 3/8" Cut
    • 3-Year Miller Warranty

    Miller Dimension 650 #907617

    Rugged and Durable, Inside and Out

    Its all-aluminum construction helps the machine resist corrosion throughout its long life. Exclusive input inductor protection guards performance and reliability against “dirty” input power. The internal airflow protects electrical components and PC boards from dirt, dust, debris, greatly improving reliability. Fan-On-Demand™ operates only when needed to reduce noise, power consumption, and the amount of airborne contaminants pulled through the machine.

    Smaller and Lighter

    Reduced size and weight results in an easier-to-handle package that exceeds the welding performance of larger, heavier machines. The Dimension 650 uses 40 percent less floor space than the previous model.

    Power Efficient

    High electrical efficiency and an excellent power factor mean that you can get more welding done using less power. On 460 VAC, the new Dimension 650 draws only 43 amps at rated load and can operate on 50-amp service. Four new machines can work at maximum loads simultaneously on a 200-amp service, drawing less amperage than three previous models.

    Improved Arc Performance

    The Dimension offers high-quality performance for applications ranging from power-intensive to precise. Gouging mode provides 800 amps of usable power, a full 650 amps of power at 100-percent duty cycle, which is perfect for heavy gouging with 3/8-inch carbons. There are three wire modes (GMAW/FCAW/SAW) for simplified setup and optimized arc performance. Solid and flux-cored wires with gas offer exceptional short-arc MIG precision to weld thin metals with less risk of distortion or burn-through and premium Flux-Cored welding with gas. Flux-Cored (self-shielded) welding performance is exceptional, especially with wires commonly found in infrastructure construction. Sub Arc mode provides the capability to retrofit into nondigital Sub Arc applications. The Dimension features excellent Stick and Lift Arc TIG performance. Arc control is beneficial when welding with Stick and solid wires for easier fine-tuning of tough-to-weld materials and out-of-position applications.

    Find more welding machines such as multi-process welders, Stick welders, and MIG welding machines at Welders Supply.

    This product replaces these legacy models:

    PROCESSES

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • Submerged Arc (SAW)
    • TIG (GTAW)
    Title Dimension™ 650
    Industries Interests Construction
    Heavy Equipment Manufacturing
    Infrastructure
    Manufacturing
    Railcar
    Shipbuilding
    Weldable Metals Specialty Metals
    Stainless Steel
    Steel
    Input Voltage 380/400/440 V
    460/480 V
    Input Phase 3-Phase
    Input Hz 50 / 60 Hz
    Current Type CC / CV
    Max Open Circuit Voltage 87 VDC
    Net Width 16.687 in
    Net Height 28.187 in
    Net Length 31.625 in
    Net Weight 158 lbs
    Warranty Miller's True Blue Warranty
    Portability Lift Eye (Standard)
    Running Gear / Cart (Optional)
    Weld Output CC / CV

    SHIPPING DIMENSIONS

    Height: 31.00 Inches
    Width: 21.00 Inches
    Length: 36.00 Inches
    Weight: 165 Lb(s) 0 Oz

    Product Questions and Answers


    Q - How heavy is it? A - 158 lbs.
    Q - What is the output rating? A - 650 A at 44 VDC, 100% duty cycle
