Miller Trailblazer 325 Diesel, GFCI #907566

Part Number: 907566
1 Review

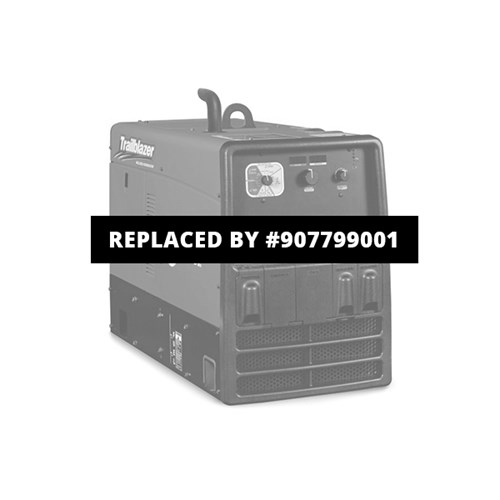

This product has been replaced by the Miller Trailblazer® 325 Diesel, GFCI #907799001.

$9,925.00
$13,135.52* Save $3,210.52
Out of Stock

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • T4F Kubota Diesel Engine
  • Multiprocess Welding
  • Single Phase Generator
  • 3-Year Miller Warranty

This product has been replaced by the Miller Trailblazer® 325 Diesel, GFCI #907799001.

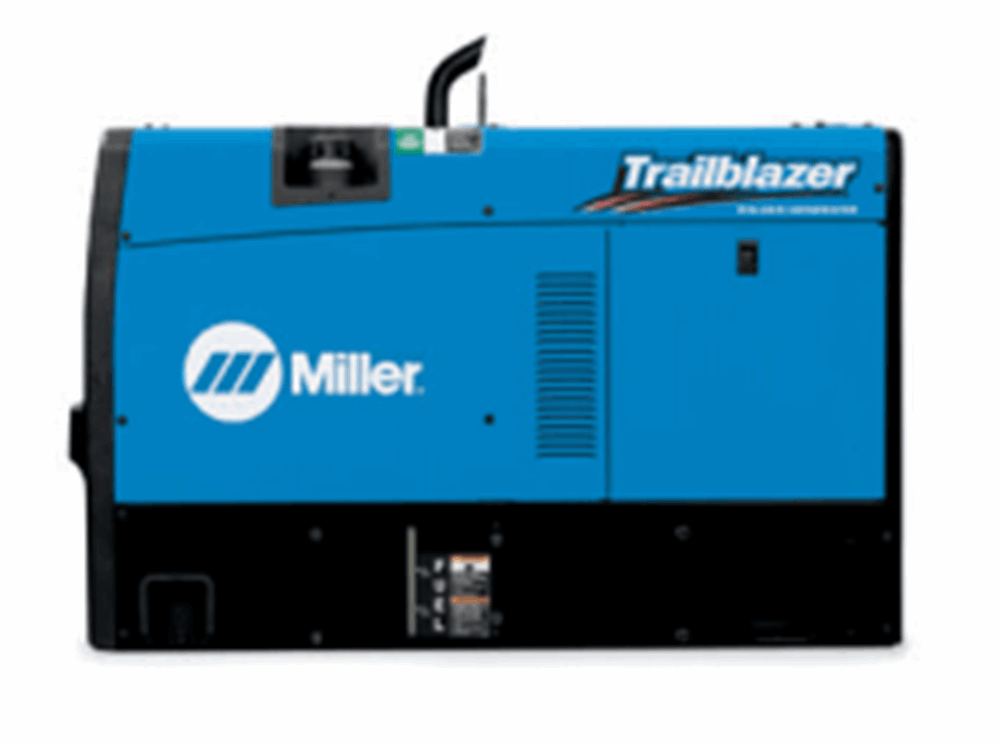

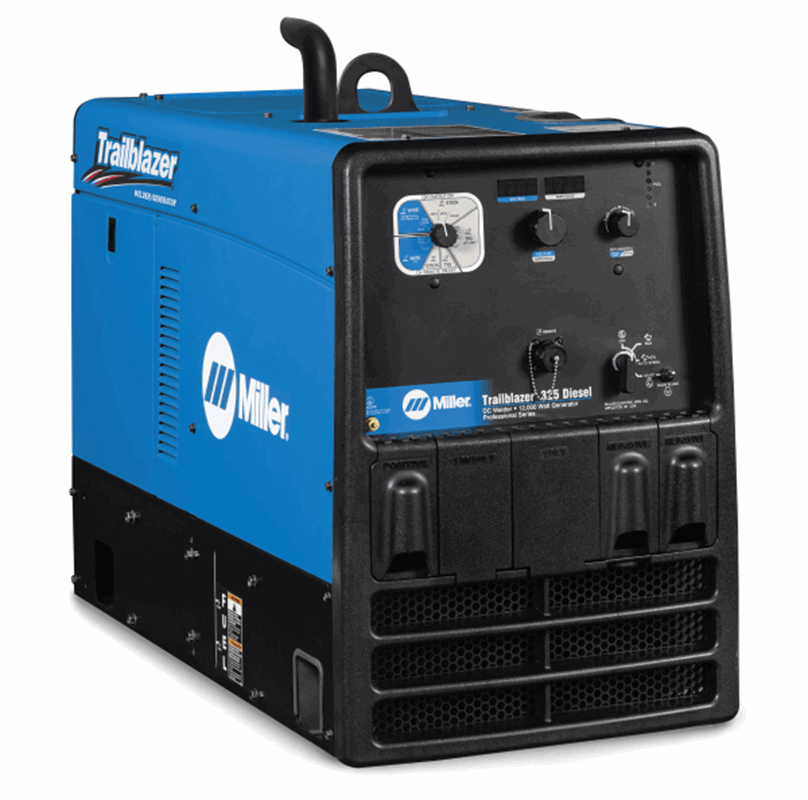

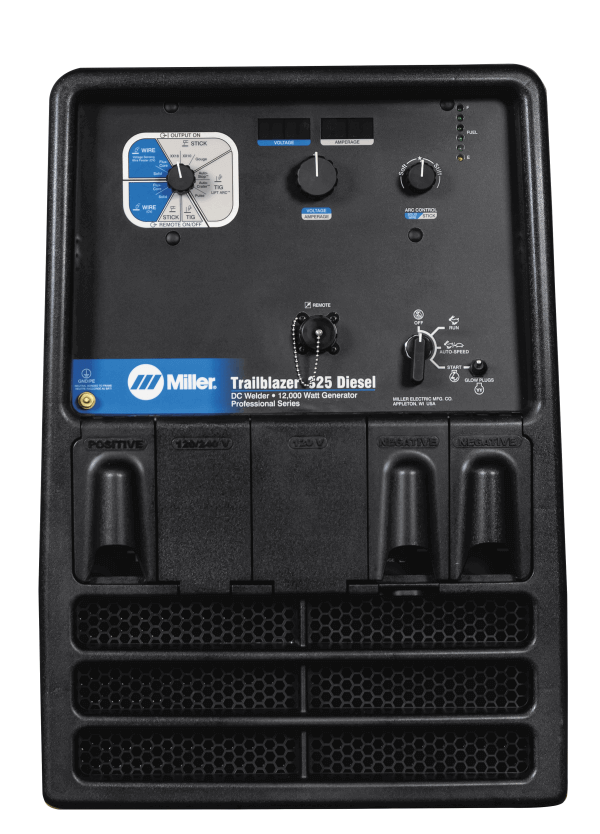

Miller Trailblazer 325 Diesel, GFCI #907566

Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive technologies – Auto-Speed™ and optional Excel™ power – deliver superior run times, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise.

Unbeatable Arc Performance

Miller® Trailblazer welder/generators deliver a wider amperage output with better welding deposition rates, which means you can get jobs done faster, saving time and money. The Trailblazer also has precise arc control, which allows you to fine-tune the arc to match your personal preferences and quickly dial in the perfect parameters to optimize weld quality and maximize productivity across a variety of applications and welding processes.

Auto-Speed™ Technology - Matches Engine Speed to Load, Reducing Fuel Use and Noise.

A Miller exclusive, the Trailblazer matches engine speed to load and reduces fuel consumption and lower noise levels for a more-profitable, safer jobsite. Unlike competitive machines that operate at 3,600 rpm (max) under any load, Miller-exclusive Auto-Speed technology responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary. Refueling time and operating costs are reduced, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Auto-Speed technology: available only from Miller.

Excel™ Power (Option)

Power at idle — a Miller exclusive Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel Power delivers a full 2,400 watts (20 A) of 120 V inverter-based, pure sine wave power at idle. With Excel power, you can operate jobsite tools like grinders at quiet, fuel-saving engine speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power: available only from Miller.

Cleaner and Stronger Generator Power

Combined with a 24.8 horsepower engine, Miller Trailblazer welder/generators offer 12,000 watts of clean, truly usable generator power that is Accu-Rated™, not inflated: tested to deliver uninterrupted peak output for a minimum of 30 seconds for big loads, so you can get more jobs done. An independent welder and generator power system ensures no interaction between jobsite tools and the welding arc, while advanced generator technology virtually eliminates power spikes and other electrical imperfections — so welds are cleaner and jobsite tools can run without interruption, maximizing quality, productivity and profit.
Check out our entire selection of welding machines including other engine driven welders for sale online from Welders Supply. Also, view our Victor ESAB plasma cutting machines and safety equipment.

PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Plasma (PAC)
Title Trailblazer® 325 Diesel, GFCI
Industries Interests Construction
Infrastructure
Cross Country Pipeline
Maintenance and Repair - Field Operations
Work / Service Trucks
Farm and Ranch
Manufacturing
Mechanical Contracting
Pipe Fabrication / Construction
Railcar
Cold Weather Starting Aids Glow Plugs
Engine Brand Kubota
Engine Compliance T4F
Engine Idle Speed 2400 RPM
Engine Weld Speed 2400 RPM
2800 RPM
3200 RPM
3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Diesel
Horsepower 24.8 hp
Weldable Metals Steel
Stainless Steel
Rated Output 325 A 33 V 100%
Single Phase Generator Continuous Power 10500 W
Single Phase Generator Peak Power 12000 W
Sound Rating 75 dB @ idle and 81.5 dB @ weld dB
Current Type DC
Amperage Range 10 - 325
Net Width 20 in
Net Height 28 in
Net Length 45.375 in
Net Weight 620 lbs
Warranty Engine Warranties
Miller's True Blue Warranty
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Weld Output CC / CV

SHIPPING DIMENSIONS

Height: 28.00 Inches
Width: 34.00 Inches
Length: 46.00 Inches
Weight: 620 Lb(s) 0 Oz

Manufacturer Reviews

By: Juan
Really nice welder, I bought the diesel for the efficiency and also because sometimes I go a while without using it and I didn't want the gas to go bad. I finally upgraded from my old ranger 9 and it's a big upgrade. Noise is a lot lower but it seems to have a deeper bass sound because it pennetrates the house with a humm like heavy machinery so you know it ain't cheap. It's definitely not whisper quiet like a Honda. Altogether two thumbs up.

Product Questions and Answers


Q - Can off-road fuel be used for this? A - Not recommended. It requires ultra low Sulphur diesel fuel.
Q - Will this stick weld on AC current? A - No, you can only stick weld on DC current with this machine. It doesn't produce AC weld current.

Have a question about this product? Submit your question using the form below

Related Products

Bobcat™ / Trailblazer® All-Purpose Running Gear with Never Flat™ Tires
Bobcat™ / Trailblazer® All-Purpose Running Gear with Never Flat™ Tires #300477
$1,578.00
Bobcat™ / Trailblazer® Gas Cylinder Mounting Assembly #300918
Bobcat™ / Trailblazer® Gas Cylinder Mounting Assembly #300918
$706.00
Bobcat™ / Trailblazer® GFCI Receptacles #300975
Bobcat™ / Trailblazer® GFCI Receptacles #300975
$200.00
Protective Cage with Cable holders for Miller Bobcat/Trailblazer #195331
Bobcat™ / Trailblazer® Protective Cage with Cable Holders #195331
$853.00
Bobcat™ / Trailblazer® Protective Cover #301099
Bobcat™ / Trailblazer® Protective Cover #301099
$399.00
CST 280 220-230/460-575 V, Dinse #907244
$2,594.00
$3,319.00
Out of Stock
Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
Miller Bobcat™ / Trailblazer® / Big Blue® Full KVA Adaptor Cord #300517
$161.00
120 or 240 VAC Single-Phase Full KVA Plug Kits for Miller Power Supplies
Miller Bobcat™ / Trailblazer® / Big Blue® Full Single-Phase Full KVA Plug Kit #1…
$124.15
$129.94
Miller diversion 180 ac/dc Miller Diversion 180AC/DC Tig Welding Package
Miller Diversion 180AC/DC Tig Welding Package
$2,825.00
$3,568.00
Miller MULTIMATIC 200 115/230 50/60HZ 1PH #907518
Miller MULTIMATIC 200 115/230 50/60HZ 1PH #907518
$3,549.00
$4,494.00
Miller Spoolmatic 30A Part#130831
Miller Spoolmatic 30A
$1,990.00
$2,297.00
Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583
Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583
$2,100.00
$2,720.00
Out of Stock
SuitCase® X-TREME™ 8VS, Meters, Bernard™ BTB 300 A Gun Pkg #951582
Miller SuitCase® X-TREME™ 8VS, Meters, Bernard™ BTB 300 A Gun Pkg #951582
$2,099.99
$2,720.00
Out of Stock
Miller Wireless Hand Control System #300430
MILLER WIRELESS HAND CONTROL
$1,069.95
$1,380.00
Out of Stock
Miller Wireless Remote Antenna Adapter Kit #300749
Miller Wireless Remote Antenna Adapter Kit #300749
$200.00
Millermatic 141 W/Auto Set 110 Volt Mig Welder Part# 907612 Millermatic 141 w/Auto Set 110 Volt Mig Welder
Millermatic 141 w/Auto Set 110 Volt Mig Welder
$1,055.00
$1,326.00
Out of Stock
Millermatic 190 angled drive system 907613 Millermatic 190 Auto-Set 220 Volt Wire Welder DISCONTINUED
Millermatic 190 Auto-Set 220 Volt Wire Welder DISCONTINUED
$965.00
$1,228.00
Out of Stock
Millermatic 212 Auto-Set 220 Volt Wire Welder #907405 Millermatic 212 Auto-Set 220 Volt Wire Welder DISCONTINUED
Millermatic 212 Auto-Set 220 Volt Wire Welder DISCONTINUED
$2,315.00
$2,933.00
Out of Stock
SuitCase X-TREME 12VS, Bernard BTB 300 A Gun #951543
$2,300.00
$3,011.00
Out of Stock

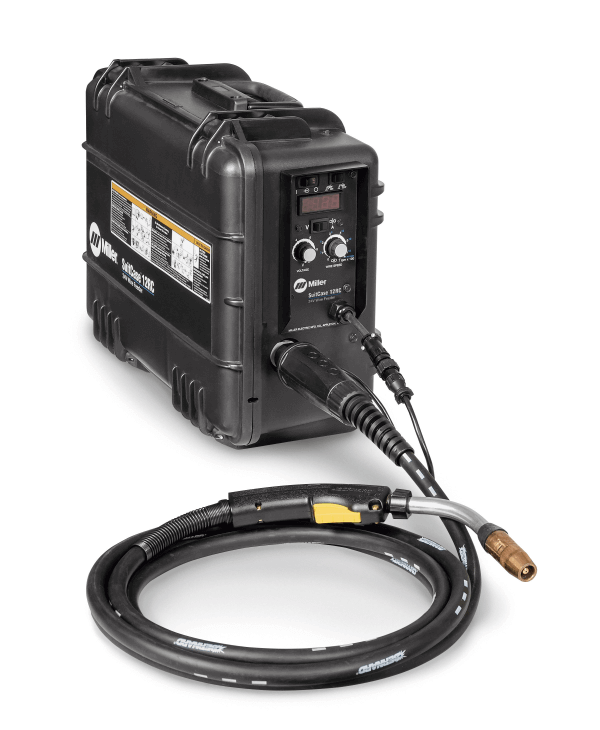

SuitCase® 12RC, BTB 300A Gun #951580
