WarrantyHeavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, which provides consistent arc quality. Front panel has trigger hold, wire jog, and gas purge for easy operator access. Wide voltage range for small and large wires with no contactor chatter or arc outages. Ideal for MIG welding.
Impact-resistant, flame-retardant case provides strength and durability, and protects components and welding wire from moisture, dust and other contaminants. Built-in slide rails allow you to drag the feeder into position for welding. Innovative feeder door design allows you to change wire while feeder is standing upright or laying down.
Potted and trayed main printed circuit board for the harshest environment adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation. Gun locking tab works with guns having corresponding locking grooves to prevent gun from being pulled out if the feeder is dragged by the gun. Gas inlet recessed into back of case is protected from incidental contact by the weld cable, ensuring consistent and contaminant-free shielding gas delivery to the gun. Double-filtered gas valve helps keep dirt from clogging and affecting gas flow.
Makes loading the wire easy and does not deform the wire on the way into the drive rolls improving wire feeding performance.
Provides easy adjustment and consistent pressure on the drive rolls and wire.
Display voltage, wire feed speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.
12VS model is sized for an 8- or 12-inch spool of wire. 12-inch spools are the most common in structural steel and fabrication.

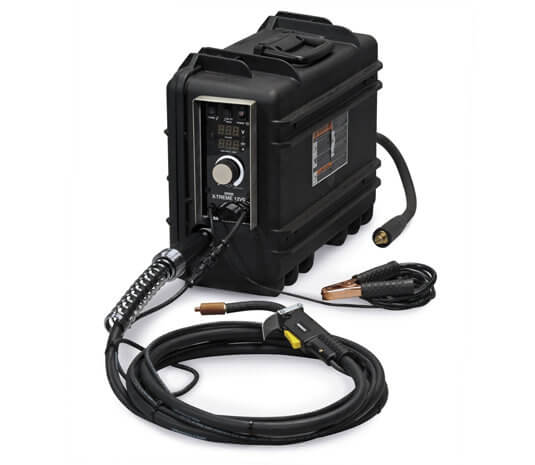

| Title | SuitCase® X-TREME™ 12VS, Bernard™ Dura-Flux Gun |
|---|---|
| Industries Interests | Aerospace Boat / Yacht Construction Heavy Equipment Manufacturing High Purity Processing Infrastructure Manufacturing Railcar Shipbuilding |
| Cooling | Air-Cooled |
| Input Circuit Welding Rating | 425 A at 60% Duty Cycle |
| Power Source Compatibility | DC |
| Spool Size | 12 in (305 mm) |
| Welding Power Source Type | CC/CV |
| Wire Feeder Type | Portable |
| Wire Feed Speed | 50 IPM - 780 IPM |
| Wire Diameter | Solid Wire 0.023 in 0.052 in Flux Cored 0.03 in 0.078 in |
| Net Width | 9 in |
| Net Height | 15.5 in |
| Net Length | 21 in |
| Net Weight | 35 lbs |
| Warranty | Miller's True Blue Warranty |
| Portability | Handle(s) |
SHIPPING DIMENSIONS |
|
| Height: | 16.00 Inches |
| Width: | 17.00 Inches |
| Length: | 35.00 Inches |
| Weight: | 55 Lb(s) 0 Oz |
