Miller Syncrowave® 250 DX 907195

Out of Stock
$4,295.00 $5,401.00 Reduced Price You Save $1,106.00
Product Number: 907195

This product has been replaced by the Miller Syncrowave 300 907782.

This product is currently out of stock. Please check back later, or call 1-800-236-8825 for assistance.

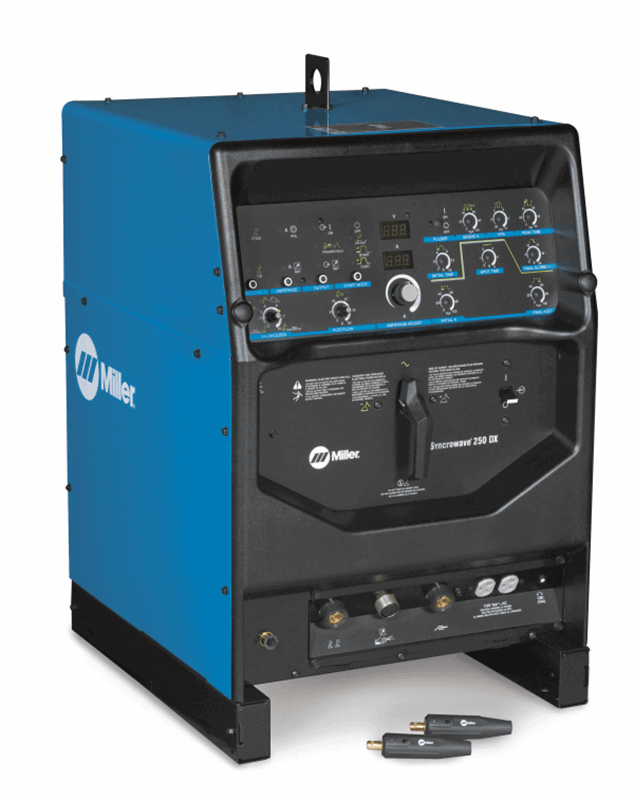

Miller Syncrowave® 250 DX 230/460/575 V 907195

Industry standard - Syncrowave 250DX has proven itself time and time again in the most demanding applications. Its industrial design and construction ensure reliable operation for years to come.

What's Included:

  • Syncrowave® 250 DX
  • (2) 50 mm Dinse style connectors

Features:

  • Squarewave technology
  • Balance control
  • Syncro Start™
  • Digital welding meters
  • Last procedure recall
  • Adaptive Hot Start™
View our large selection of Mig, Tig, and Stick welders with the greatest values online.


OTHER VERSIONS:

  • 907194 Miller Syncrowave® 250 DX 200/230/460 V Input Model
  • 951117 Miller Syncrowave 250DX Water-Cooled package
  • 951118 Syncrowave 250DX with Foot Control and Accessories

Miller Syncrowave 250DX #907195 Specifications:

Input Voltage Options 230/460/575 V
Input Hz Range 50 / 60 Hz
Input Phase 1-phase
Current Type AC / DC
Rated Output 250 A at 30 VAC, 40% Duty Cycle, 60 Hz
225 A at 29 VAC, 40% Duty Cycle, 50 Hz
Weld Output CC
Amperage Range 3–310 A
Maximum Open Current Voltage 80 VDC
Material Thickness Steel: 0.012 in. (0.3 mm) - 1/2 in. (12.7 mm)
Aluminum: 0.015 in. (0.4 mm) - 3/8 in. (9.5 mm)
Weldable Metals Aluminum
Steel
Stainless Steel
Processes Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
Pulsed TIG (GTAW-P, optional)
Air Carbon Arc (CAC-A)
Light Industrial Applications Precision Metal Fabrication
Maintenance and Repair
Aerospace
Tube and Pipe
Racing / Customizing / Restoring
Construction
DIY / Home Hobbyist
Farm and Ranch
Infrastructure
Manufacturing
Metal Art / Sculptures
Boat / Yacht
High Purity Processing
Net Width 22.5 in. (572 mm)
Net Height 33.25 in. (845 mm)
Net Length 25 in. (635 mm)
Net Weight 378 lb. (172 kg)
Portability Lift Eye (Standard)
Running Gear / Cart (Standard)
Warranty 3 years - Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 26.00 Inches
Width: 26.00 Inches
Length: 40.00 Inches
Weight: 399 Lb(s) 0 Oz

Miller Syncrowave® 250 DX Welder #907195 Set Up



Miller Syncrowave® 250 DX Welder #907195 Settings



Miller Syncrowave® 250 DX Welder #907195 for Mild or Stainless Steels

Product Questions and Answers


Q - What coolant do I need for this? A - Miller TIG Coolant, #043 810, sold in quantities of 4
Q - What is the amperage range? A - 3 to 310 A
