Miller Syncrowave 250 DX 230/460/575 V, Foot Control Complete Package #951118

Name: Syncrowave 250 DX 230/460/575 V, Foot Control Complete Package #951118
Brand: Miller Electric
SKU: MIL951118

Part Number: 951118

REPLACED BY #951000003

Syncrowave 250 DX 230/460/575 V, Foot Control Complete Package #951118

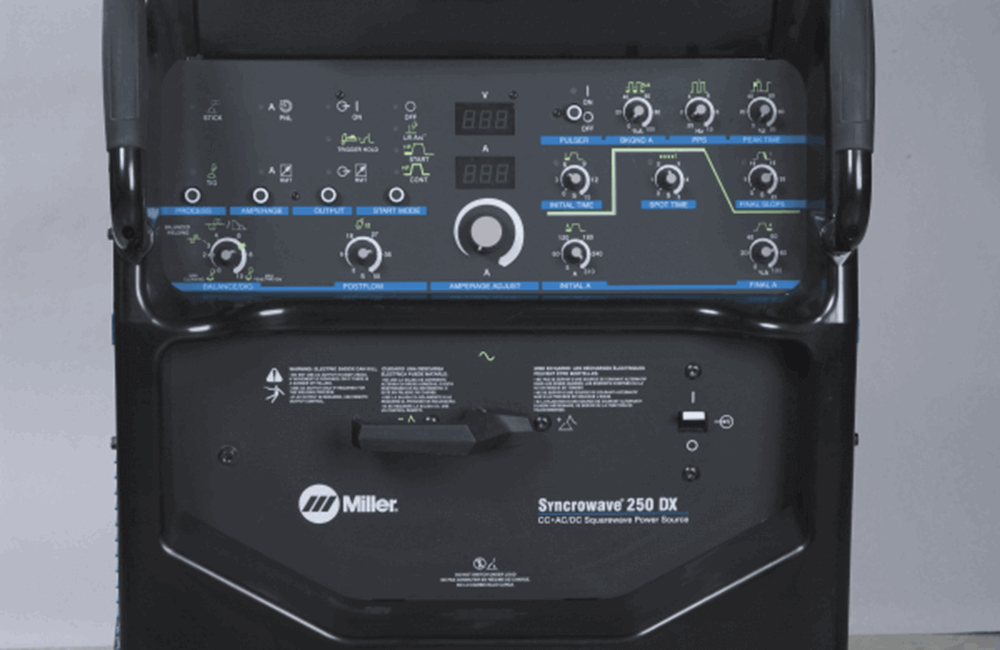

951118 Syncrowave 250 DX Machine Front Panel

Miller Syncrowave 250 DX 230/460/575 V, Foot Control Complete Package #951118

Part Number: 951118

This Item Has Been Discontinued and has been replaced by Syncrowave® 300 TIG Welder, Wired Foot Pedal Complete Pkg #951000003 - Level up today!

Features
Specs
Documents
Videos
Consumables
FAQS

Stick Welding
TIG Welding
1-Phase Input
3-Year Power Warranty

Miller Syncrowave® 250 DX 230/460/575 V, Foot Control Complete Package #951118

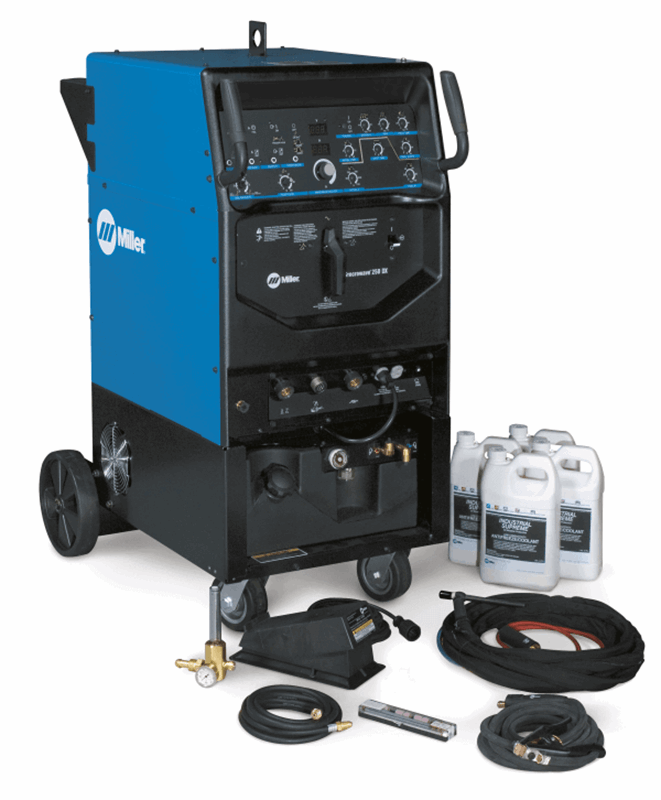

WHAT'S INCLUDED

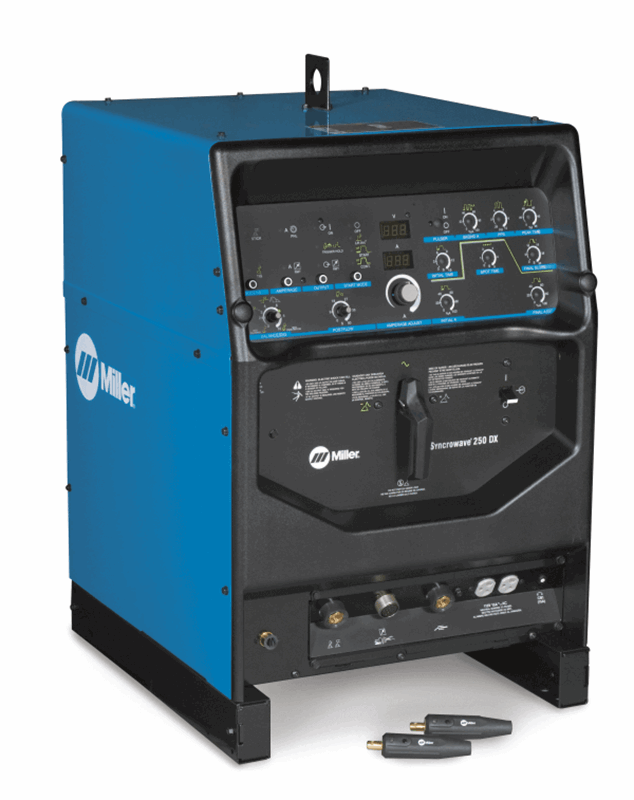

Syncrowave® 250 DX
Coolmate™ 3X
Running Gear

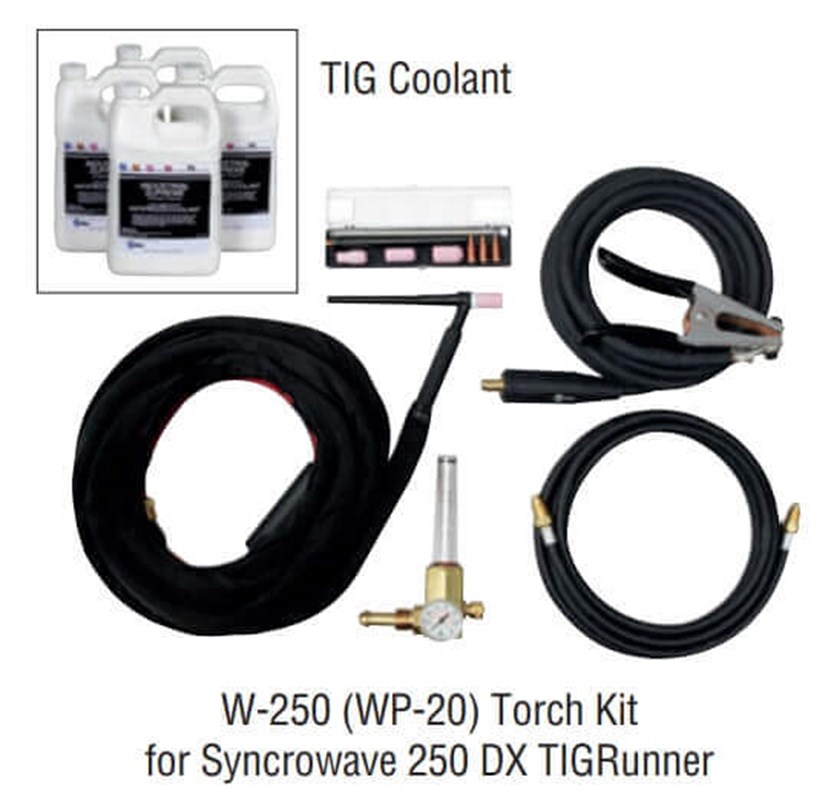

Weldcraft™ W-250 torch kit and accessories (300185)
Coolant (4 one-gallon bottles of 043810)

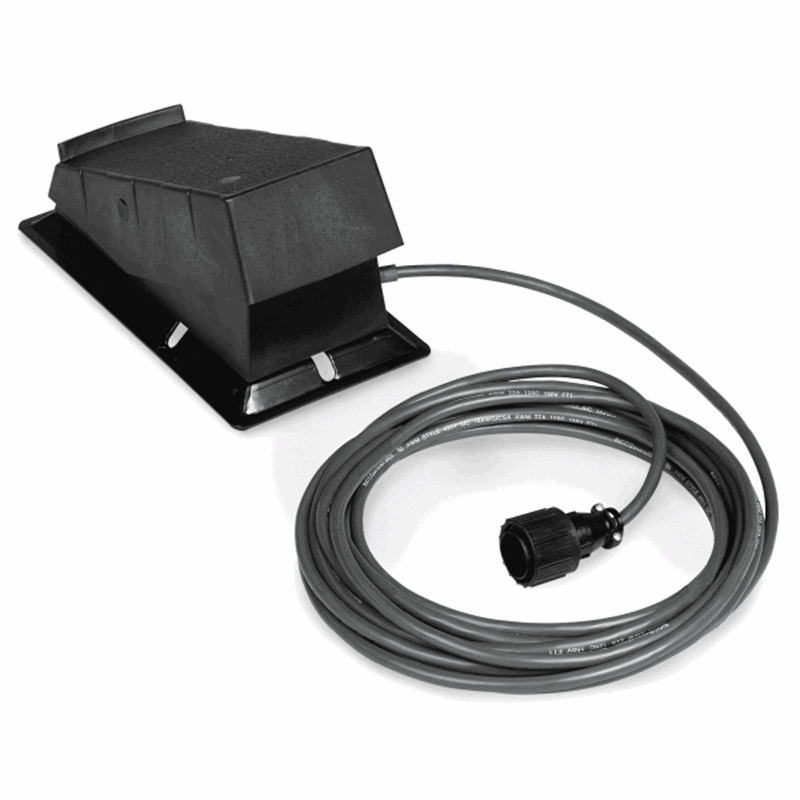

RFCS-14HD remote foot control and receiver (194744)

Squarewave Technology

Squarewave technology was developed by Miller Electric in 1976 to improve your weld quality and make TIG welding easier. Miller Squarewave technology provides arc stability when welding aluminum, prevents arc rectification and eliminates tungsten erosion.

Balance Control

The balance control is adjustable to provide additional oxide removal (more cleaning) or less cleaning based on the condition of the material being welded.

Syncro Start™

This allows the choice of Soft, Standard or Hot TIG starts based on the application, lead lengths and tungsten size.

Digital Welding Meters

Display both amperage and voltage for viewing of the actual and preset values for greater accuracy and repeatability in your welding procedure.

Last Procedure Recall

Simplifies changing your Syncrowave back and forth from aluminum TIG to stainless TIG to Stick welding. One switch makes all the control panel changes.

Adaptive Hot Start™

Stick welding features such as Adaptive Hot Start™ provide good arc strikes without sticking. Once welding, the DIG control makes dynamic adjustments to the welder to ensure smooth E7018 and deep penetration E6010.

Browse more stick welders, Miller welding machines, and welding helmets.

Other Versions of the Miller Syncrowave 250DX:

Miller Syncrowave 250DX #951118 Specifications:
Input Voltage Options	230/460/575 V
Input Hz Range	50 / 60 Hz
Input Phase	1-phase
Current Type	AC / DC
Rated Output	250 A at 30 VAC, 40% Duty Cycle, 60 Hz 225 A at 29 VAC, 40% Duty Cycle, 50 Hz
Weld Output	CC
Amperage Range	3–310 A
Maximum Open Current Voltage	80 VDC
Material Thickness	Steel: 0.012 in. (0.3 mm) - 1/2 in. (12.7 mm) Aluminum: 0.015 in. (0.4 mm) - 3/8 in. (9.5 mm)
Weldable Metals	Aluminum Steel Stainless Steel
Processes	Stick (SMAW) TIG (GTAW) TIG AC (GTAW-AC) TIG DC (GTAW-DC) Pulsed TIG (GTAW-P, optional) Air Carbon Arc (CAC-A)
Light Industrial Applications	Precision Metal Fabrication Maintenance and Repair Aerospace Tube and Pipe Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Boat / Yacht High Purity Processing
Net Width	28.5 in. (724 mm)
Net Height	46 in. (1168 mm)
Net Length	40.5 in. (1029 mm)
Net Weight	478 lb. (217 kg)
Portability	Lift Eye (Standard) Running Gear / Cart (Standard)
Warranty	3 years - Miller's True Blue Warranty
