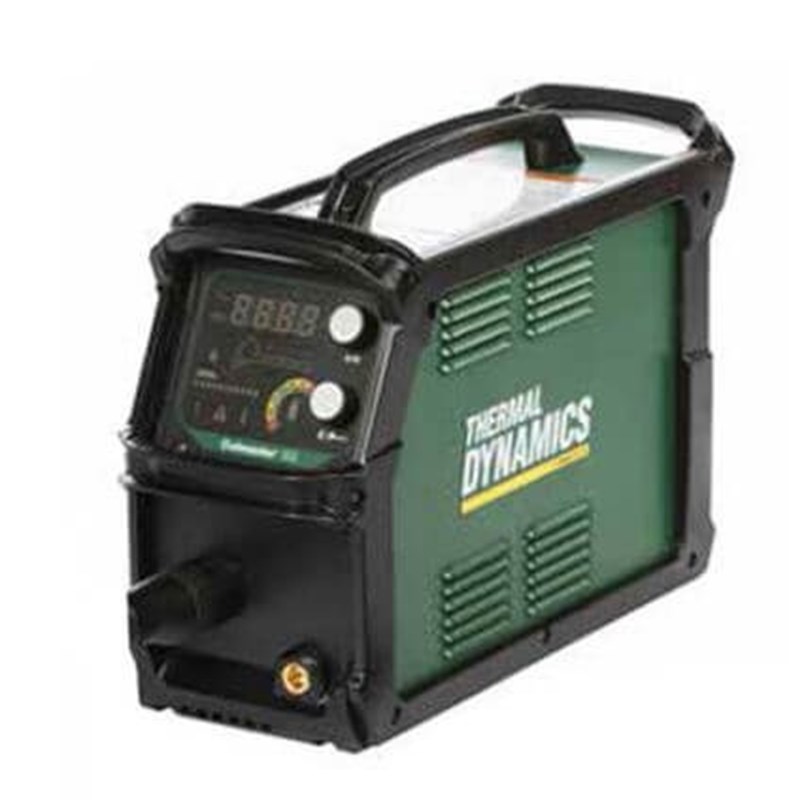

Thermal Dynamics Cutmaster 60i #3-5630-2X (Power Supply Only)

Plasma torch:

Power Supply Only
Cut capacity:

3/4" Capacity
Material type:

Mild Steel

Stainless Steel

Aluminum
Power supply:

220V Single Phase

220V 3 Phase

Powerful, lightweight, and perfectly precise – the Cutmaster® 60i is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 60i offers best in class cutting arc length and the most empowering and engaging user experience, no matter the application.
The Thermal Dynamics Cutmaster 60i doesn’t play around when it comes to cut capacity or speed. It can slice through mild steel, aluminum, and stainless steel with ease, and it plows a perfect groove when gouging. From first cut to cleanup, day in and day out, you’ll be able to stare down any challenge with Cutmaster 60i on your side.
Amperage Output | 10–60 A, continuously adjustable |
Open-Circuit Voltage (OCV) | 300 V |
Input Voltage | 208–480 VAC ± 10% (1ph or 3ph) |
Rated Duty Cycle |
50% @ 60 A 60% @ 50 A 100% @ 40 A |
Amperage Draw |
43 A @ 208 V 39 A @ 230 V 19 A @ 480 V |
Enclosure Rating | IP23S |
Input Power Cable and Plug | 9 ft. (2.7 m) 1ph 8 AWG 3/C with NEMA 6-50P plug (prewired) 9 ft. (2.7 m) 3ph 12 AWG 4/C cable without plug |
Work Lead with Ground Clamp | 20 ft. (6 m) #8 work cable with 50 mm connection |
Gas Requirements | Compressed air |
Operating Temperature Range | 32°F–122°F (0°C–50°C) |
Input Pressure | 90–125 psi max (8.6 bar) |
Air Flow Requirements (cutting and gouging) | 300–500 cfh (142–235 l/s) |
Recommended Cut | Up to 3/4 in. (20 mm) |
Maximum Sever | 1 1/2 in. (38 mm) |
Pierce Rating | 3/4 in. (20 mm) |
Torch Duty Cycle | 100% at 60 A @ 400 cfh air flow |
Recommended Generator Size | 15 kW (at full output) |
Torches (for use with Cutmaster 60i) |
SL60QD 1Torch (supplied) SL60/SL100 1Torch SL100 Mechanized 1Torch SL100SLV Automated 1Torch |

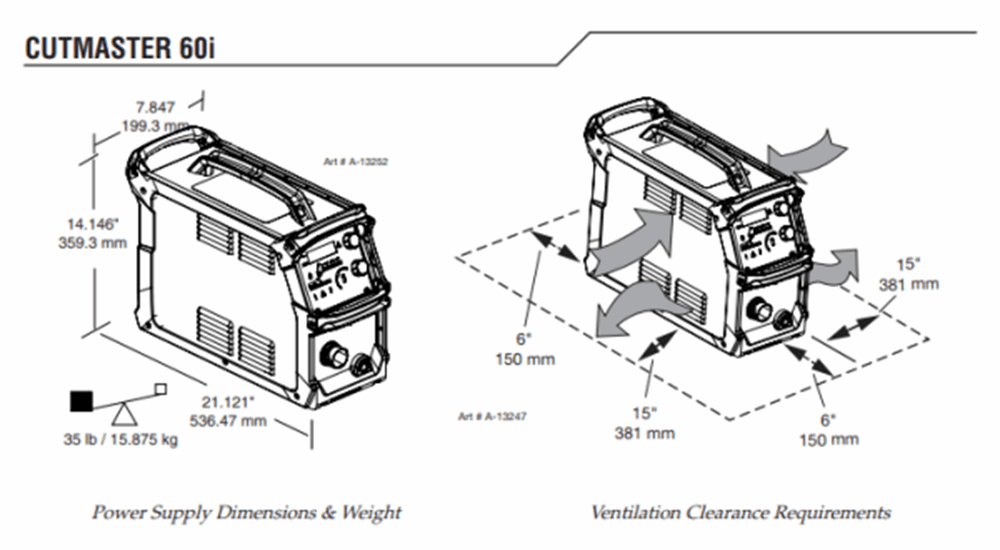

SHIPPING DIMENSIONS |
|
Height: | 14.15 Inches |
Width: | 7.85 Inches |
Length: | 21.12 Inches |
Weight: | 37 Lb(s) 0 Oz |
Disconnect power at the source before assembling or disassembling any parts.
Check to make sure that the torch is properly connected. Check that the proper parts are being used.
Check primary input power source. Inspect the cable and proper input voltage.
Check air source to make sure it meets requirements.
Connect the work cable to the workpiece or cutting table. Connect only to the main part of the workpiece.
