The ET 220i AC/DC offers
- high output
- full digital control
- Stick/Liftarc TIG/HF TIG
- Inverter power supply with expanded input voltage capabilities
The ET 220i is designed for precision TIG and Stick welding of all weldable materials. Square wave output combined with advanced balance and cleaning features deliver unbeatable welding performance. This extends tungsten life on aluminum and magnesium alloys without the need for continuous high frequency.
- Embedded microprocessor with digital controls
- HF TIG and Liftarc TIG start with rapid pulse output
- Tiptronic memory functions
- Robust aluminum metal case
- High-frequency start, Liftarc TIG start, automatic downslope, pulse, repeat (latch) function, memory function and automatic gas management

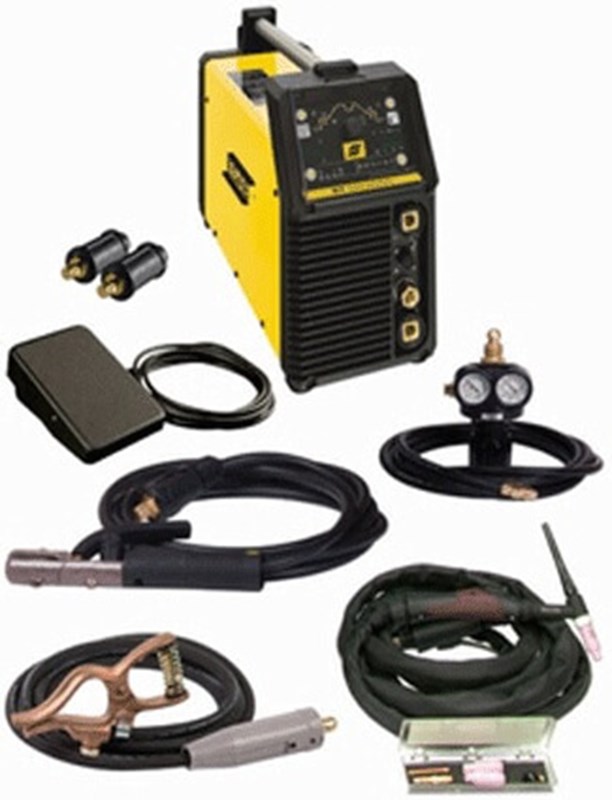

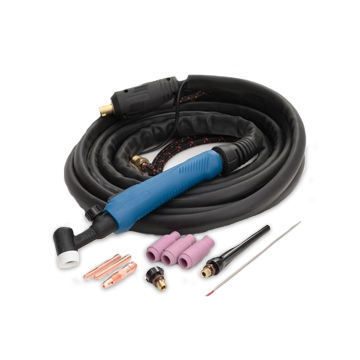

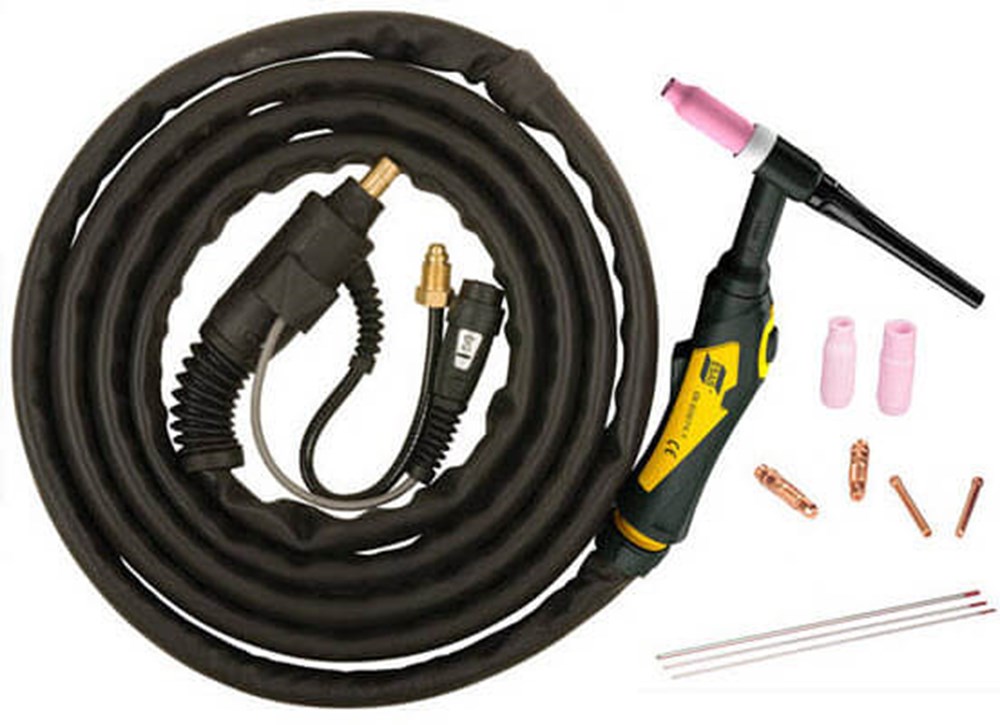

- 200 amp air-cooled TIG torch with fingertip control and accessories

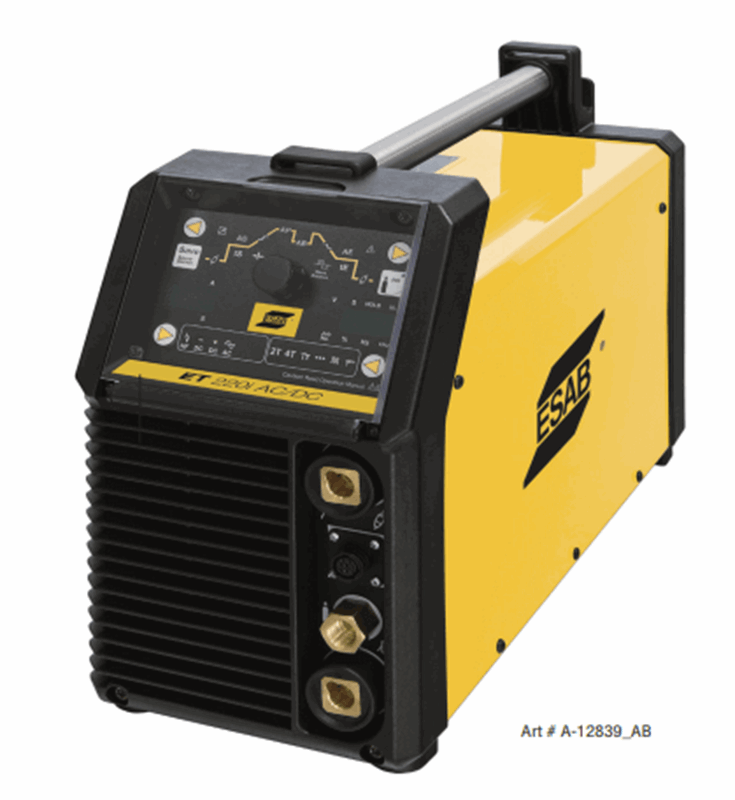

- Power Source

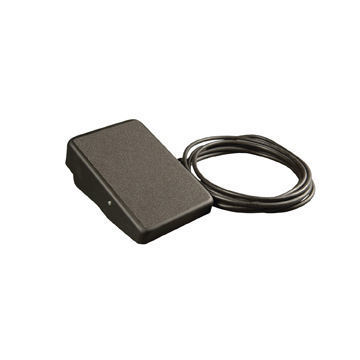

- Remote foot control
- Ground cable and clamp
- Lead cable and electrode holder
- Gas hose
- Operator’s manual and set-up DVD
- Primary power cable
- Dinse plugs
|Power source weight without power cable, lb. (kg)||29.5 (13.4)|
|Power source dimensions, L x W x H, in. (mm)||18 x 7.25 x 13 (483 x 185 x 326)|
|Standards||CSA E60974-1, ANSI/IEC 60974-1|
|Number of phases||1/3|
|Supply voltage, VAC – 1/3 ph||208-230/460 +/-15%|
|Supply frequency, Hz||50/60|
|Welding current range (Stick), A – 1 ph||10 – 150|
|Welding current range (Stick), A – 3 ph||10 – 170|
|Welding current range (TIG), A – 1 ph||5 – 200|
|Welding current range (TIG), A – 3 ph||5 – 220|
|Effective input current (I1eff), A (V) – 1 ph||37.3 (208) 33.7 (230)|
|Effective input current (I1eff), A (V) – 3 ph||16.8 (208) 15.2 (230) 8.2 (460)|
|Maximum input current (I1max), A (V) – 1 ph||37.3 (208) 33.7 (230) 18.1 (460)|
|Maximum input current (I1max), A (V) – 3 ph||24.5 (208) 22.1 (230) 11.9 (460)|
|Generator requirement, kW (kVA @ PF)||13 (16 @ 0.8)|
|Stick (SMAW), A @ V (phase)||150 @ 40% 26 (1) 170 @ 40% 26.8 (3)|
|Welding output 40ºC (104ºF), 10 min. A @ V (phase)||140 @ 60% 25.6 (1/3)|
|TIG (GTAW), A @ V (phase)||200 @ 45% 18.8 (1) 220 @ 40% 18.8 (3)|
|Welding output 40ºC (104ºF), 10 min. A @ V (phase)||180 @ 60% 17.2 (1) 160 @ 100% 16.4 (3)|
|Open circuit voltage, (VRD active), V||<113|
