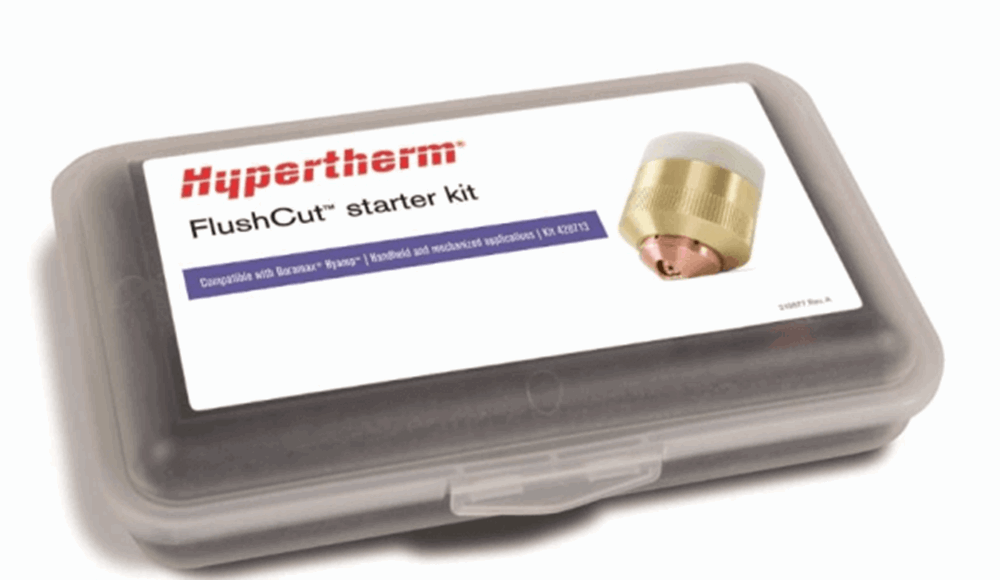

Hypertherm Powermax45/45XP/65/85 FlushCut Starter Consumable Kit (45A) #428746
Hypertherm Powermax45/45XP/65/85 FlushCut Starter Consumable Kit (45A) #428746
Hypertherm Powermax 45A FlushCut Starter Consumable Kit #428746
Hypertherm Powermax 45A FlushCut Starter Consumable Kit #428746
Hypertherm Powermax 45A FlushCut Starter Consumable Kit #428746
Hypertherm Powermax 45A FlushCut Starter Consumable Kit #428746

Hypertherm Powermax45/45XP/65/85 FlushCut Starter Consumable Kit (45A) #428746

Part Number: 428746
UPC: 00662310414337
$205.34 $234.00*
SAVE $28.66

Hypertherm Powermax 45A FlushCut Starter Consumable Kit - 428746

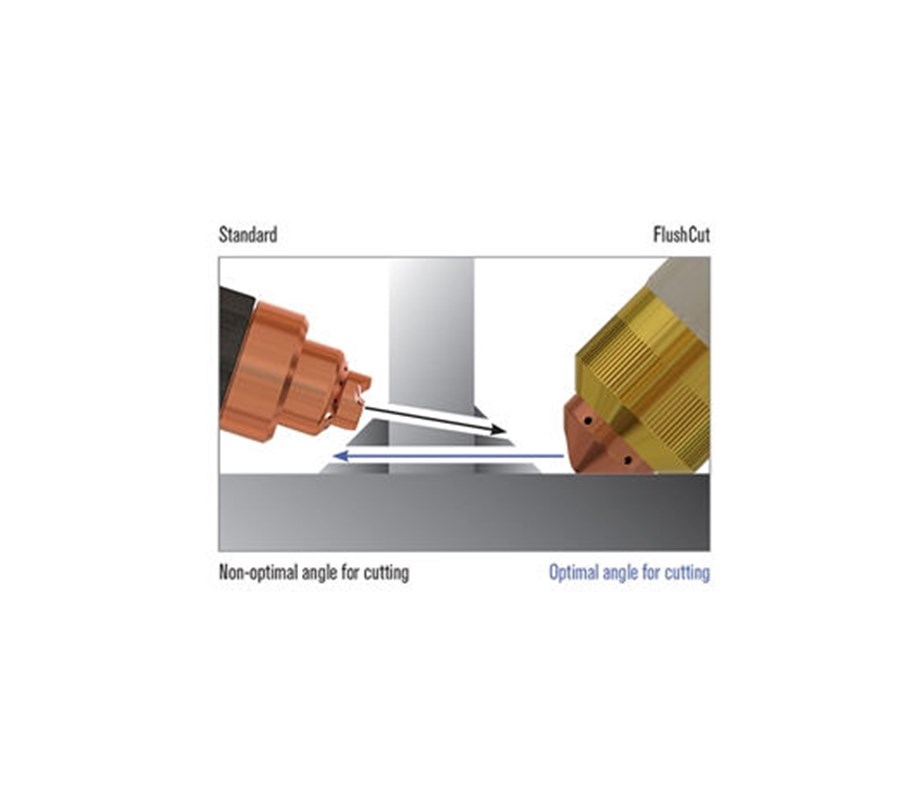

The patented Hypertherm consumable design for FlushCut features an angled nozzle bore that delivers the plasma arc at a 45 degree angle – essentially bending the plasma arc. This unique design gives Powermax users the ability to cut closer or more flush to the base than ever before, which significantly reduces grinding and increases the opportunity to reuse pad eyes, attachments and other temporary weld supports.

This kit will work with Duramax Torches found on: Powermax45, Powermax45 XP, Powermax65 and Powermax85. It is not compatible with the Duramax retrofit torches.

Included in this kit:

Total: 5 pieces

Compatible Machines

  • Powermax 45
  • Powermax45 XP
  • Powermax65
  • Powermax85

BENEFITS

  • Reduces grinding and secondary repair operations
  • 45 Degree angle arc allows for greater reuse of attachments
  • More efficient than oxy-fuel and carbon arc gouging
  • Can be used with hand or mechanized torches
Shop other Hypertherm Products, Plasma Cutting Consumables, Plasma Cutting Machines, Accessories, Welding Helmets, Helmet Accessories, Gloves, Jackets, Aprons, Caps, and Pants.

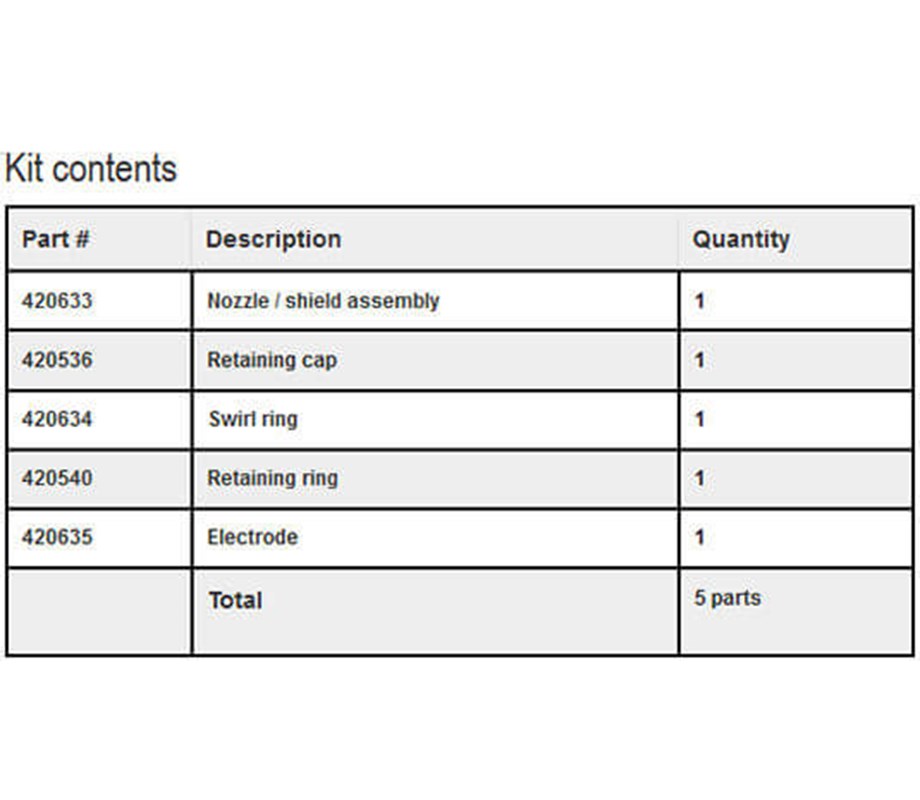

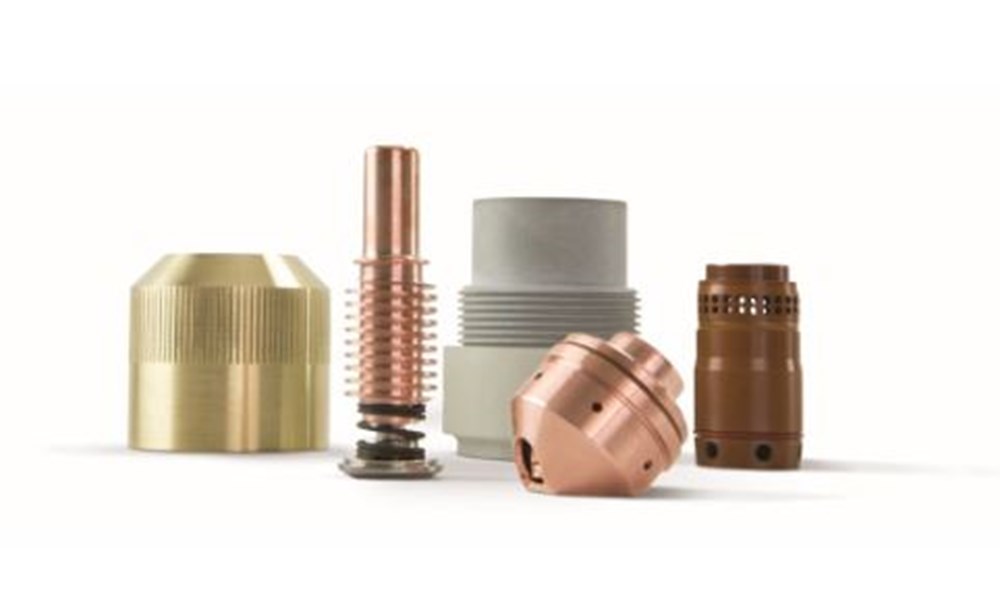

Included in this kit:

  • Retaining Ring (420540)
  • Retaining Cap (420536)
  • Nozzle / Shield (420633)
  • Swirl Ring (420634)
  • Electrode (420635)
  • Carrying case

Compatible Machines

  • Powermax 45
  • Powermax45 XP
  • Powermax65
  • Powermax85

SHIPPING DIMENSIONS
Height: 2.00 Inches
Width: 6.00 Inches
Length: 6.00 Inches
Weight: 1 Lb(s) 0 Oz

Product Questions and Answers

Q - How much residual material is left after flush cutting? A - Hypertherm says flush cutting with their angled nozzle and flat guiding shield leaves less than 5mm of material on the base of the work piece.
Q - Are these consumables compatible with Duramax Hyamp torches? A - Yes, but for the Hyamp series, the FlushCut Starter Kit is 428713.
Q - Does this come with all the consumables I need for flush cutting? A - Yes, it comes with a nozzle, retaining cap, swirl ring, retaining ring, and electrode.
Q - Can I use any electrode with this kit? A - Only the proper flush-cut electrode (420635) will work.

Have a question about this product? Submit your question using the form below
