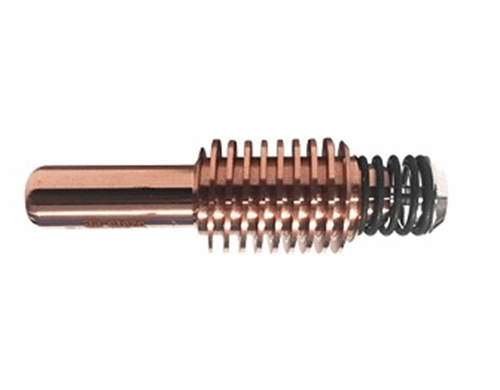

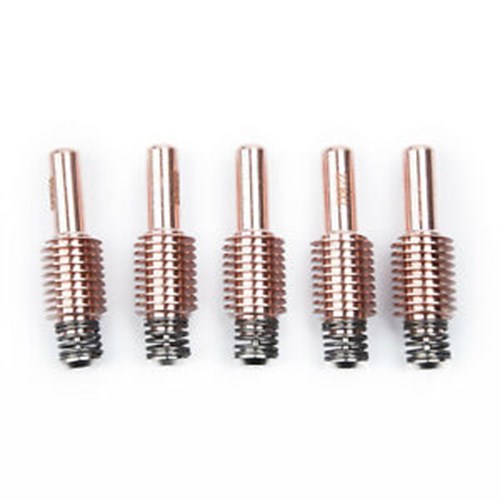

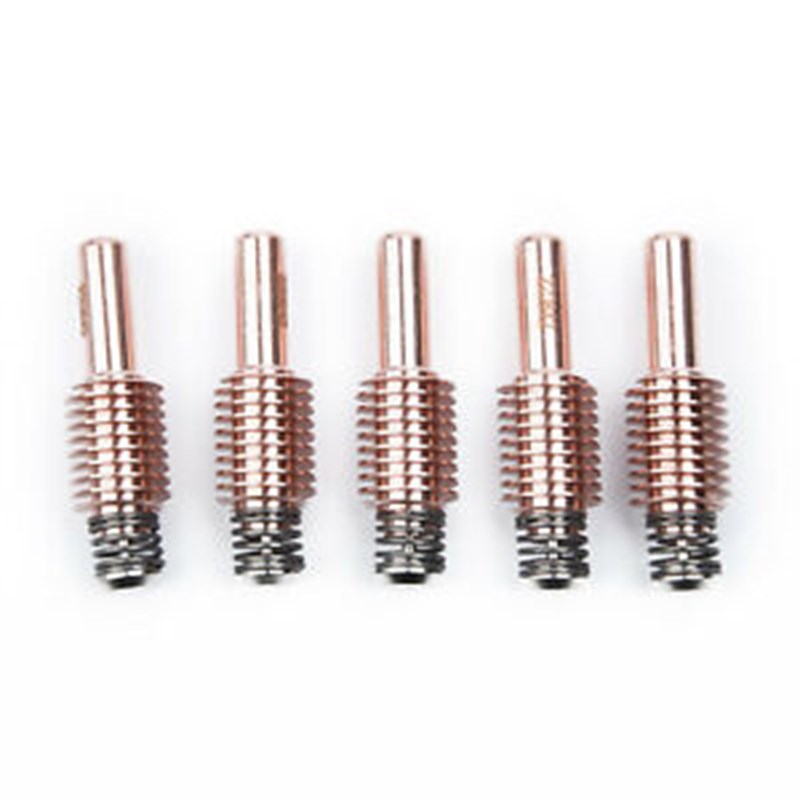

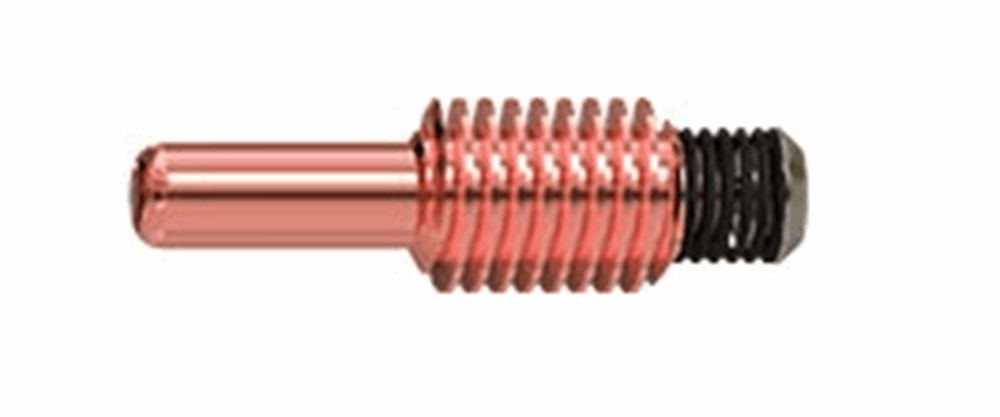

Hypertherm Powermax 45XP/65/85/105 Electrode #220842 (Pack of 5)

Part Number: 220842
UPC: 00662310312695
$50.95 $62.50*
SAVE $11.55

Hypertherm Powermax 45XP/65/85/105 Electrode #220842

Plasma cutter electrodes for the Hypertherm Powermax 65 are available at Welders Supply in packs of five. Plasma cutting is hard on electrode elements, even during normal plasma cutting. The Hypertherm Powermax 45XP/65/85/105 Electrode #220842 is what you need to keep productivity high. Every time an arc is produced, the plasma cutter electrode element receives a huge negative surge, instantly taking it from cold to extremely hot. Touching your powered Hypertherm Powermax plasma cutter’s nozzle to metal causes an intense spark to heat the gas into plasma. The plasma gas is full of particles that race past the electrode, pulling atoms away from the hot electrode surface. This is normal wear and tear, but it works on the emitting element.

  • Pits are created on the surface. If damaged electrodes aren’t replaced in time, there could be serious harm to the torch.
  • The electrode could even explode within the torch. It doesn’t matter how long you cut. The key is how frequently you ignite the torch. The more often you work, the more likely electrode damage could be caused.
  • The pit in the electrode element should be checked often. Hypertherm Powermax 45XP/65/85/105 Electrode #220842 is specially designed for the Powermax 45 XP, Powermax 65, and Powermax 85 plasma cutters, assuring maximum effectiveness and durability.
  • This 5 pack of electrodes from Welder Supply is an excellent, cost-effective option. View our other plasma cutter consumable parts.
Shop other Hypertherm productsplasma Cutting Machines, and safety equipment available online from Welders Supply.

Plasma System Adaptability:

This electrode can adapt to the following Hypertherm Plasma cutting systems.

  • Powermax 45XP
  • Powermax 65
  • Powermax 85
  • Powermax 105



Product Questions and Answers


Q - How long will each electrode last? A - Every situation is different, and the only way to know when to replace the electrode is to check it frequently. It is recommended to replace the nozzle and electrode at the same time, to ensure top performance.
Q - What happens if I forget to replace the electrode? A - Forgetting to replace the electrode can result in a blowout, which ruins both the electrode and nozzle.
Q - When should I change the electrode? A - You should change your electrode when the pit in the insert measures 1mm.
