Lincoln Electric Sprinter™ 180Si Case One-Pak® #K5600-1

Name: Sprinter 180Si TIG/Stick Welder, Case One-Pak (110-230V 1PH) #K5600-1
Brand: Lincoln Electric
SKU: LINK5600-1

Part Number: K5600-1

UPC: 15082707655

REPLACED BY #K5453-1

Lincoln Electric Sprinter™ 180Si Case One-Pak® #K5600-1

Lincoln Electric Sprinter 180Si - Front view & interface

Lincoln Electric Sprinter™ 180Si - Rear view & fan

Lincoln Electric Sprinter™ 180Si - Top right view

Lincoln Electric Sprinter™ 180Si - Top left view

Lincoln Electric Sprinter™ 180Si - Bottom right view

Lincoln Electric Sprinter™ 180Si - Bottom left view

Lincoln Electric Sprinter™ 180Si - Right side with vents

Lincoln Electric Sprinter™ 180Si Case One-Pak® #K5600-1

Part Number: K5600-1

UPC: 15082707655

This Item Has Been Discontinued and has been replaced by Sprinter™ 180Si DC TIG/Stick Welder (110-230V 1PH) #K5453-1 - Level up today!

Features
Specs
Documents
Accessories
Consumables
FAQS

Stick Welding
DC TIG Welding
Lightweight and Portable
Single Phase Input
Multi-Voltage Input
3-Year Warranty

Lincoln Sprinter 180Si Case TIG/Stick Welder One-Pak #K5585-1

Essential Welding Kit for Home, Hobby, and Light-Duty Jobs

Embark on your welding journey with the Sprinter™ 180Si Case One-Pak®, a cost-effective solution for home, hobby, and light-duty welding applications. This practical kit includes the Sprinter™ 180Si welder and a sturdy carrying case for convenient transportation and storage.

Applications:

General Fabrication
Shipbuilding
Maintenance
Structural Welding
Construction
Breweries & Distilleries
Maintenance & Repair Welding

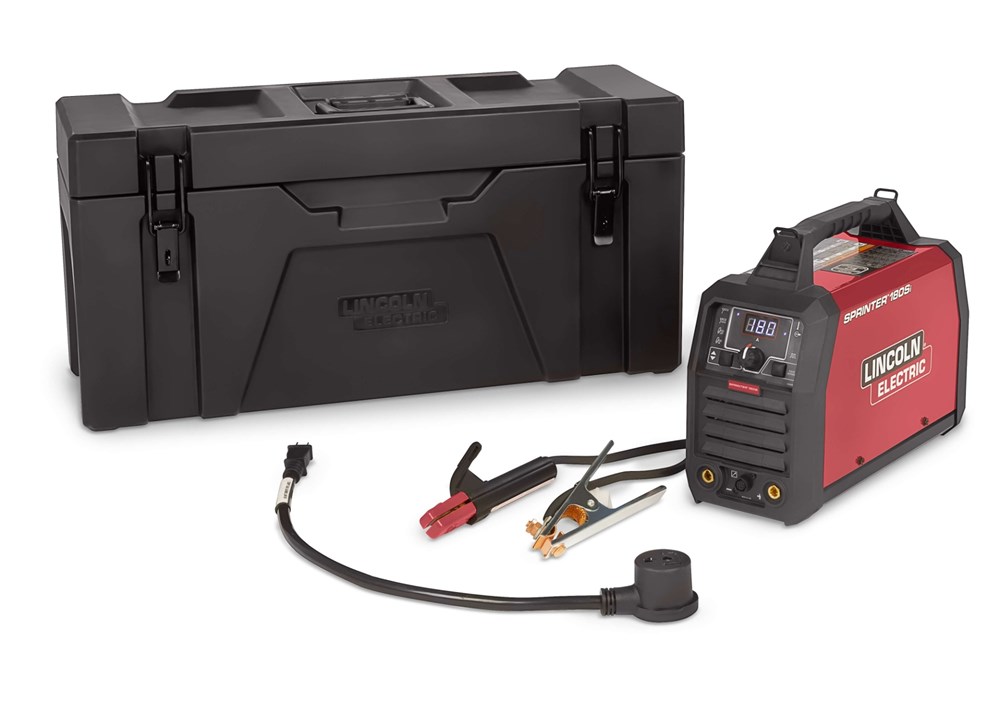

What's Included:

(1) Sprinter™ 180SiWelder
(1) Insulated Electrode Holder and Cable
(1) Heavy Duty Work Clamp and Cable
(1) 230V to 120V Power Cord Adapter
(1) Carrying Case

Features of the Sprinter 180Si:

Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
Multi-Process Capable - Welds DC Stick and DC TIG.
Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
High Frequency Start - Strike a precise arc every time while TIG welding
Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.

Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Lincoln & other top brands.

Other Versions of the Sprinter™ 180Si:

Lincoln Sprinter 180Si Specifications
Input Power	120/230/1/60
Rated Output	110A/14.6V/40% TIG 85A/23.2V/40% STICK 200A/16.4V/25% TIG 180A/26.4V/25% STICK
Input Current @ Rated Output	120VAC: 20A 230VAC: 30A
Output Range	10-110A DC TIG 20-85A STICK 10-200A DC TIG 20-180A STICK
Open Circuit Voltage (OCV)	Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V
