Lincoln Electric Sprinter™ 180Si #K5453-1

Part Number: K5453-1
UPC: 015082700861
$849.00 + Free Shipping $984.25*
SAVE $135.25

Welding type:

Stick

Stick

Tig

Tig

Power supply:

110V

110V

220V Single Phase

220V Single Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Stick welderStick Welding
  • TIG welderDC TIG Welding
  • Lightweight, portable welding machineLightweight and Portable
  • Single phase welderSingle Phase Input
  • Multi-voltage 120V & 230V welding machineMulti-Voltage Input
  • Lincoln Electric 3-year warranty3-Year Warranty

Lincoln Sprinter 180Si Stick/TIG Welder #K5453-1Lincoln Electric 3-year warranty

Embrace the versatility and portability of the Sprinter™ 180Si, your lightweight companion for a wide range of welding tasks. Weighing in at under 20 lbs, this compact powerhouse delivers an impressive 180-amp output, enabling you to weld electrodes up to 5/32 inches, including 7018 and 6010. Whether you're tackling home repairs, DIY projects, or light fabrication, the Sprinter™ 180Si seamlessly transitions from stick welding to high-frequency TIG and pulsed TIG applications.


Applications:

  • General Fabrication
  • Shipbuilding
  • Maintenance
  • Structural Welding
  • Construction
  • Breweries & Distilleries
  • Maintenance & Repair Welding

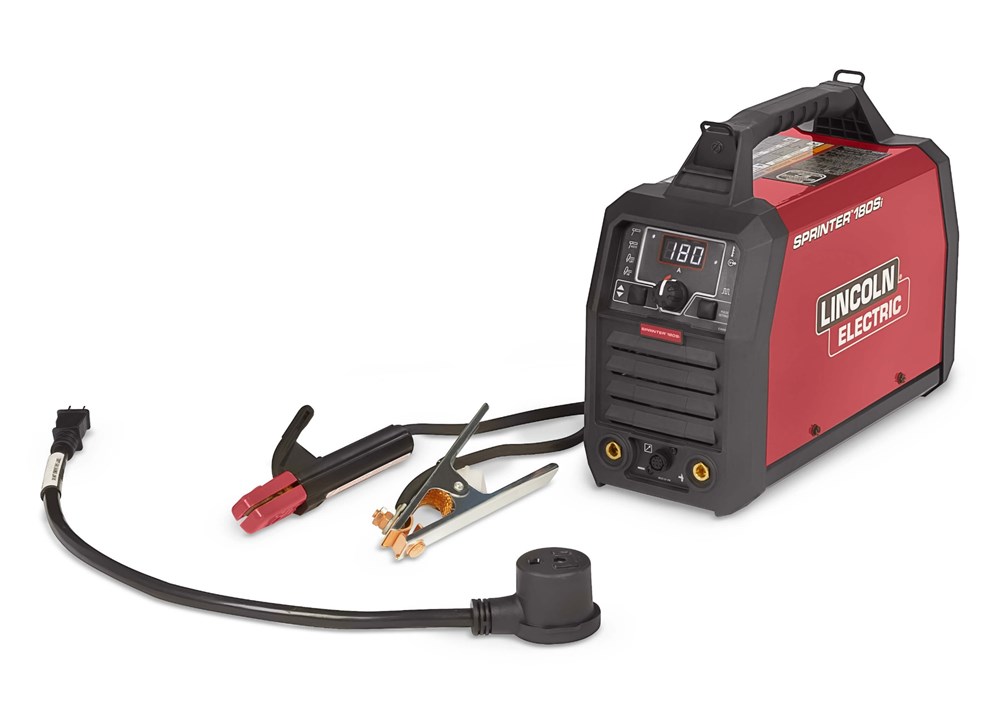

What's Included:

  • (1) Sprinter™ 180SiWelder
  • (1) Insulated Electrode Holder and Cable
  • (1) Heavy Duty Work Clamp and Cable
  • (1) 230V to 120V Power Cord Adapter

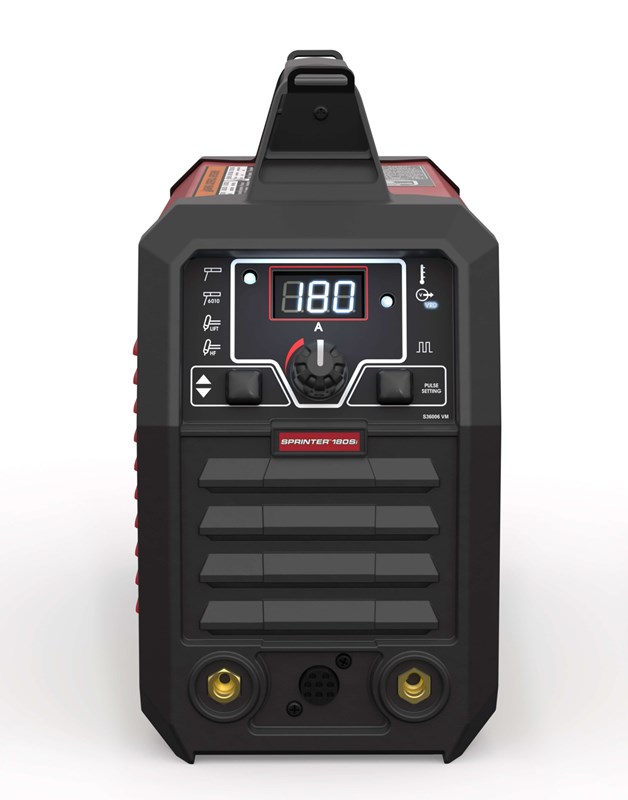

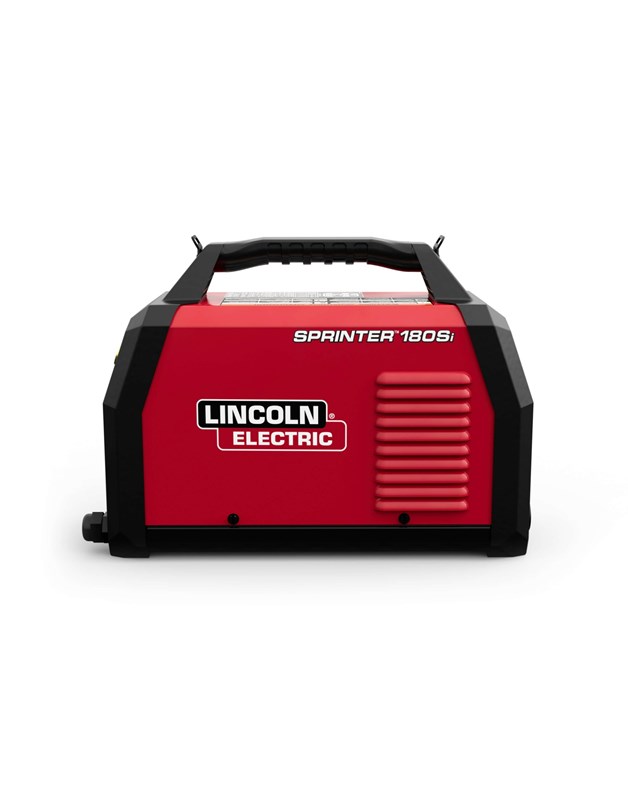

Lincoln Electric Sprinter™ 180Si #K5453-1 - Front View

Features of the Sprinter 180Si:

  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Multi-Process Capable - Welds DC Stick and DC TIG.
  • Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
  • Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
  • High Frequency Start - Strike a precise arc every time while TIG welding
  • Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.
Lincoln Electric Sprinter™ 180Si #K5453-1 - Interface & features
Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Lincoln & other top brands.

Lincoln Sprinter 180Si Specifications

Input Power 120/230/1/60
Rated Output 110A/14.6V/40% TIG
85A/23.2V/40% STICK
200A/16.4V/25% TIG
180A/26.4V/25% STICK
Input Current @ Rated Output 120VAC: 20A
230VAC: 30A
Output Range 10-110A DC TIG
20-85A STICK
10-200A DC TIG
20-180A STICK
Open Circuit Voltage (OCV) Average OCV - 65V
Peak OCV - 110V
VRD OCV (Peak) - 14V

SHIPPING DIMENSIONS

Height: 11.80 Inches
Width: 6.25 Inches
Length: 16.00 Inches
Weight: 20 Lb(s) 0 Oz
