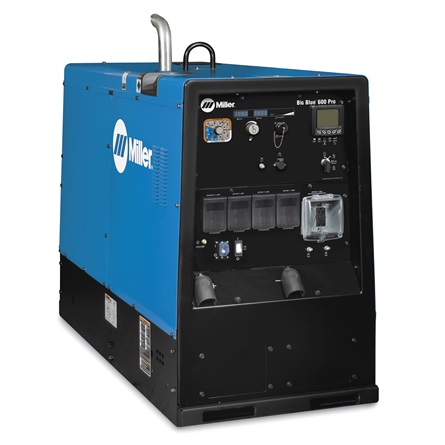

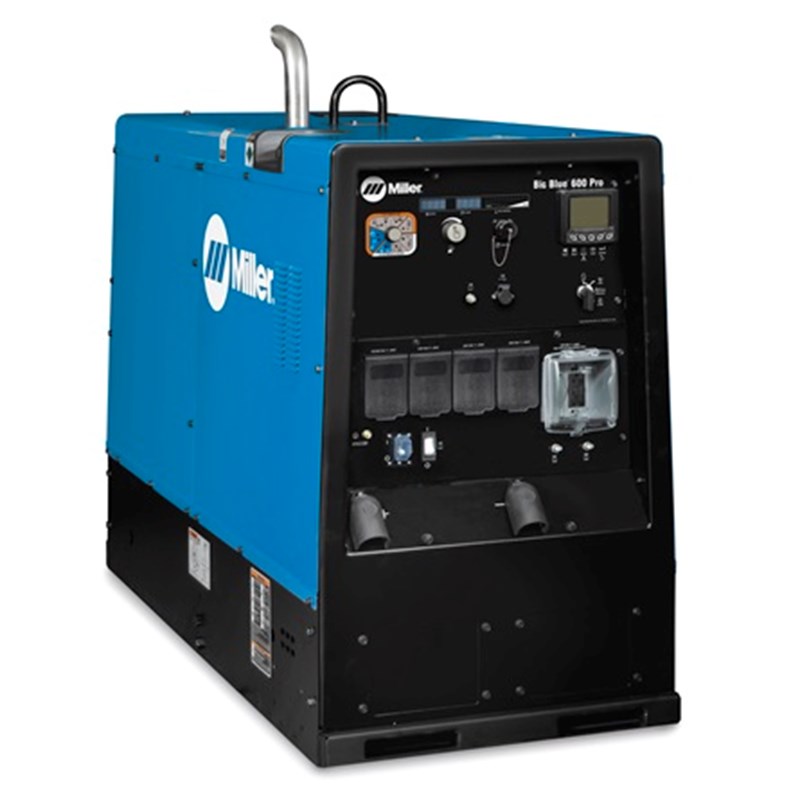

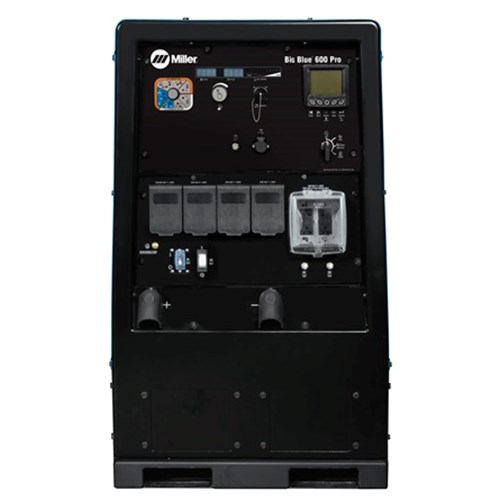

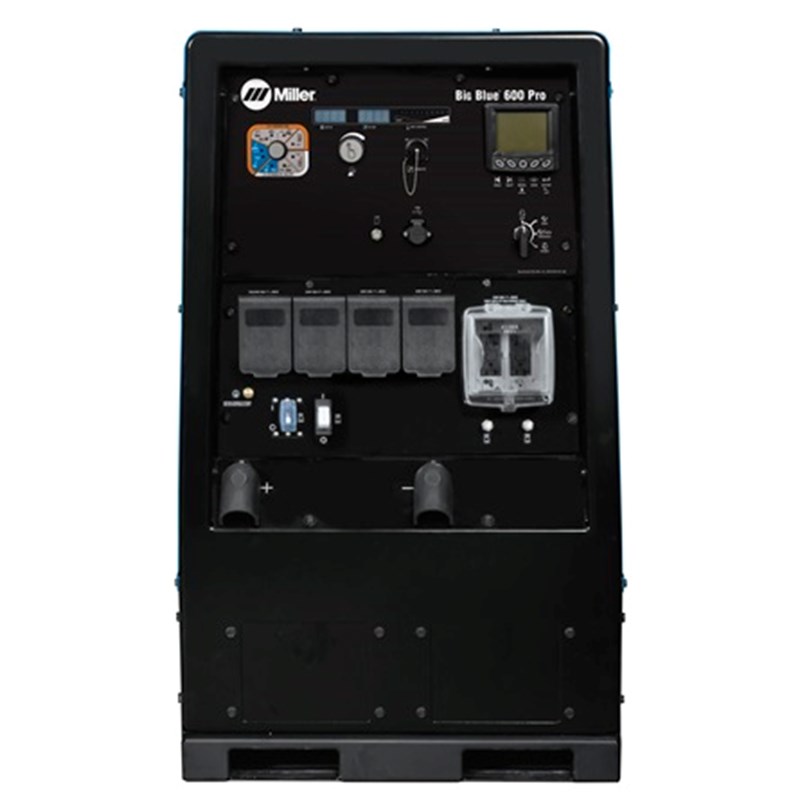

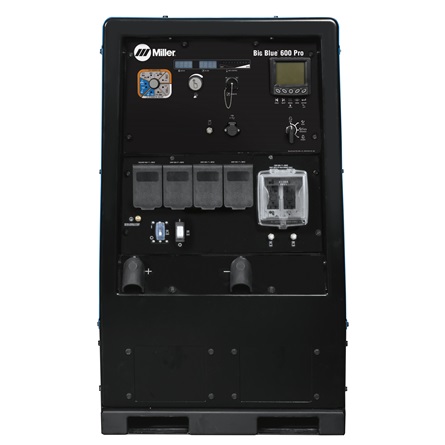

Miller Big Blue® 600 Pro Truck Mount Spec w/ ArcReach® 907737002

This EPA Tier 4 Final 600 amp welder/generator tackles tough jobs that require high output for welding, gouging, and auxiliary power.

Heavy-Duty Low-Speed Kubota V2403 Industrial Diesel Engine - The cleanest, greenest diesel power available. Kubota T4F models utilize diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.

Quiet Operation - Improves worksite safety and communication.

Digital Meters with SunVision™ - Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.

Electronic Engine Display - Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.

Industrial USB Port - Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

Dynamic DIG™ - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

Auto Remote Sense™ (ARS) - Detects if the remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote/panel switch

Simple-to-Set Controls - Requires no elaborate procedure - just select process and weld!

HD Powder Coat - All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).

Advanced Features for the Professional Welder

  • Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
  • Infinite arc control available in the Stick and Wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications.
  • Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.

Low OCV Stick (VRD) - When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.

Other Standard Features - Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.

View our welding machineswelding machine accessories & safety equipment.
Title Big Blue® 600 Pro (Kubota)
Industries Interests Construction
Mining
Maintenance and Repair - Field Operations
Pipe Fabrication / Construction
Cold Weather Starting Aids  Engine Block Heater
Glow Plugs
Engine Brand Kubota
Engine Compliance T4F
Engine Idle Speed 1350 RPM
Engine Weld Speed 1800 RPM
Fuel Tank Size 25 Gallons
Fuel Type Diesel
Horsepower 48.9 hp
Weldable Metals Stainless Steel
Steel
Rated Output 600 A at 42 V, 40% Duty Cycle,550 A at 42 V, 60% Duty Cycle,500 A at 40 V, 100% Duty Cycle
Single Phase Generator Continuous Power 12000 W
Single Phase Generator Peak Power 15000 W
Sound Rating Idle: 65.9 dB / Weld: 74.3
Three Phase Generator Continuous Power 20000 W
Three Phase Generator Peak Power 27000 W
Rated Carbon Diameter 3/8 in (9.5 mm)
Current Type DC
Max Open Circuit Voltage 92 VDC
Amperage Range Amperage Min Max 20 - 600
Portability Fork Pockets
Lift Eye (Standard)
Trailer (Optional)
Weld Output CC / CV
Net Width 28.5
Net Height 46 in
Net Length 69.5 in
Net Weight 1750 lbs
Warranty 3 Years
Miller's True Blue Warranty
