Miller Dimension™ 650 Multi-Process Welder, Stationary Package (380/460 V) #951638

Part Numbers: 951638
UPCs: 715959632454

Included with your purchase ():

Miller Dimension™ 650 Multi-Process Welder, Stationary Package (380/460 V) #951638 For Sale Online
Miller Dimension™ 650 Multi-Process Weld...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$15,140.00 + Free Shipping $15,140.00*
SAVE $0.00
$15,140.00 + Free Shipping $15,140.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Power supply:

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • MIG Welding
  • Stick Welding
  • TIG Welding
  • Smaller and Lighter
  • 3-Phase Power
  • 3-Year Power Warranty

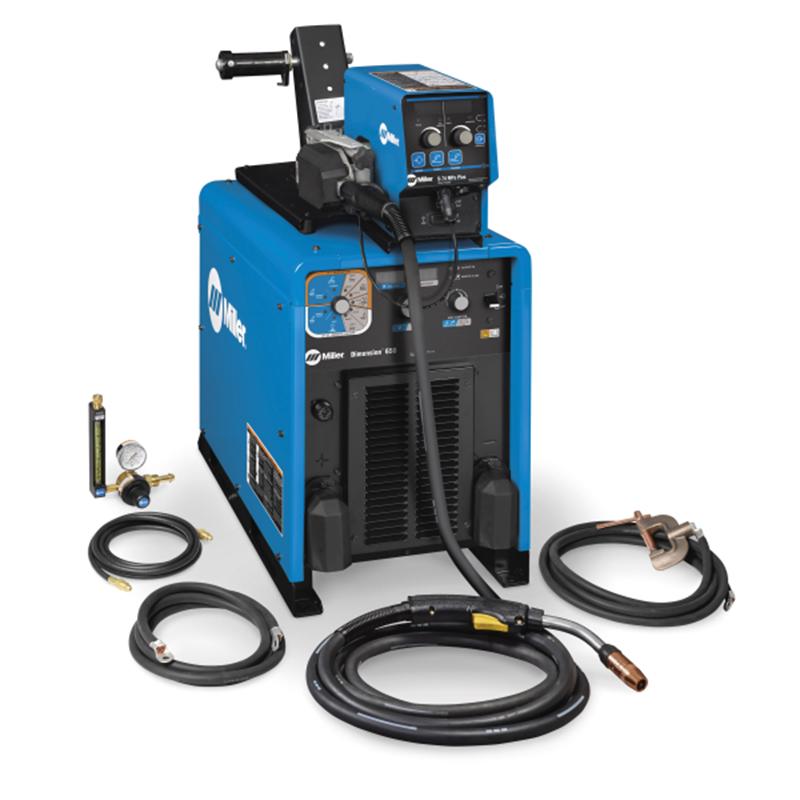

Miller Dimension™ 650 380/460 V Stationary Package #951638

What's included

  • .035 - .045 reversible dual V drive rolls
  • 15ft 4/0 work cable with 600A C-Clamp
  • 3ft gas hose
  • 6ft 4/0 wire feeder to power source weld cable
  • Bernard™ BTB Gun 400 AMP, 15FT
  • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)
  • Dimension™ 650 380/460 V
  • Regulator/flowmeter
  • S-74 MPa Plus Wire Feeder

Rugged and Durable Inside and Out - All aluminum construction helps the machine resist corrosion for long life. Exclusive protection input inductor protects machines performance and reliability from “dirty” input power. Wind Tunnel Technology™. Internal air flow that protects electrical components and PC boards from dirt, dust, debris... greatly improving reliability. Fan-On-Demand™ operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine.

Smaller and lighter - Reduced size and weight results in an easier-to-handle package that exceeds the welding performance of larger, heavier machines. The Dimension 650 uses 40 percent less floor space than previous model.

Power efficient - High electrical efficiency and excellent power factor mean that you can get more welding done using less power. On 460 VAC, the new Dimension 650 draws only 43 amps at rated load and can operate on a 50-amp service. Four new machines can work at maximum loads simultaneously on a 200-amp service, drawing less amperage than three previous models.

Improved Arc Performance - High-quality performance from power-intensive to precise. Gouging mode provides 800 amps of usable power, a full 650 amps of power at 100-percent duty cycle. Perfect for heavy gouging with 3/8-inch carbons. Three wire modes (GMAW/FCAW/SAW) for simplified setup and optimized arc performance. Solid and flux-cored wires with gas offer exceptional short-arc MIG precision to weld thin metals with less risk of distortion or burn-through, and premium Flux-Cored welding with gas. Flux-Cored (self-shielded) welding performance is exceptional, especially with wires commonly found in infrastructure construction. Sub Arc mode provides capability to retrofit into nondigital Sub Arc applications. Excellent Stick and Lift Arc TIG performance. Arc control is beneficial when welding with Stick and solid wires for easier fine-tuning of tough-to-weld materials and out-of-position applications.

View our selection of multi-process Miller welders, welding machineswelding safety equipment, and plasma cutting machines.
Title  Miller Dimension™ 650 380/460 V Stationary Package 951638
Industries Interests Fabrication and construction
Heavy manufacturing
MRO — maintenance/repair
Pressure tank/vessel fabrication
Shipbuilding
Refineries and foundries
Railcar manufacturing
Earth-moving equipment manufacturing
Weldable Metals Specialty Metals
Stainless Steel
Steel
Input Voltage 380/400/440 V
460/480 V
Input Phase  1 - and 3 Phase
Input Hz  50 / 60 Hz
Rated Output 10 - 38 V, 5 - 425 A
Max Open Circuit Voltage 87 VDC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 28.19 Inches
Width: 16.69 Inches
Length: 31.63 Inches
Weight: 158 Lb(s) 0 Oz
