Name: HyperFill® Reveal™ Power Feed® 84 Single Ready-Pak® (200-575V 3PH) #K4650-5
Brand: Lincoln Electric
SKU: LINK4650-5

Multi-Process MIG/TIG/Stick
200-575 V Input
3-Phase Input
DC Output (Up to 550 A)
Constant Current (CC)
Constant Current (CC)
Lincoln Electric 5-Year Warranty

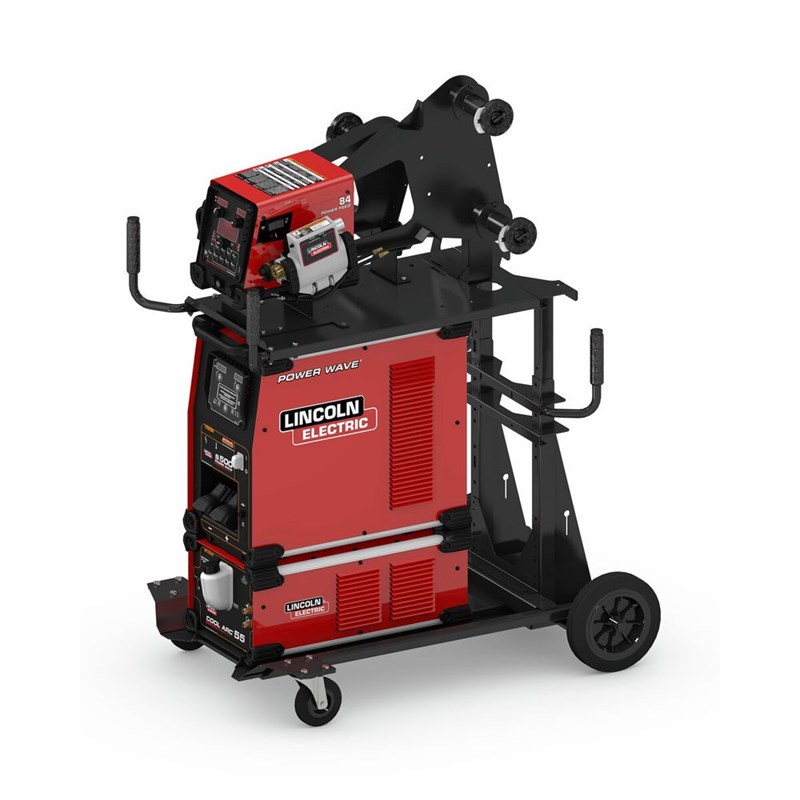

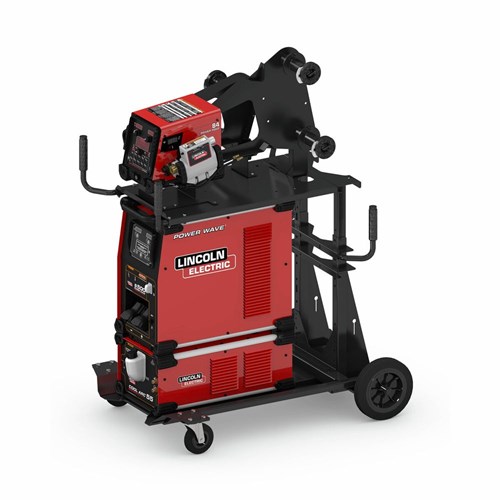

Lincoln HyperFill® Reveal™ Ready-Pak® w/ Power Wave® S500 Multi-Process Welder, Single Wire Feeder & Cart #K4650-5

The Lincoln Electric HyperFill® Reveal™ Power Feed® 84 Single Ready-Pak® is designed to enhance productivity in heavy fabrication industries.

Featuring the patented HyperFill® twin wire MIG system, this unit delivers high deposition rates without sacrificing puddle stability or weld quality.

With a single multi-process power source, wire feeder, tip, and premium wire, this system achieves deposition rates above 18 lbs/hr | 8.2 kg/hr for manual setups (up to 24 lbs/hr | 10.9 kg/hr in robotic applications). Its simplicity eliminates operator complexity, making it a game-changer for large-scale welding operations.

Highlights

HyperFill® twin wire MIG technology for higher deposition rates
Single power course, single wire feeder and single tip design
Delivers wide, smooth arc cone for stable puddle and clean welds
Over 18 lbs/hr | 8.2 kg/hr deposition rates (manual) and 24 lbs/hr | 10.9 kg/hr (robotic)
Streamlined system for reduced operator complexity

Industries

Heavy Fabrication
Structural Steel
Shipbuilding
Manufacturing
Construction Equipment

What’s Included

Power Wave® S500 (K2904-1)
Power Feed® 84 Wire Feeder (K3328-3)
Cool Arc® 55S Water Cooler (K3086-2)(1)
Magnum® PRO Water Cooled 500A Gun (K4522-2-10-564)
7 ft. Water Hose Kit (K4544-7)
HyperFill Dual Reel Cart Kit (K4630-1)
4-Ball Inlet Guide (K1551-2)
HyperFill .035-.040 (0.9-1.0 mm) Drive Roll Kit (KP4388-1)
HyperFill Diffuser (KP4481-1)
HyperFill .035 Contact Tip (KP4482-035)
1/8 in. Recess Nozzle (KP4523-1-75R)
15 ft.
5/64 in. Liner (KP44-564-15)
Work Lead Package (K2149-1)
Electrode Cable (K1842-10)
ArcLink® Cable (K1543-8)
Inverter and Wire Feeder Cart (K3059-4)
Gas Y Fitting (KP4773-1)
Harris Flowmeter Kit (3100856)
Gateway Pendant Kit (K4997-1) (Includes: 5" Screen Protector (KP4735-2) and 8ft Control Cable (K1543-8))

Benefits of the HyperFill® Reveal™ Power Feed® 84 Single Wire Feeder Ready-Pak

Increased productivity with high deposition rates for faster job completion
Simplified system with minimal operator training required
Improved weld quality with stable puddle and smooth arc performance
Ideal for heavy fabrication industries with demanding welding needs
Easy to integrate into existing systems for quick and efficient setup

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all welding machines or explore Lincoln Electric welding supplies at the best prices online.

Machine Inputs & Outputs

Phase 3: Input Voltage #1 (Voltage/Phase/Hertz)	200/208/220/230/380/400/415/460/575 3 50/60
Phase 3: Rated Output #1A (Current/Voltage/Duty Cycle)	GMAW: 550A/41.5V/40% GMAW: 450A/36.5V/100%
Phase 3: Rated Output #1B (Current/Voltage/Duty Cycle)	SMAW: 550A/42V/40% SMAW: 450A/38V/100%
Phase 3: Rated Output #1C (Current/Voltage/Duty Cycle)	GTAW-DC: 550A/32V/40% GTAW-DC: 450A/28V/100%
Phase 3: Input Current at Max Rated Ouput #1 (Current)	3 Ph / 40% Duty Cycle: 80/73/41/37/29 3 Ph / 100% Duty Cycle: 60/54/30/27/21

Product Weights & Dimensions

Dimensions (H x W x D)
Net Weight	204.12 lbs (204.12 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Orbital TIG Orbital MIG HyperFill Metal-cored Wire (GMAW-C)
Max Rating	550
Output Range by Mode	5-550
Maximum Electrode Size	x
Minimum Electrode Size	x
Number of Operators per Machine	1
Data Technologies	Ethernet
Machines Communication Technology	ArcLink
Wire Feeder Supply Voltage	40VDC
Amphenol Pins (type of connector)	5
Work Lead Connector Type	Lug
Welding Gun Cable Assembly Length	15 FT
Work Cable Length	15 FT
Spool Gun Compatible (Duty)	Heavy

Wire and TIG Feeders

Number of driven rolls	4 rolls
Feeder type	Bench
Configuration	Single
Max spool diameter	60lb
Communication Technology	ArcLink
UI type	Meters
Max Rated Output Capable	500A
Max WFS	1200IPM
Feedhead Configuration	Single
Wire Configuration	Hyperfill
Power Source to Feeder Communication Connector Type	5-pin
Accesories Communication Connector Type	12-pin
Gun Bushing	Tweco #2-#4
Wire Feed Speed Range (IPM)	500-1100
Max Spool Size (lbs)	60
Max Spool Size (kg)	30
MIG-WireFeeders	Yes
MIGPulse-WireFeeders	Yes
Contact Tips Included	Yes
Input AC Voltage	200v-600v

Basic Specification

Input Current	3PH/40% - 80/73/41/37/29A,3PH/100% - 60/54/30/27/21A
Input Power	208/230/380/415/460/575/3/50/60
Output Range	5-550A DC
Rated Output	550A/41.5/40%

Application

Typical Application

Construction
Mining
Railroad Maintenance
Automotive
Construction & Field Erection
Elevated Temperature Piping
Gasification Plants
General Fabrication
Heat Exchangers
Heavy Equipment
Heavy Fabrication
High Pressure Piping
High Temperature
High-strength Pipe
LPG & LNG Storage Vessels
Marine Applications
Marine Fabrication & Repair
NACE Applications
Offshore
Oil & Gas
Petrochemical
Petrochemical Industry
Petroleum Processing
Pharmaceutical Equipment
Pipeline & Offshore
Piping
Power Generation
Power Plants
Pressure Vessels
Process Piping
Railcar Fabrication
Railing Industry
Robotics/ Hard Automation
Shipbuilding
Structural Fabrication
Structural Welding
