Lincoln Electric Vantage® 549X (Deutz®) Ready-Pak® 1 #K3534-2-RP1
Lincoln Electric Vantage® 549X (Deutz®) Ready-Pak® 1 #K3534-2-RP1

Welding type:

MIG

TIG

Stick

Engine Driven
Material type:

Mild Steel

Stainless Steel

Aluminum
Fuel Type:

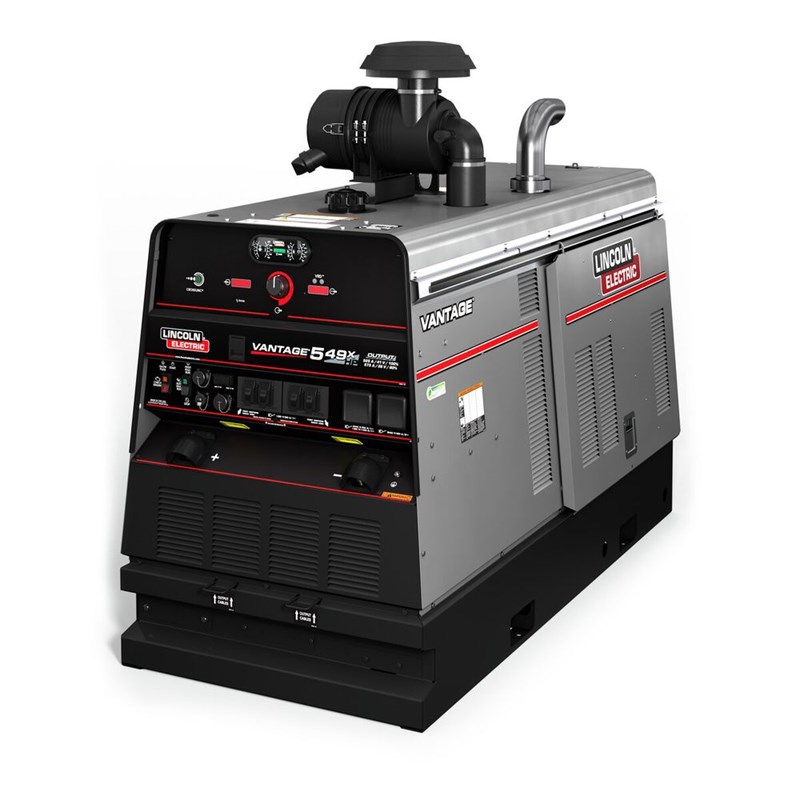

The Lincoln Electric Vantage® 549X Ready-Pak® 1 is a versatile welder/generator offering up to 575 amps of DC multi-process welding.
Powered by a 49.4 hp Deutz® TD2.9L4 diesel engine, it provides reliable power for demanding welding applications. With 120/240 VAC single phase and 240 VAC three-phase auxiliary power, this all-in-one package is built for performance and durability.
The Ready-Pak® 1 includes a preassembled package with the welder, trailer, fender and light kit, cable rack, welding cables, ground clamps, and an electrode holder for added convenience.
At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.
Dimensions (H x W x D) | 42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm) |
Net Weight | 2134 lbs (968 kg) |
Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
IEC Rating | 525A / 41V / 100% @ 104°F (40°C) |
Max Rating | 575A / 38V / 60% @ 104°F (40°C) |
Output Range by Mode | CC-Stick: 30 – 575 A Downhill Pipe (CC): 40 –350 A Touch Start TIG: 20 – 350 A CV-Wire: 10 – 45 V Arc Gouging: 60 – 575 A |
Open Circuit Voltage | 70 Peak OCV @ 1800 RPM |
Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
Machines Communication Technology | CrossLinc ArcLink |
Single Phase Auxiliary Output | 11,000 Watts Continuous, 120/240V |
Three Phase Auxiliary Output | 19,000 Watts Continuous, 240V |
Auxiliary Output Frequency | 60 Hz |
Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
Engine Brand & Model | Deutz® TD2.9L4 |
Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
Engine Horsepower | 49.4 hp (37.0 kW) |
Engine Block Size & Displacement | 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm) |
Emissions Rating | US EPA Tier 4 Final |
High Idle Operating Speed @ Rated Output | 1800 |
Low Idle Operating Speed | 1525 |
Fuel Tank Size (US gal.) | 25 US gal. |
Fuel Tank Size (L) | 94.6 L |
Oil Capacity (qts.) | 9.0 qts. |
Oil Capacity (L) | 8.5 L |
Coolant Capacity (US gal.) | 4.1 US gal. |
Coolant Capacity (L) | 15.6 L |
Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
SHIPPING DIMENSIONS |
|
Height: | 77.00 Inches |
Width: | 70.00 Inches |
Length: | 125.00 Inches |
Weight: | 2134 Lb(s) 0 Oz |
