Name: Vantage® 441X Welder/Generator w/ Perkins® Diesel Engine (17,000W) #K4535-1
Brand: Lincoln Electric
SKU: LINK4535-1

Diesel Engine
120/240V Output
1-Phase or 3-Phase Output
11000W 120/240V 1PH,
17000W 240V 3PH
Lincoln Electric 3-Year Warranty

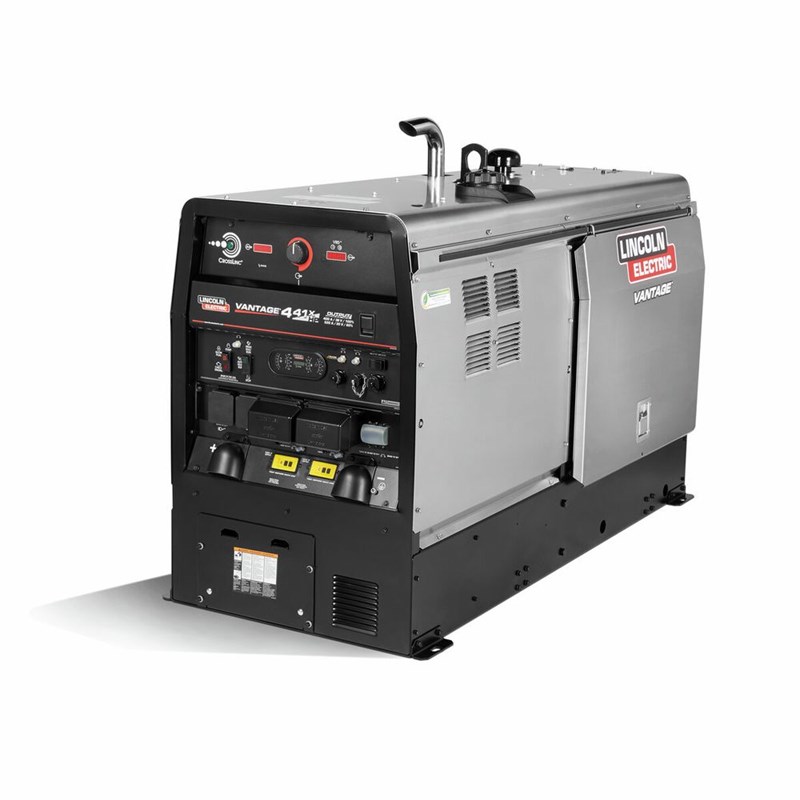

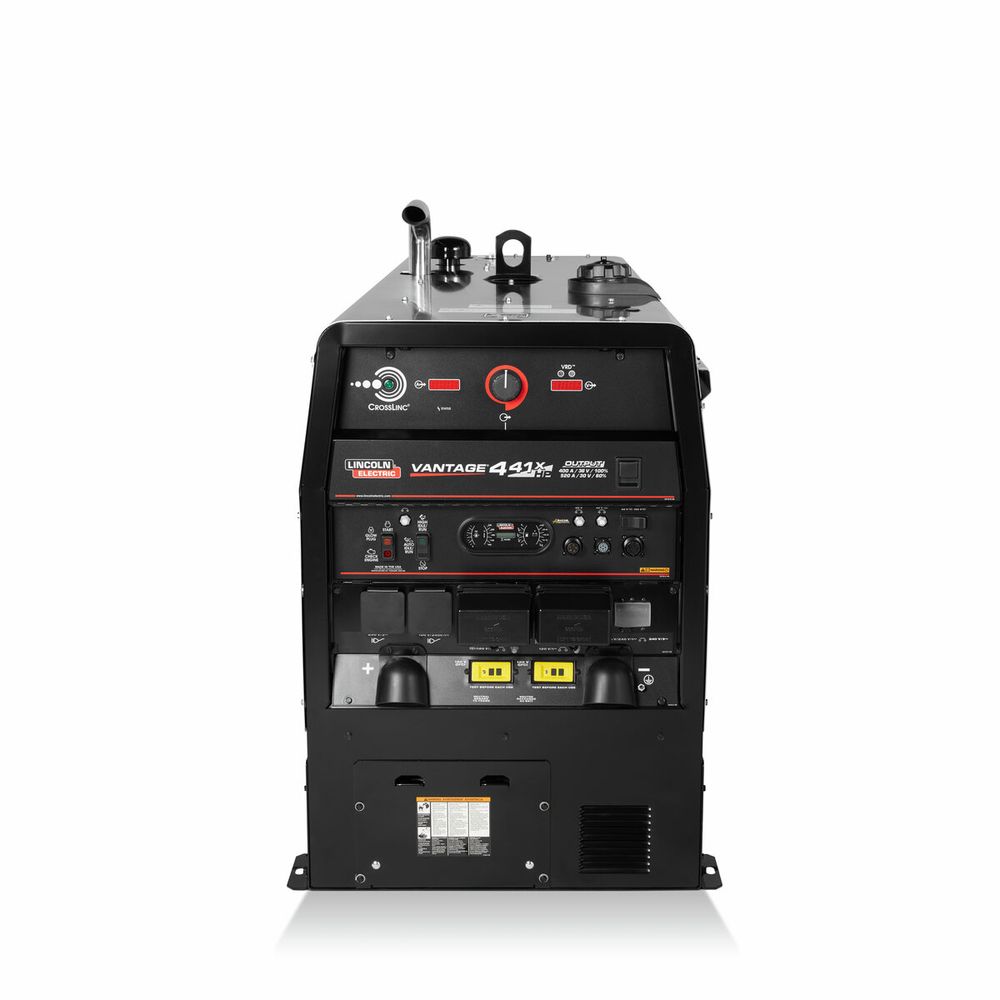

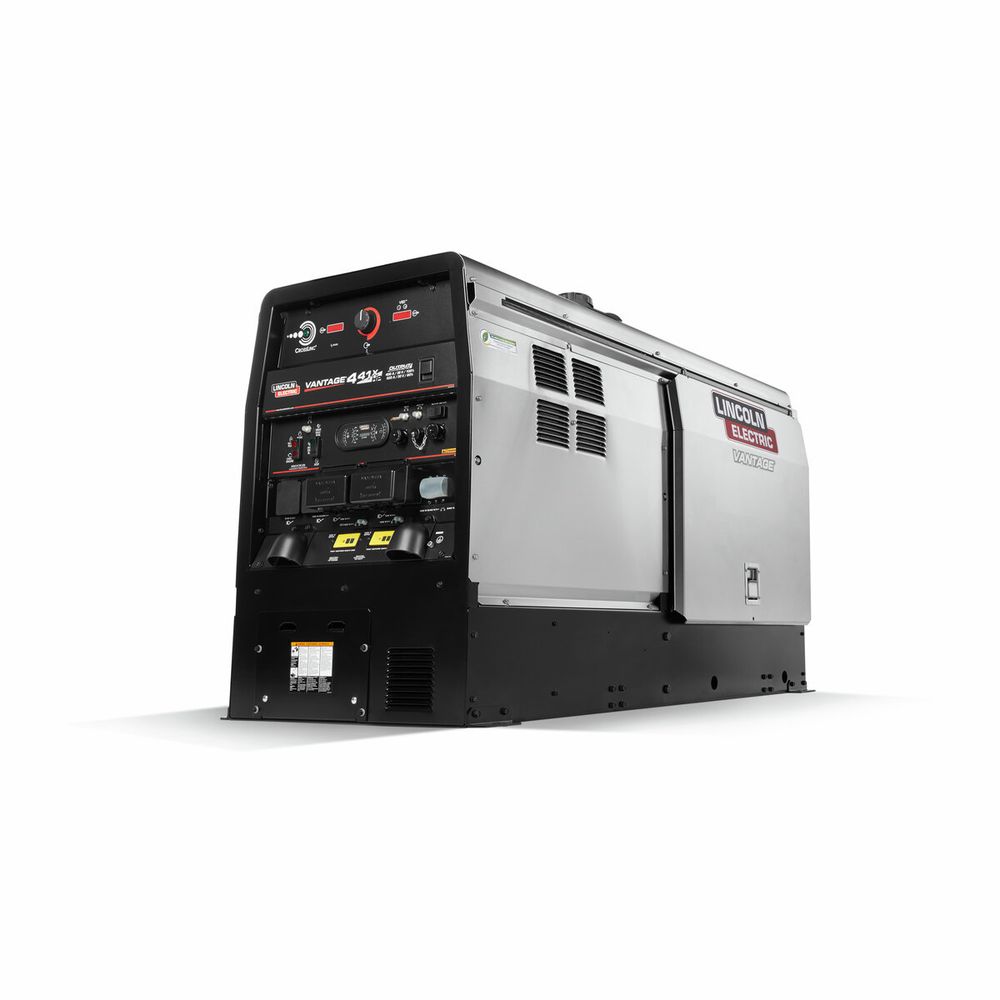

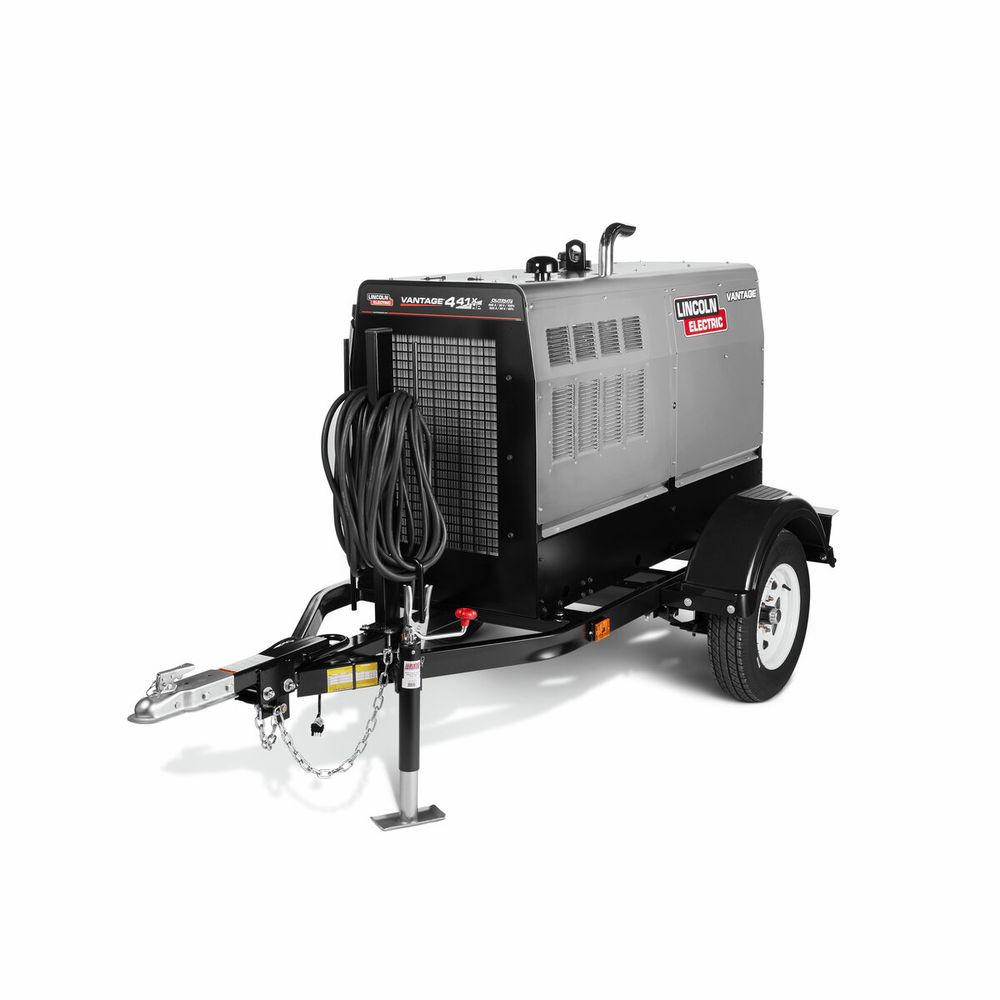

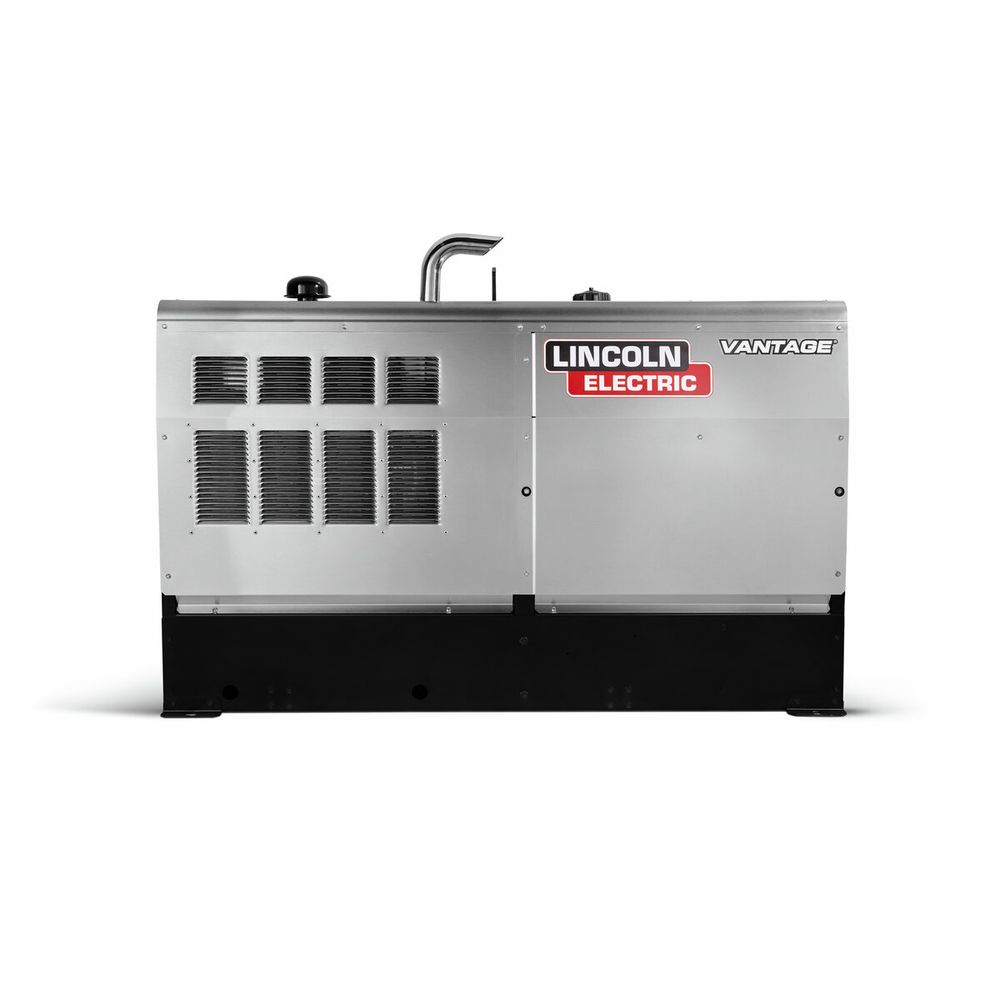

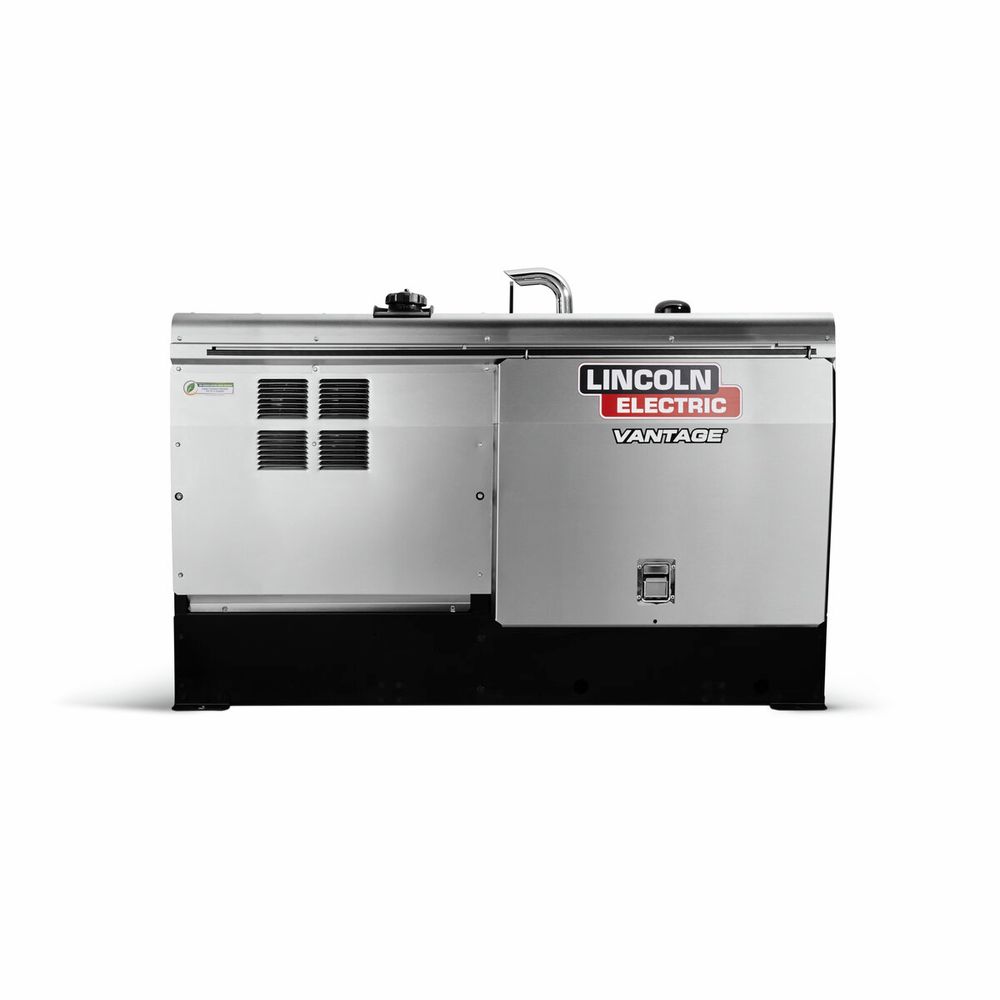

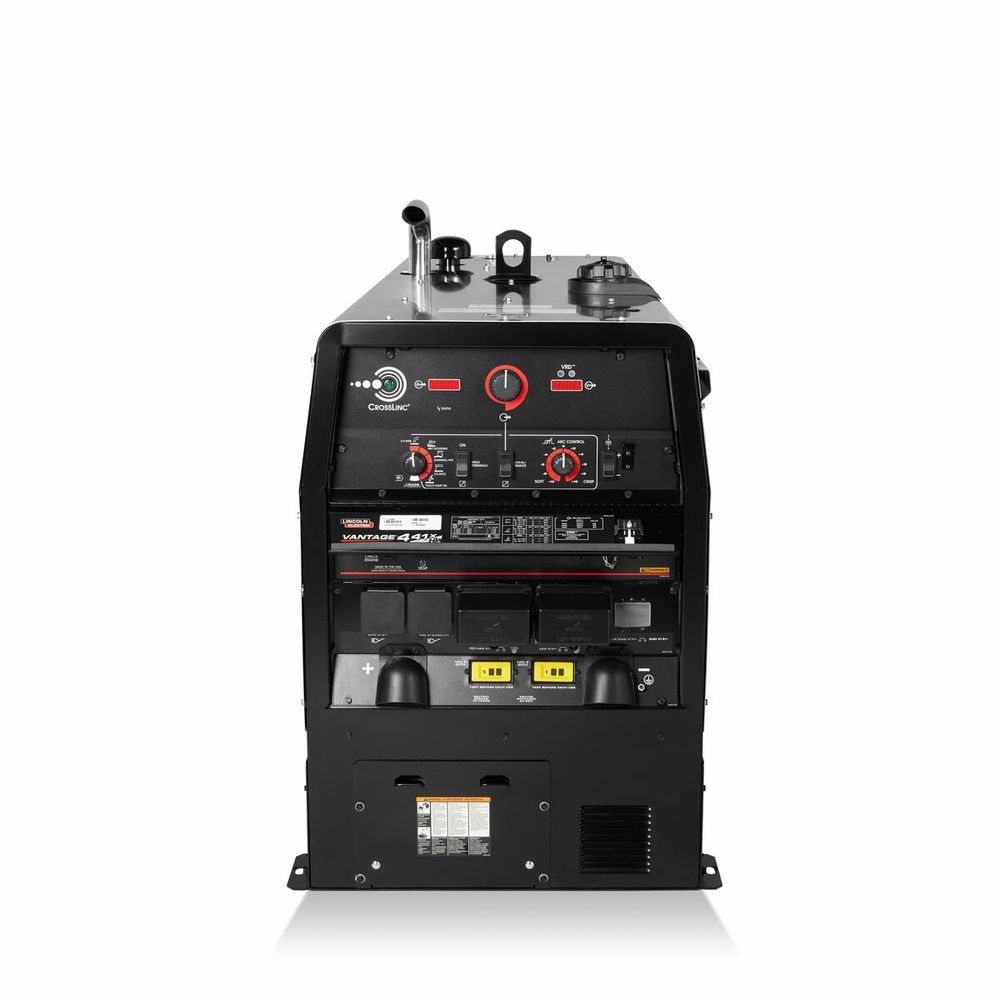

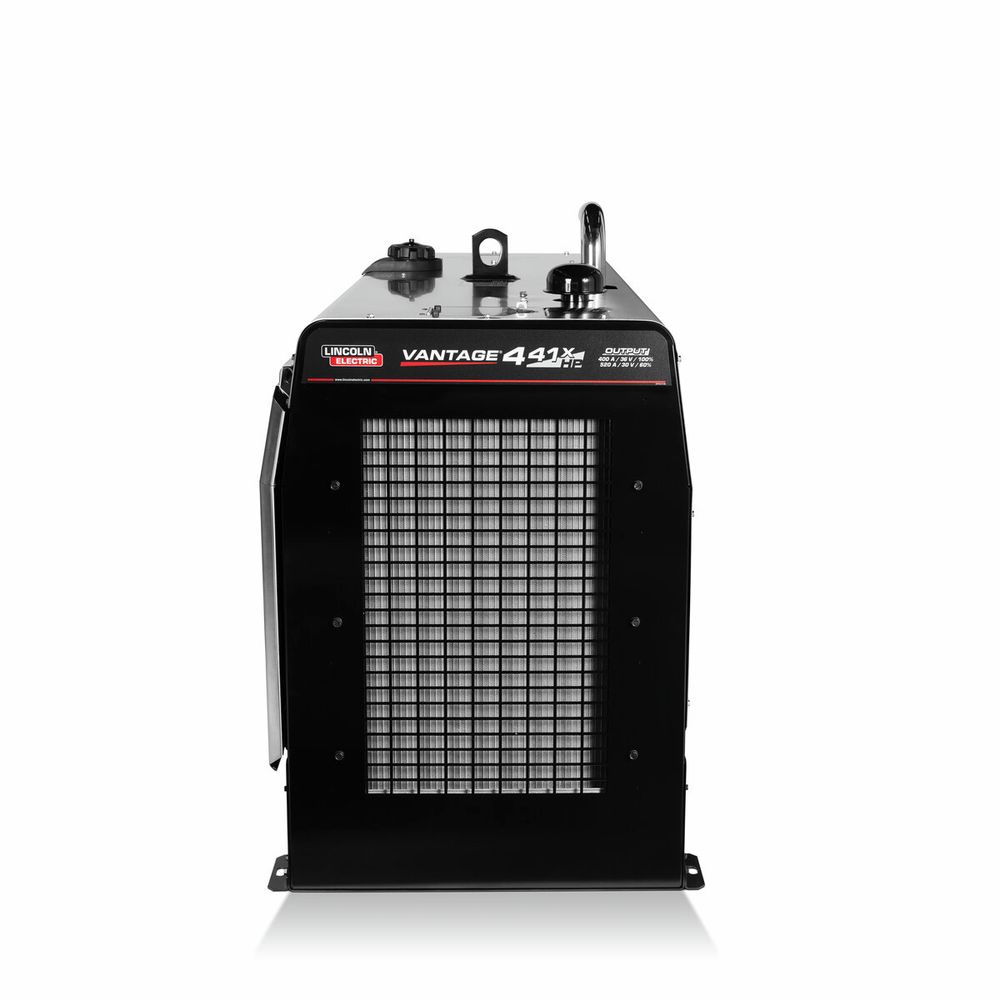

Lincoln Electric Vantage® 441X (Perkins®) Welder/Generator #K4535-1

The Lincoln Electric Vantage® 441X is a versatile welder/generator delivering exceptional performance for a variety of multi-process welding applications.

Capable of up to 520 amps of DC multi-process welding, it provides reliable power for demanding projects.

Powered by a robust 41.0 HP Perkins® 404F-E22T diesel engine, it features advanced Chopper Technology® and CrossLinc® Technology to enhance welding precision and efficiency.

Highlights

Capable of up to 520 amps of DC multi-process welding
120/240 VAC single-phase and 240 VAC three-phase auxiliary power
Powered by a 41.0 hp Perkins® 404F-E22T diesel engine
Incorporates patented Chopper Technology® for superior arc performance
Features CrossLinc® Technology for remote control capabilities

Industries

Construction
Manufacturing
Shipbuilding
Heavy Equipment Repair
Metal Fabrication

What’s Included

Vantage® 441X welder/generator unit
User manual and operating instructions
Power cables and connectors
Accessories and maintenance tools

Benefits of the Lincoln Electric Vantage® 441X (Perkins®)

Provides powerful and reliable welding performance across multiple processes
Advanced technologies enhance welding precision and ease of use
Versatile power options for various industrial and construction needs
Durable design ensures longevity and consistent operation in demanding conditions
Efficient diesel engine offers fuel economy and robust power output

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all welder/generators or explore Lincoln Electric welding supplies at the best prices online.

Product Weights & Dimensions

Dimensions (H x W x D)	39.1 in x 28.4 in x 65.1 in (994 mm x 721 mm x 1654 mm)
Net Weight	1414 lbs (641 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	400A / 36V / 100% @ 104°F (40°C)
Max Rating	520A / 30V / 60% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 525 A Downhill Pipe (CC): 40 –350 A Touch Start TIG: 20 – 350 A CV-Wire: 10 – 45 V Arc Gouging: 60 – 525 A
Open Circuit Voltage	70 Peak OCV @ 1800 RPM
Rated Gouging Carbon Diameter	3/8" (9.5 mm)
Machines Communication Technology	CrossLinc ArcLink

Engine Driven Welders

Single Phase Auxiliary Output	11,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	17,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Perkins® 404F-E22T
Engine Description	4 Cylinder Turbocharged Water Cooled Diesel Engine
Engine Horsepower	41.0 hp (30.6 kW)
Engine Block Size & Displacement	134 cu. in. (2.2 L), Bore x Stroke - 3.30 in x 3.90 in (84 mm x 100 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1500
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	10.0 qts.
Oil Capacity (L)	9.5 L
Coolant Capacity (US gal.)	2.55 US gal.
Coolant Capacity (L)	9.7 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
