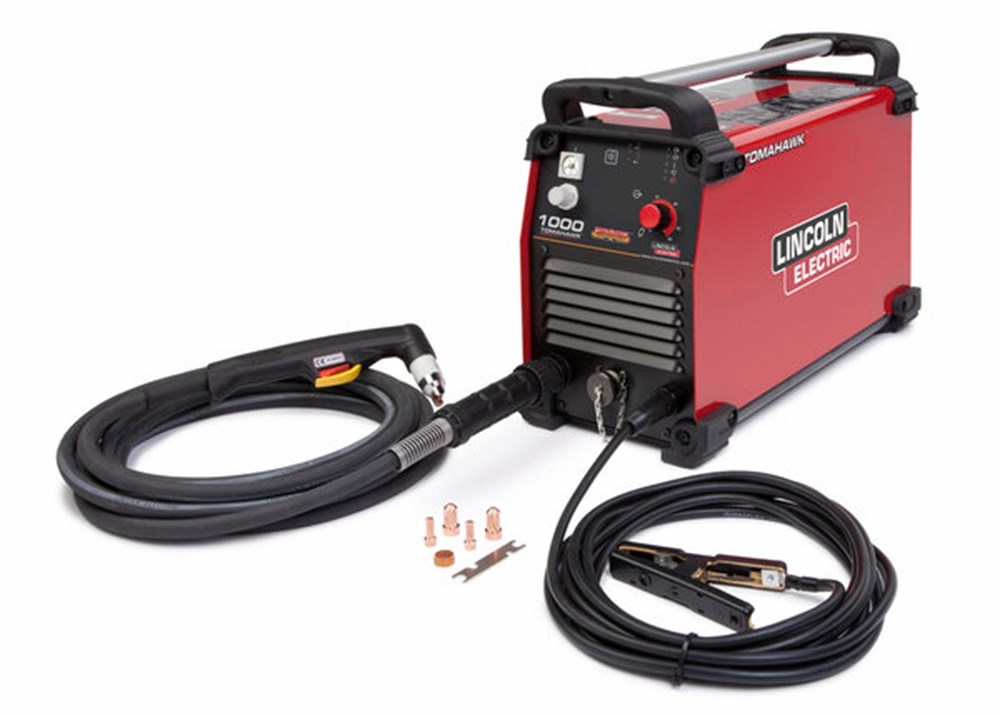

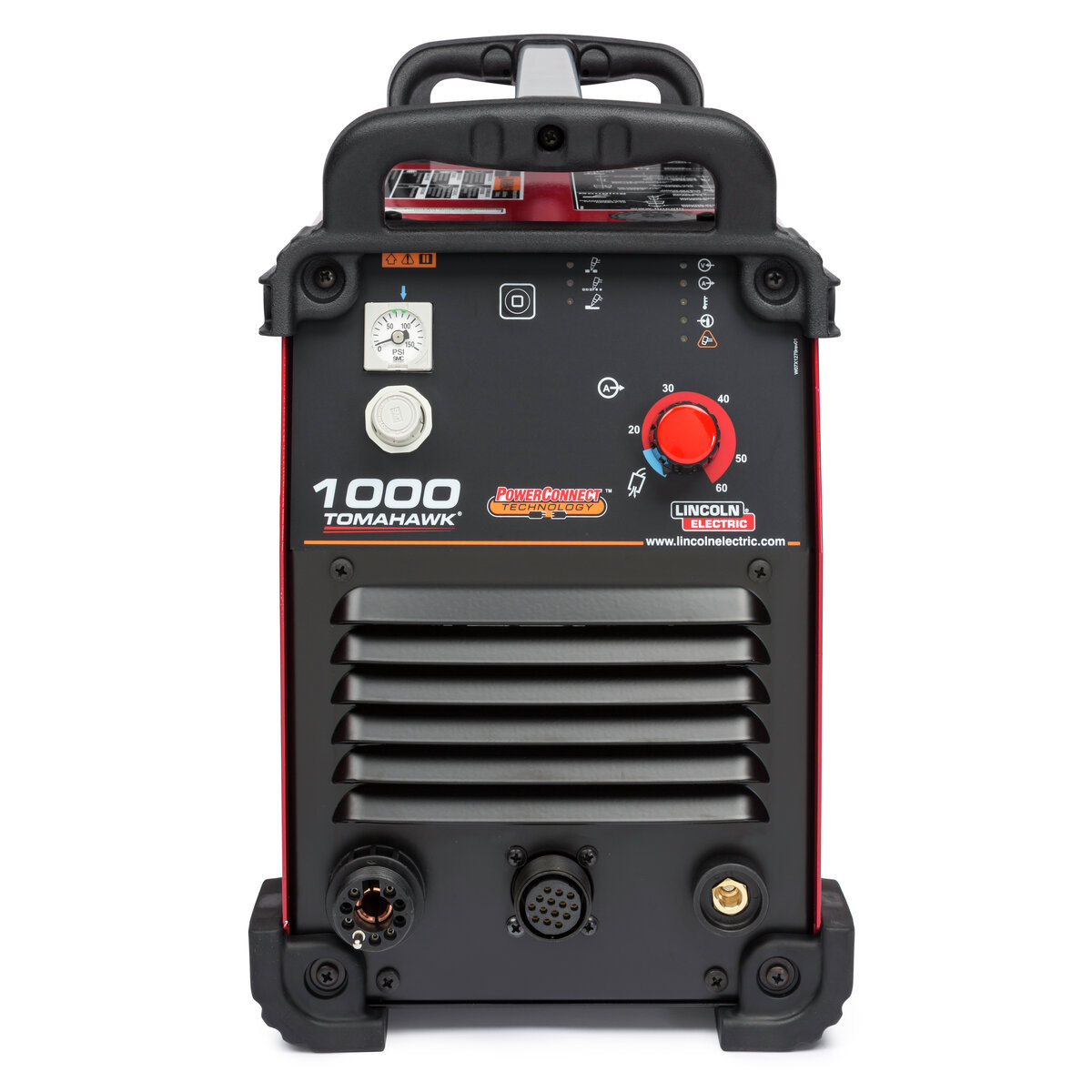

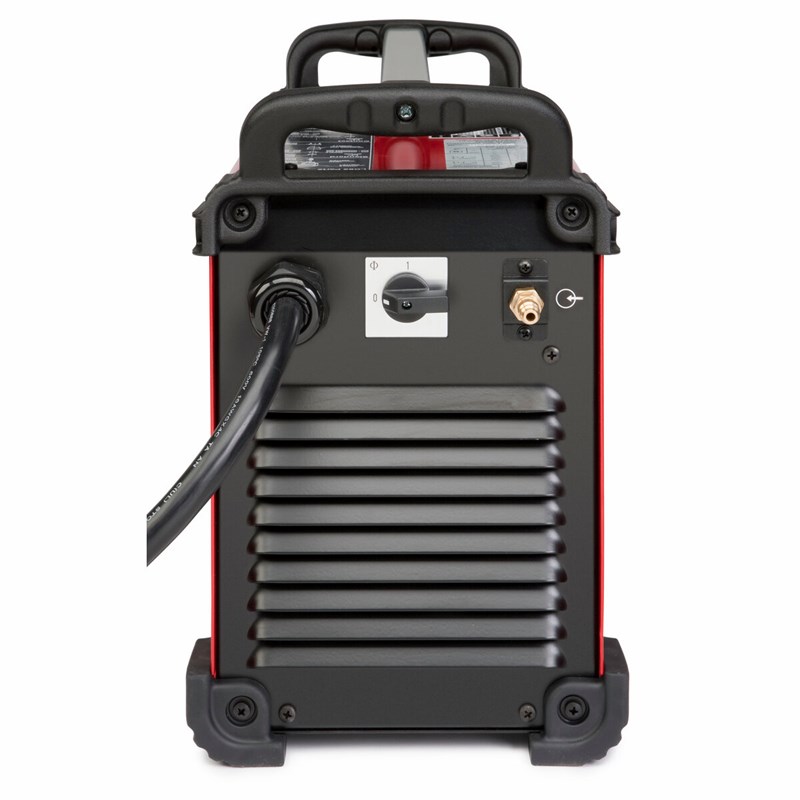

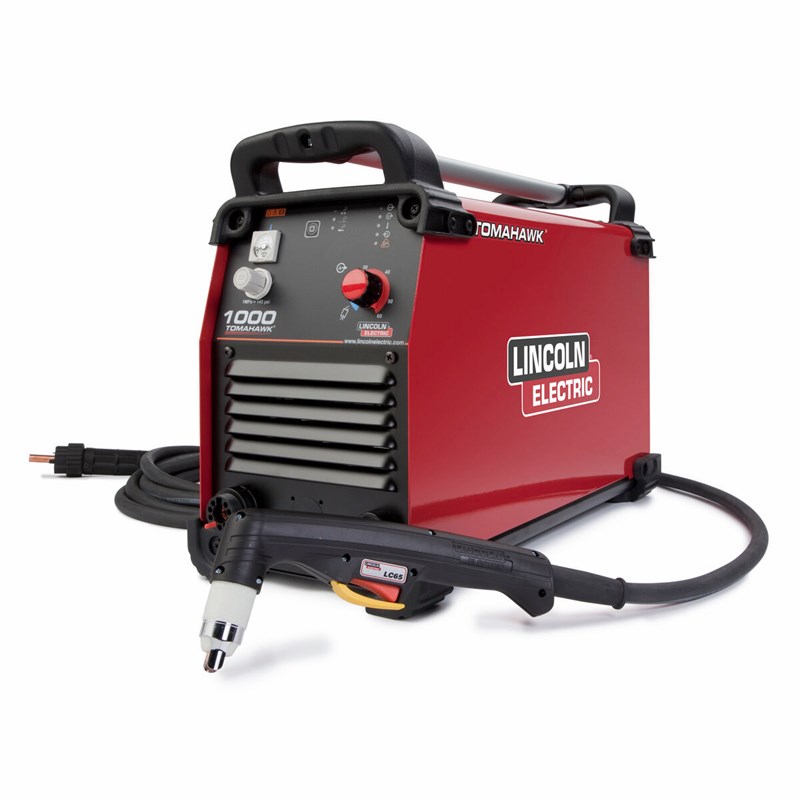

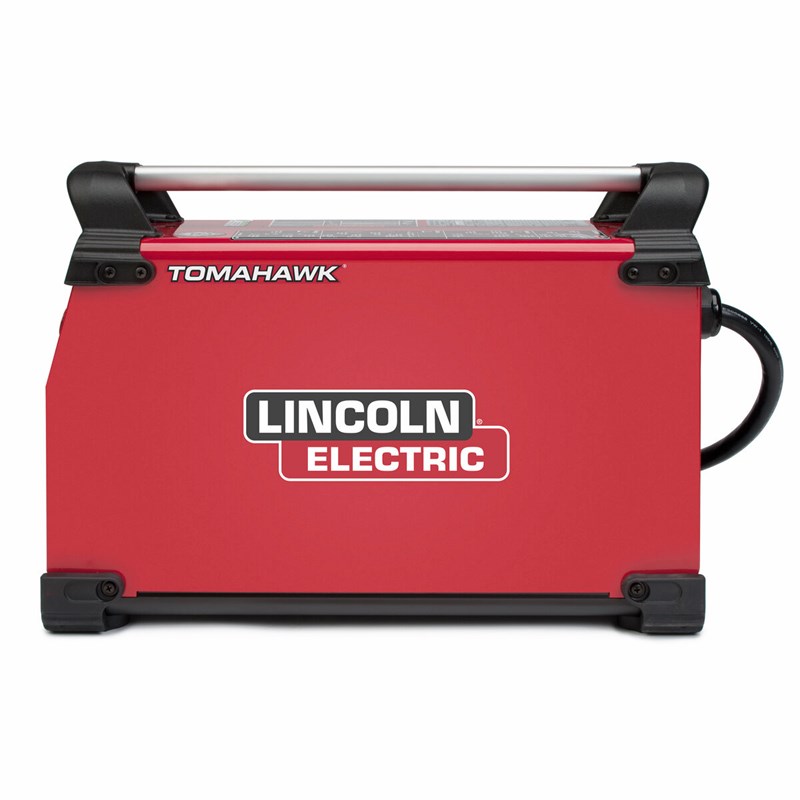

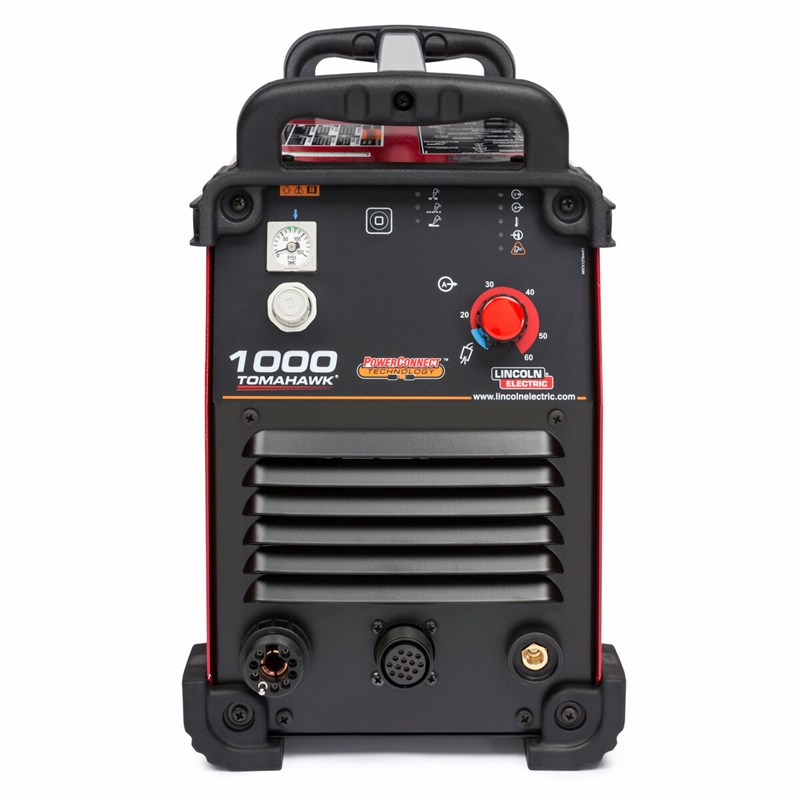

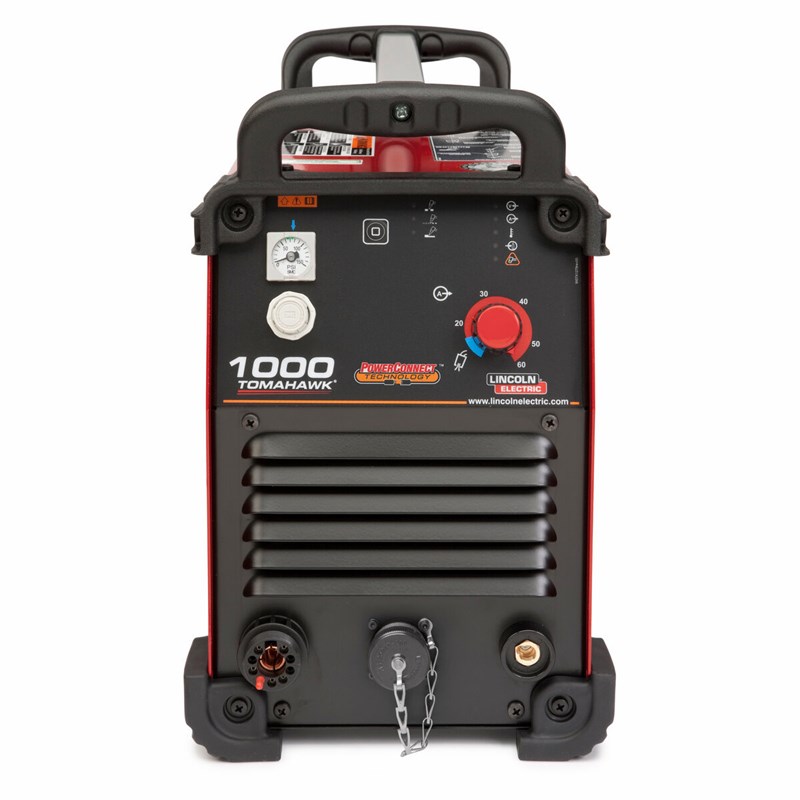

Lincoln Tomahawk® 1000 #K2808-1 Specifications |
Input power |
200-600V
50/60 Hz
1-Phase, 3-Phase
|
Gas supply |
Air or Nitrogen
87 - 109 psi (6.0 - 7.5 Bar)
|
Recommended cutting capacity (mild steel) |
3/4 in @19 ipm (19.01 mm @ 0.51 m/min) |
Maximum cutting thickness (mild steel) |
1 in @10 ipm (25.4 mm @ 0.30 m/min) |
Maximum severance (mild steel) |
1 1/4 in @ 5 ipm (31.75 mm @ 0.13 m/min) |
Typical application |
Construction Automotive Construction & Field Erection General Fabrication Heavy Fabrication Marine Fabrication & Repair Oil & Gas Shipbuilding Structural Fabrication |
