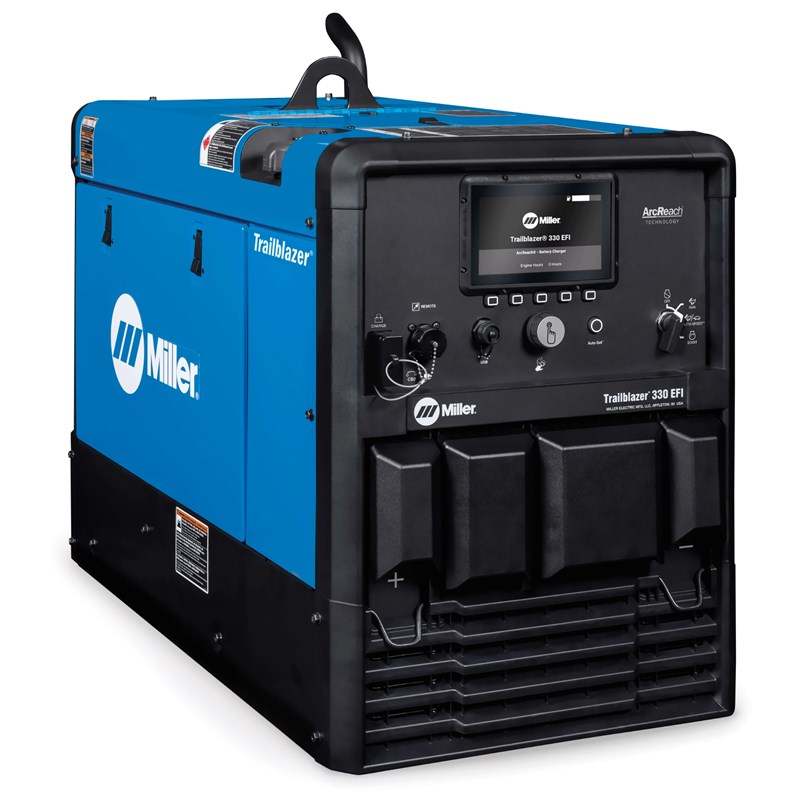

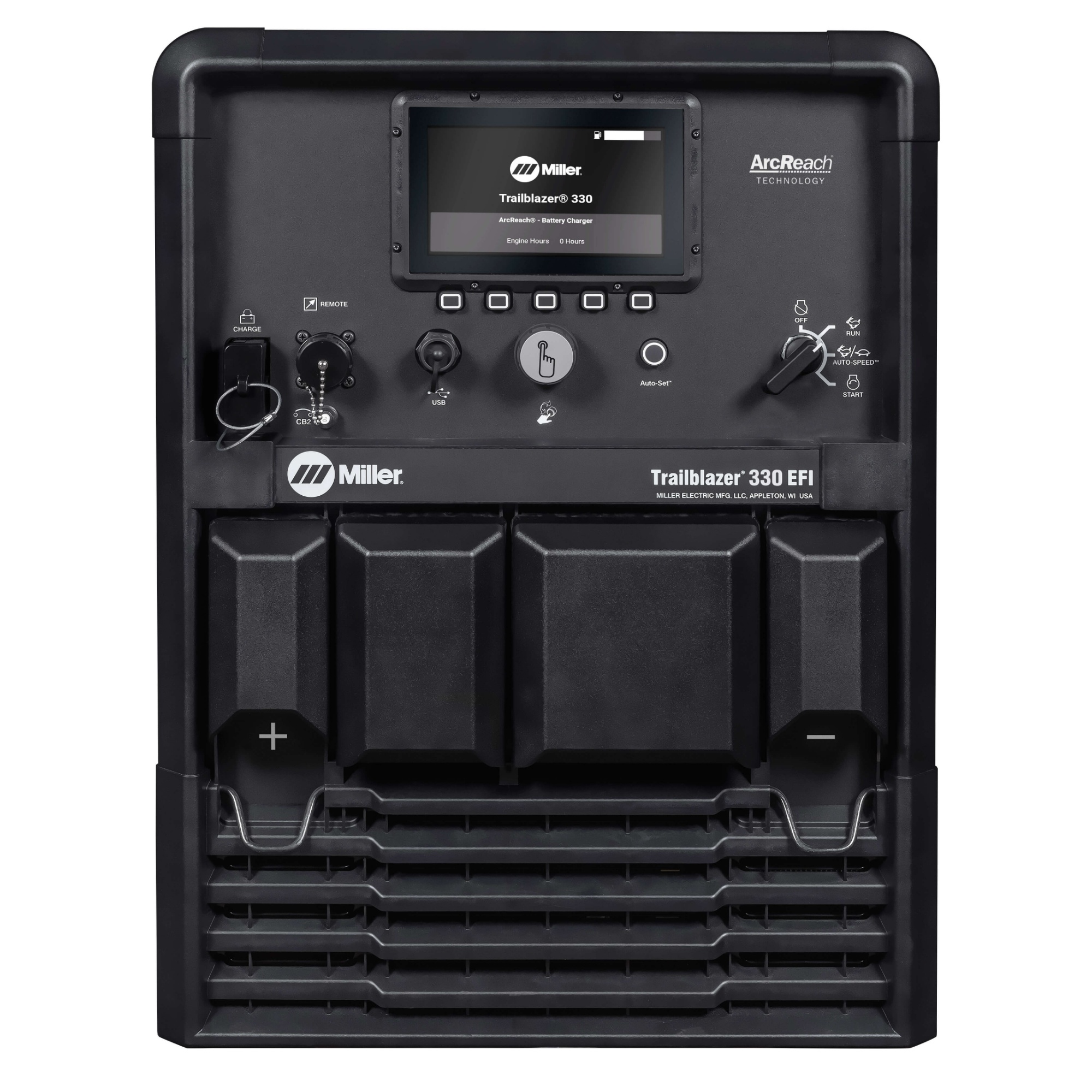

Miller Trailblazer 330 EFI Engine-Driven Welder, Battery Charger w/ Excel Power #907832003

Welding type:

MIG

TIG

Stick

Engine Driven
Material type:

Mild Steel

Stainless Steel

Aluminum
Fuel Type:

Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

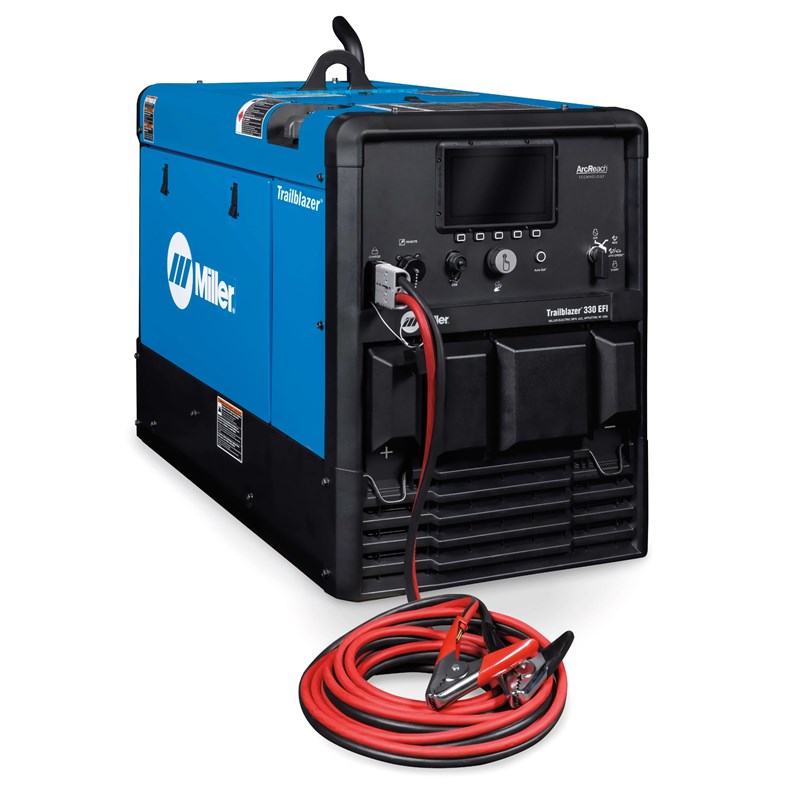

Reduce downtime with battery charge/crank assist capability. Designed and recommended for mechanics or anyone else responsible for a fleet of trucks or equipment. By using your Trailblazer to charge dead batteries or jump a stubborn engine, you’ll keep your crew working and the fleet up and running.
Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20A) of 120V inverter-based, pure sine wave power at idle. With Excel power, you can operate jobsite tools like grinders and lights at a quieter, fuel-saving engine speed.
Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus, everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered.
Try It For Yourself! Launch Miller's Trailblazer 330 Simulator
As with the previous model 211, the updated model has a Multi-Voltage Plug (MVP) that allows you to connect to either 120 or 230 V power receptacles without the use of any tools.
Miller Trailblazer 330 Specifications | |
---|---|
Welding Mode | CC/DC CV/DC |
Process | Stick/TIG MIG/FCAW Battery charge/ crank assist (optional) |
Amp/Volt Ranges | 20 - 330 A 15-40 V 12/24 V |
Rated Weld Output at 104° F (40° C) | 330 A at 30 V, 100% duty cycle 325 A at 30.25 V, 100% duty cycle Charge: 150 A, Crank assist: 300 A |
Single-Phase Auxiliary Power | Peak 12,000 watts Continuous 10,500 watts Excel™ power (optional) 2,400 watts, 20 A at 120 V, 60 Hz pure auxiliary power at idle speed and while welding |
Sound Levels at 23 ft (7 m) | Weld 150 A load: 65 dB (90 Lwa) 330 A load: 73.5 dB (98.5 Lwa) Auxiliary power Excel power: 65 dB (90 Lwa) 12 kW standard power: 73.5 dB (98.5 Lwa) |
SHIPPING DIMENSIONS |
|
Height: | 27.00 Inches |
Width: | 21.00 Inches |
Length: | 38.00 Inches |
Weight: | 447 Lb(s) 8 Oz |
