Miller Dynasty 400 Wireless Foot Control Complete Package #951876
Share
Print
Documents
VideoMiller Dynasty 400 Wireless Foot Control Complete Package #951876

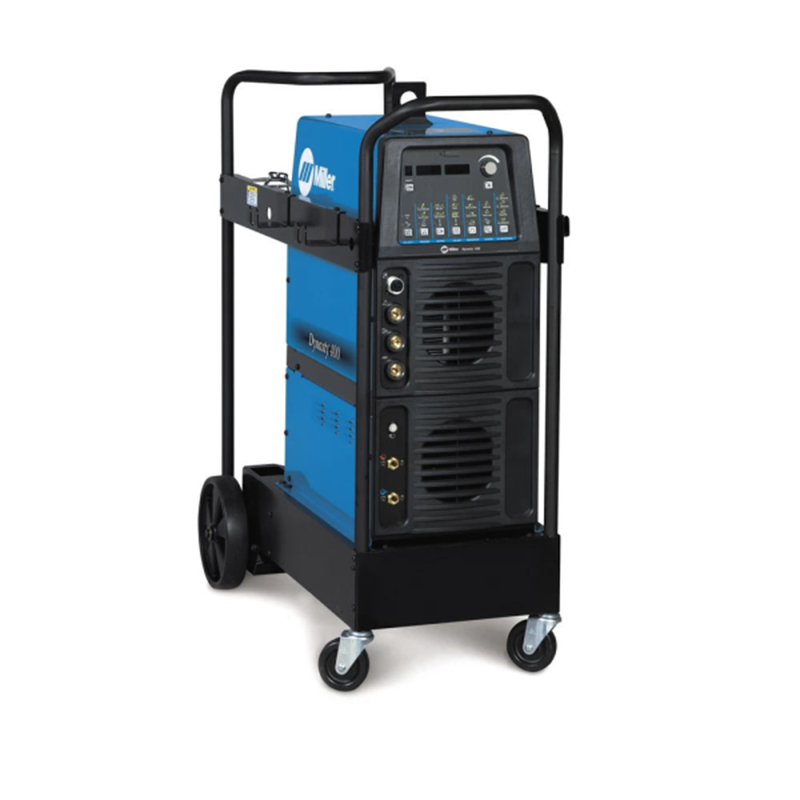

The Miller Dynasty 400 is a compact AC/DC inverter powerhouse designed for TIG and Stick welding in large-scale manufacturing and high-end applications. This package includes a wireless foot-operated remote to make cord tangles and cord failures nothing more than a bad memory. Moving and repositioning is a cinch, especially with a 90 ft. range.
The Dynasty 400 is loaded with innovative features. In addition to superior arc performance, Miller’s brilliant Auto-Line ™ technology lets you connect to any voltage or frequency (208v – 575v) while using half the power a conventional machine requires.
Other Miller-exclusive features include:
- DIG control: allowing changes in arc characteristics by specific application and electrode
- Hot Start™ for positive arc starts without any sticking
- Lift-Arc™ for frequency control and added stability
- Blue Lightning™ allows high-frequency arc starts for non-contact arc initiation
Miller backs the Dynasty 400 with their True Blue 3-year parts and labor warranty, and when you buy from Welders Supply you get the lowest price possible with free shipping anywhere within the continental US.

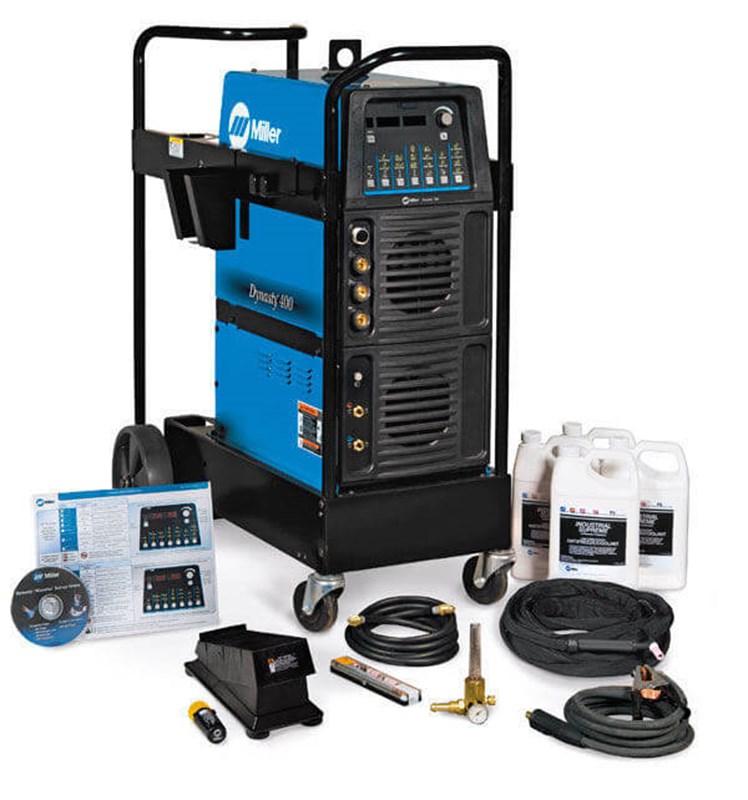

Included with the Dynasty 400 Wireless Complete Package:
- 8-foot power cord
- Setup DVD and reference guide
- Runner™ Cart #300244
- Coolmate™ 3.5 300245 and 4 gallons of coolant #043810
- W-375 torch kit #301268
- Wireless foot-operated remote control #300429
View our large selection of Mig, Tig, and Stick welders with the greatest values online. Browse our power tools and work benches & accessories.
Miller Dynasty 400 Wireless Foot Control #951876 Complete Specifications: |
||
| Input Voltage Options | 208 V 220/230/240 V 380/400 V 460/480 V 575 V |
|
| Input Phase | 1- and 3-Phase | |
| Input Hz | 50 / 60 Hz | |
| Current Type | AC/DC | |
| Max Open Circuit Voltage | 75 VDC | |
| Weld Output | CC | |
| Processes | TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) 1/4 in. maximum |
|
| Industrial Applications | Precision fabrication Heavy fabrication Pipe and tube fabrication Aerospace Aluminum ship repair Anodized aluminum fabrication |
|
| Weldable Metals | Aluminum Specialty Metals Steel Stainless Steel |
|
| Performance Specifications | ||
| 3-Phase | 1-Phase | |
| Rated Output |
250 A at 30 V,100% duty cycle 300 A at 32 V, 60% duty cycle |
200 A at 27.2 V, 100% duty cycle 250 A at 29 V, 60% duty cycle |
| TIG Duty Cycle | 400 A, 20% 300 A, 60% 250 A, 100% |
300 A, 60% 250 A, 100% 300 A, 20% |
| Stick Duty Cycle | 400 A, 20% 300 A, 60% 250 A, 100% |
300 A, 60% 250 A, 100% 300 A, 20% |
| AC TIG Material Thickness Range | .015–5/8 in. (0.38–15.9 mm) |
.015–5/8 in. (0.38–15.9 mm) |
| DC TIG Material Thickness Range | .012–5/8 in. (0.3–15.9 mm) |
.012–5/8 in. (0.3–15.9 mm) |
| Stick Electrode Maximum Diameter | 6010: 1/4 in. (6.4 mm) 7018: 1/4 in. (6.4 mm) 7024: 1/4 in. (6.4 mm) |
6010: 1/4 in. (6.4 mm) 7018: 1/4 in. (6.4 mm) 7024: 1/4 in. (6.4 mm) |
| Carbon Arc Grouping (CAC-A) Maximum | 1/4 in. (6.4 mm) | 1/4 in. (6.4 mm) |
| Generator Requirement | 20kW | 20kW |
| Ancilliaries | ||
| Net Width | 23 1/8" | |
| Net Height | 43 1/8" | |
| Net Length | 43 3/4" | |
| Net Weight | 134 lb. (61 kg) | |
| Warranty | Miller's True Blue Warranty | |
| Portability | Lift Eye (Standard) Running Gear / Car (Standard) |
|
SHIPPING DIMENSIONS |
|
| Height: | 50.00 Inches |
| Width: | 23.00 Inches |
| Length: | 44.00 Inches |
| Weight: | 364 Lb(s) 0 Oz |
Product Questions and Answers
How to connect reciever to remote:
- Turn off welding power source.
The power source must be turned off in order for reciever to pair successfully.
- Connect reciever.
Insert reciever into matching 14-socket receptacle. Tighten yellow nut clockwise.
- Turn on welding power source.
Constant LED = ON, Blinking LED = communicating with transmitter, Slow blinking LED = address learning mode.
