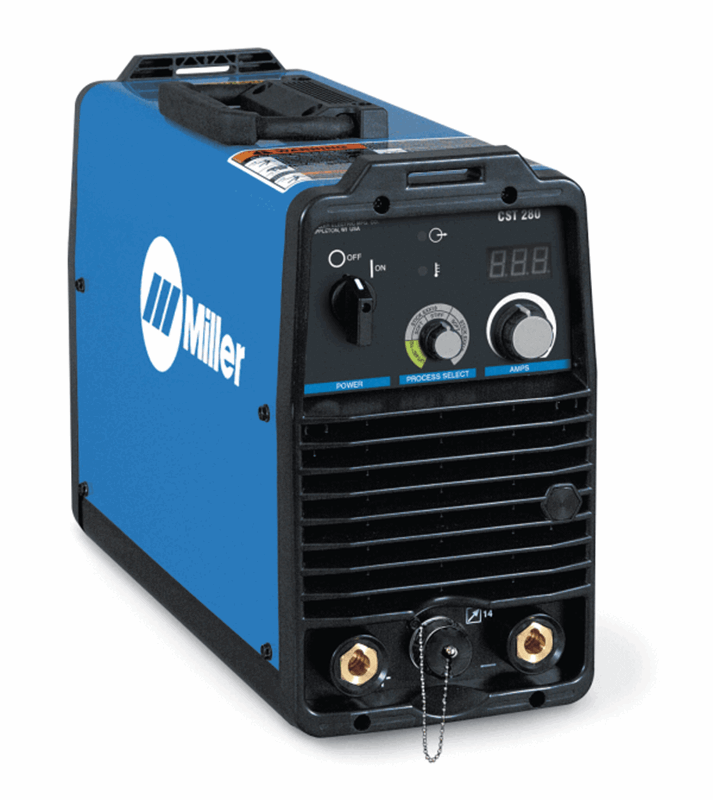

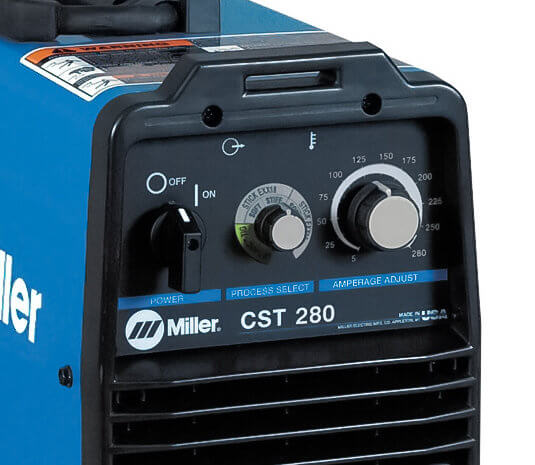

Miller CST™ 280 Dinse, Meter 907563

Part Number: 907563
$3,889.00
Out of Stock

Call 1-844-682-0205 or CHAT for more options

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  •  Multi-Process
  •  Multi-Voltage
  •  Multi-Phase
  •  3-Year Warranty
  •  Lightweight and Portable

Miller CST™ 280 208-230/400-460 V Dinse, Meter 907563

Designed for Stick/TIG welding pipe and plate in the construction industry, this small, durable, goes-anywhere welder delivers 280 amps of superior Stick performance, up to 3/16” in diameter. LiftArc™ delivers smooth TIG starts without high frequency.

What's Included:

  • One set of male Dinse connectors
  • Power cord

Features:

  • Superior Stick Arc Performance
  • Lift-Arc™
  • Simple Voltage Changeover
  • Simple To Operate
  • Optional Digital Meter
  • Remote Amperage Control
  • 4 and 8 Pack Racks
  • Twist Lock Receptacles
View our large selection of welding machines including Mig welders, Tig welders, and Stick welders with the greatest values online.



Miller CST™ 280 Processes

  • Stick (SMAW)
  • TIG DC (GTAW-DC)

Miller CST™ 280 Specifications:

Industries Interests Construction
Infrastructure
Shipbuilding
High Purity Processing
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Mechanical Contracting
Pipe Fabrication / Construction
Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Input Voltage 208 V
220/230/240 V
380/400/440 V
460/480 V
Input Phase 1 and 3-Phase
Input Hz 50 / 60 Hz
Portability Handle(s)
Net Height 13.5 in
Net Length 18 in
Net Weight 41 lbs
Weldable Metals Stainless Steel
Steel
Net Width 7.5 in
Rated Output 280 A @ 31.2 V, 35% Duty Cycle (Three Phase)
200 A @ 28 V, 100% Duty Cycle (Three Phase)
200 A @ 28 V, 50% Duty Cycle (Single Phase)
150 A @ 26 V, 100% Duty Cycle (Single Phase)
Max Open Circuit Voltage 67 VDC
Amperage Range 5 DC - 280 DC
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 12.00 Inches
Width: 15.00 Inches
Length: 24.00 Inches
Weight: 43 Lb(s) 0 Oz

Product Questions and Answers


Q - Which wireless remote foot controller works with this? A - The Miller Wireless Remote Foot Control #300429. It plugs right into the 14-pin receptacle on the machine.
Q - What connectors does this come with? A - Two male Dinse connectors are included. If you need to use Tweco fittings, you can buy Miller Dinse/Tweco Adapter #042465.

How to start an arc with scratch start technique:

  1. Position control to Stick mode.

    Use the Process Select Control and choose between the four Stick processes (Stick E XX18 Soft, E XX18 Stiff, E XX10 Soft, or E XX10 stiff).

  2. Arc drag electrode across workpiece.

    Move electrode across metal like striking a match.

  3. Lift electrode slightly after touching work.

    If arc goes out, electrode was lifted too high. If electrode sticks to workpiece, use a quick twist to free it.
