Miller MAXSTAR 280 (AUTO-LINE 208-575) 907552

Part Numbers: 907552
$6,739.00
$7,781.00* Save $1,042.00

Included with your purchase ( ) :

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • Stick Welding
    • TIG Welding
    • Multiphase
    • 220V
    • 460V
    • 3-Year Power Warranty

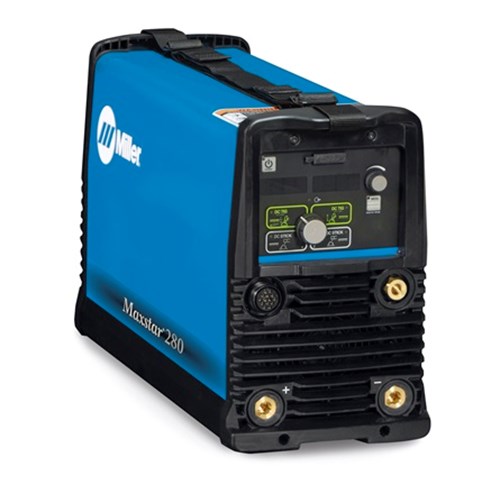

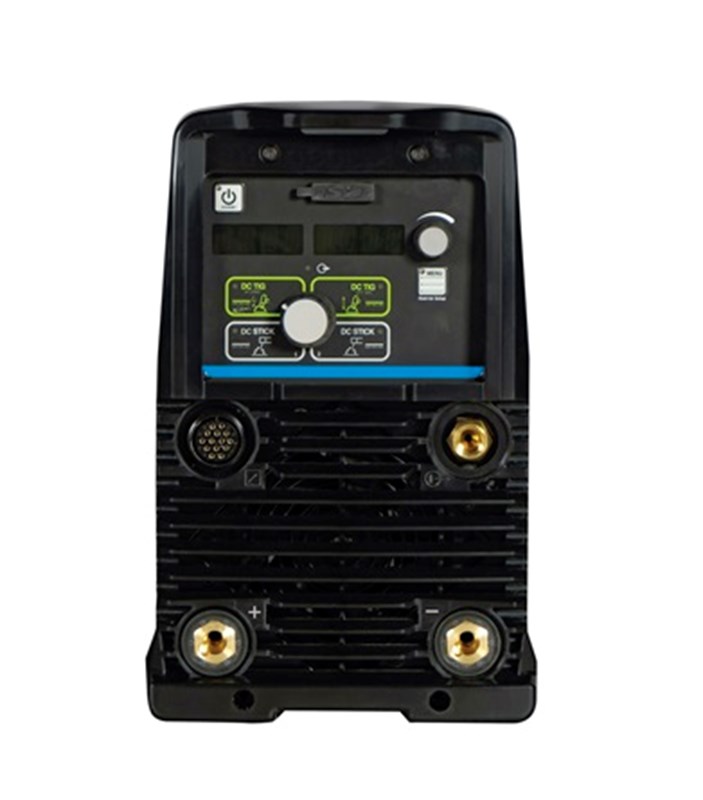

    Maxstar® 280 208-575 V

    The Maxstar 280 Series is a powerful combination of capability and portability. Weighing only 47 pounds, it can weld up to 3/8" thick material. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

    Base and Deluxe Models Available - Maxstar 280 - Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. Maxstar 280 DX - The DX model adds extended ranges to sequencer and full trigger options, preflow and pulser functions.

    Portable with adjustable shoulder strap - Weighing in at just 47 pounds, the Maxstar 280 is extremely portable and easy to transport featuring dual carry handles and a carrying strap.

    Upgradeable and Expandable - Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.

    Cooler Power Supply (CPS) - An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Maxstar also activates the receptacle to help prevent torch failure. Available on select models.

    Auto-Line Power Management Technology - Allows hookup to either single-phase or three-phase electrical input from 208-575 V with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.

    Pro-Set Feature (professional settings) - This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

    Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.

    Weldcraft® W-280 (WP-280) TIG Torch - Two-piece torch head and exclusive Super Cool™ Technology provides an additional surface area to increase cooling efficiency and capacity   Torch body includes an anti-rotation feature and multi-position locking to prevent handle movement during welding and improve operator control   Mechanical fittings provide a secure gas and water connection to prevent leakage and allow easy hose replacement

    For the best prices on welding machines,  TIG weldersStick weldersMIG welders, shop Welders Supply online.
    Title Maxstar® 280 208-575 V
    Industries Interests Aerospace
    Construction
    Heavy Equipment Manufacturing
    Infrastructure
    Manufacturing
    Railcar
    Shipbuilding
    Boat / Yacht
    High Purity Processing
    Material Thickness
    Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm)
    Weldable Metals Specialty Metals
    Stainless Steel
    Steel
    Input Voltage
    208 V
    220/230/240 V
    380/400 V
    460/480 V
    575 V
    Input Phase 1- and 3-Phase
    Input Hz  50 / 60 Hz
    Current Type DC
    Max Open Circuit Voltage 60 VDC
    Amperage Min 1 A
    Amperage Max 280 A
    Portability
    Handle(s)
    Running Gear / Cart (Optional)
    Strap
    Weld Output CC
    Net Width 8.6 in
    Net Height
    13.6 in
    Net Length 22.5 in
    Net Weight 47 lbs
    Warranty
    3 Years
    Miller's True Blue Warranty
