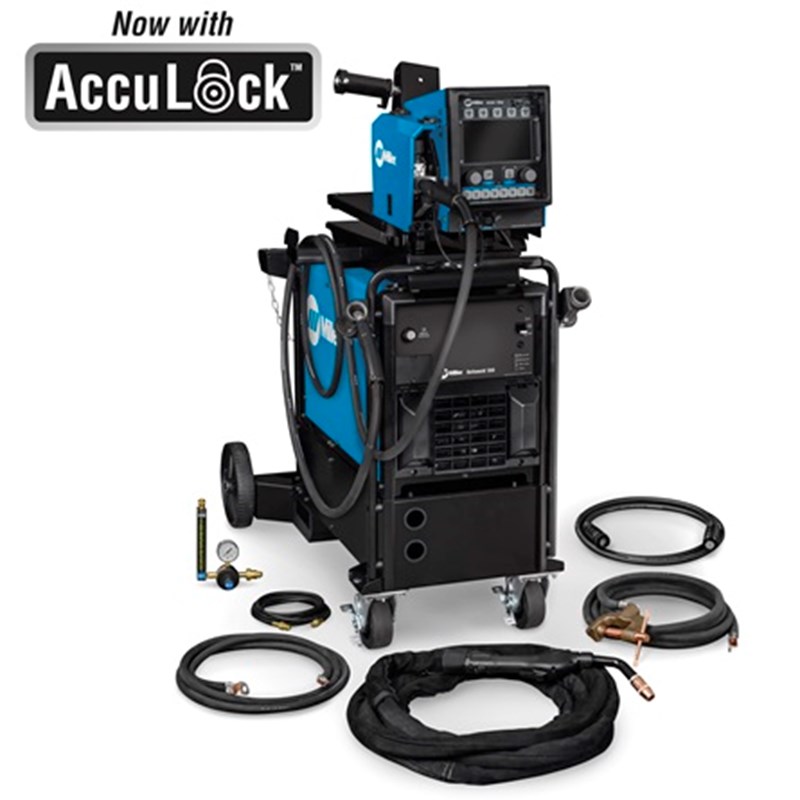

Miller Deltaweld® 350 MIGRunner™ w/ Intellx™ Elite Feeder & XR-Aluma-Pro™ Plus 25 Ft (230/460V) #951952001

Part Number: 951952001
UPC: 715959697965

Miller Deltaweld® 350 MIGRunner™ w/ Intellx™ Elite Feeder & XR-Aluma-Pro™ Plus 25 Ft (230/460V) #951952001

Part Number: 951952001
UPC: 715959697965
This Item Has Been Discontinued and has been replaced by Miller Deltaweld® 350 230/460V MIGRunner™ with Intellx™ Elite Feeder & XR-Aluma-Pro™ Plus 25 Ft #951000145 - Level up today!

Welding type:

MIG

MIG

Power supply:

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Related Products

  • Professional fabrication MIG welderMIG Welding
  • High output MIG welderUp to 425 A @ 35.25 VDC Output
  • 208/230/460 V multi-voltage input welder230/460 V 3PH Input
  • Complete MIG welding package with wire feederComplete Welding Pkg
  • Miler 3-year welder warrantyMiller 3-Year Warranty

Deltaweld® 350 230/460V MIGRunner™ MIG Welder Pkg w/ Intellx™ Elite Wire Feeder & XR-Aluma-Pro™ Plus 25 Ft MIG Gun #951952001

Get application-specific benefits with Intellx™ wire feeder options.

Highlights

  • Ready to weld - The Deltaweld 350 System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
  • Easy to use - EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.

Processes

  • MIG (GMAW)
  • Flux-cored (FCAW)
  • Accu-Pulse® MIG (GMAW-P)
  • High-deposition MIG (GMAW)
  • RMD®

Applications

  • General manufacturing
  • General fabrication
  • Structural steel fabrication
  • Transportation
  • Sheet metal fabrication
  • Light-gauge tube and sheet

What's Included

  • Feeder Swivel Kit
  • Cart Accessory Kit
  • Deltaweld 350 Running Gear/Cylinder Rack

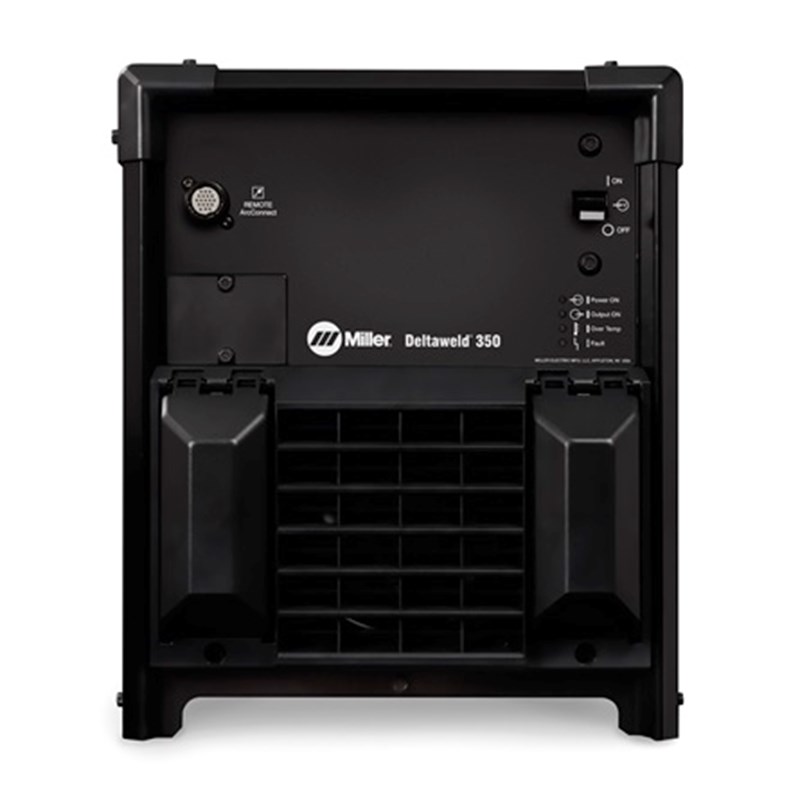

  • Deltaweld® 350 with ArcConnect™
  • Intellx™ Pro Wire Feeder

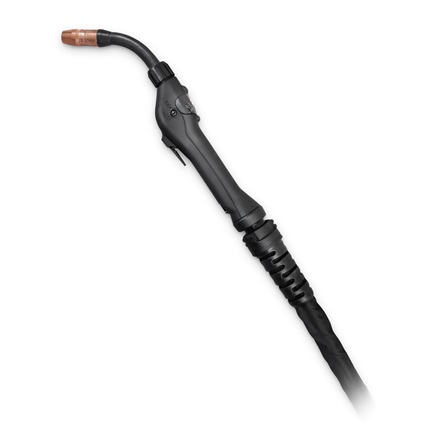

  • Bernard™ BTB 300 AMP, 15 FT Gun, AccuLock S Consumables (conventional liner)
  • ArcConnect Control/Motor Cable 9ft.
  • .035/.045 V-Groove drive rolls

Capabilities of the Deltaweld® 350 230/460V MIGRunner™ with Intellx™ Elite Feeder & XR-Aluma-Pro™ Plus 25 Ft

  • Legacy meets pulse - Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
  • Measures Productivity - Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
  • Backwards Compatibility - A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
  • Wind Tunnel Technology™ - Internal air flow that protects electrical components and PC boards from dirt, dust, debris, greatly improving reliability.
  • Dedicated wire feeder options

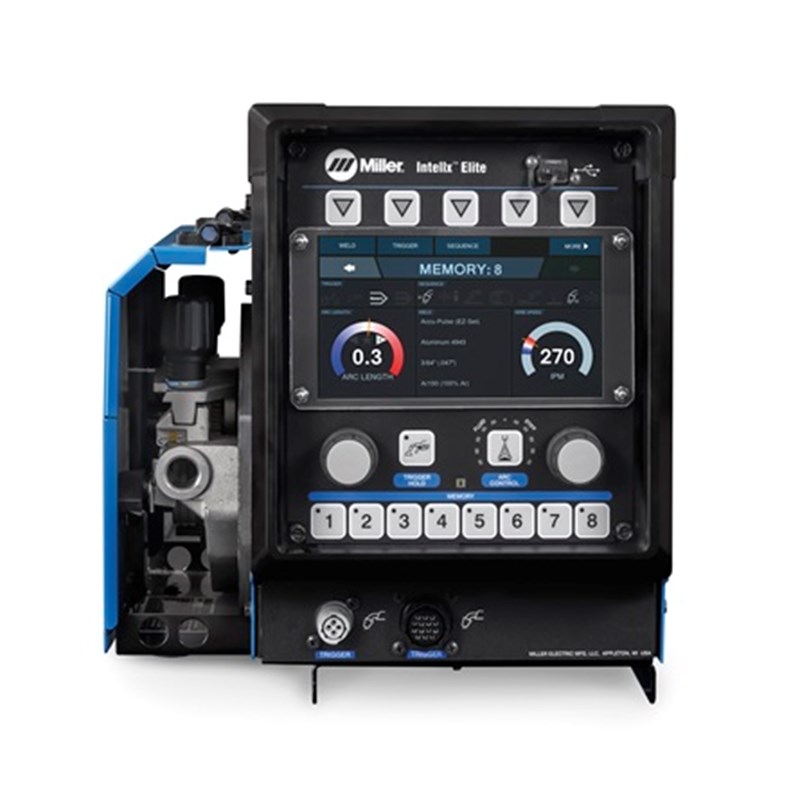

  • Intellx Elite feeder - New arc control feature means welders can produce better welds with minimal parameter adjustments.
  • Intellx Pro feeder - Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
  • ArcConnect™ - Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
  • AccuLock S Consumables - AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
  • Fan-On-Demand™ - Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.

Welders Supply Demo: Deltaweld MIG Welders


Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

View all welding machines, used welders & equipment, and other welding tools available at Welders Supply.
Title

Deltaweld® 350 230/460V MIGRunner™ with Intellx™ Elite Feeder & XR-Aluma-Pro™ Plus 25 Ft

Processes

MIG (GMAW)

Flux-cored (FCAW)

Accu-Pulse® MIG (GMAW-P)

High-deposition MIG (GMAW)

RMD®

Applications

General manufacturing

General fabrication

Structural steel fabrication

Transportation

Sheet metal fabrication

Light-gauge tube and sheet

Auxiliary Power 115 V standard
Input Power 208/230/460 V, 3-phase, 60 Hz 230 V, 1-phase, 60 Hz
Rated Output 350 A at 60% duty cycle
Output Range 20–400 A, 10–38 V

SHIPPING DIMENSIONS

Height: 38.61 Inches
Width: 27.73 Inches
Length: 57.03 Inches
Weight: 159 Lb(s) 13 Oz
