Miller Digital Elite Auto Darkening Helmet-Luckys Speed Shop #281001

Part Number: 281001

SEE NEWER VERSION - Replaced by Digital Elite™ w/ Clearlight 2.0 #289756

Out of Stock
Starts at $53.82/month with

Helmet Viewing Area:

Large (6-9.9 in²)

Miller Digital Elite Auto Darkening Helmet-Luckys Speed Shop #281001

Our Miller Classic Series Digital Autodarkening Helmet is an upgrade from our regular Miller series helmet, featuring improved controls and adjustability. Choose from four operating modes including weld, cut, grind and x-mode for to serve different applications. Miller’s Digital Elite helmet has a 5 amps and below TIG rating, comparable to the 20 amps rating for the rest of the Miller Classic Series. This helmet is great for medium intensity welding applications. Professional welders love this autodarkening helmet because they believe it’s a great starter welding and arc helmet. A sturdy, lightweight construction ensures comfort and long-lasting quality. The helmet is spacious on the inside so you can wear prescription glasses if needed. An adjustable headband makes it easy to get a firm and snug fit. The Digital Elite helmet also contains a graphic design to look attractive. Order your attractive and functional Miller Classic Series Digital Elite Autodarkening Helmet for sale today!

Features

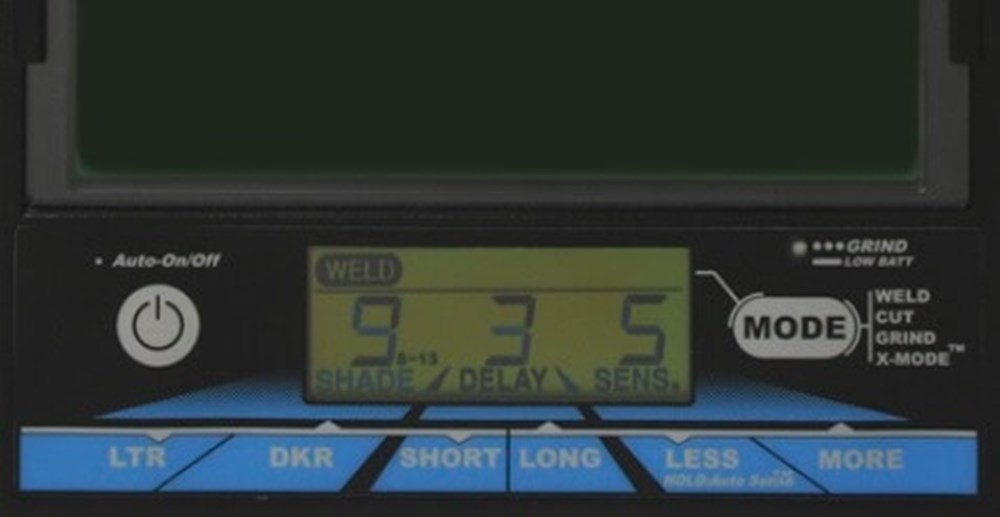

  • NEW Improved Digital Controls allow user to easily adjust mode and settings

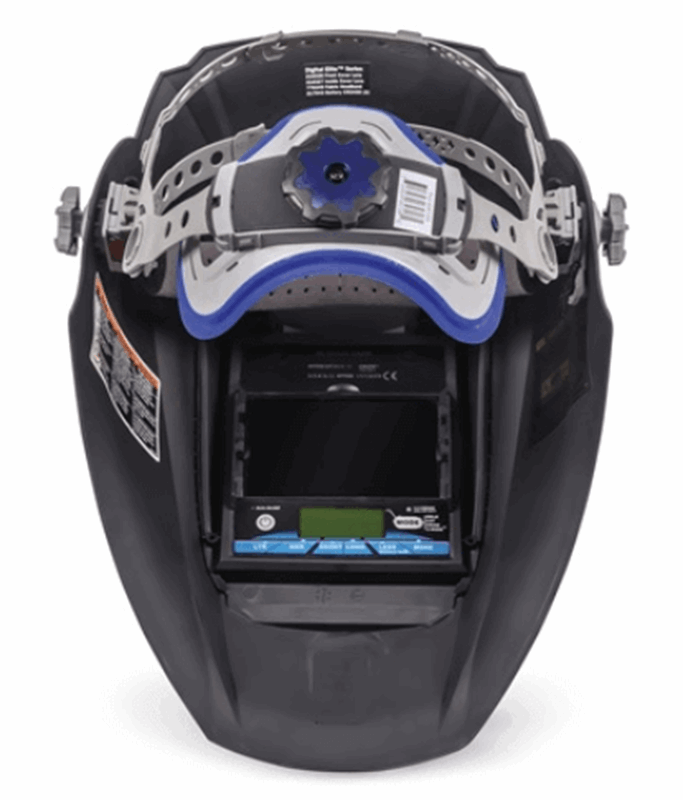

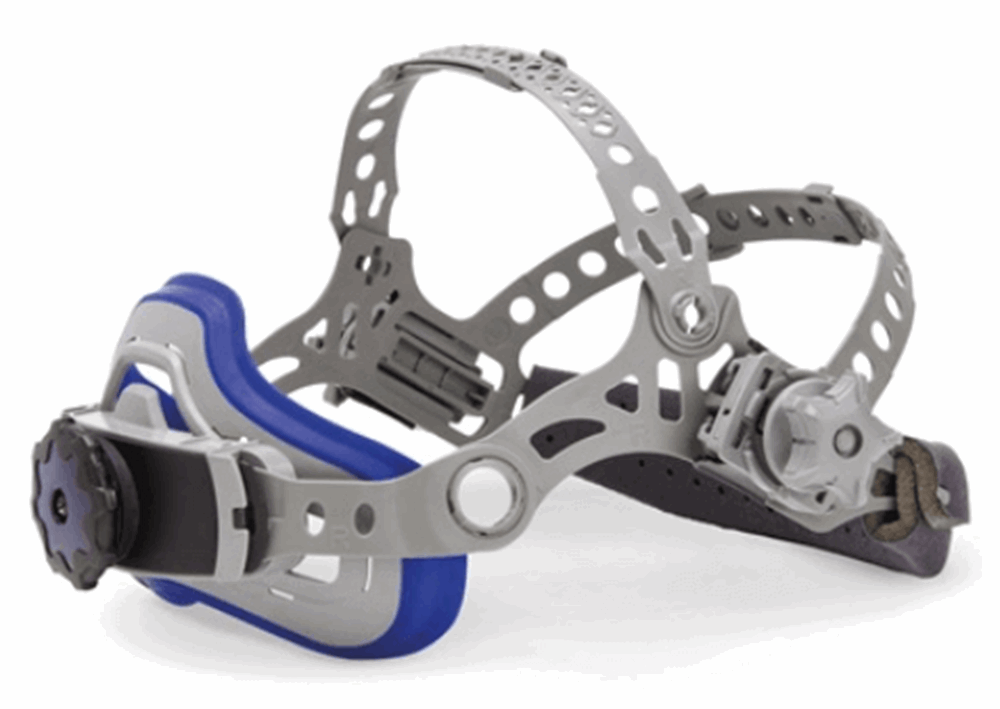

  • NEW Redesigned headgear features additional adjustability settings for better fit & comfort
  • NEW 3 Year Warranty
  • 9.22 sq. in. viewing area
  • Four Arc Sensors for superior lens response
  • Four Operating Modes – Weld, Cut, Grind and X-Mode
  • Auto-On/Off power control triggers lens at the strike of an arc
  • Viewing Area – 9.22 sq in. 3.85 x 2.38 sq. in (97 x 60 mm)
  • Four Arc Sensors – 1/ 20,000 sec. lens speed
  • Sensitivity and Delay Control - .10 – 1.0 sec
  • TIG Rating - 5 amps and below
  • Lithium batteries (2) – with solar assist; up to 3,000 hours
  • Weight- 18 oz (482g)
  • Meets ANSI Z87.-2003 (High Impact) standard
  • Includes 5 outside cover lenses, 2 inside cover lenses and a Helmet bag

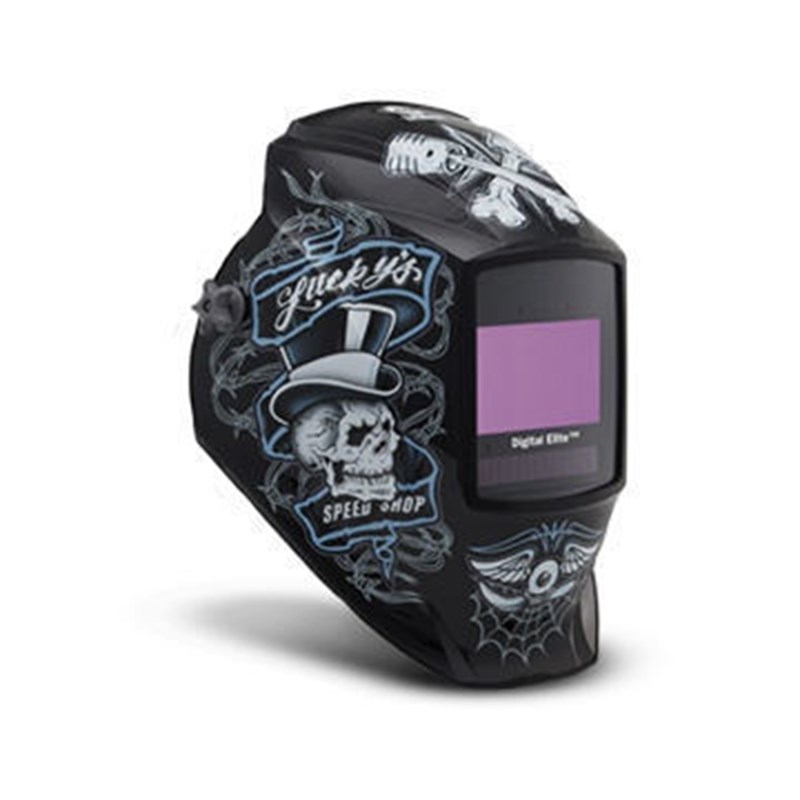

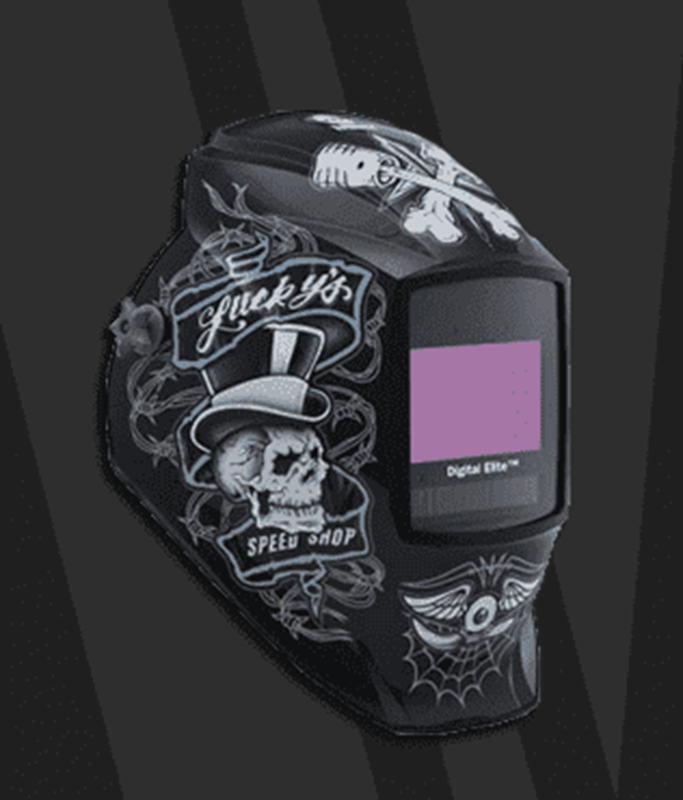

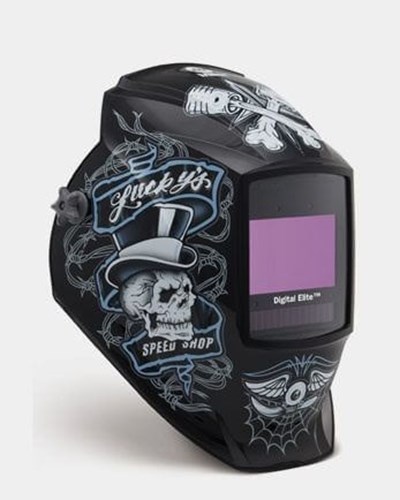

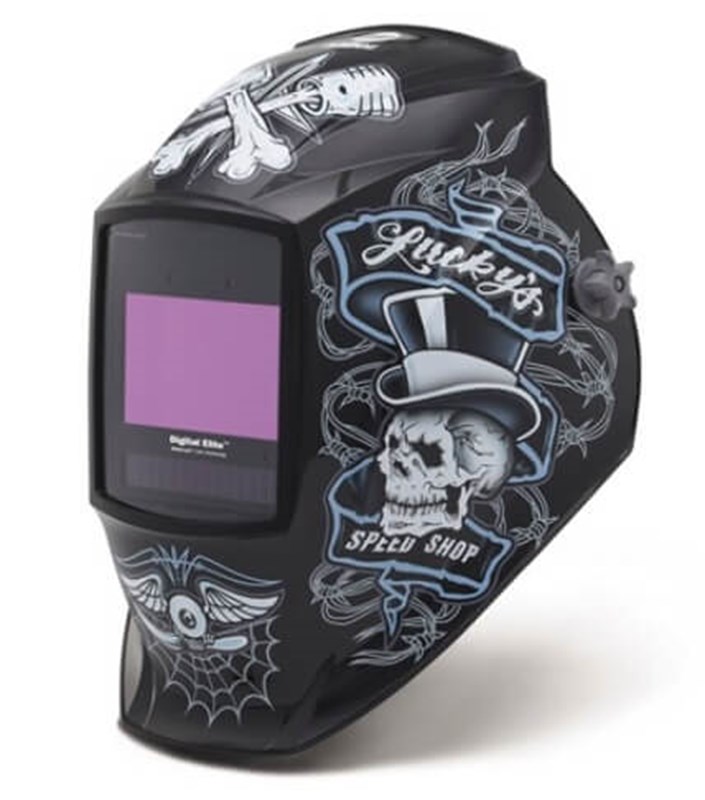

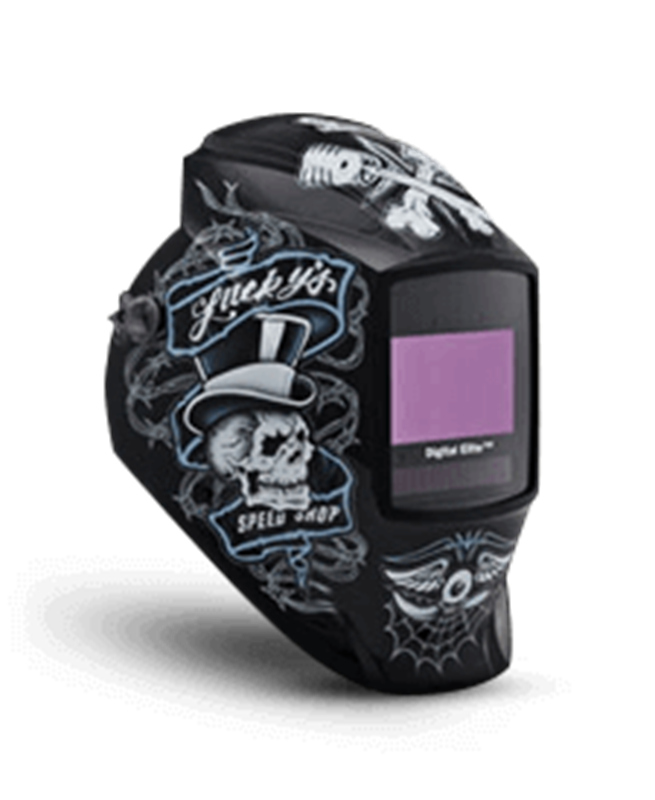

  • Lucky’s Speed Shop design with skulls, thorns, and cobwebs

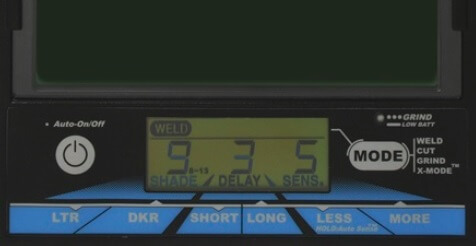

Four Operating Modes

  • Weld Mode - #8-13
  • Cut Mode - #5-8
  • Grind Mode – Light State #3.5
  • X-Mode – Can be used in Shades #8-13
  • Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds

The shopping is finished! We have the BEST PRICING ON MILLER WELDING HELMETS ON THE WEB!

View our complete selection of Autodarkening welding helmets or other great safety equipment available online.

Miller Digital Elite Auto Darkening Helmet-Luckys Speed Shop Part #281001 Specs

Arc Sensors
  • 4
Delay Control
  • Yes
Digital
  • Yes
Grind Mode
  • Yes
New Headgear
  • Yes
Low Amp TIG Rated
  • Yes
Low Battery Indicator
  • Yes
Modes
  • Weld
  • Cut
  • Grind
  • X-Mode
Reaction Time
  • 1/20,000
Sensitivity Control
  • Yes
Shell Material
  • Nylon
Shade Range
  • 5-8, 8-13
Viewing Field
  • 9.22"
Dimensions
  • L12" x W10.25" x H8.5"
Weight
  • 1.13 lbs

SHIPPING DIMENSIONS

Height: 9.75 Inches
Width: 12.00 Inches
Length: 10.50 Inches
Weight: 2 Lb(s) 15 Oz

Product Questions and Answers


Q - What shade is the lens in cut mode? A - It has a range of shade 5 to 8 when cutting.
Q - What is the TIG rating for this? A - 5 amps and below.
