Helmet Viewing Area:

6-9.9 in²

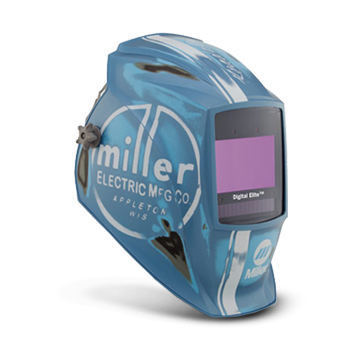

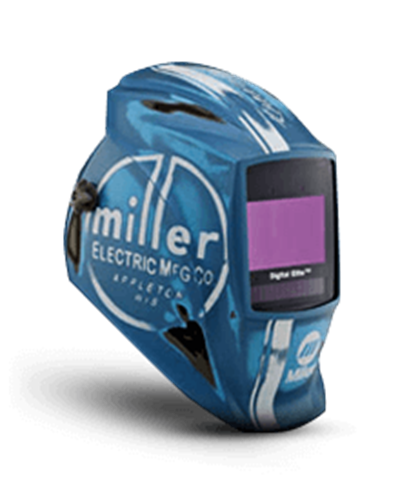

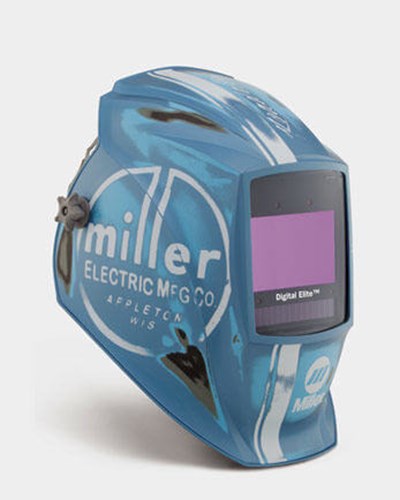

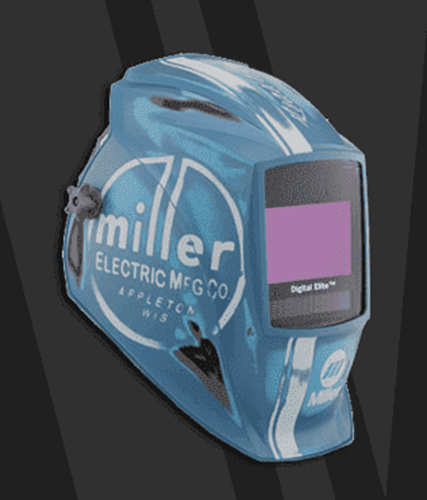

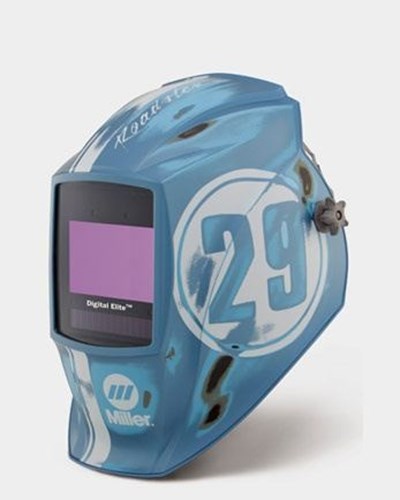

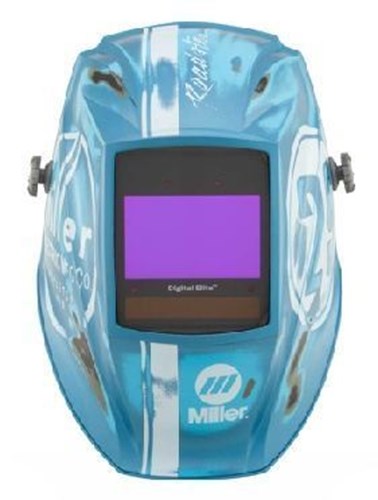

Miller Digital Elite Vintage Roadster Helmet #281004



Industry-leading helmet provides high-performance versatility – featuring ClearLight™ Lens Technology

This attractive Miller Digital Elite Roadster Helmet comes in bright blue and is great for both starters and intense welding. This helmet only weighs 18 ounces and is easy to put on. It’s very spacious inside, making it great for those who wear glasses.

The Miller Digital Elite Helmet series features improved digital controls and adjustable headgear. Choose from grind, cut, weld and x-mode to serve every welding application. This helmet has an excellent TIG rating of 5 amps along with a .1 to 1-second sensitivity and delay control. Many welding pros consider Miller Digital Elite series helmets the best for precision. Four lenses provide quality response for your best welding work.

In addition to excellent performance, this helmet also keeps you protected when welding. Electromagnetic arcs eliminate sunlight glare to decrease eye strain and increase productivity. Backed by Miller's True Blue three year warranty against defects. Welders Supply carries this Miller Digital Elite Roadster Helmet at the lowest possible online price, and shipping within the continental US is on us on all orders over $300.

Features:

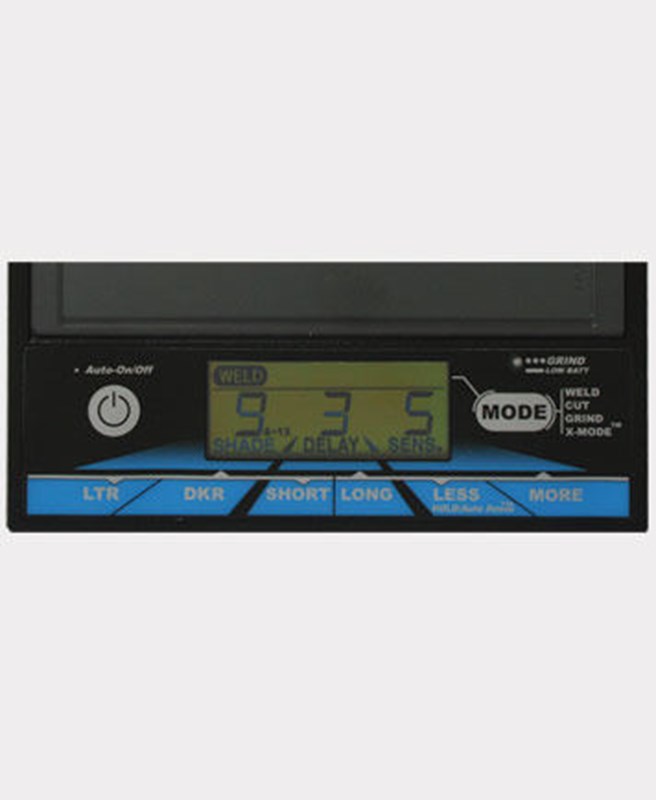

  • NEW Improved Digital Controls allow user to easily adjust mode and settings

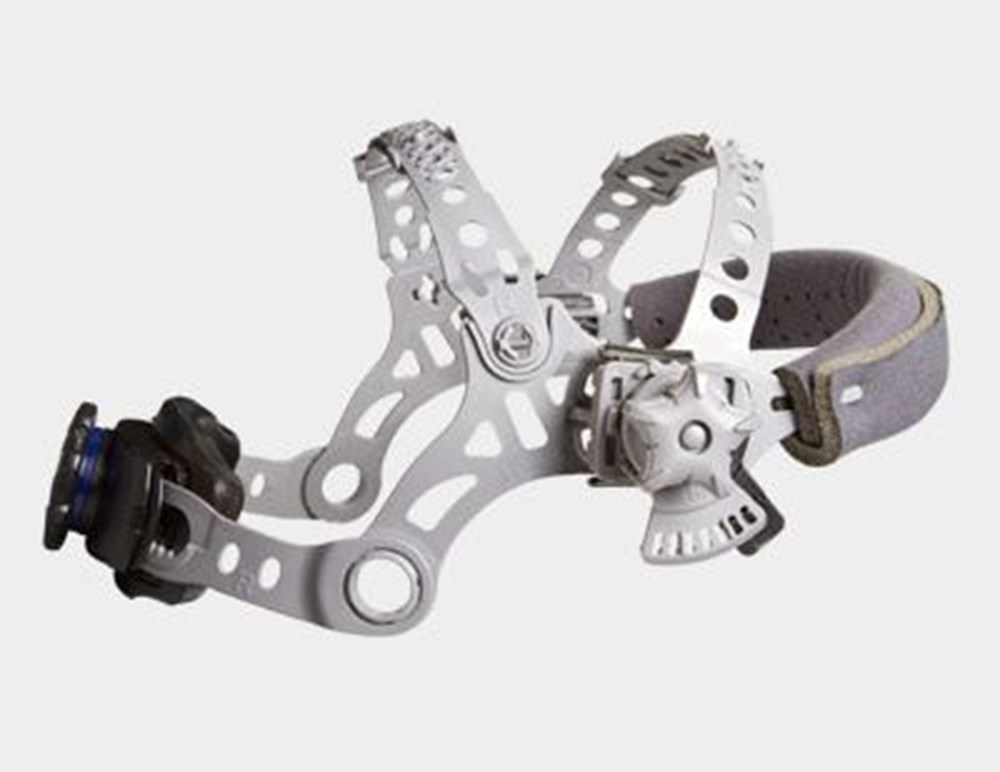

  • NEW Redesigned headgear features additional adjustability settings for better fit & comfort
  • NEW 3 Year Warranty
  • 9.22 sq. in. viewing area
  • Four Arc Sensors for superior lens response
  • Four Operating Modes – Weld, Cut, Grind and X-Mode
  • Auto-On/Off power control triggers lens at the strike of an arc
  • Viewing Area – 9.22 sq in. 3.85 x 2.38 sq. in (97 x 60 mm)
  • Four Arc Sensors – 1/ 20,000 sec. lens speed
  • Sensitivity and Delay Control - .10 – 1.0 sec
  • TIG Rating - 5 amps and below
  • Lithium batteries (2) – with solar assist; up to 3,000 hours
  • Weight - 18 oz (482g)
  • Meets ANSI Z87.-2003 (High Impact) standard
  • Includes 5 outside cover lenses, 2 inside cover lenses, Helmet bag
  • Blue design with Miller logo

Four Operating Modes

  • Weld Mode - #8-13
  • Cut Mode - #5-8
  • Grind Mode – Light State #3.5
  • X-Mode – Can be used in Shades #8-13
  • Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds
Shop all our great quality welding safety equipment, helmets, and helmet accessories online.

Miller Digital Elite Vintage Roadster Helmet #281004

Viewing Area
  • 9.22 sq. in. (59.48 sq. cm)
Operating Modes
  • Weld, cut, grind and X-Mode™
Shades
  • Cut: #5 - 8 (Cat #5 - 9)
  • Weld: #8 - 13 (Cat #9 - 13)
Sensors
  • 4
TIG Rating
  • 5 amps and below
Switching Speed
  • 1/20,000 sec.
Weight
  • 18 oz. (510 g)

SHIPPING DIMENSIONS

Height: 9.75 Inches
Width: 12.00 Inches
Length: 10.50 Inches
Weight: 2 Lb(s) 15 Oz

Product Questions and Answers


Q - What hard hat adaptor is needed for this helmet? A - For a slotted hard hat, you need part #259637. For other hard hats, you need part #222003
Q - What size replacement battery? A - CR2450.
Q - Is this helmet suitable for oxy/acetylene welding? A - Yes, shade #3 on the ClearLight lens is the most commonly used shade for oxy/acetylene use.
