Light Fabrication & Repair
1" Cut Capacity
(1 ½" Severance)
20' Hand Torch
Lightweight & Portable
120/240V Input
Single Phase Input
3-Year ESAB Warranty

Thermal Dynamics® Cutmaster® 50+ Lightweight, Portable Plasma Cutter for Industrial Fabrication and Maintenance (120/240V 1PH) #1-5000-1

The Thermal Dynamics® Cutmaster® 50+ is a robust, portable plasma cutter system designed to meet the demands of industrial fabrication and maintenance tasks. Operating on a dual-voltage 120/240V single-phase power supply, it provides a maximum output of 50 amps, allowing for efficient cutting of materials up to 1 inch (25 mm) thick.

Download literature of this machine:

2024 Spec Sheet - Cutmaster® 50+ Instruction Manual - Cutmaster® 50+

Highlights

Cutting Capacity: Cuts materials up to 5/8 inch (16 mm) thick with ease.
Dual Voltage Flexibility: Operates on both 120V and 240V single-phase power supplies.

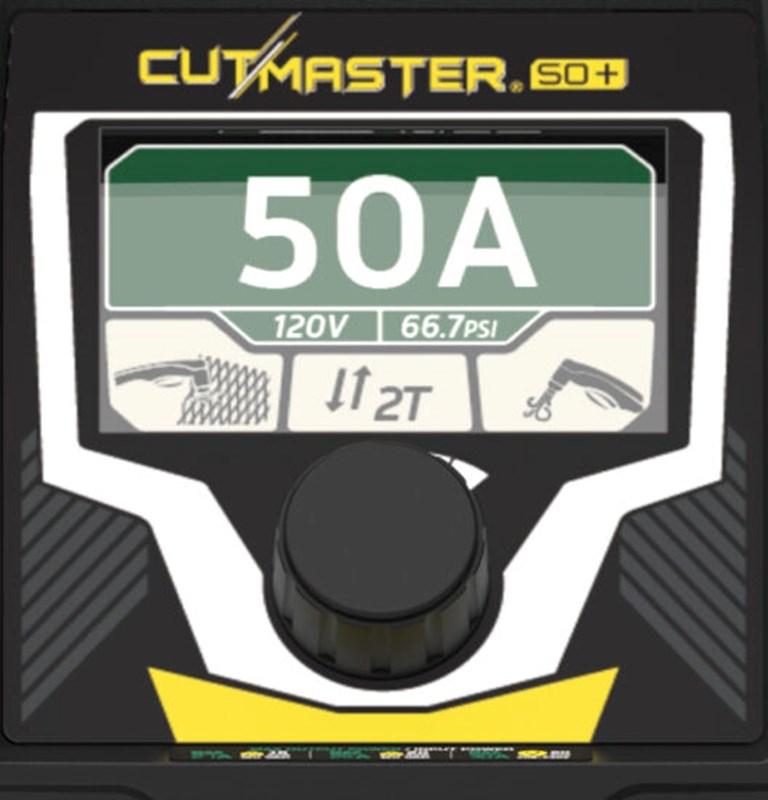

User-Friendly TFT LCD Screen: Features a 4.3-inch color display for simple operation and parameter adjustments.
Portable Design: Lightweight at 32 lbs (14.5 kg) with a built-in handle for easy transport.
Durable Construction: Designed with industrial-grade housing for long-lasting performance.
SL60 1Torch Included: Comes with a high-performance torch equipped with 2T/4T functions for enhanced control.
Post-Cut Air Purge: Extends consumable life by purging air after cutting.
CNC-Ready Functionality: Includes a 14-pin CPC receptacle and voltage divider for automation.
Extended Warranty: Offers a 3-year warranty on the power supply and a 1-year warranty on the torch and leads.

Processes

Plasma Cutting

What's Included

Cutmaster 50+ power supply
SL60 1Torch with 16 ft. lead
Work cable with clamp
Spare parts kit
Input power cable for 120V and 240V
Operator's manual

Industries

Industrial and General Fabrication
Repair and Maintenance
Automotive Bodies
Light Fabrication
HVAC
Agricultural Equipment
Pipeline
Training Schools

Benefits of the Thermal Dynamics® Cutmaster® 50+

Energy Efficiency: Consumes less power without compromising performance.
Versatile Cutting Modes: Switch between normal and grate cutting modes.
Enhanced Safety Features: Includes a safety trigger lock to prevent accidental activation.
Consumable Longevity: Cutmaster Black Series consumables offer up to 60% longer life.
Easy Maintenance: Designed for straightforward servicing and part replacement.

Fast, Free Shipping & Easy Returns

Enjoy fast, free shipping on orders over $300 and hassle-free returns within 14 days for new, unopened merchandise. For assistance, contact Welders Supply customer support at 1-844-682-0205.

Explore our full range of Plasma Cutters from Thermal Dynamics and other top brands to find the perfect fit for your welding needs.

Specifications - Thermal Dynamics Cutmaster 50+ (120-240 V)
Input Volts	120-240 VAC, 1 Φ ph, 50/60 Hz
Output Current AC	(240 VAC) 50 A, (240 VAC) (240 VAC) 30 A, (240 VAC) (120 VAC) 16 A, (120 VAC) (120 VAC) 25 A, (120 VAC)
Duty Cycle	(120 VAC) 25 A @ 40 % duty cycle (240 VAC) 50 A @ 50 % duty cycle (240 VAC) 30 A @ 100 % duty cycle (120 VAC) 16 A @ 100 % duty cycle
Operating Temperature	-10 – 50 °C ( 14-122 °F )
Gas Requirements	Compressed air Clean, dry, oil-free per ISO 8573-1 Class 1.2.2 \| Compressed Nitrogen : 99.95% pure
Gas Pressure	6.2 –8.6 bar ( 90 –125 psi )
Gas Flow	142 –235 l/min ( 300 –500 cfh )
Pierces	5/8 in. (16 mm)
Cut Capacity	1 in. (25 mm)
Severance	1 1/4 in. (32 mm)
Enclosure Class	IP23S
Certification Mark	cETLus (NA)
