Miller Dynasty 280 Dx (With Cps) Complete With Wireless Foot Control #951877

Product Number: 951877
Replaced Part Number: 951469
$13,574.00
$15,677.00 You Save $2,103.00
Select your FREEBIES!
*
Welders Supply
T-Shirt

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • Stick Welding
  • TIG Welding
  • 1 or 3-Phase Input
  • 3-Year Warranty

Miller Dynasty 280 Dx (With Cps) Complete With Wireless Foot Control #951877

Capabilities: AC/DC TIG/Stick – Aluminum, Magnesium, Carbon Steel, Stainless Steel and Exotic Alloys

Material Thickness: 0.004 in. – 3/8 in.

Weight: 52 lb.

The Dynasty 280 DX provides operator-friendly, menu-driven features and is perfect for industrial manufacturing applications and heavy fabrication. For maximum capability — such as the high demands of precision fabrication — the Dynasty 280 DX offers full AC features, including advanced waveforms and wide ranges of balance and frequency.

Ideal for:

  • Pipe, tube, anodized aluminum
  • Aluminum ship repair
  • Aerospace industry

Features:

  • Update and expand: Front panel memory card data port provides the ability to easily update software and expand product features.
  • Pro-Set™ eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
  • Sleep timer conserves electricity: This programmable feature will power down the machine if it sits idle for a specific time.
  • Auto-line Power Management Technology Allows for any input voltage hookup (208 – 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
  • Cooler Power Supply (CPS): An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.
  • Blue Lightning™ high-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
  • Meter calibration allows digital meters to be calibrated for certification.
  • Wind Tunnel Technology™ protects internal electrical components from airborne contaminates, extending the product life.
  • Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.

AC TIG Features

  • Balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds. DX models provide extended ranges.
  • Frequency controls the width of the arc cone and can improve directional control of the arc.

AC Waveforms

  • Advanced squarewave: fast freezing puddle, deep penetration, and fast travel speeds.
  • Soft squarewave: for a soft buttery arc with maximum puddle control and good wetting action.
  • Sine wave: for customers that like a traditional arc. Quiet with good wetting.
  • Triangular wave reduces the heat input and is good on thin aluminum. Fast travel speeds.

DC TIG Features

Exceptionally smooth and precise arc for welding exotic materials.

AC/DC Stick Features

  • DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010.
  • Hot Start™ adaptive control provides positive arc starts without sticking.
  • AC frequency control adds stability for smoother welds when AC Stick welding.
  • Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable

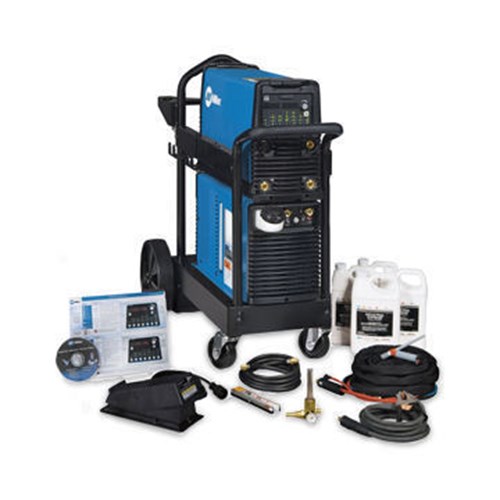

Comes Complete With:

  • Dynasty 280 DX power source with CPS
  • 8 ft (2.4 m) primary cord
  • Quick reference guide (English)
  • Coolmate™ 1.3
  • Coolant (4 one-gallon bottles of #043810)
  • Small runner cart
  • Wireless remote foot control (#300429)
  • Weldcraft® W-280 (WP-280) torch kit (#300990)
View our entire line of quality welding machines, plasma cutting machines, and welding helmets.

Dynasty 280 Series Specifications

Welding Mode

TIG (GTAW)

Stick (SMAW)

Input Power

3-phase 1-phase 3-phase 1-phase

Welding Amperage Range

2 - 280 A (AC)

1 - 280 A (DC)

2 - 280 A (AC)

1 - 280 A (DC)

5 - 280 A 5 - 280 A

Rated Output

235 A at 19.4 V,

60% duty cycle

200 A at 28 V,

60% duty cycle

180 A at 27.2 V,

60% duty cycle*

Amps Input at Rated Load Output,

50/60 Hz

208 V

19 33 22 34

230 V

17 30 20 31

400 V

10 17 11 17

460 V

9 15 10 15

575 V

7 12 8 12

KVA

7.0 6.9 8.2 7.1

KW

6.7 6.8 7.9 7

Max. Open-Circuit Voltage

60 VDC (11 VDC**)

Material Cutting Thickness

Steel: 0.004" (0.1mm) - .1875" (9.5mm)

Aluminum: 0.012" (0.3mm) - .1875" (9.5mm)

Industries & Interests

Aerospace, Boat / Yacht, Construction, Education / Training, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Mechanical Contracting

Portability

Handle(s), Strap, Running Gear / Cart (Optional)

Dimensions

H:

13.6 in. (346 mm)

W:

8.6 in. (219 mm)

D:

22.5 in. (569 mm)

Net Weight

52 lb. (23.6 kg)

55 lb. (25 kg) with CPS

Warranty

3 Years - Miller's True Blue Warranty

*Refer to owner's manual for 208 V output ratings and duty cycle

**Low OCV sense voltage for stick and Life-Arc™ TIG.

SHIPPING DIMENSIONS

Height: 20.00 Inches
Width: 44.00 Inches
Length: 50.00 Inches
Weight: 244 Lb(s) 0 Oz

Product Questions and Answers


Q - What amp outlet does this need? A - A 30 amp breaker should be used on 220 volt.
Q - What does this have that the 280 doesn't? A - The DX model has full AC features, including advanced waveforms with a wide range of balance and frequency.
