Miller Dynasty 280 (With Cps) Complete Pkg With Foot Control #951466

Part Number: 951466
Out of Stock
$10,752.00 $12,419.00*
SAVE $1,667.00

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • TIG Welding
  • Stick Welding
  • 240V
  • 460V
  • Multi-Phase
  • 3-Year Miller Warranty

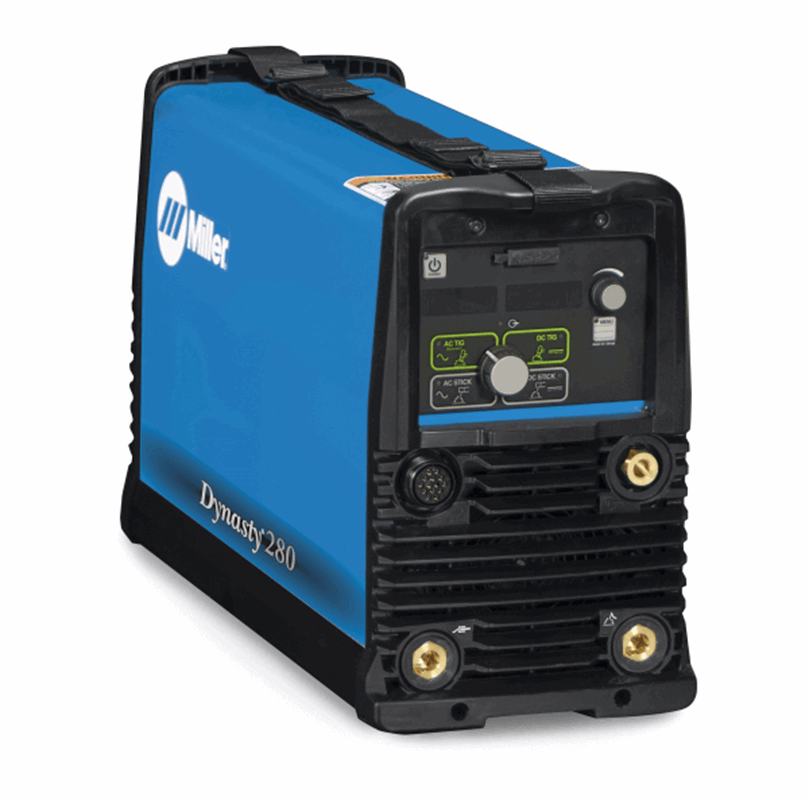

Miller Dynasty 280 (With CPS) Complete Pkg With Foot Control #951466

Miller Welding MachinesThe Dynasty 280 provides operator-friendly, menu-driven features and is perfect for industrial manufacturing applications and heavy fabrication. The base model Dynasty 280 offers essential TIG and Stick capability via user-friendly, menu-driven features. With a weight of just 52 lbs and equipped with dual carry handles and a carrying strap, the Dynasty 280 is easy to transport within a shop and to remote worksite locations.

Capabilities: AC/DC TIG/Stick – Aluminum, Magnesium, Carbon Steel, Stainless Steel and Exotic Alloys

Material Thickness: 0.004 in. – 3/8 in.

Weight: 52 lb.

Ideal for:

  • Pipe, tube, anodized aluminum
  • Aluminum ship repair
  • Aerospace industry

Features:

  • Update and expand: Front panel memory card data port provides the ability to easily update software and expand product features.
  • Pro-Set™ eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
  • Sleep timer conserves electricity: This programmable feature will power down the machine if it sits idle for a specific time.
  • Auto-line Power Management Technology Allows for any input voltage hookup (208 – 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
  • Cooler Power Supply (CPS): An integrated 120-volt dedicated-use receptacle to power the CoolmateTM 1.3. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.
  • Blue Lightning™ high-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
  • Meter calibration allows digital meters to be calibrated for certification.
  • Wind Tunnel Technology™ protects internal electrical components from airborne contaminates, extending the product life.
  • Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.

AC TIG Features

  • Balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds. DX models provide extended ranges.
  • Frequency controls the width of the arc cone and can improve directional control of the arc.

DC TIG Features

Exceptionally smooth and precise arc for welding exotic materials.

AC/DC Stick Features

  • DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010.
  • Hot Start™ adaptive control provides positive arc starts without sticking.
  • AC frequency control adds stability for smoother welds when AC Stick welding.
  • Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.

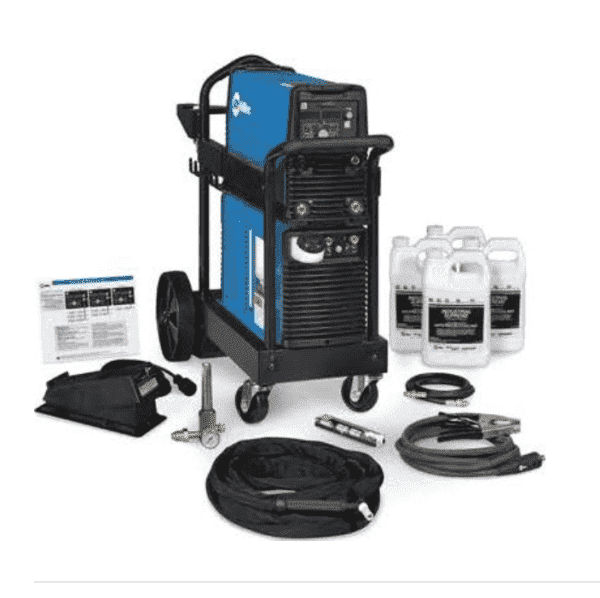

Comes Complete With:

  • Dynasty 280 Power Source with CPS
  • 8 ft (2.4 m) Primary Cord
  • Quick Reference Guide (English)

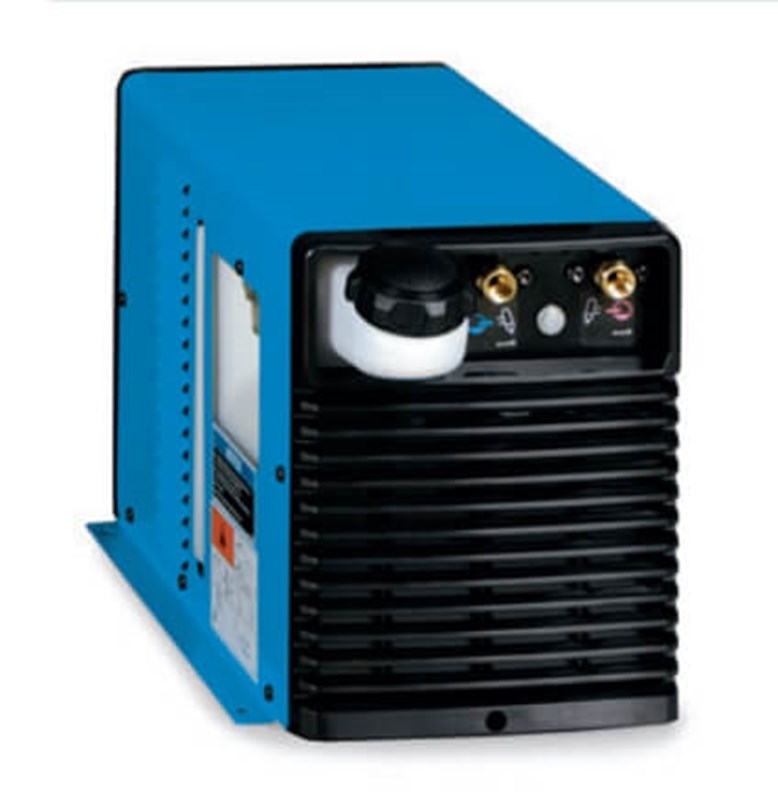

  • Coolmate™ 1.3
  • Coolant (4 one-gallon bottles of #043 810)
  • Small runner cart
  • Remote foot control (#194 744)
  • Weldcraft® W-280 (WP-280) torch kit (#300 990)
View the entire inventory of welding machinesMiller welding machines and used welding equipment available online from Welders Supply.

Dynasty 280 Series Specifications

Welding Mode

TIG (GTAW)

Stick (SMAW)

Input Power

3-phase 1-phase 3-phase 1-phase

Welding Amperage Range

2 - 280 A (AC)

1 - 280 A (DC)

2 - 280 A (AC)

1 - 280 A (DC)

5 - 280 A 5 - 280 A

Rated Output

235 A at 19.4 V,

60% duty cycle

200 A at 28 V,

60% duty cycle

180 A at 27.2 V,

60% duty cycle*

Amps Input at Rated Load Output,

50/60 Hz

208 V

19 33 22 34

230 V

17 30 20 31

400 V

10 17 11 17

460 V

9 15 10 15

575 V

7 12 8 12

KVA

7.0 6.9 8.2 7.1

KW

6.7 6.8 7.9 7

Max. Open-Circuit Voltage

60 VDC (11 VDC**)

Material Cutting Thickness

Steel: 0.004" (0.1mm) - .1875" (9.5mm)

Aluminum: 0.012" (0.3mm) - .1875" (9.5mm)

Industries & Interests

Aerospace, Boat / Yacht, Construction, Education / Training, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Mechanical Contracting

Portability

Handle(s), Strap, Running Gear / Cart (Optional)

Dimensions

H:

13.6 in. (346 mm)

W:

8.6 in. (219 mm)

D:

22.5 in. (569 mm)

Net Weight

52 lb. (23.6 kg)

55 lb. (25 kg) with CPS

Warranty

3 Years - Miller's True Blue Warranty

*Refer to owner's manual for 208 V output ratings and duty cycle

**Low OCV sense voltage for stick and Life-Arc™ TIG.

SHIPPING DIMENSIONS

Height: 20.00 Inches
Width: 44.00 Inches
Length: 50.00 Inches
Weight: 280 Lb(s) 0 Oz

Product Questions and Answers


Q - Does Miller make a cover for this? A - Yes, the Protective Cover is part #301382.
Q - Can I run this off a 220V outlet? A - Yes, you'll need a 30amp breaker for this.
