Miller Bobcat 225 with GFCI 907791

Welding type:

Mig

Stick

Tig

Engine Driven
Material type:

Mild Steel

Stainless Steel

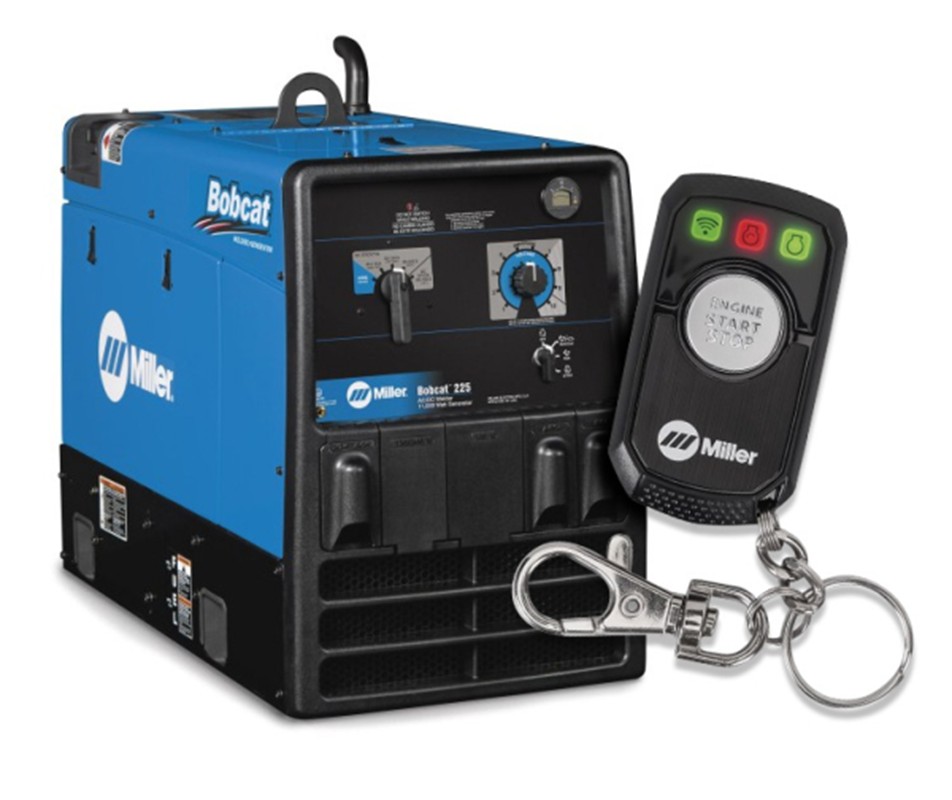

Miller Bobcat has upgraded the Bobcat 225 GFCI with their Remote Start/Stop technology. Using a wireless key fob controller, you can now start or stop the Bobcat 225 without the hassle of having to walk over to it. Besides being a huge time saver, the ability to remotely stop and start the machine helps get the most out of every tank of fuel, reduces emissions on the job site, reduces noise on the job site. The new Bobcat 225 GFCI is still the same great multiprocess welder/generator, but now gives you the convenience of being able to start and stop the machine the same way a remote starter key fob for a car does.
View all Miller Bobcat Welders and Miller Welding Machines
Bobcat™ 225 with Remote Start/Stop | |
---|---|
Industries Interests | Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Maintenance and Repair - Field Operations Mechanical Contracting Work / Service Trucks |
Engine Brand | Kohler |
Engine Idle Speed | 2300 RPM |
Engine Weld Speed | 3600 RPM |
Fuel Tank Size | 12 Gallon |
Fuel Type | Gasoline |
Horsepower | 23.5 hp |
Weldable Metals | Aluminum Steel Stainless Steel |
Single Phase Generator Continuous Power | 9500 W |
Single Phase Generator Peak Power | 11000 W |
Sound Rating | 73.5 dB |
Current Type | AC / DC |
Amperage Range | 40 - 225 |
Net Width | 20 in |
Net Height | 28 in |
Net Length | 40.5 in |
Net Weight | 485 lbs |
Warranty | 3 Years, Miller's True Blue Warranty |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Weld Output | CC / CV |
SHIPPING DIMENSIONS |
|
Height: | 20.00 Inches |
Width: | 33.00 Inches |
Length: | 41.00 Inches |
Weight: | 520 Lb(s) 8 Oz |
Stop engine and let it cool.
Insert the exhaust pipe and align the fastener.
Point the exhaust pipe in the desired direction, BUT AWAY from front panel, LP fuel tank, and the direction of travel.
Fasten the exhaust Pipe using the fastener provided.
