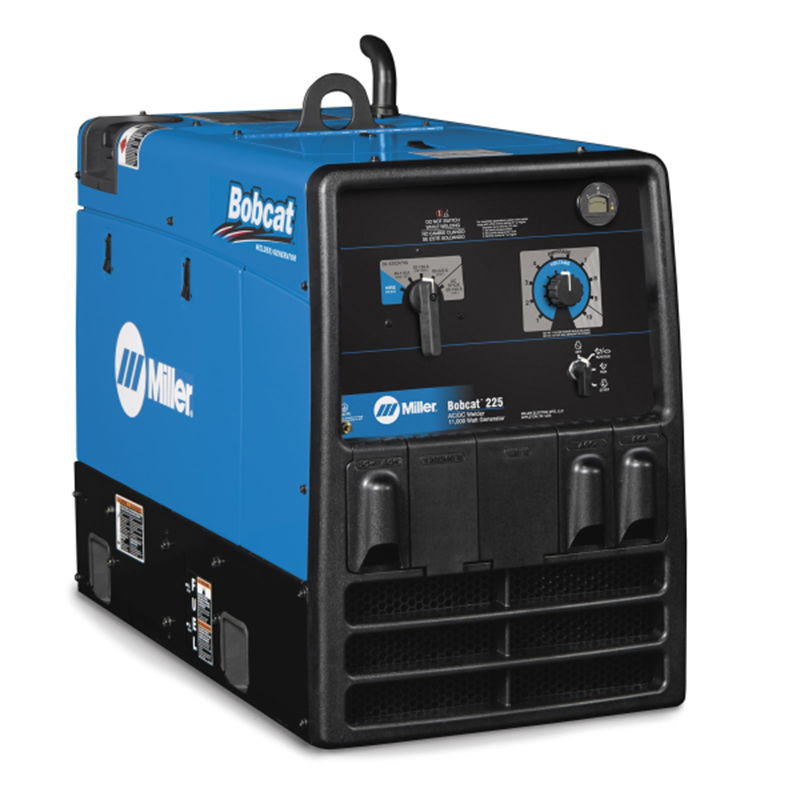

VideoMiller Bobcat 225 907791001
How do you improve on a welder/generator known for its reliability and solid performance in extreme working conditions? If you’re Miller Bobcat, you add Remote Start/Stop capability. The new Bobcat 225 includes a wireless key fob controller that lets you start and stop the machine without having to stop what you’re doing and walk over to it. Besides eliminating that hassle, Remote Start/Stop also helps you conserve fuel, reduce noise levels on the job site, and minimize emissions. The new Bobcat 225 is the same great Bobcat 225 it’s always been, only more convenient.
View all MIG, TIG and Stick Welders available at Welders Supply Company. Check out our welding helmets and plasma cutting machines.
Other versions of the Miller Bobcat 225:
View all Miller Bobcat Welders and Miller Welding Machines
PROCESSES
| Title | Bobcat™ 225 with Remote Start/Stop |
|---|---|
| Industries Interests | Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Maintenance and Repair - Field Operations Mechanical Contracting Work / Service Trucks |
| Engine Brand | Kohler |
| Engine Idle Speed | 2300 RPM |
| Engine Weld Speed | 3600 RPM |
| Fuel Tank Size | 12 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23.5 hp |
| Weldable Metals | Aluminum Steel Stainless Steel |
| Single Phase Generator Continuous Power | 9500 W |
| Single Phase Generator Peak Power | 11000 W |
| Sound Rating | 73.5 dB |
| Current Type | AC / DC |
| Amperage Range | 40 - 225 |
| Net Width | 20 in |
| Net Height | 28 in |
| Net Length | 40.5 in |
| Net Weight | 485 lbs |
| Warranty | 3 Years, Miller's True Blue Warranty |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Weld Output | CC / CV |
SHIPPING DIMENSIONS |
|
| Height: | 20.00 Inches |
| Width: | 33.00 Inches |
| Length: | 41.00 Inches |
| Weight: | 520 Lb(s) 0 Oz |
Product Questions and Answers
How to Start the Welding Generator:
-
Pull Out Choke.
Pull out choke if it is equipped.
-
Engine Control Switch.
Turn the engine control switch to the start position.
-
Push Choke.
Slowly Push in Choke.
-
Stop.
To stop the welding generator, switch the engine control switch to off.
